LY212-TGPGS3 (1999)
Toyota Dyna 150/Toyoace G15
Production
May 1999
-
Jul 2001
Engine
5L
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905- )LY132,212..ATM

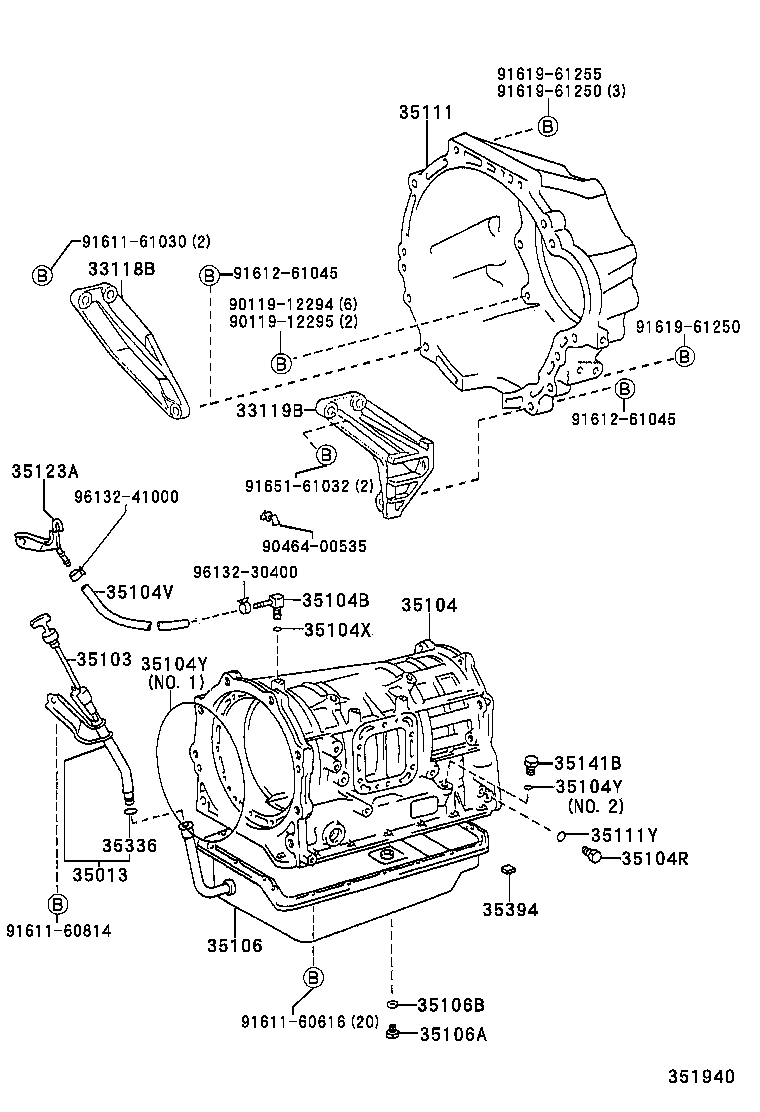

Click highlighted areas on diagram
A44DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33119B - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-25040 |
LY21#..ATM |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-25020 |
LY132,212..ATM |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03094 |
LY13#,21#..ATM |
1 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
LY13#,21#..ATM |
7 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11135 |
LY13#,21#..ATM |
1 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-06005 |
LY13#,21#..ATM |
1 | ||
| 35104Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-10189 |
LY132,212..ATM NO.2 |
1 | ||
| 90301-99067 |
LY132,212..ATM NO.1 |
1 | ||
| 35104Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-10189 |
LY132,212..ATM NO.2 |
1 | ||
| 90301-99067 |
LY132,212..ATM NO.1 |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-25010 |
LY13#,21#..ATM |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18057 |
LY13#,21#..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 12157-10010 |
LY13#,21#..ATM |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-25010 |
LY13#,21#..ATM |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
LY13#,21#..ATM |
7 | ||
| 35123A - SKIRT, TRANSMISSION BREATHER | ||||
| 35123-25010 |
LY13#,21#..ATM |
1 | ||
| 35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90341-13001 |
LY132,212..ATM |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
LY13#,21#..ATM |
4 | ||
| Common parts | ||||
| 90119-12294 | ||||
| 90119-12295 | ||||
| 90464-00535 | ||||
| 91611-60616 | ||||
| 91611-60814 | ||||
| 91611-61030 | ||||
| 91612-61045 | ||||
| 91619-61250 | ||||
| 91619-61255 | ||||
| 91651-61032 | ||||
| 96132-30400 | ||||
| 96132-41000 | ||||
