LY211-TQPGS3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - May 1999
Engine 3L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

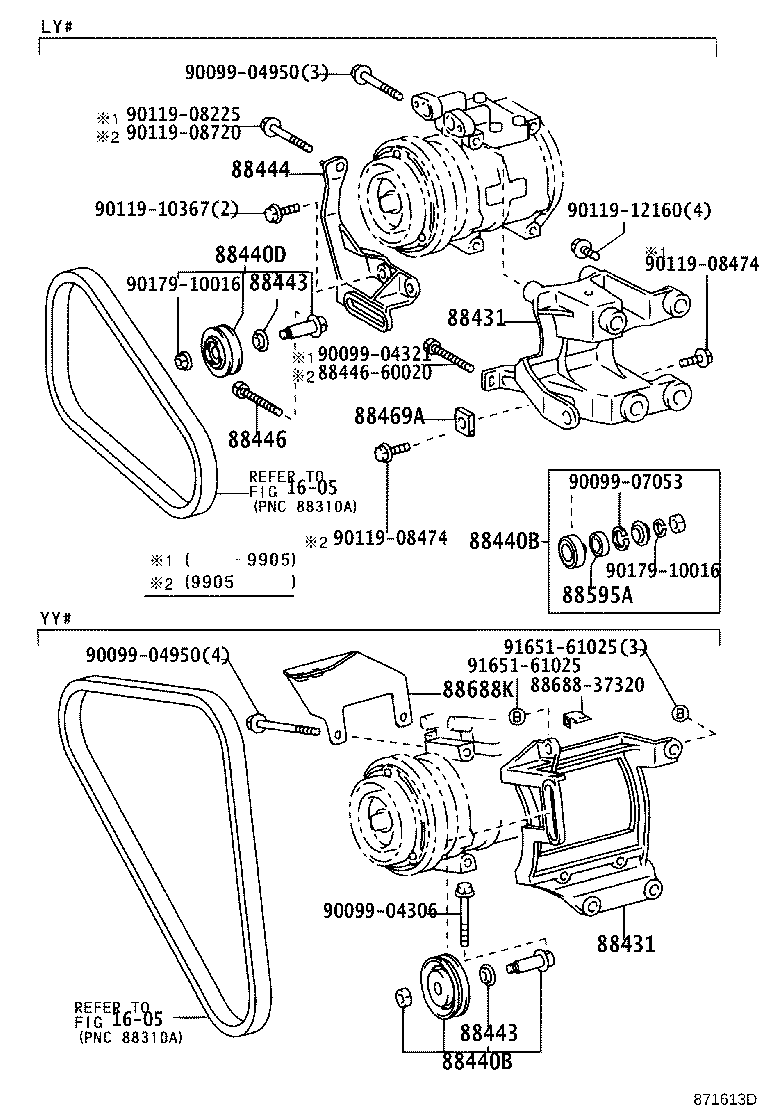

ILLUST NO. 2 OF 2(9505- )

Click highlighted areas on diagram

diagram 1605 1605 88431 88431 88440B 88440B 88440D 88443 88443 88444 88446 8844660020 88469A 88595A 8868837320 88688K 9009904306 9009904321 9009904950 9009904950 9009907053 9011908225 9011908474 9011908474 9011908720 9011910367 9011912160 9017910016 9017910016 9165161025 9165161025
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28070

YY201,211

 1
88431-35170

LY101..CBU;LY211..T3,TW2;LY101..1T..IV3;LY201..15T..CBU;LY101..ATM..IV3;LY111,201..125,1T;LY201..ST..15T..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28070

YY201,211

 1
88431-35170

LY101..CBU;LY211..T3,TW2;LY101..1T..IV3;LY201..15T..CBU;LY101..ATM..IV3;LY111,201..125,1T;LY201..ST..15T..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3

 1
88440B - PULLEY ASSY, IDLE
88440-26070

LY121..125;LY121..15T..CBU;LY131..ATM..IV3;LY101,111,201,211;LY131,151,161..CBU;LY151,161..T2..IV3;LY161..T3..125..IV3;LY121,131..(T3,TW2)..MTM..IV3

 1
88440B - PULLEY ASSY, IDLE
88440-26070

LY121..125;LY121..15T..CBU;LY131..ATM..IV3;LY101,111,201,211;LY131,151,161..CBU;LY151,161..T2..IV3;LY161..T3..125..IV3;LY121,131..(T3,TW2)..MTM..IV3

 1
88440D - PULLEY ASSY, IDLE NO.2
88440-35010

LY121..125;LY121..15T..CBU;LY131..ATM..IV3;LY101,111,201,211;LY131,151,161..CBU;LY151,161..T2..IV3;LY161..T3..125..IV3;LY121,131..(T3,TW2)..MTM..IV3

 1
88440-35010

LY121..125;LY131..CBU;LY121..15T..CBU;LY131..ATM..IV3;LY121,131..(T3,TW2)..MTM..IV3;LY101,111,151,161,201,211..DSL

 1
88443 - COLLAR, IDLE PULLEY
88443-36010

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 1
88443 - COLLAR, IDLE PULLEY
88443-36010

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 1
88444 - BRACKET, IDLE PULLEY
88444-35050

LY101..CBU;LY111,201,211;LY101..1T..IV3;LY101..ATM..IV3

 1
88446 - BOLT, IDLE PULLEY
88446-35010

LY101,111,121,131,151,161,201,211..DSL

 1
88469A - COLLAR, ADJUSTING
88469-30280

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

 1
88595A - BEARING (FOR COOLER IDLE PULLEY)
90099-10015

LY102,112,12#,13#,15#,16#,20#,21#..DSL

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-25130

YY201,211

 1
Common parts
88446-60020
88688-37320
90099-04306
90099-04321
90099-04950
90099-07053
90119-08225
90119-08474
90119-08720
90119-10367
90119-12160
90179-10016
91651-61025
Linked diagrams
1605

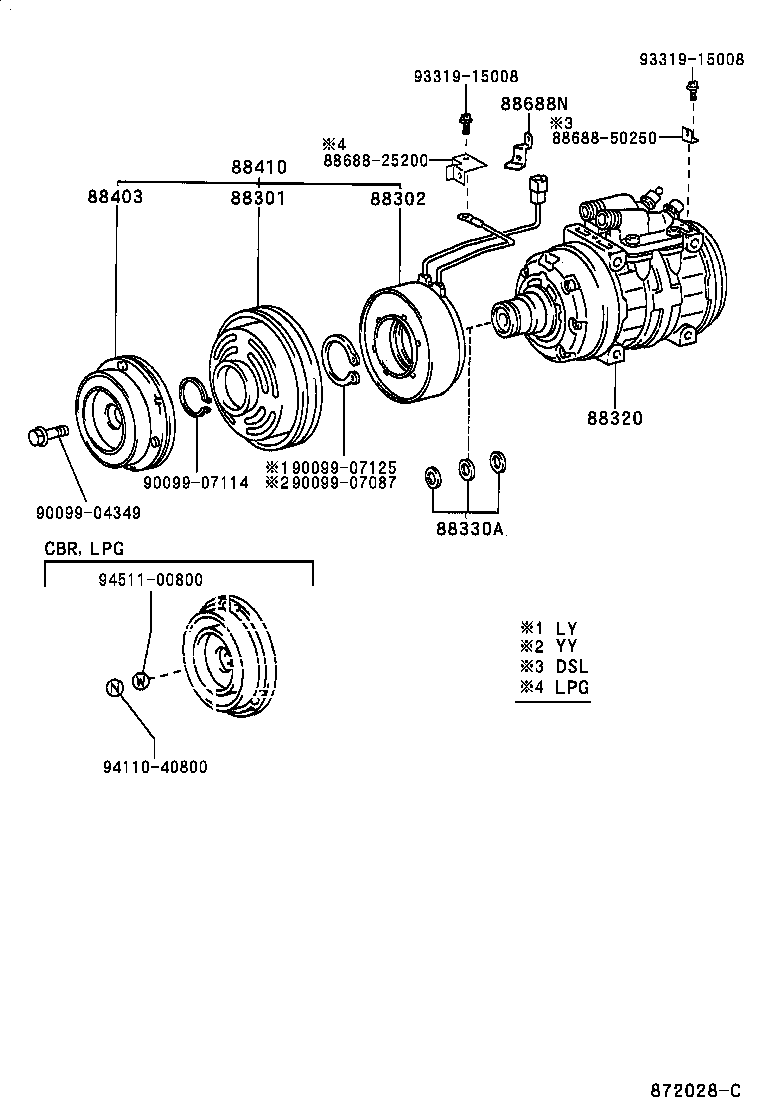

ILLUST NO. 1 OF 2(9505- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 8868825200 8868850250 88688N 9009904349 9009907087 9009907114 9009907125 9331915008 9331915008 9411040800 9451100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-30430

LY121..125;LY121..15T..CBU;LY151,161..T2..IV3;LY101,131..ATM..IV3;LY161..T3..125..IV3;LY131..(T3,TW2)..MTM..IV3;LY101,131,151,161..CBU,IV5;LY101,121..ST..(15T,1T)..IV3;LY102,11#,122,132,152,162,20#,21#..DSL

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-22280

LY121..125;LY121..15T..CBU;LY151,161..T2..IV3;LY101,131..ATM..IV3;LY161..T3..125..IV3;LY131..(T3,TW2)..MTM..IV3;LY101,131,151,161..CBU,IV5;LY101,121..ST..(15T,1T)..IV3;LY102,11#,122,132,152,162,20#,21#..DSL

 1
88320 - COMPRESSOR ASSY, COOLER
88320-26470

YY201,211

 1
88320-26480

LY121,201..125,1T;LY151,161..T2..IV3;LY121,201..15T..CBU;LY101,131..ATM..IV3;LY161..T3..125..IV3;LY211..(T3,TW2)..MTM;LY211..(T2,T4)..MTM..CBU;LY101,131,151,161..CBU,IV5;LY101,121..ST..(15T,1T)..IV3;LY102,11#,122,132,152,162,202,212..DSL;LY131,201..(T3,TW2)..MTM..(125,15T)..IV3

 1
88320-26480

LY211..ATM

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

LY121..125;LY111,201,211;LY121..15T..CBU;LY151,161..T2..IV3;LY101,131..ATM..IV3;LY161..T3..125..IV3;LY101,131,151,161..CBU;LY131..(T3,TW2)..MTM..IV3;LY101,121..ST..(15T,1T)..IV3

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-30290

LY121..125;LY111,201,211;LY121..15T..CBU;LY151,161..T2..IV3;LY101,131..ATM..IV3;LY161..T3..125..IV3;LY101,131,151,161..CBU;LY131..(T3,TW2)..MTM..IV3;LY101,121..ST..(15T,1T)..IV3

 1
88410 - CLUTCH ASSY, MAGNET
88410-25090

LY211..T3,TW2;LY121,201..125,1T;LY151,161..T2..IV3;LY101,131..ATM..IV3;LY161..T3..125..IV3;LY121,201..15T..CBU;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3;LY101,131,151,161..CBU,IV5;LY101,121..ST..(15T,1T)..IV3;LY102,11#,122,132,152,162,202,212..DSL;LY131,201..(T3,TW2)..MTM..(125,15T)..IV3

 1
88688N - BRACKET, COOLER
88569-60070

LY101,111,151,161,201,211..DSL

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
Common parts
88688-25200
88688-50250
90099-04349
90099-07087
90099-07114
90099-07125
93319-15008
94110-40800
94511-00800

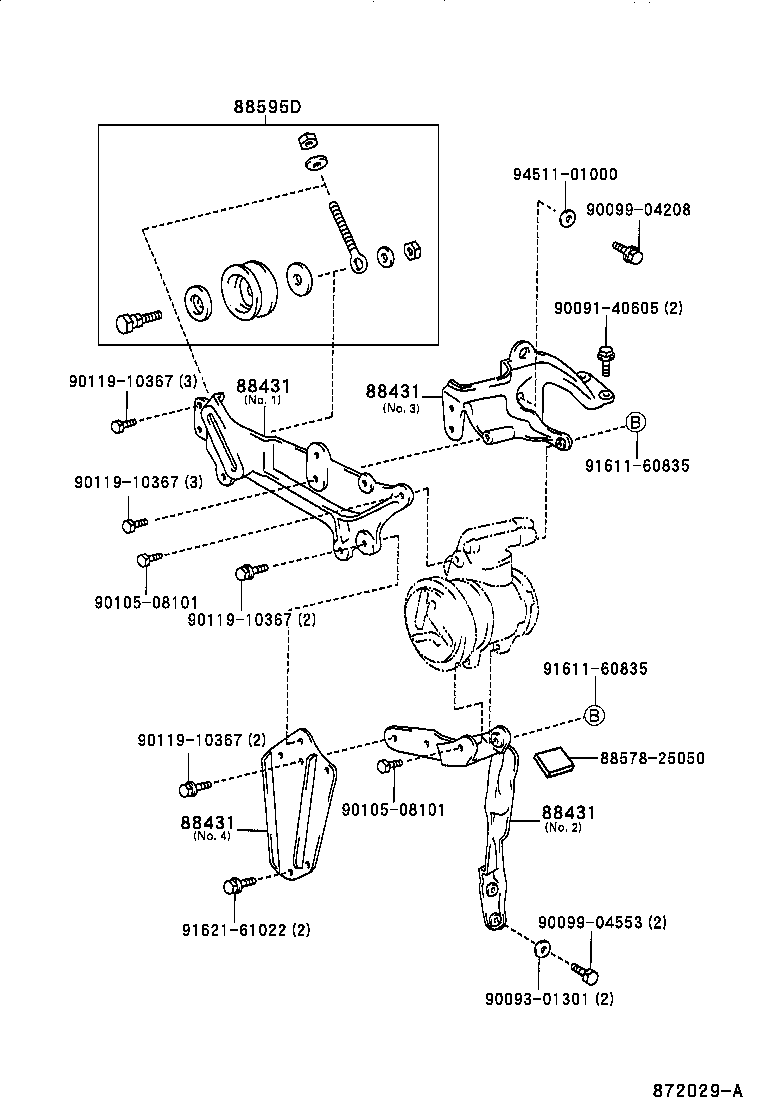

ILLUST NO. 2 OF 2(9505- )LY10#,11#,15#,16#,20#,21#

Click highlighted areas on diagram

ﾚｲﾄｳｼﾔ

diagram 88431 88431 88431 88431 8857825050 88595D 9009140605 9009301301 9009904208 9009904553 9010508101 9010508101 9011910367 9011910367 9011910367 9011910367 9161160835 9161160835 9162161022 9451101000
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28070

YY201,211

 1
88431-35170

LY101..CBU;LY211..T3,TW2;LY101..1T..IV3;LY201..15T..CBU;LY101..ATM..IV3;LY111,201..125,1T;LY201..ST..15T..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28070

YY201,211

 1
88431-35170

LY101..CBU;LY211..T3,TW2;LY101..1T..IV3;LY201..15T..CBU;LY101..ATM..IV3;LY111,201..125,1T;LY201..ST..15T..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28070

YY201,211

 1
88431-35170

LY101..CBU;LY211..T3,TW2;LY101..1T..IV3;LY201..15T..CBU;LY101..ATM..IV3;LY111,201..125,1T;LY201..ST..15T..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28070

YY201,211

 1
88431-35170

LY101..CBU;LY211..T3,TW2;LY101..1T..IV3;LY201..15T..CBU;LY101..ATM..IV3;LY111,201..125,1T;LY201..ST..15T..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3

 1
Common parts
88578-25050
90091-40605
90093-01301
90099-04208
90099-04553
90105-08101
90119-10367
91611-60835
91621-61022
94511-01000
