LY211-TQPGS (1995)
Toyota Dyna 150/Toyoace G15

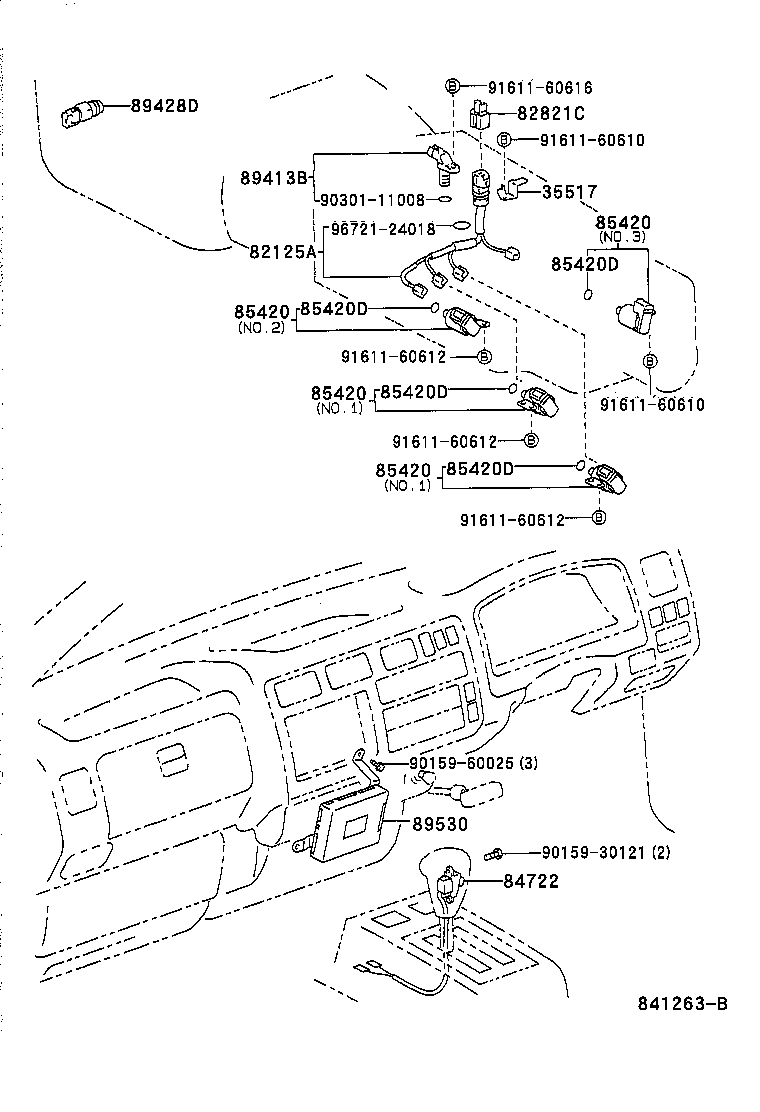

(9505- )LY13#,21#..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35517 - PLATE, TRANSMISSION WIRE LOCK | ||||
| 35517-37010 |
LY13#,21#..ATM |
1 | ||
| 82125A - WIRE, TRANSMISSION | ||||
| 82125-28010 |
LY10#,11#,16#..ATM |
1 | ||
| 82125-36010 |
LY13#,21#..ATM |
1 | ||
| 82821C - COVER, CONNECTOR | ||||
| 82821-37040 |
LY13#,21#..ATM |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-25010B0 |
LY10#,11#,13#,16#,21#,YY211..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-60020 |
LY13#,21#..ATM NO.1 |
2 | ||
| 85420-36010 |
LY131,211..ATM NO.1 |
2 | ||
| 85420-30050 |
LY10#,11#,16#..ATM SHIFT |
1 | ||
| 85420-36030 |
LY131,211..ATM NO.3 |
1 | ||
| 85420-60030 |
LY13#,21#..ATM NO.2 |
1 | ||
| 85420-36020 |
LY131,211..ATM NO.2 |
1 | ||
| 85420-30070 |
LY10#,11#,16#..ATM ﾛｯｸ ｱｯﾌﾟ |
1 | ||
| 85420-60040 |
LY13#,21#..ATM NO.3 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-36010 |
LY131,211..ATM NO.1 |
2 | ||
| 85420-30050 |
LY10#,11#,16#..ATM SHIFT |
1 | ||
| 85420-36030 |
LY131,211..ATM NO.3 |
1 | ||
| 85420-60030 |
LY13#,21#..ATM NO.2 |
1 | ||
| 85420-36020 |
LY131,211..ATM NO.2 |
1 | ||
| 85420-30070 |
LY10#,11#,16#..ATM ﾛｯｸ ｱｯﾌﾟ |
1 | ||
| 85420-60040 |
LY13#,21#..ATM NO.3 |
1 | ||
| 85420-60020 |
LY13#,21#..ATM NO.1 |
2 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-60020 |
LY13#,21#..ATM NO.1 |
2 | ||
| 85420-36010 |
LY131,211..ATM NO.1 |
2 | ||
| 85420-30050 |
LY10#,11#,16#..ATM SHIFT |
1 | ||
| 85420-36030 |
LY131,211..ATM NO.3 |
1 | ||
| 85420-60030 |
LY13#,21#..ATM NO.2 |
1 | ||
| 85420-36020 |
LY131,211..ATM NO.2 |
1 | ||
| 85420-30070 |
LY10#,11#,16#..ATM ﾛｯｸ ｱｯﾌﾟ |
1 | ||
| 85420-60040 |
LY13#,21#..ATM NO.3 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-60020 |
LY13#,21#..ATM NO.1 |
2 | ||
| 85420-36010 |
LY131,211..ATM NO.1 |
2 | ||
| 85420-30050 |
LY10#,11#,16#..ATM SHIFT |
1 | ||
| 85420-36030 |
LY131,211..ATM NO.3 |
1 | ||
| 85420-60030 |
LY13#,21#..ATM NO.2 |
1 | ||
| 85420-36020 |
LY131,211..ATM NO.2 |
1 | ||
| 85420-30070 |
LY10#,11#,16#..ATM ﾛｯｸ ｱｯﾌﾟ |
1 | ||
| 85420-60040 |
LY13#,21#..ATM NO.3 |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
LY13#,21#..ATM |
4 | ||
| 90301-06004 |
LY10#,11#,16#..ATM |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
LY13#,21#..ATM |
4 | ||
| 90301-06004 |
LY10#,11#,16#..ATM |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
LY13#,21#..ATM |
4 | ||
| 90301-06004 |
LY10#,11#,16#..ATM |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
LY13#,21#..ATM |
4 | ||
| 90301-06004 |
LY10#,11#,16#..ATM |
2 | ||
| 89413B - SENSOR, TRANSMISSION REVOLUTION | ||||
| 89413-32010 |
LY13#,21#..ATM |
1 | ||
| 89428D - SWITCH, TEMPERATURE, NO.2 | ||||
| 89428-60090 |
LY211..ATM |
1 | ||
| 89530 - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-25010 |
LY131,211..ATM |
1 | ||
| Common parts | ||||
| 90159-30121 | ||||
| 90159-60025 | ||||
| 90301-11008 | ||||
| 91611-60610 | ||||
| 91611-60612 | ||||
| 91611-60616 | ||||
| 96721-24018 | ||||

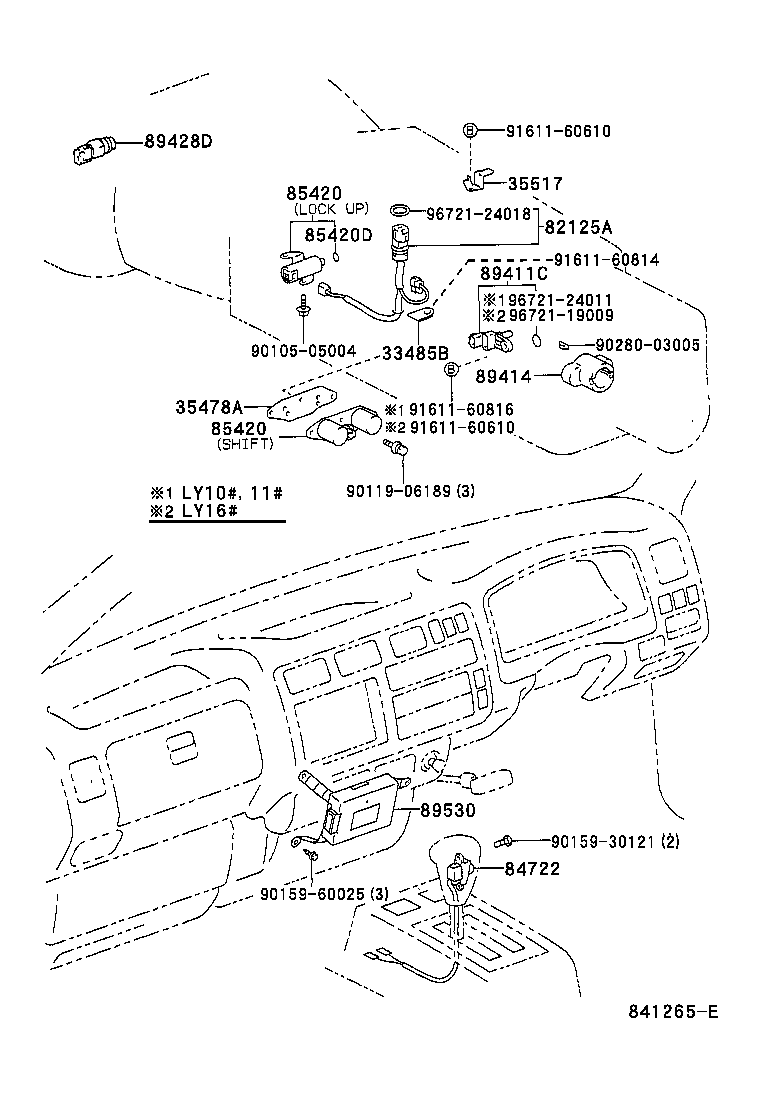

(9610- )LY10#,11#,16#..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33485B - PLATE, TRANSMISSION WIRE | ||||
| 33485-30020 |
LY10#,11#,161..ATM |
1 | ||
| 35478A - GASKET, SHIFT CONTROL SOLENOID | ||||
| 35478-30010 |
LY10#,11#,16#..ATM |
1 | ||
| 35517 - PLATE, TRANSMISSION WIRE LOCK | ||||
| 35517-37010 |
LY13#,21#..ATM |
1 | ||
| 82125A - WIRE, TRANSMISSION | ||||
| 82125-28010 |
LY10#,11#,16#..ATM |
1 | ||
| 82125-36010 |
LY13#,21#..ATM |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-25010B0 |
LY10#,11#,13#,16#,21#,YY211..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-36010 |
LY131,211..ATM NO.1 |
2 | ||
| 85420-30050 |
LY10#,11#,16#..ATM SHIFT |
1 | ||
| 85420-36030 |
LY131,211..ATM NO.3 |
1 | ||
| 85420-60030 |
LY13#,21#..ATM NO.2 |
1 | ||
| 85420-36020 |
LY131,211..ATM NO.2 |
1 | ||
| 85420-30070 |
LY10#,11#,16#..ATM ﾛｯｸ ｱｯﾌﾟ |
1 | ||
| 85420-60040 |
LY13#,21#..ATM NO.3 |
1 | ||
| 85420-60020 |
LY13#,21#..ATM NO.1 |
2 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-36010 |
LY131,211..ATM NO.1 |
2 | ||
| 85420-30050 |
LY10#,11#,16#..ATM SHIFT |
1 | ||
| 85420-36030 |
LY131,211..ATM NO.3 |
1 | ||
| 85420-60030 |
LY13#,21#..ATM NO.2 |
1 | ||
| 85420-36020 |
LY131,211..ATM NO.2 |
1 | ||
| 85420-30070 |
LY10#,11#,16#..ATM ﾛｯｸ ｱｯﾌﾟ |
1 | ||
| 85420-60040 |
LY13#,21#..ATM NO.3 |
1 | ||
| 85420-60020 |
LY13#,21#..ATM NO.1 |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
LY13#,21#..ATM |
4 | ||
| 90301-06004 |
LY10#,11#,16#..ATM |
2 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-28020 |
LY10#,11#..ATM |
1 | ||
| 89414 - ROTOR, SENSOR | ||||
| 89414-30011 |
LY10#,11#..ATM |
1 | ||
| 89428D - SWITCH, TEMPERATURE, NO.2 | ||||
| 89428-60090 |
LY211..ATM |
1 | ||
| 89530 - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-25010 |
LY131,211..ATM |
1 | ||
| Common parts | ||||
| 90105-05004 | ||||
| 90119-06189 | ||||
| 90159-30121 | ||||
| 90159-60025 | ||||
| 90280-03005 | ||||
| 91611-60610 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 96721-19009 | ||||
| 96721-24011 | ||||
| 96721-24018 | ||||
