LY211-TQPGS (1995)
Toyota Dyna 150/Toyoace G15
ILLUST NO. 2 OF 2(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-60010 |
LY201,211,YY201,211 |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-25131 |
LY211,YY211..ST..125;LY201,211,YY201,211..T3,T4 |
1 | ||
| 47910-25190 |
LY10#,11#,15#,YY101..CBU,IV3;LY16#..(T2,T3,TW1)..TS..(CBU,IV3) |
1 | ||
| 47910-25160 |
LY211,YY211..T3,T4;LY211,YY211..ST..125;LY20#,212,YY201..(T3,T4,TW2)..(125,15T) |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-25020 |
LY202;LY201,21#,YY201,211..T2..WT;LY201,21#,YY201,211..T1,T3,T4,TW2 |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 |
2 | ||
| 90387-08099 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 |
2 | ||
| 90387-08099 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 |
1 | ||
| 90467-31110 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 |
2 | ||
| 90202-10103 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 |
2 | ||
| 90202-10103 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-26091 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131..CBU,IV3 |
1 | ||
| 47931-25040 |
LY212..T2..ST;LY212..T3,T4,TW2;LY211,YY211..(T2,TW2)..ST;LY20#,211,YY201,211..T3,T4 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-36050 |
LY201,211,YY201,211 |
1 | ||
| 47933-26081 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131..CBU,IV3 |
1 | ||
| 47933-36051 |
LY20#,21#,YY201,211 |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
1 | ||
| 47935-35010 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 |
1 | ||
| 90387-08099 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
2 | ||
| 90385-10064 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
2 | ||
| 90385-10064 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90201-08062 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
1 | ||
| 90948-02033 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 |
1 | ||
| 90201-08062 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
1 | ||
| 47936-35010 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 |
1 | ||
| 47937-60010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
1 | ||
| Common parts | ||||
| 90119-08703 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-60816 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||

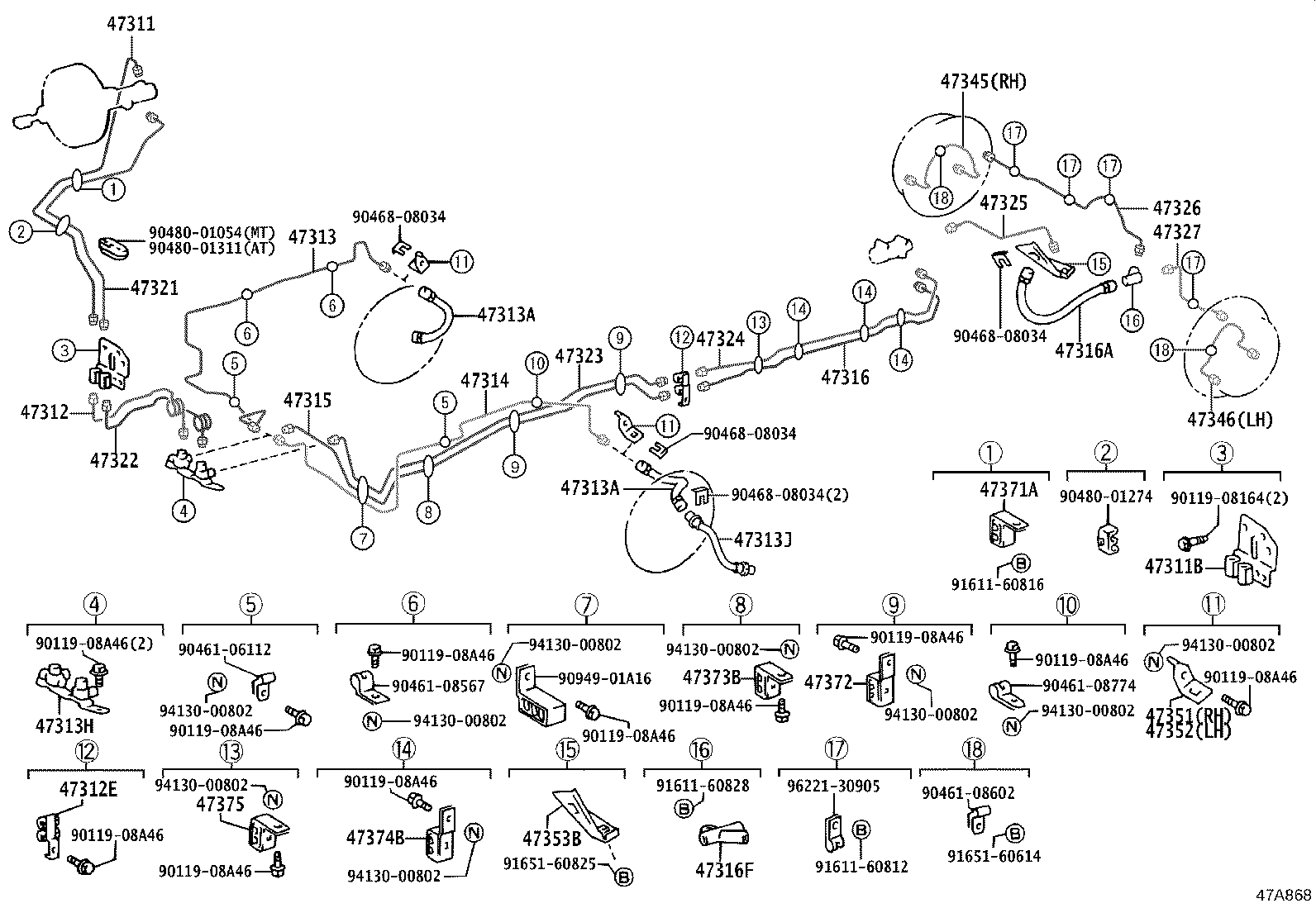

ILLUST NO. 1 OF 2(9505- )T4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-25240 |
LY201,YY201..ST;LY211,YY211..T3,T4;LY211,YY211..(T2,TW2)..ST |
1 | ||
| 47311-25240 |
LY20#,21#,YY201,211 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12018 |
LY20#,21#,YY201,211 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-25110 |
LY201,211,YY201,211 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10222 |
LY20#,21#,YY201,211 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-25120 |
LY201,211,YY201,211 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-33555 |
LY211,YY211..T4 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-33555 |
LY211,YY211..T4 |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90414-10015 |
LY20#,21#,YY201,211 |
1 | ||
| 90904-13023 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
1 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 96940-32256 |
LY211,YY211..T4 |
2 | ||
| 96940-32255 |
LY21#,YY211..T4 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-25150 |
LY20#,21#,YY201,211 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-25100 |
LY10#,11#,YY101 |
1 | ||
| 47315-25080 |
LY20#,21#,YY201,211 |
1 | ||
| 47315-25090 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-25170 |
LY10#,15#,YY101 |
1 | ||
| 47316-25160 |
LY212..T2..ST;LY212..T3,T4,TW2;LY211,YY211..T3,T4;LY211,YY211..(T2,TW2)..ST |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02621 |
LY16#..ST..15T;LY21#,YY211..T4;LY12#,13#,YY121,131..ST;LY15#,16#..(T2,TW2)..125 |
1 | ||
| 47316F - WAY, 3(FOR REAR BRAKE TUBE) | ||||
| 90413-10216 |
LY10#,11#,15#,YY101;LY16#..(T2,T3,TW1)..TS;LY12#,13#,YY121,131..WT |
1 | ||
| 90413-10147 |
LY16#..15T;LY16#..TW2;LY20#,21#,YY201,211;LY12#,13#,YY121,131..ST |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-25100 |
LY201,YY201..ST;LY211,YY211..T3,T4;LY211,YY211..(T2,TW2)..ST |
1 | ||
| 47321-25100 |
LY20#,21#,YY201,211 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-25100 |
LY20#,21#,YY201,211 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-25120 |
LY20#,21#,YY201,211 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-25290 |
LY10#,15#,YY101 |
1 | ||
| 47324-25280 |
LY212..T2..ST;LY212..T3,T4,TW2;LY211,YY211..T3,T4;LY211,YY211..(T2,TW2)..ST |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-25200 |
LY21#,YY211..T4 |
1 | ||
| 47325-26281 |
LY10#,11#,15#,YY101;LY16#..(T2,T3,TW1)..TS |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-25210 |
LY21#,YY211..T4 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-25170 |
LY21#,YY211..T4 |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47342-36060 |
LY21#,YY211..T4 |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47344-36060 |
LY21#,YY211..T4 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-25081 |
LY20#,21#,YY201,211 |
1 | ||
| 47351-26070 |
LY10#,11#,YY101 |
1 | ||
| 47351-26090 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-25091 |
LY20#,21#,YY201,211 |
1 | ||
| 47352-26090 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 47352-26070 |
LY10#,11#,YY101 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-25040 |
LY21#,YY211..T4 |
1 | ||
| 47353-26050 |
LY10#,11#,15#,YY101;LY16#..(T2,T3,TW1)..TS |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47373-25010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-25010 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| 47372-25010 |
LY10#,11#,YY101 |
3 | ||
| 47372-25010 |
LY20#,21#,YY201,211 |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-25010 |
LY20#,21#,YY201,211 |
1 | ||
| 47373-26010 |
LY10#,11#,YY101 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47372-25010 |
LY10#,11#,12#,13#,15#,16#,20#,YY101,121,131,201 |
2 | ||
| 47372-25010 |
LY21#,YY211..CBR,DSL |
3 | ||
| 47372-25010 |
LY211,YY211 |
3 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47373-25010 |
LY201,211,YY201,211 |
1 | ||
| 47373-25010 |
LY20#,21#,YY201,211..CBR,DSL |
1 | ||
| Common parts | ||||
| 90119-08164 | ||||
| 90119-08A46 | ||||
| 90461-06112 | ||||
| 90461-08567 | ||||
| 90461-08602 | ||||
| 90461-08774 | ||||
| 90468-08034 | ||||
| 90480-01054 | ||||
| 90480-01274 | ||||
| 90480-01311 | ||||
| 90949-01A16 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91611-60828 | ||||
| 91651-60614 | ||||
| 91651-60825 | ||||
| 94130-00802 | ||||
| 96221-30905 | ||||
