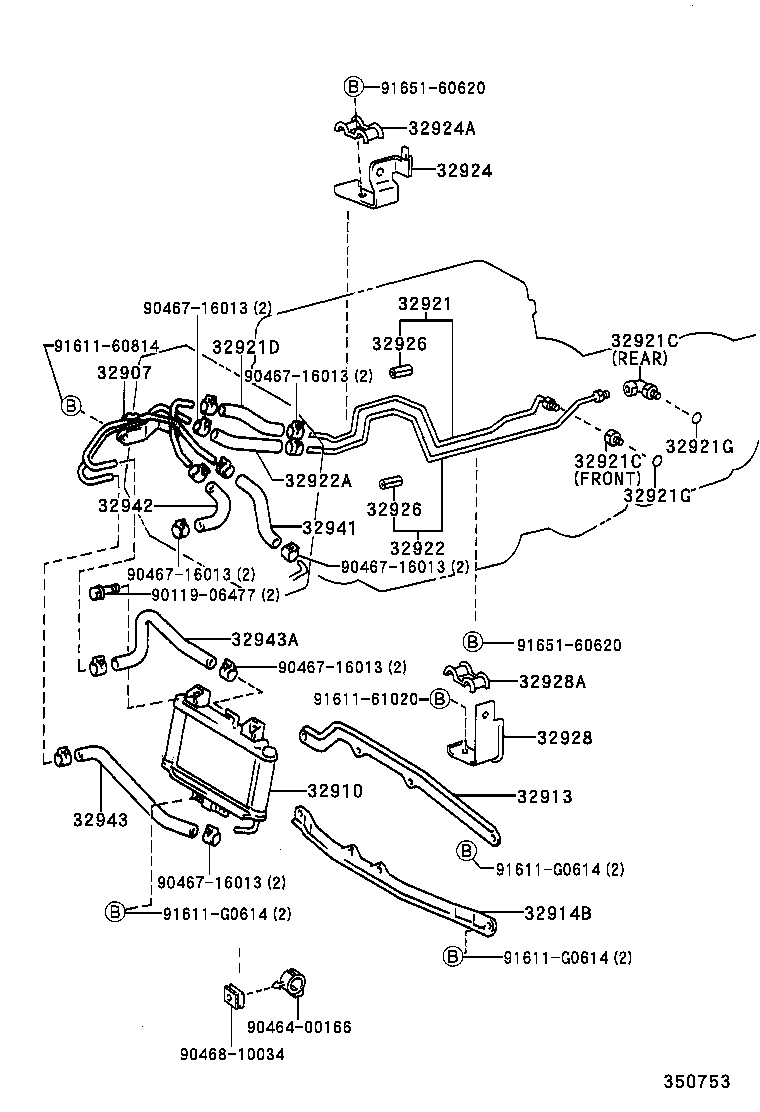

LY211-TQPGS (1995)
Toyota Dyna 150/Toyoace G15
(9610- )LY10#,11#..ATM
A44DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2 | ||||
| 32907-25020 |
LY10#,11#..ATM |
1 | ||
| 32910 - COOLER ASSY, OIL | ||||
| 32910-25011 |
LY10#,11#..ATM |
1 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-25010 |
LY10#,11#..ATM |
1 | ||
| 32914B - STAY, TRANSMISSION OIL COOLER | ||||
| 32914-25010 |
LY10#,11#..ATM |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-25030 |
LY211..ATM |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16010 |
LY10#,11#,YY211..ATM ﾘﾔ |
1 | ||
| 90407-20004 |
LY13#,21#..ATM |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16010 |
LY10#,11#,YY211..ATM ﾘﾔ |
1 | ||
| 90407-20004 |
LY13#,21#..ATM |
2 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-25030 |
LY211..ATM |
1 | ||
| 32941-22181 |
LY10#,11#..ATM |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
LY10#,11#,16#,YY211..ATM |
2 | ||
| 90301-11006 |
LY13#,21#..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
LY10#,11#,16#,YY211..ATM |
2 | ||
| 90301-11006 |
LY13#,21#..ATM |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-25030 |
LY211..ATM |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32942-25030 |
LY211..ATM |
1 | ||
| 32942-25040 |
LY10#,11#..ATM |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32928-25010 |
LY211..ATM |
1 | ||
| 32924-26061 |
LY10#,11#..ATM |
1 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 90929-01358 |
LY211..ATM |
1 | ||
| 90462-12044 |
LY10#,11#,16#..ATM |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
LY211..ATM 長さ=45,内径=12 |
7 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
LY211..ATM 長さ=45,内径=12 |
7 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32924-25010 |
LY211..ATM |
1 | ||
| 32924-25020 |
LY211..ATM |
1 | ||
| 32928-26021 |
LY10#,11#..ATM |
1 | ||
| 32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP) | ||||
| 90462-12076 |
LY211..ATM |
1 | ||
| 90462-12044 |
LY10#,11#..ATM |
1 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-25020 |
LY10#,11#..ATM |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-25020 |
LY10#,11#..ATM |
1 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-25010 |
LY10#,11#..ATM |
1 | ||
| 32943A - HOSE, TRANSMISSION OIL COOLER, NO.2 | ||||
| 32943-25020 |
LY10#,11#..ATM |
1 | ||
| Common parts | ||||
| 90119-06477 | ||||
| 90464-00166 | ||||
| 90467-16013 | ||||
| 90468-10034 | ||||
| 91611-60814 | ||||
| 91611-61020 | ||||
| 91611-G0614 | ||||
| 91651-60620 | ||||
(9505-9905)LY211..ATM
A443E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-25030 |
LY211..ATM |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16010 |
LY10#,11#,YY211..ATM ﾘﾔ |
1 | ||
| 90407-20004 |
LY13#,21#..ATM |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16010 |
LY10#,11#,YY211..ATM ﾘﾔ |
1 | ||
| 90407-20004 |
LY13#,21#..ATM |
2 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-25030 |
LY211..ATM |
1 | ||
| 32941-22181 |
LY10#,11#..ATM |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
LY10#,11#,16#,YY211..ATM |
2 | ||
| 90301-11006 |
LY13#,21#..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
LY10#,11#,16#,YY211..ATM |
2 | ||
| 90301-11006 |
LY13#,21#..ATM |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-25030 |
LY211..ATM |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32942-25030 |
LY211..ATM |
1 | ||
| 32942-25040 |
LY10#,11#..ATM |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-25010 |
LY13#,21#..ATM |
1 | ||
| 32923-60060 |
LY211..ATM |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 90462-12076 |
LY13#,21#..ATM |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32928-25010 |
LY211..ATM |
1 | ||
| 32924-26061 |
LY10#,11#..ATM |
1 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 90929-01358 |
LY211..ATM |
1 | ||
| 90462-12044 |
LY10#,11#,16#..ATM |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 32909-25010 |
LY211..ATM |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
LY211..ATM 長さ=45,内径=12 |
7 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
LY211..ATM 長さ=45,内径=12 |
7 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32924-25010 |
LY211..ATM |
1 | ||
| 32924-25020 |
LY211..ATM |
1 | ||
| 32928-26021 |
LY10#,11#..ATM |
1 | ||
| 32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP) | ||||
| 90462-12076 |
LY211..ATM |
1 | ||
| 90462-12044 |
LY10#,11#..ATM |
1 | ||
| 32929 - CLAMP, FLEXIBLE HOSE, NO.2 | ||||
| 32929-25010 |
LY211..ATM |
1 | ||
| Common parts | ||||
| 90464-00166 | ||||
| 90467-16013 | ||||
| 90468-10034 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
| 91611-61020 | ||||
