LY211-TQPGS (1995)
Toyota Dyna 150/Toyoace G15

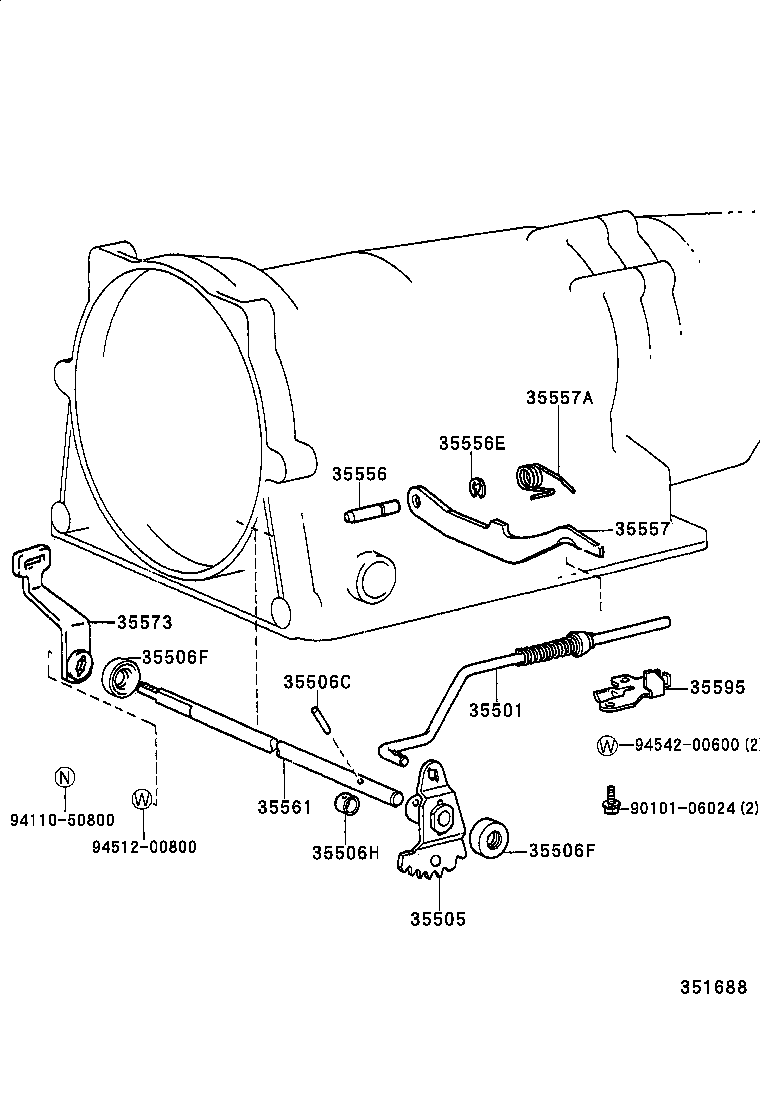

ILLUST NO. 1 OF 2(9610- )LY10#,11#..ATM
A44DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-26020 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35501-25010 |
LY131,211..ATM |
1 | ||
| 35501-36021 |
LY211..ATM |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-60020 |
LY131,211..ATM |
1 | ||
| 35505-22020 |
LY10#,11#,16#..ATM |
1 | ||
| 35505-36030 |
LY131,211..ATM |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-04011 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-11003 |
LY10#,11#,16#,YY211..ATM |
2 | ||
| 90311-12002 |
LY13#,21#..ATM |
2 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-11003 |
LY10#,11#,16#,YY211..ATM |
2 | ||
| 90311-12002 |
LY13#,21#..ATM |
2 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20003 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-26010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35556-36010 |
LY13#,21#..ATM |
1 | ||
| 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90523-08021 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-36010 |
LY131,211..ATM |
1 | ||
| 35557-26040 |
LY10#,11#,16#..ATM |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-21001 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 90508-30010 |
LY13#,21#..ATM |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-36010 |
LY13#,21#..ATM |
1 | ||
| 35561-30060 |
LY10#,11#..ATM |
1 | ||
| 35573 - LEVER, TRANSMISSION CONTROL SHAFT, LH | ||||
| 35573-26020 |
LY10#,11#..ATM |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-26010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35595-36010 |
LY131,211..ATM |
1 | ||
| Common parts | ||||
| 90101-06024 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94542-00600 | ||||

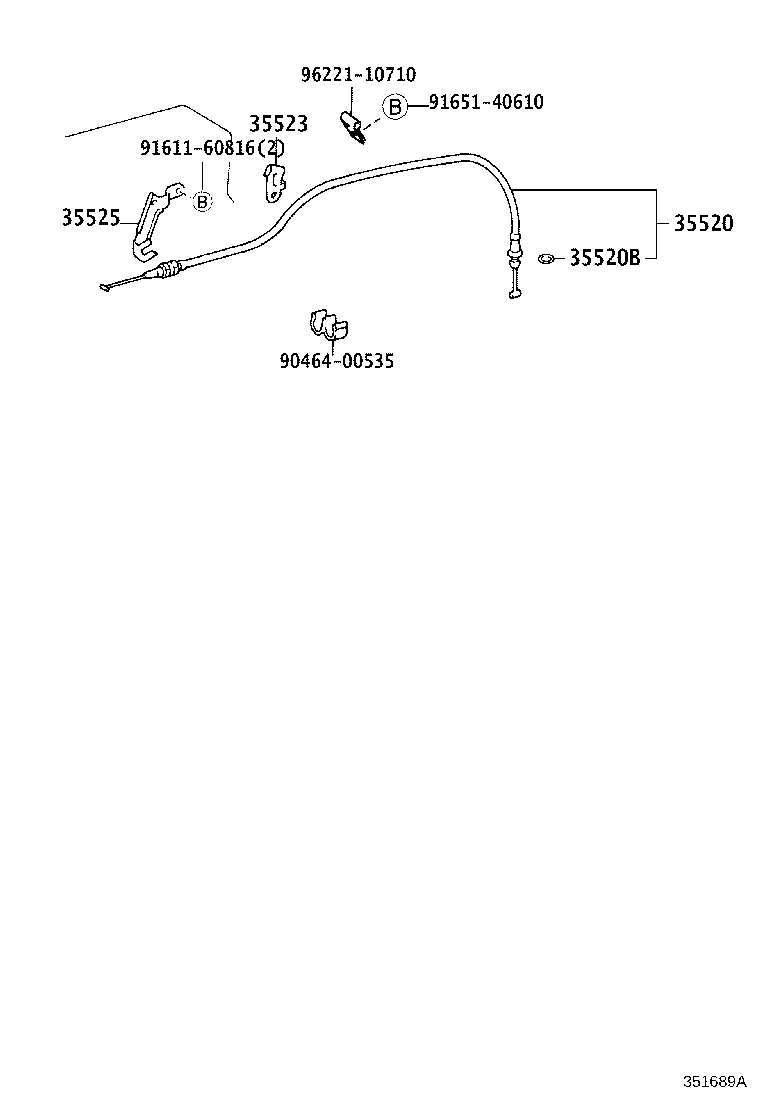

ILLUST NO. 2 OF 2(9610- )LY10#,11#,16#..ATM
A44DE,A44DF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-25021 |
LY10#,11#,16#..ATM |
1 | ||
| 35520-25010 |
LY13#,21#..ATM |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09012 |
LY10#,11#,16#..ATM |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-26021 |
LY10#,11#,13#,16#,21#..ATM |
1 | ||
| 35523-26020 |
LY101,111,131,211..ATM |
1 | ||
| 35525 - BRACKET, THROTTLE CABLE | ||||
| 35525-35031 |
LY10#,11#,13#,16#,21#..ATM |
1 | ||
| Common parts | ||||
| 90464-00535 | ||||
| 91611-60816 | ||||
| 91651-40610 | ||||
| 96221-10710 | ||||

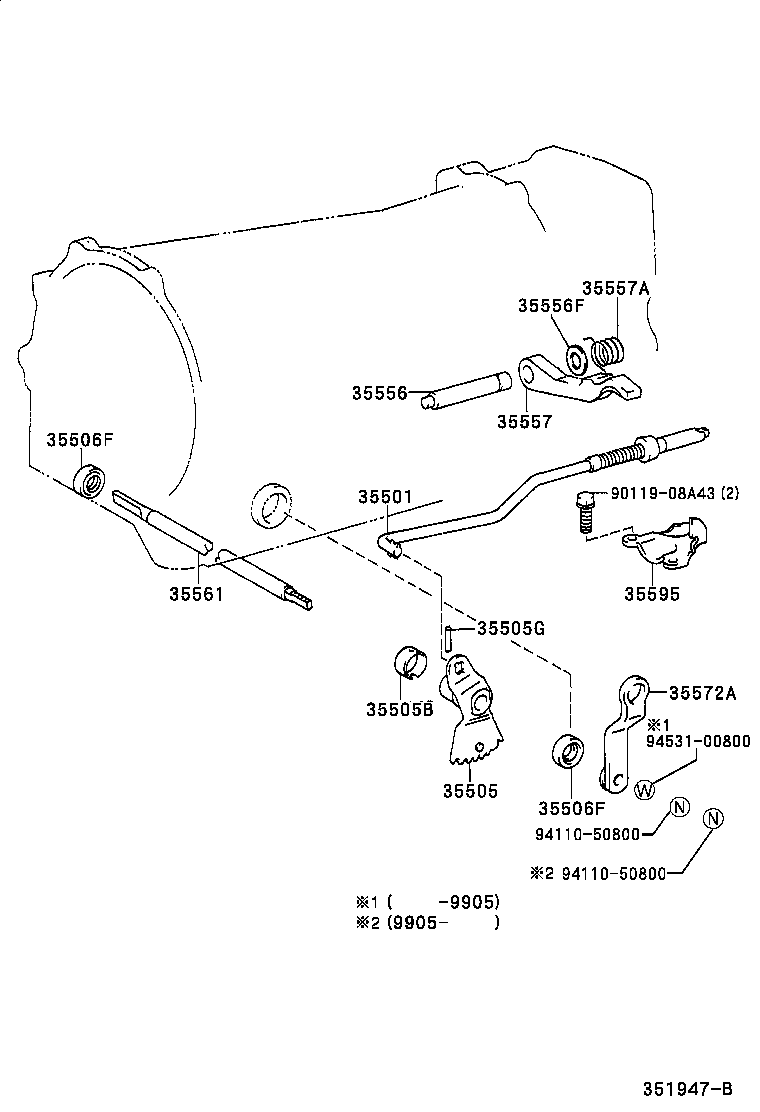

ILLUST NO. 1 OF 2(9505- )LY13#,21#..ATM
A44DE,A443E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-26020 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35501-25010 |
LY131,211..ATM |
1 | ||
| 35501-36021 |
LY211..ATM |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-60020 |
LY131,211..ATM |
1 | ||
| 35505-22020 |
LY10#,11#,16#..ATM |
1 | ||
| 35505-36030 |
LY131,211..ATM |
1 | ||
| 35505B - SPACER (FOR MANUAL VALVE LEVER) | ||||
| 90560-20008 |
LY13#,21#..ATM |
1 | ||
| 35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER) | ||||
| 90254-04012 |
LY13#,21#..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-11003 |
LY10#,11#,16#,YY211..ATM |
2 | ||
| 90311-12002 |
LY13#,21#..ATM |
2 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-11003 |
LY10#,11#,16#,YY211..ATM |
2 | ||
| 90311-12002 |
LY13#,21#..ATM |
2 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-26010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35556-36010 |
LY13#,21#..ATM |
1 | ||
| 35556F - WASHER, PLATE (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90201-16012 |
LY13#,21#..ATM |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-36010 |
LY131,211..ATM |
1 | ||
| 35557-26040 |
LY10#,11#,16#..ATM |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-21001 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 90508-30010 |
LY13#,21#..ATM |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-36010 |
LY13#,21#..ATM |
1 | ||
| 35561-30060 |
LY10#,11#..ATM |
1 | ||
| 35572A - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-25020 |
LY13#,21#..ATM |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-26010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35595-36010 |
LY131,211..ATM |
1 | ||
| Common parts | ||||
| 90119-08A43 | ||||
| 94110-50800 | ||||
| 94531-00800 | ||||

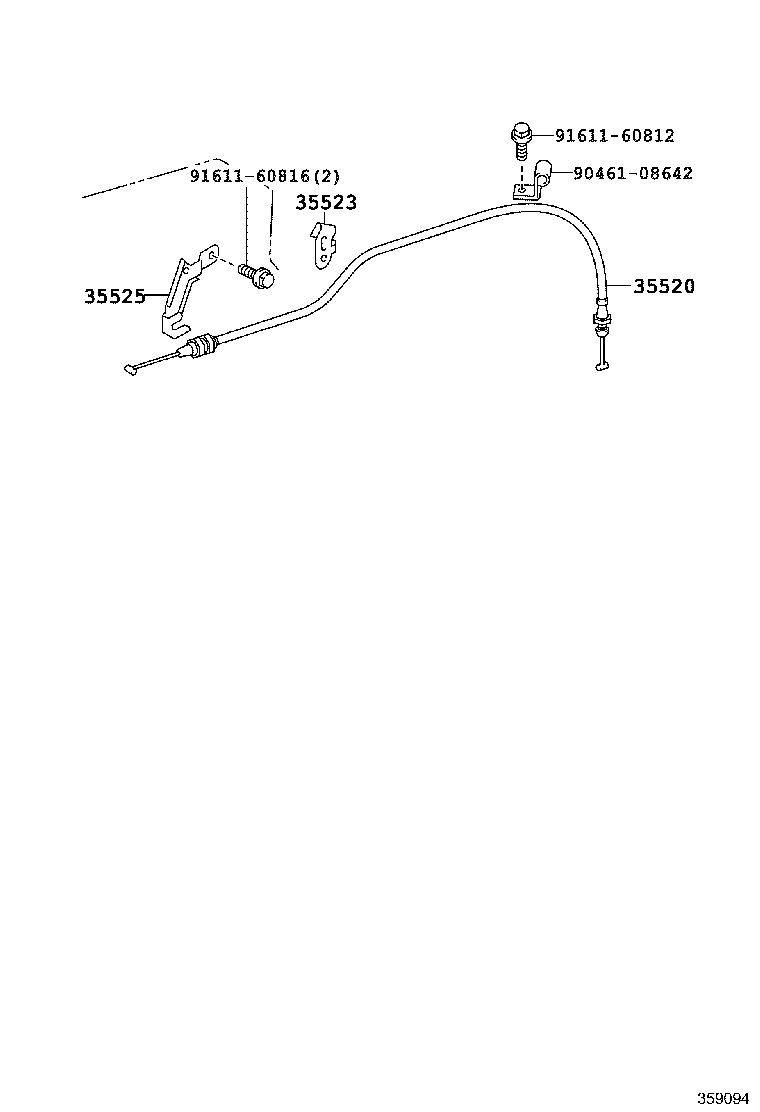

ILLUST NO. 2 OF 2(9505- )LY13#,21#..ATM
A44DE,A443E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-25021 |
LY10#,11#,16#..ATM |
1 | ||
| 35520-25010 |
LY13#,21#..ATM |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-26021 |
LY10#,11#,13#,16#,21#..ATM |
1 | ||
| 35523-26020 |
LY101,111,131,211..ATM |
1 | ||
| 35525 - BRACKET, THROTTLE CABLE | ||||
| 35525-35031 |
LY10#,11#,13#,16#,21#..ATM |
1 | ||
| Common parts | ||||
| 90461-08642 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
