LY211-TQPGS (1995)
Toyota Dyna 150/Toyoace G15

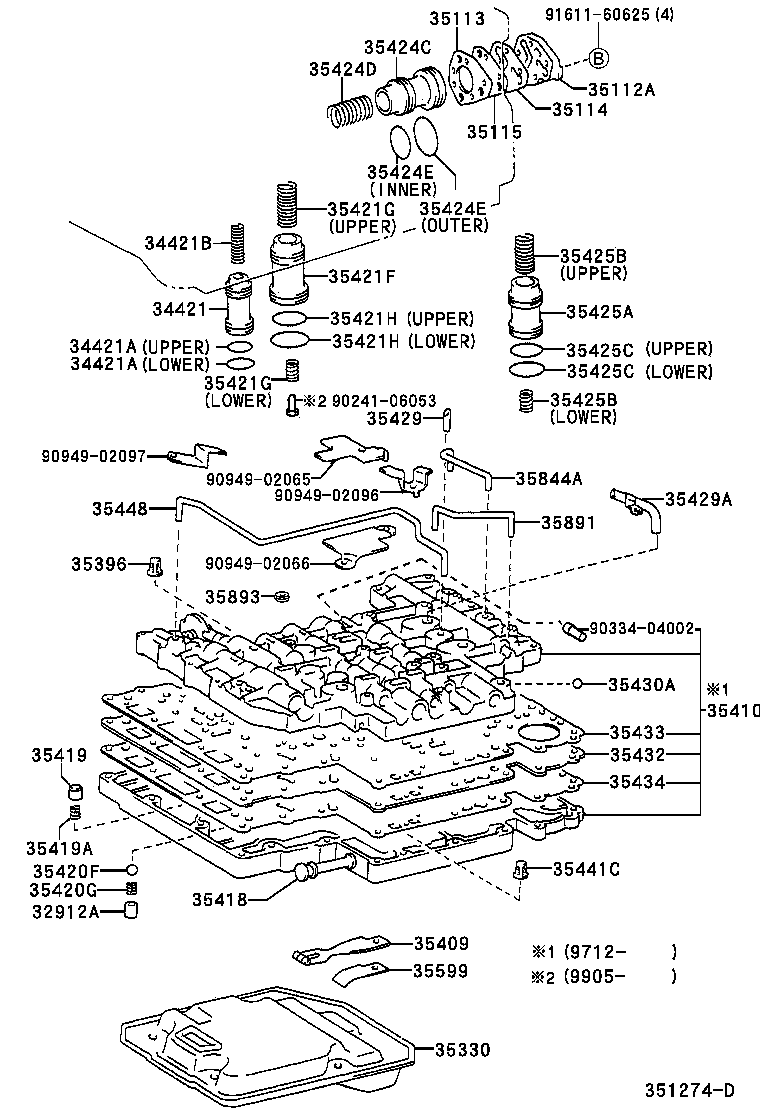

ILLUST NO. 1 OF 4(9505- )LY13#,21#..ATM
A44DE,A443E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32912A - CAGE, CHECK VALVE(FOR VALVE BODY) | ||||
| 32912-60010 |
LY13#,21#..ATM |
2 | ||
| 34421 - PISTON, OVERDRIVE BRAKE ACCUMULATOR | ||||
| 34421-37010 |
LY13#,21#..ATM |
1 | ||
| 34421A - RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90301-29003 |
LY13#,21#..ATM 下側 |
1 | ||
| 90301-26003 |
LY13#,21#..ATM 上側 |
1 | ||
| 34421A - RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90301-29003 |
LY13#,21#..ATM 下側 |
1 | ||
| 90301-26003 |
LY13#,21#..ATM 上側 |
1 | ||
| 34421B - SPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) | ||||
| 90501-32013 |
LY131,211..ATM |
1 | ||
| 35112A - COVER, FRONT CLUTCH ACCUMULATOR | ||||
| 35112-36010 |
LY131,211..ATM |
1 | ||
| 35113 - GASKET, FRONT CLUTCH ACCUMLATOR, NO.2 | ||||
| 35113-60010 |
LY131,211..ATM |
1 | ||
| 35114 - GASKET, FRONT CLUTCH ACCUMLATOR, NO.1 | ||||
| 35114-60010 |
LY131,211..ATM |
1 | ||
| 35115 - PLATE, FRONT CLUTCH ACCUMULATOR | ||||
| 35115-36010 |
LY131,211..ATM |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-36010 |
LY13#,21#..ATM |
1 | ||
| 35396 - STRAINER, THROTTLE OIL | ||||
| 35396-36020 |
LY13#,21#..ATM |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-30010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35409-36020 |
LY13#,21#..ATM |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-25021 |
LY131,211..ATM |
1 | ||
| 35410-25022 |
LY131,211..ATM |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-60010 |
LY13#,21#..ATM |
1 | ||
| 35418-30060 |
LY10#,11#,16#..ATM |
1 | ||
| 35418-36020 |
LY131,211..ATM |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-22010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35419-36010 |
LY13#,21#..ATM |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-12129 |
LY13#,21#..ATM |
1 | ||
| 90501-16083 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35420F - BALL, CHECK, NO.1 | ||||
| 90360-10006 |
LY13#,21#..ATM |
2 | ||
| 35420G - SPRING, BARREL SHAPED | ||||
| 90503-04004 |
LY13#,21#..ATM |
2 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35441-30010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35402-60010 |
LY131,211..ATM |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-38008 |
LY13#,21#..ATM 下側 |
1 | ||
| 90501-20110 |
LY131,211..ATM 上側 |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-38008 |
LY13#,21#..ATM 下側 |
1 | ||
| 90501-20110 |
LY131,211..ATM 上側 |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-29003 |
LY13#,21#..ATM 上側 |
1 | ||
| 90301-37004 |
LY13#,21#..ATM 下側 |
1 | ||
| 90301-26012 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-29003 |
LY13#,21#..ATM 上側 |
1 | ||
| 90301-37004 |
LY13#,21#..ATM 下側 |
1 | ||
| 90301-26012 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-36010 |
LY131,211..ATM |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-22032 |
LY13#,21#..ATM |
1 | ||
| 90501-20063 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-24002 |
LY131,211..ATM 外側 |
1 | ||
| 90301-22003 |
LY13#,21#..ATM 内側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-24002 |
LY131,211..ATM 外側 |
1 | ||
| 90301-22003 |
LY13#,21#..ATM 内側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35405-60030 |
LY131,211..ATM |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-27013 |
LY10#,11#..ATM |
1 | ||
| 90501-32036 |
LY131,211..ATM |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-27013 |
LY10#,11#..ATM |
1 | ||
| 90501-32036 |
LY131,211..ATM |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-33006 |
LY13#,21#..ATM 下側 |
1 | ||
| 90301-28003 |
LY13#,21#..ATM 上側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-33006 |
LY13#,21#..ATM 下側 |
1 | ||
| 90301-28003 |
LY13#,21#..ATM 上側 |
1 | ||
| 35429 - TUBE, LINE PRESSURE | ||||
| 35429-36010 |
LY13#,21#..ATM |
1 | ||
| 35429A - TUBE, LINE PRESSURE | ||||
| 35429-60010 |
LY13#,21#..ATM |
1 | ||
| 35430A - BALL (FOR REAR UPPER VALVE BODY) | ||||
| 90360-06004 |
LY13#,21#..ATM 外径=6.35,STEEL |
9 | ||
| 90360-06023 |
LY10#,11#,16#..ATM 外径=5.56,STEEL |
6 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-60101 |
LY131,211..ATM |
1 | ||
| 35432-60100 |
LY131,211..ATM |
1 | ||
| 35432-60102 |
LY13#,21#..ATM |
1 | ||
| 35432-25030 |
LY10#,11#,16#..ATM |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-36021 |
LY131,211..ATM |
1 | ||
| 35433-36022 |
LY131,211..ATM |
1 | ||
| 35433-36023 |
LY13#,21#..ATM |
1 | ||
| 35433-22041 |
LY10#,11#,16#..ATM |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-36022 |
LY131,211..ATM |
1 | ||
| 35434-36023 |
LY13#,21#..ATM |
1 | ||
| 35434-22041 |
LY10#,11#,16#..ATM |
1 | ||
| 35434-36021 |
LY131,211..ATM |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-36010 |
LY13#,21#..ATM |
3 | ||
| 35448 - TUBE, 2-3 SHIFT VALVE APPLY | ||||
| 35448-36010 |
LY13#,21#..ATM |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-30010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35599-60010 |
LY13#,21#..ATM |
1 | ||
| 35844A - TUBE, ACCUMULATOR BACK PRESSURE, NO.1 | ||||
| 35844-36010 |
LY13#,21#..ATM |
1 | ||
| 35891 - TUBE, OVERDRIVE DIRECT CLUTCH | ||||
| 35891-36010 |
LY13#,21#..ATM |
1 | ||
| 35893 - GASKET, CENTER SUPPORT APPLY | ||||
| 35893-36010 |
LY13#,21#..ATM |
4 | ||
| Common parts | ||||
| 90241-06053 | ||||
| 90334-04002 | ||||
| 90949-02065 | ||||
| 90949-02066 | ||||
| 90949-02096 | ||||
| 90949-02097 | ||||
| 91611-60625 | ||||

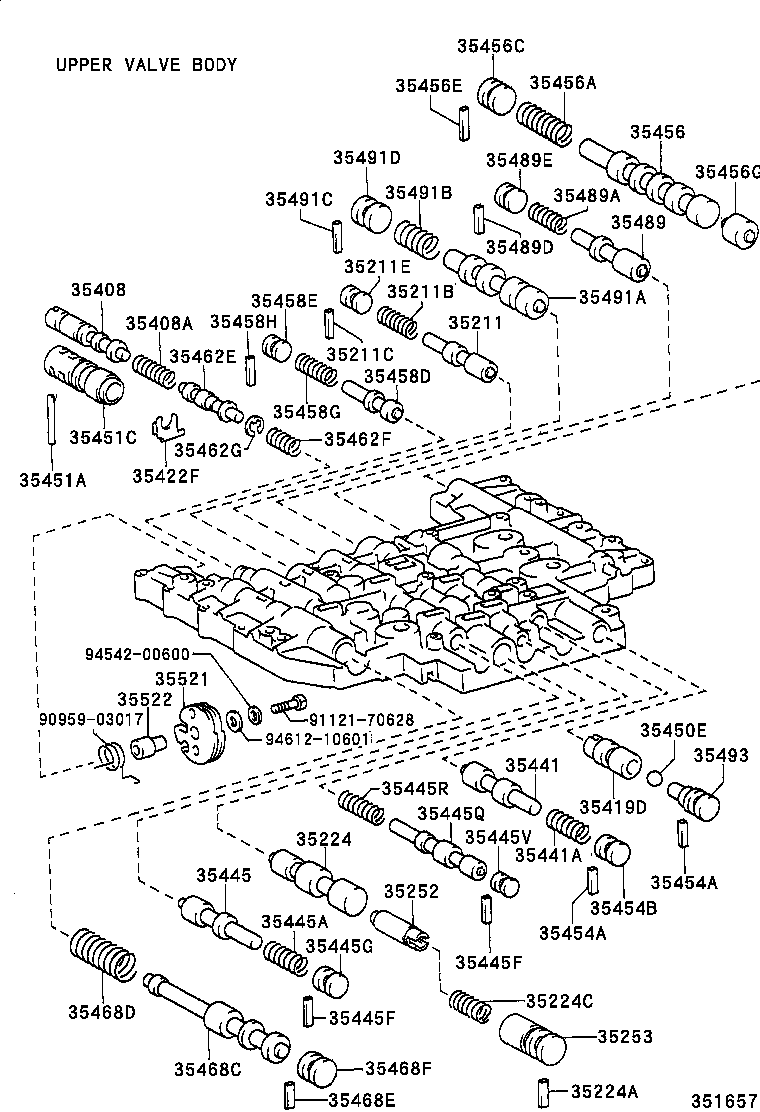

ILLUST NO. 2 OF 4(9505- )LY13#,21#..ATM
A44DE,A443E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211 - VALVE, LOCK UP SIGNAL | ||||
| 35211-36020 |
LY13#,21#..ATM |
1 | ||
| 35211B - SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE) | ||||
| 90501-08146 |
LY13#,21#..ATM |
1 | ||
| 35211C - KEY, STRAIGHT (FOR LOCK UP SIGNAL VALVE) | ||||
| 90282-03010 |
LY13#,21#..ATM |
1 | ||
| 35211E - PLUG (FOR LOCK UP SIGNAL VALVE) | ||||
| 90339-04045 |
LY13#,21#..ATM |
1 | ||
| 35224 - VALVE, REVERSE CONTROL | ||||
| 35224-36010 |
LY13#,21#..ATM |
1 | ||
| 35224A - KEY, STRAIGHT (FOR REVERSE CONTROL VALVE) | ||||
| 90282-03006 |
LY13#,21#..ATM |
1 | ||
| 35224C - SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE) | ||||
| 90501-07102 |
LY13#,21#..ATM |
1 | ||
| 35252 - PLUNGER, REVERSE CONTROL VALVE | ||||
| 35252-36010 |
LY13#,21#..ATM |
1 | ||
| 35253 - SLEEVE, REVERSE CONTROL VALVE PLUNGER | ||||
| 35253-36010 |
LY13#,21#..ATM |
1 | ||
| 35408 - PLUG SUB-ASSY, PRIMARY DOWN SHIFT | ||||
| 35408-22040 |
LY10#,11#,16#..ATM |
1 | ||
| 35408-60020 |
LY13#,21#..ATM |
1 | ||
| 35408A - SPRING, COMPRESSION (FOR PRIMARY DOWN SHIFT PLUG) | ||||
| 90501-11011 |
LY10#,11#,16#..ATM |
1 | ||
| 90501-11030 |
LY13#,21#..ATM |
1 | ||
| 35419D - VALVE, CHECK, NO.2 | ||||
| 35419-36020 |
LY13#,21#..ATM |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35422-36020 |
LY13#,21#..ATM |
1 | ||
| 35441 - VALVE, LOW COAST SHIFT CONTROL | ||||
| 35441-36020 |
LY13#,21#..ATM |
1 | ||
| 35441A - SPRING, COMPRESSION (FOR LOW COAST SHIFT CONTROL VALVE) | ||||
| 90501-08146 |
LY13#,21#..ATM |
1 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35444-22010 |
LY10#,11#,16#..ATM |
1 | ||
| 35445-36010 |
LY13#,21#..ATM |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-10189 |
LY13#,21#..ATM |
1 | ||
| 35445F - KEY, STRAIGHT (FOR LOW MODULATOR VALVE) | ||||
| 90282-03010 |
LY13#,21#..ATM |
2 | ||
| 35445F - KEY, STRAIGHT (FOR LOW MODULATOR VALVE) | ||||
| 90282-03010 |
LY13#,21#..ATM |
2 | ||
| 35445G - PLUG (FOR LOW MODULATOR VALVE) | ||||
| 90339-04009 |
LY13#,21#..ATM |
1 | ||
| 35445Q - VALVE, LOW COAST MODULATOR | ||||
| 35445-36020 |
LY13#,21#..ATM |
1 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-08061 |
LY13#,21#..ATM |
1 | ||
| 35445V - PLUG (FOR LOW COAST MODULATOR VALVE) | ||||
| 90339-04045 |
LY13#,21#..ATM |
1 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 90360-06004 |
LY13#,21#..ATM 外径=6.35,STEEL |
1 | ||
| 35451A - PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE) | ||||
| 90250-03036 |
LY13#,21#..ATM |
1 | ||
| 35451C - SLEEVE, THROTTLE VALVE, NO.1 | ||||
| 35451-60010 |
LY13#,21#..ATM |
1 | ||
| 35454A - KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE) | ||||
| 90282-03006 |
LY13#,21#..ATM |
2 | ||
| 35454A - KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE) | ||||
| 90282-03006 |
LY13#,21#..ATM |
2 | ||
| 35454B - PLUG (FOR LOW COAST SHIFT VALVE) | ||||
| 90339-04009 |
LY13#,21#..ATM |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30050 |
LY10#,11#,16#..ATM |
1 | ||
| 35456-36020 |
LY13#,21#..ATM |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-10187 |
LY13#,21#..ATM |
1 | ||
| 90501-09028 |
LY10#,11#,16#..ATM |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-04046 |
LY13#,21#..ATM |
1 | ||
| 90339-05014 |
LY10#,11#,16#..ATM |
1 | ||
| 35456E - PIN, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90282-03006 |
LY13#,21#..ATM |
1 | ||
| 35456G - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 35455-36020 |
LY13#,21#..ATM |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-30020 |
LY10#,11#,16#..ATM |
1 | ||
| 35458-36020 |
LY13#,21#..ATM |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 35459-22010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 90339-04045 |
LY13#,21#..ATM |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-06022 |
LY10#,11#,16#..ATM |
1 | ||
| 90501-08146 |
LY13#,21#..ATM |
1 | ||
| 35458H - KEY, STRAIGHT (FOR CUT BACK VALVE) | ||||
| 90282-03010 |
LY13#,21#..ATM |
1 | ||
| 35462E - VALVE, PRIMARY THROTTLE | ||||
| 35462-36010 |
LY13#,21#..ATM |
1 | ||
| 35462F - SPRING, COMPRESSION (FOR PRIMARY THROTTLE VALVE) | ||||
| 90501-07049 |
LY13#,21#..ATM |
1 | ||
| 35462G - RING, E (FOR PRIMARY THROTTLE VALVE) | ||||
| 90523-06005 |
LY13#,21#..ATM |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35204-30010 |
LY10#,11#,16#..ATM |
1 | ||
| 35468-36011 |
LY13#,21#..ATM |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-19001 |
LY10#,11#,16#,YY211..ATM..(CBR,DSL) |
1 | ||
| 90501-17008 |
LY13#,21#..ATM |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 90282-03024 |
LY13#,21#..ATM |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-04010 |
LY13#,21#..ATM |
1 | ||
| 35489 - VALVE, 3-2 KICK DOWN ORIFICE CONTROL | ||||
| 35489-36020 |
LY13#,21#..ATM |
1 | ||
| 35489A - SPRING (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE) | ||||
| 90501-09123 |
LY13#,21#..ATM |
1 | ||
| 35489D - KEY, STRAIGHT (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE) | ||||
| 90282-03010 |
LY13#,21#..ATM |
1 | ||
| 35489E - PLUG (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE) | ||||
| 90339-04009 |
LY13#,21#..ATM |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-36020 |
LY13#,21#..ATM |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-12155 |
LY13#,21#..ATM |
1 | ||
| 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90282-03010 |
LY13#,21#..ATM |
1 | ||
| 35491D - PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90339-04029 |
LY13#,21#..ATM |
1 | ||
| 35493 - SEAT, SHIFT VALVE SPRING | ||||
| 35493-36010 |
LY13#,21#..ATM |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-36020 |
LY13#,21#..ATM |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-36020 |
LY13#,21#..ATM |
1 | ||
| 35522-22010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| Common parts | ||||
| 90959-03017 | ||||
| 91121-70628 | ||||
| 94542-00600 | ||||
| 94612-10601 | ||||

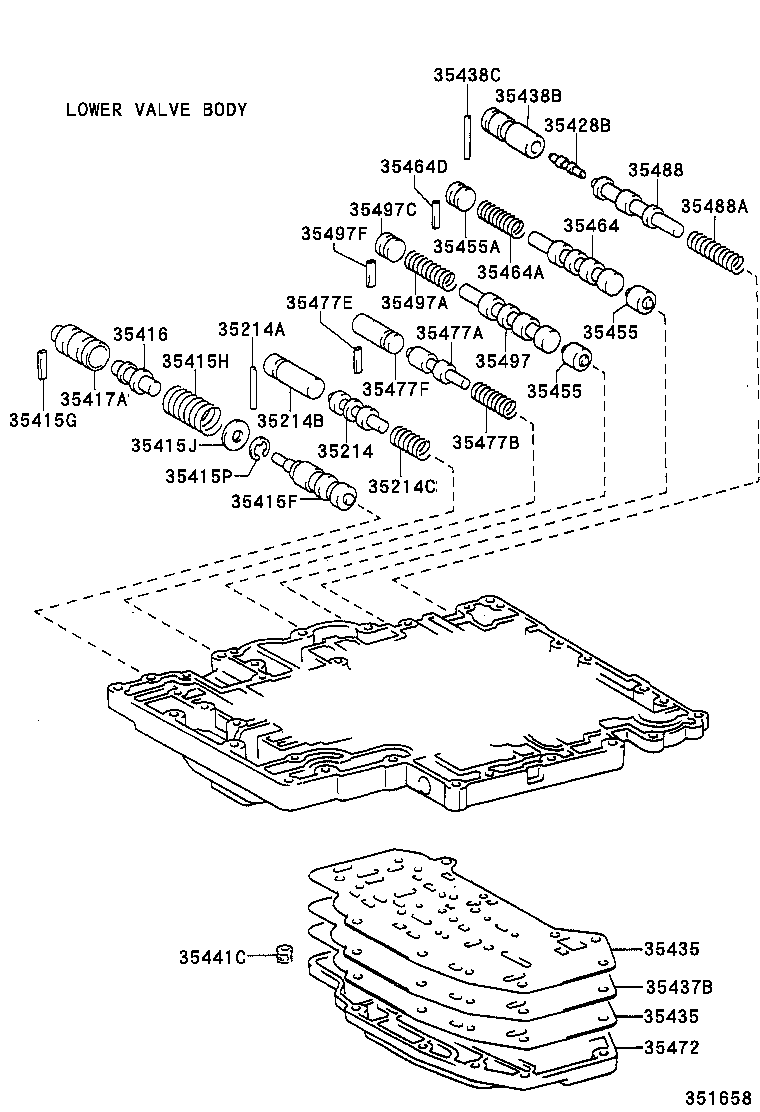

ILLUST NO. 3 OF 4(9505- )LY13#,21#..ATM
A44DE,A443E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35214 - VALVE, LOCK UP CONTROL | ||||
| 35214-36010 |
LY13#,21#..ATM |
1 | ||
| 35214A - KEY, STRAIGHT (FOR LOCK UP CONTROL VALVE) | ||||
| 90250-03082 |
LY13#,21#..ATM |
1 | ||
| 35214B - PLUG (FOR LOCK UP CONTROL VALVE) | ||||
| 90339-04043 |
LY13#,21#..ATM |
1 | ||
| 35214C - SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE) | ||||
| 90501-11065 |
LY13#,21#..ATM |
1 | ||
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-36020 |
LY13#,21#..ATM |
1 | ||
| 35415G - KEY, STRAIGHT (FOR PRIMARY REGULATOR VALVE) | ||||
| 90282-03024 |
LY13#,21#..ATM |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-19002 |
LY13#,21#..ATM |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90201-06566 |
LY13#,21#..ATM |
1 | ||
| 35415P - RING, E (FOR PRIMARY REGULATOR VALVE) | ||||
| 90523-06004 |
LY13#,21#..ATM |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-14010 |
LY10#,11#,16#..ATM |
1 | ||
| 35416-60010 |
LY13#,21#..ATM |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-36020 |
LY13#,21#..ATM |
1 | ||
| 35428B - PLUG, 2-3 SHIFT TIMING VALVE | ||||
| 35428-60030 |
LY13#,21#..ATM |
1 | ||
| 35435 - GASKET, VALVE BODY PLATE, NO.3 | ||||
| 35435-30040 |
LY10#,11#,16#..ATM |
1 | ||
| 35435-36020 |
LY13#,21#..ATM |
2 | ||
| 35435 - GASKET, VALVE BODY PLATE, NO.3 | ||||
| 35435-30040 |
LY10#,11#,16#..ATM |
1 | ||
| 35435-36020 |
LY13#,21#..ATM |
2 | ||
| 35437B - PLATE, VALVE BODY COVER | ||||
| 35437-36030 |
LY13#,21#..ATM |
1 | ||
| 35438B - SLEEVE, 2-3 SHIFT TIMING VALVE PLUG | ||||
| 35438-60040 |
LY13#,21#..ATM |
1 | ||
| 35438C - PIN, STRAIGHT (FOR 2-3 SHIFT TIMING VALVE PLUG SLEEVE) | ||||
| 90250-03081 |
LY13#,21#..ATM |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-36010 |
LY13#,21#..ATM |
3 | ||
| 35455 - PLUG, 1-2 SHIFT VALVE LOW | ||||
| 35455-36020 |
LY13#,21#..ATM |
2 | ||
| 35455 - PLUG, 1-2 SHIFT VALVE LOW | ||||
| 35455-36020 |
LY13#,21#..ATM |
2 | ||
| 35455A - PLUG (FOR 1-2 SHIFT VALVE LOW PLUG) | ||||
| 90339-04046 |
LY13#,21#..ATM |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-30030 |
LY10#,11#,16#..ATM |
1 | ||
| 35464-36020 |
LY13#,21#..ATM |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09028 |
LY10#,11#,16#..ATM |
1 | ||
| 90501-10187 |
LY13#,21#..ATM |
1 | ||
| 35464D - KEY, STRAIGHT (FOR 1-2 SHIFT VALVE) | ||||
| 90282-03022 |
LY13#,21#..ATM |
1 | ||
| 35472 - COVER, VALVE BODY, NO.2 | ||||
| 35472-30010 |
LY10#,11#,16#..ATM |
1 | ||
| 35472-36020 |
LY13#,21#..ATM |
1 | ||
| 35477A - VALVE, OVERDRIVE CLUTCH EXHAUST | ||||
| 35477-30030 |
LY13#,21#..ATM |
1 | ||
| 35477B - SPRING, COMPRESSION (FOR OVERDRIVE CLUTCH EXHAUST VALVE | ||||
| 90501-07042 |
LY13#,21#..ATM |
1 | ||
| 35477E - KEY, STRAIGHT (FOR OVERDRIVE CLUTCH EXHAUST VALVE) | ||||
| 90282-03022 |
LY13#,21#..ATM |
1 | ||
| 35477F - PLUG (FOR OVERDRIVE CLUTCH EXHAUST VALVE) | ||||
| 90339-04044 |
LY13#,21#..ATM |
1 | ||
| 35488 - VALVE, 2-3 SHIFT TIMING | ||||
| 35488-36020 |
LY13#,21#..ATM |
1 | ||
| 35488A - SPRING, COMPRESSION (FOR 2-3 SHIFT TIMING VALVE) | ||||
| 90501-09124 |
LY131,211..ATM |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30030 |
LY10#,11#,16#..ATM |
1 | ||
| 35497-36020 |
LY13#,21#..ATM |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09028 |
LY10#,11#,16#..ATM |
1 | ||
| 90501-10187 |
LY13#,21#..ATM |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-05014 |
LY10#,11#,16#..ATM |
1 | ||
| 90339-04046 |
LY13#,21#..ATM |
1 | ||
| 35497F - KEY, STRAIGHT (FOR 3-4 SHIFT VALVE) | ||||
| 90282-03022 |
LY13#,21#..ATM |
1 | ||

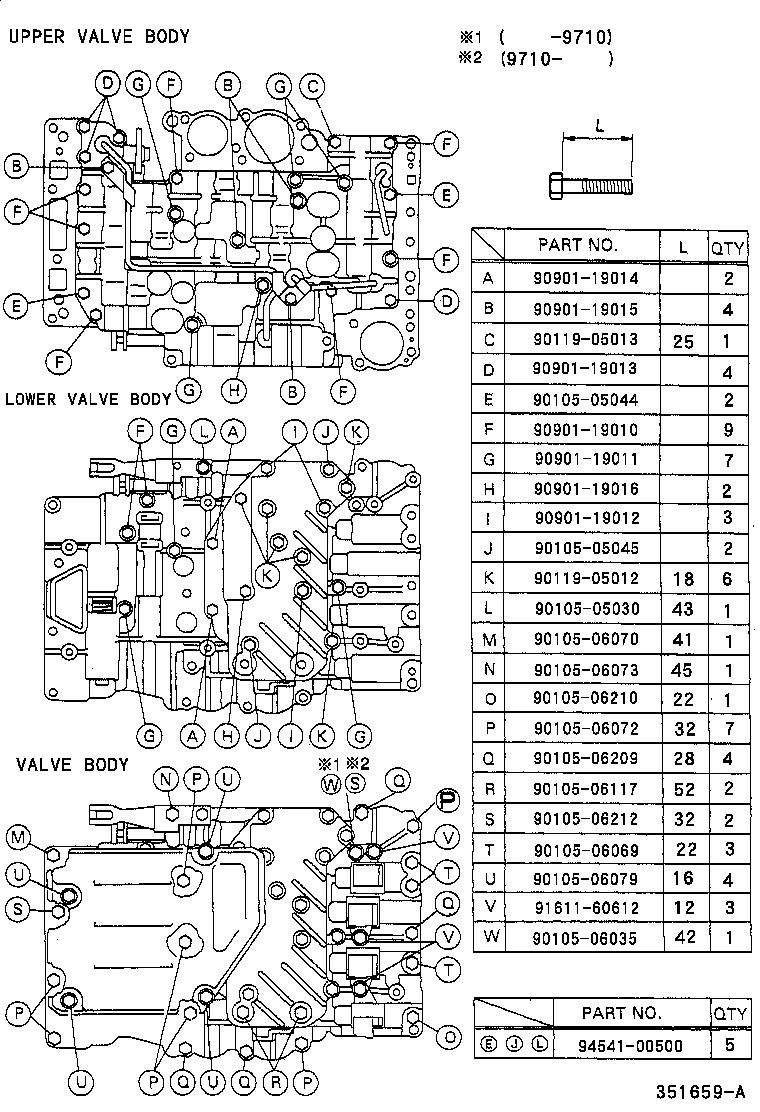

ILLUST NO. 4 OF 4(9505- )LY13#,21#..ATM
A44DE,A443E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05030 | ||||
| 90105-05044 | ||||
| 90105-05045 | ||||
| 90105-06035 | ||||
| 90105-06069 | ||||
| 90105-06070 | ||||
| 90105-06072 | ||||
| 90105-06073 | ||||
| 90105-06079 | ||||
| 90105-06117 | ||||
| 90105-06209 | ||||
| 90105-06210 | ||||
| 90105-06212 | ||||
| 90119-05012 | ||||
| 90119-05013 | ||||
| 90901-19010 | ||||
| 90901-19011 | ||||
| 90901-19012 | ||||
| 90901-19013 | ||||
| 90901-19014 | ||||
| 90901-19015 | ||||
| 90901-19016 | ||||
| 91611-60612 | ||||
| 94541-00500 | ||||
ILLUST NO. 1 OF 3(9610- )LY10#,11#,16#..ATM
A44DE,A44DF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35151 - COVER, TRANSMISSION CASE, LOWER | ||||
| 35151-30020 |
LY10#,11#,16#..ATM |
1 | ||
| 35153A - GASKET, TRANSMISSION CASE LOWER COVER | ||||
| 35153-30010 |
LY10#,11#,16#..ATM |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
LY10#,11#,16#..ATM |
1 | ||
| 35303 - STRAINER SUB-ASSY, OIL | ||||
| 35303-30060 |
LY10#,11#,16#..ATM |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-28030 |
LY10#,11#,16#..ATM |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-30010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35409-36020 |
LY13#,21#..ATM |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-60010 |
LY13#,21#..ATM |
1 | ||
| 35418-30060 |
LY10#,11#,16#..ATM |
1 | ||
| 35418-36020 |
LY131,211..ATM |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-22010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35419-36010 |
LY13#,21#..ATM |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-12129 |
LY13#,21#..ATM |
1 | ||
| 90501-16083 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35496-22030 |
LY10#,11#,16#,YY211..ATM 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35420E - SPRING (FOR LOWER VALVE BODY) | ||||
| 90501-04727 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35421 - PISTON, ACCUMULATOR, NO.1 | ||||
| 35421-26010 |
LY10#,11#,16#..ATM |
1 | ||
| 35421D - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-29011 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35421E - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-23010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35441-30010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35402-60010 |
LY131,211..ATM |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-29003 |
LY13#,21#..ATM 上側 |
1 | ||
| 90301-37004 |
LY13#,21#..ATM 下側 |
1 | ||
| 90301-26012 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35421J - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-18010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35421P - PISTON, ACCUMULATOR, NO.3 | ||||
| 35421-22030 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35421R - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-26012 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35421S - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-21012 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-25033 |
LY10#,11#,16#..ATM |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-22032 |
LY13#,21#..ATM |
1 | ||
| 90501-20063 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-27013 |
LY10#,11#..ATM |
1 | ||
| 90501-32036 |
LY131,211..ATM |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-60101 |
LY131,211..ATM |
1 | ||
| 35432-60100 |
LY131,211..ATM |
1 | ||
| 35432-60102 |
LY13#,21#..ATM |
1 | ||
| 35432-25030 |
LY10#,11#,16#..ATM |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-36021 |
LY131,211..ATM |
1 | ||
| 35433-36022 |
LY131,211..ATM |
1 | ||
| 35433-36023 |
LY13#,21#..ATM |
1 | ||
| 35433-22041 |
LY10#,11#,16#..ATM |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-36022 |
LY131,211..ATM |
1 | ||
| 35434-36023 |
LY13#,21#..ATM |
1 | ||
| 35434-22041 |
LY10#,11#,16#..ATM |
1 | ||
| 35434-36021 |
LY131,211..ATM |
1 | ||
| 35444 - VALVE, INTERMEDIATE MODULATOR | ||||
| 35444-22010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35444A - SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE) | ||||
| 90501-09686 |
LY10#,11#,16#,YY211..ATM..(CBR,DSL) |
1 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35444-22010 |
LY10#,11#,16#..ATM |
1 | ||
| 35445-36010 |
LY13#,21#..ATM |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-10189 |
LY13#,21#..ATM |
1 | ||
| 35487B - BALL, CHECK, NO.4 | ||||
| 35487-30010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35487C - SPRING, COMPRESSION (FOR CHECK BALL) | ||||
| 90504-05006 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-30010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35599-60010 |
LY13#,21#..ATM |
1 | ||
| 35847 - TUBE, TRANSMISSION LUBE APPLY | ||||
| 35847-30010 |
LY10#,11#,16#..ATM |
1 | ||
| 35892 - TUBE, OVERDRIVE BRAKE | ||||
| 35892-26010 |
LY10#,11#,16#..ATM |
1 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-30030 |
LY10#,11#,16#..ATM |
1 | ||
| 35897A - TUBE, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35897-30010 |
LY10#,11#,16#..ATM |
1 | ||
| Common parts | ||||
| 90105-05004 | ||||
| 90105-05009 | ||||
| 90105-06020 | ||||
ILLUST NO. 2 OF 3(9610- )LY10#,11#,16#..ATM
A44DE,A44DF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35408 - PLUG SUB-ASSY, PRIMARY DOWN SHIFT | ||||
| 35408-22040 |
LY10#,11#,16#..ATM |
1 | ||
| 35408-60020 |
LY13#,21#..ATM |
1 | ||
| 35408A - SPRING, COMPRESSION (FOR PRIMARY DOWN SHIFT PLUG) | ||||
| 90501-11011 |
LY10#,11#,16#..ATM |
1 | ||
| 90501-11030 |
LY13#,21#..ATM |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35422-36020 |
LY13#,21#..ATM |
1 | ||
| 35430A - BALL (FOR REAR UPPER VALVE BODY) | ||||
| 90360-06004 |
LY13#,21#..ATM 外径=6.35,STEEL |
9 | ||
| 90360-06023 |
LY10#,11#,16#..ATM 外径=5.56,STEEL |
6 | ||
| 35436A - GASKET, VALVE BODY PLATE, NO.4 | ||||
| 35436-30050 |
LY10#,11#,16#..ATM |
1 | ||
| 35443A - SLEEVE, DOWN SHIFT PLUG | ||||
| 35443-22010 |
LY10#,11#,16#..ATM |
1 | ||
| 35443B - PIN (FOR DOWN SHIFT PLUG SLEEVE) | ||||
| 90250-03034 |
LY10#,11#,16#..ATM |
1 | ||
| 35447A - VALVE, REVERSE CLUTCH SEQUENCE | ||||
| 35447-30010 |
LY10#,11#,16#..ATM |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30050 |
LY10#,11#,16#..ATM |
1 | ||
| 35456-36020 |
LY13#,21#..ATM |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-10187 |
LY13#,21#..ATM |
1 | ||
| 90501-09028 |
LY10#,11#,16#..ATM |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-04046 |
LY13#,21#..ATM |
1 | ||
| 90339-05014 |
LY10#,11#,16#..ATM |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-30020 |
LY10#,11#,16#..ATM |
1 | ||
| 35458-36020 |
LY13#,21#..ATM |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 35459-22010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 90339-04045 |
LY13#,21#..ATM |
1 | ||
| 35458F - SEAT (FOR CUT BACK VALVE) | ||||
| 35493-22010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-06022 |
LY10#,11#,16#..ATM |
1 | ||
| 90501-08146 |
LY13#,21#..ATM |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-22011 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07129 |
LY10#,11#,16#..ATM 長さ=18.86 |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-30030 |
LY10#,11#,16#..ATM |
1 | ||
| 35464-36020 |
LY13#,21#..ATM |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09028 |
LY10#,11#,16#..ATM |
1 | ||
| 90501-10187 |
LY13#,21#..ATM |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35204-30010 |
LY10#,11#,16#..ATM |
1 | ||
| 35468-36011 |
LY13#,21#..ATM |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-19001 |
LY10#,11#,16#,YY211..ATM..(CBR,DSL) |
1 | ||
| 90501-17008 |
LY13#,21#..ATM |
1 | ||
| 35469A - PLUG, 3-2 KICK DOWN ORIFICE CONTROL VALVE | ||||
| 35469-30020 |
LY10#,11#,16#..ATM |
1 | ||
| 35469C - ROLLER, SHIFT VALVE PLUG | ||||
| 90361-02051 |
LY10#,11#,16#..ATM |
1 | ||
| 35472 - COVER, VALVE BODY, NO.2 | ||||
| 35472-30010 |
LY10#,11#,16#..ATM |
1 | ||
| 35472-36020 |
LY13#,21#..ATM |
1 | ||
| 35473 - COVER, TRANSMISSION VALVE BODY | ||||
| 35473-22010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35493H - SEAT, SHIFT VALVE PLUG (FOR LOCK UP RELAY VALVE) | ||||
| 35493-30030 |
LY10#,11#,16#..ATM |
1 | ||
| 35493J - SEAT, SHIFT VALVE PLUG (FOR MANUAL DOWN TIMING VALVE) | ||||
| 35493-30030 |
LY10#,11#,16#..ATM |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30030 |
LY10#,11#,16#..ATM |
1 | ||
| 35497-36020 |
LY13#,21#..ATM |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09028 |
LY10#,11#,16#..ATM |
1 | ||
| 90501-10187 |
LY13#,21#..ATM |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-05014 |
LY10#,11#,16#..ATM |
1 | ||
| 90339-04046 |
LY13#,21#..ATM |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-36020 |
LY13#,21#..ATM |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-12331 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-36020 |
LY13#,21#..ATM |
1 | ||
| 35522-22010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| Common parts | ||||
| 90105-05001 | ||||
| 90105-05002 | ||||
| 90105-05003 | ||||
| 90105-05005 | ||||
| 90105-05033 | ||||
| 90105-06018 | ||||
| 90119-05023 | ||||
ILLUST NO. 3 OF 3(9610- )LY10#,11#,16#..ATM
A44DE,A44DF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35202-30010 |
LY10#,11#,16#..ATM |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-10113 |
LY10#,11#,16#..ATM |
1 | ||
| 35215B - PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE) | ||||
| 90250-04027 |
LY10#,11#,16#..ATM |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-30013 |
LY10#,11#,16#..ATM |
1 | ||
| 35222 - PLATE, LOCK UP RELAY VALVE BODY | ||||
| 35222-30010 |
LY10#,11#,16#..ATM |
1 | ||
| 35223 - GASKET, LOCK UP RELAY VALVE BODY | ||||
| 35223-30010 |
LY10#,11#,16#..ATM |
1 | ||
| 35415 - VALVE, PRESSURE REGULATOR | ||||
| 35203-30011 |
LY10#,11#,16#..ATM |
1 | ||
| 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) | ||||
| 90501-17031 |
LY10#,11#,16#..ATM |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-14010 |
LY10#,11#,16#..ATM |
1 | ||
| 35416-60010 |
LY13#,21#..ATM |
1 | ||
| 35417 - SLEEVE, PRESSURE REGULATOR VALVE | ||||
| 35417-14010 |
LY10#,11#,16#..ATM |
1 | ||
| 35420 - BODY ASSY, LOWER VALVE | ||||
| 35420-25010 |
LY10#,11#,16#..ATM |
1 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-13024 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35420B - SPRING (FOR PRESSURE RELIEF) | ||||
| 90501-18677 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35425 - SEAT, PRESSURE REGULATOR VALVE SLEEVE | ||||
| 35425-14010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35427J - SEAT, CHECK VALVE SPRING (FOR PRESSURE RELIEF) | ||||
| 35427-30020 |
LY10#,11#,16#..ATM |
1 | ||
| 35435 - GASKET, VALVE BODY PLATE, NO.3 | ||||
| 35435-30040 |
LY10#,11#,16#..ATM |
1 | ||
| 35435-36020 |
LY13#,21#..ATM |
2 | ||
| 35475 - COVER, VALVE BODY, NO.5 | ||||
| 35475-30040 |
LY10#,11#,16#..ATM |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-06014 | ||||
| 90105-06015 | ||||
| 90105-06017 | ||||
| 90105-06020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
