LY211-TQPGS (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - May 1999
Engine 3L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505-9905)LY131,211..ATM

Click highlighted areas on diagram

A443E

diagram 35068 35068A 35623H 35623J 35623J 35632A 35632A 35632A 35632A 35671 35676A 35676D 35677A 35677A 35677A 35677A
Part # Description Qty Price
35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068-36010

LY13#,21#..ATM

 1
35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING
90520-87001

LY13#,21#..ATM

 1
35623H - PISTON, 1ST & REVERSE BRAKE
35623-60020

LY131,211..ATM

 1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-94002

LY13#,21#..ATM

内側

 1
90301-99030

LY13#,21#..ATM

外側

 1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-94002

LY13#,21#..ATM

内側

 1
90301-99030

LY13#,21#..ATM

外側

 1
35632A - PLATE, BRAKE (FOR 1ST & REVERSE BRAKE)
35632-60030

LY13#,21#..ATM

 4
35632A - PLATE, BRAKE (FOR 1ST & REVERSE BRAKE)
35632-60030

LY13#,21#..ATM

 4
35632A - PLATE, BRAKE (FOR 1ST & REVERSE BRAKE)
35632-60030

LY13#,21#..ATM

 4
35632A - PLATE, BRAKE (FOR 1ST & REVERSE BRAKE)
35632-60030

LY13#,21#..ATM

 4
35671 - PLATE, BRAKE CUSHION
35671-36010

LY13#,21#..ATM

 1
35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)
35676-60070

LY13#,21#..ATM

厚さ=7.45

 1
35676-60050

LY13#,21#..ATM

厚さ=6.65

 1
35676-60060

LY13#,21#..ATM

厚さ=7.05

 1
35676D - RING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)
90521-99109

LY13#,21#..ATM

 1
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35633-60030

LY13#,21#..ATM

 4
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35633-60030

LY13#,21#..ATM

 4
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35633-60030

LY13#,21#..ATM

 4
35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35633-60030

LY13#,21#..ATM

 4

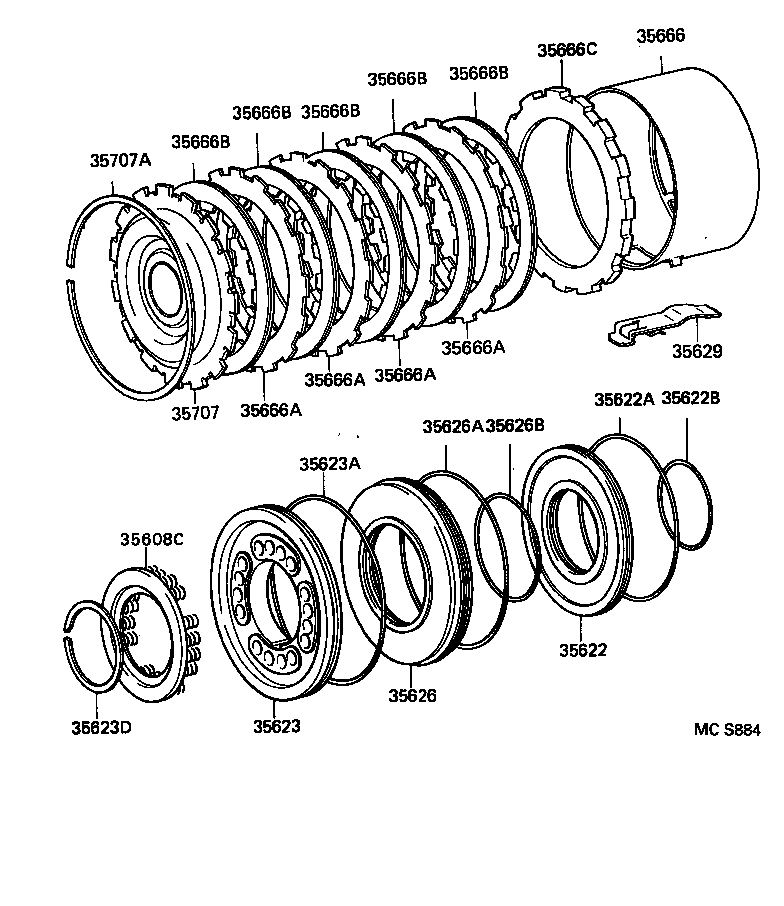

(9610- )LY10#,11#,16#..ATM

Click highlighted areas on diagram

A44DE,A44DF

diagram 35608C 35622 35622A 35622B 35623 35623A 35623D 35626 35626A 35626B 35629 35666 35666A 35666A 35666A 35666A 35666B 35666B 35666B 35666B 35666B 35666C 35707 35707A
Part # Description Qty Price
35608C - SPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN
35608-20020

LY10#,11#,16#,YY211..ATM

 1
35622 - PISTON, BRAKE, NO.2
35622-22010

LY10#,11#,16#,YY211..ATM

 1
35622A - RING (FOR BRAKE PISTON OUTER)
90301-99084

LY10#,11#,16#,YY211..ATM

 1
35622B - RING (FOR BRAKE PISTON INNER)
90301-56007

LY10#,11#,16#,YY211..ATM

 1
35623 - PISTON, BRAKE, NO.3
35623-22010

LY10#,11#,16#,YY211..ATM

 1
35623A - RING, O (FOR BRAKE PISTON NO.3 )
90301-99110

LY10#,11#,16#..ATM

 1
35623D - RING, SHAFT SNAP (FOR BRAKE)
90520-52262

LY10#,11#,16#,YY211..ATM

 1
35626 - SLEEVE, BRAKE REACTION
35626-22010

LY10#,11#,16#,YY211..ATM

 1
35626A - RING (FOR BRAKE REACTION SLEEVE OUTER)
90301-99109

LY10#,11#,16#,YY211..ATM

 1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-67005

LY10#,11#,16#,YY211..ATM

 1
35629 - SPRING (1ST & REVS BRAKE PLATE STOPPER)
35629-22010

LY10#,11#,16#,YY211..ATM

 1
35666 - TUBE, BRAKE APPLY
35666-26020

LY10#,11#,16#..ATM

 1
35666A - PLATE, CLUTCH (FOR BRAKE)
35647-22010

LY10#,11#,16#..ATM

 4
35666A - PLATE, CLUTCH (FOR BRAKE)
35647-22010

LY10#,11#,16#..ATM

 4
35666A - PLATE, CLUTCH (FOR BRAKE)
35647-22010

LY10#,11#,16#..ATM

 4
35666A - PLATE, CLUTCH (FOR BRAKE)
35647-22010

LY10#,11#,16#..ATM

 4
35666B - DISC, CLUTCH (FOR BRAKE)
35677-26030

LY10#,11#,16#..ATM

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35677-26030

LY10#,11#,16#..ATM

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35677-26030

LY10#,11#,16#..ATM

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35677-26030

LY10#,11#,16#..ATM

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35677-26030

LY10#,11#,16#..ATM

 5
35666C - PLATE, CLUTCH PRESSURE (FOR BRAKE)
35639-22010

LY10#,11#,16#..ATM

 1
35707 - RACE SUB-ASSY, 1 WAY CLUTCH, INNER
35707-30040

LY10#,11#,16#..ATM

 1
35707A - RING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)
90521-99140

LY10#,11#,16#,YY211..ATM

 1
