LY211-TQPGS (1995)
Toyota Dyna 150/Toyoace G15

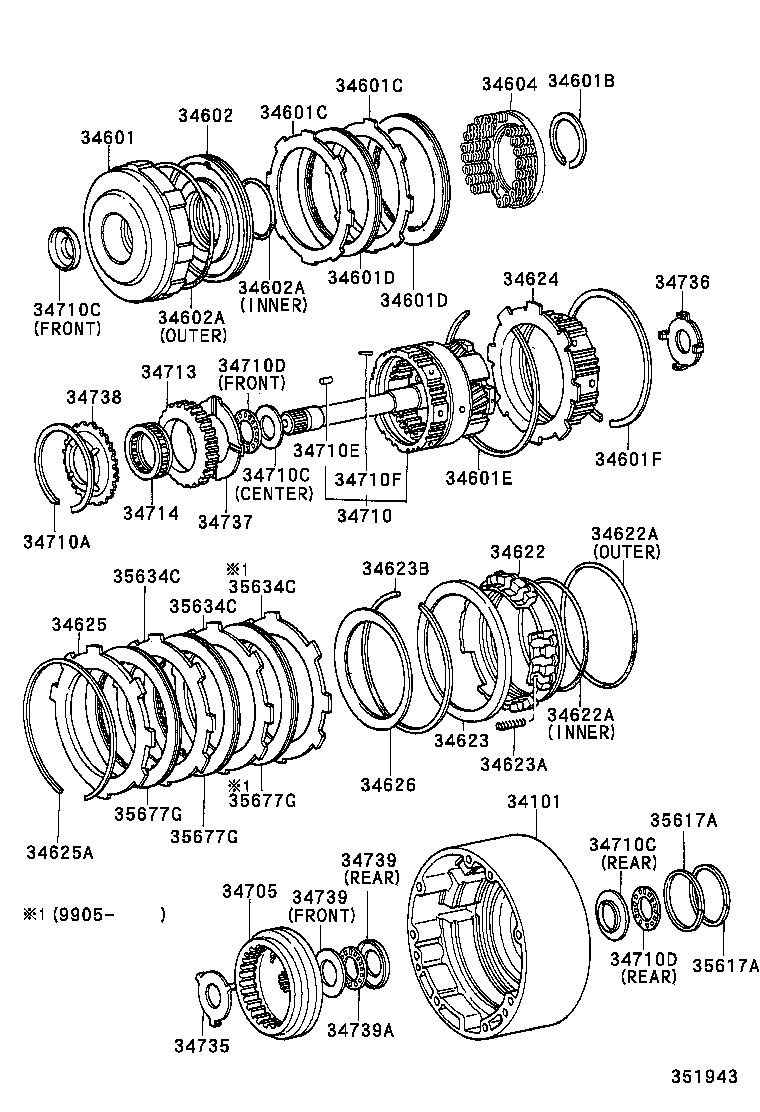

(9610- )LY10#,11#,16#..ATM
A44DE,A44DF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34101 - CASE SUB-ASSY, OVERDRIVE | ||||
| 34101-60040 |
LY13#,21#..ATM |
1 | ||
| 34101-22020 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34601 - DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34601-60030 |
LY13#,21#..ATM |
1 | ||
| 34601-30022 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34601B - RING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 90520-52262 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34601C - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 35634-22040 |
LY10#,11#,16#,YY211..ATM |
2 | ||
| 34601C - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 35634-22040 |
LY10#,11#,16#,YY211..ATM |
2 | ||
| 34601E - RING, HOLE SNAP, NO.1 (FOR OVERDRIVE) | ||||
| 90521-99146 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34601F - RING, HOLE SNAP, NO.2 (FOR OVERDRIVE) | ||||
| 90521-99001 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34602 - PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34602-60020 |
LY13#,21#..ATM |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-64007 |
LY13#,21#..ATM 内側 |
1 | ||
| 90301-99027 |
LY13#,21#..ATM 外側 |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-64007 |
LY13#,21#..ATM 内側 |
1 | ||
| 90301-99027 |
LY13#,21#..ATM 外側 |
1 | ||
| 34604 - SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN | ||||
| 34604-22010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34604-60020 |
LY13#,21#..ATM |
1 | ||
| 34622 - PISTON, OVERDRIVE BRAKE | ||||
| 34622-60010 |
LY13#,21#..ATM |
1 | ||
| 34622-30040 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99031 |
LY13#,21#..ATM 内側 |
1 | ||
| 90301-99030 |
LY13#,21#..ATM 外側 |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99031 |
LY13#,21#..ATM 内側 |
1 | ||
| 90301-99030 |
LY13#,21#..ATM 外側 |
1 | ||
| 34623 - SEAT, OVERDRIVE BRAKE RETURN SPRING | ||||
| 34623-30020 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34623A - SPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING | ||||
| 90501-11023 |
LY10#,11#,16#..ATM |
12 | ||
| 34623B - RING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT | ||||
| 90521-99004 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34624 - HUB, OVERDRIVE BRAKE | ||||
| 34624-26010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34625 - FLANGE, OVERDRIVE BRAKE, NO.1 | ||||
| 34625-60020 |
LY13#,21#..ATM 厚さ=5.0 |
1 | ||
| 34625A - RING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE) | ||||
| 90521-99004 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 90521-99109 |
LY13#,21#..ATM |
1 | ||
| 34626 - PLATE, OVERDRIVE BRAKE CUSHION | ||||
| 34626-30050 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34705 - GEAR SUB-ASSY, OVERDRIVE PLANETARY RING | ||||
| 34705-30021 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34710 - GEAR ASSY, OVERDRIVE PLANETARY | ||||
| 34710-25010 |
LY13#,21#..ATM |
1 | ||
| 34710-14011 |
LY10#,11#,16#..ATM |
1 | ||
| 34710A - RING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90521-99003 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 34739-30031 |
LY10#,11#,16#,YY211..ATM ｾﾝﾀ |
1 | ||
| 35789-22010 |
LY10#,11#,16#,YY211..ATM ﾌﾛﾝﾄ |
1 | ||
| 34739-30041 |
LY10#,11#,16#,YY211..ATM ﾘﾔ |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 34739-30031 |
LY10#,11#,16#,YY211..ATM ｾﾝﾀ |
1 | ||
| 35789-22010 |
LY10#,11#,16#,YY211..ATM ﾌﾛﾝﾄ |
1 | ||
| 34739-30041 |
LY10#,11#,16#,YY211..ATM ﾘﾔ |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 34739-30031 |
LY10#,11#,16#,YY211..ATM ｾﾝﾀ |
1 | ||
| 35789-22010 |
LY10#,11#,16#,YY211..ATM ﾌﾛﾝﾄ |
1 | ||
| 34739-30041 |
LY10#,11#,16#,YY211..ATM ﾘﾔ |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-24001 |
LY10#,11#,16#,YY211..ATM ﾌﾛﾝﾄ |
1 | ||
| 90374-23012 |
LY10#,11#,16#,YY211..ATM ﾘﾔ |
1 | ||
| 90374-23001 |
LY13#,21#..ATM ﾘﾔ |
1 | ||
| 90374-28012 |
LY13#,21#..ATM ﾌﾛﾝﾄ |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-24001 |
LY10#,11#,16#,YY211..ATM ﾌﾛﾝﾄ |
1 | ||
| 90374-23012 |
LY10#,11#,16#,YY211..ATM ﾘﾔ |
1 | ||
| 90374-23001 |
LY13#,21#..ATM ﾘﾔ |
1 | ||
| 90374-28012 |
LY13#,21#..ATM ﾌﾛﾝﾄ |
1 | ||
| 34710E - PLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90334-03001 |
LY10#,11#,16#,YY211..ATM |
4 | ||
| 34710F - PIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90250-03024 |
LY10#,11#,16#,YY211..ATM |
4 | ||
| 34713 - RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE) | ||||
| 34713-30020 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34713-36010 |
LY13#,21#..ATM |
1 | ||
| 34714 - CLUTCH, 1 WAY(FOR OVERDRIVE) | ||||
| 35791-30030 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35791-36010 |
LY13#,21#..ATM |
1 | ||
| 34735 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1 | ||||
| 34737-60020 |
LY13#,21#..ATM |
1 | ||
| 34735-30020 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34736 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2 | ||||
| 34738-36010 |
LY13#,21#..ATM |
1 | ||
| 34736-30010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34737 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3 | ||||
| 34737-30020 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34738 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4 | ||||
| 34738-30020 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34739 - RACE, THRUST BEARING(FOR OVERDRIVE) | ||||
| 34739-30020 |
LY10#,11#,16#,YY211..ATM ﾌﾛﾝﾄ |
1 | ||
| 35789-22030 |
LY10#,11#,16#,YY211..ATM ﾘﾔ |
1 | ||
| 34739 - RACE, THRUST BEARING(FOR OVERDRIVE) | ||||
| 34739-30020 |
LY10#,11#,16#,YY211..ATM ﾌﾛﾝﾄ |
1 | ||
| 35789-22030 |
LY10#,11#,16#,YY211..ATM ﾘﾔ |
1 | ||
| 34739A - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE) | ||||
| 90374-28014 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-43010 |
LY10#,11#,16#,YY211..ATM |
2 | ||
| 35617-36020 |
LY13#,21#..ATM |
2 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-43010 |
LY10#,11#,16#,YY211..ATM |
2 | ||
| 35617-36020 |
LY13#,21#..ATM |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35634-60010 |
LY13#,21#..ATM |
3 | ||
| 35634-30080 |
LY10#,11#,16#..ATM 厚さ=1.95−2.05 |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35634-60010 |
LY13#,21#..ATM |
3 | ||
| 35634-30080 |
LY10#,11#,16#..ATM 厚さ=1.95−2.05 |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35634-60010 |
LY13#,21#..ATM |
3 | ||
| 35634-30080 |
LY10#,11#,16#..ATM 厚さ=1.95−2.05 |
2 | ||

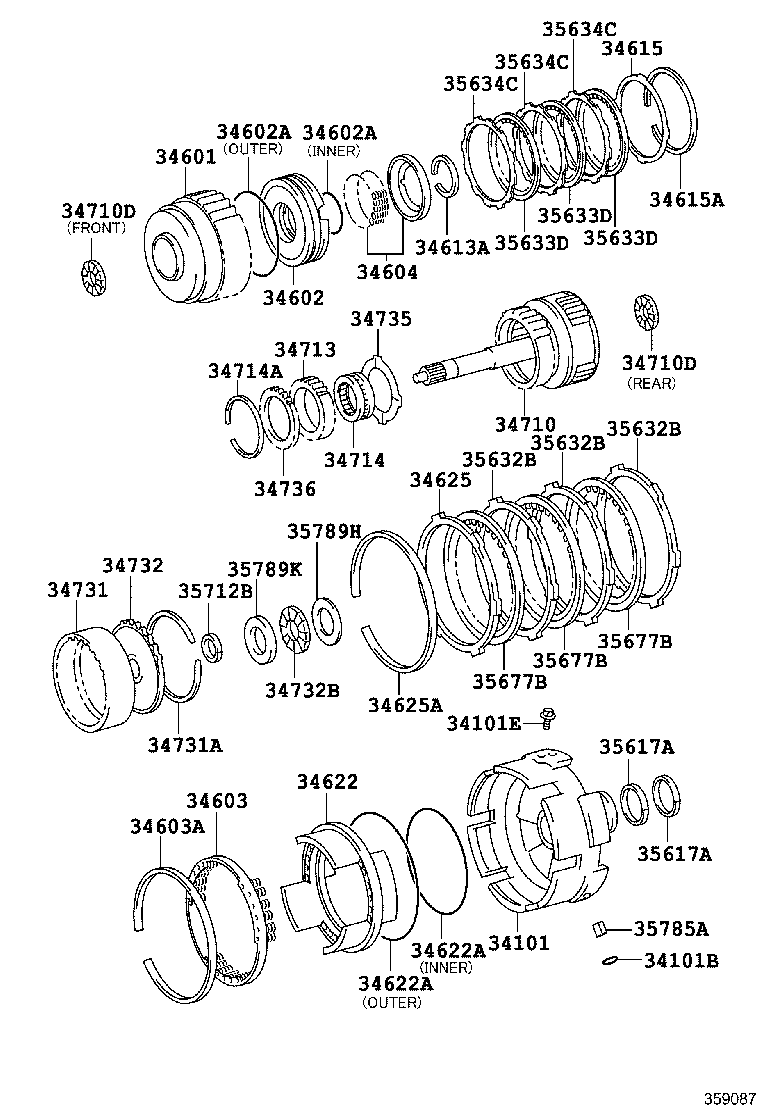

(9505- )LY13#,21#..ATM
A44DE,A443E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34101 - CASE SUB-ASSY, OVERDRIVE | ||||
| 34101-60040 |
LY13#,21#..ATM |
1 | ||
| 34101-22020 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34101B - RING, O (FOR OVERDRIVE CASE) | ||||
| 90301-09008 |
LY13#,21#..ATM |
3 | ||
| 34101E - BOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING) | ||||
| 90109-12048 |
LY131,211..ATM *12−1.25PX20.5−13 |
3 | ||
| 90105-12307 |
LY13#,21#..ATM *12−1.25PX20.5−13 |
3 | ||
| 34601 - DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34601-60030 |
LY13#,21#..ATM |
1 | ||
| 34601-30022 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34602 - PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34602-60020 |
LY13#,21#..ATM |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-64007 |
LY13#,21#..ATM 内側 |
1 | ||
| 90301-99027 |
LY13#,21#..ATM 外側 |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-64007 |
LY13#,21#..ATM 内側 |
1 | ||
| 90301-99027 |
LY13#,21#..ATM 外側 |
1 | ||
| 34603 - SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN | ||||
| 34603-60010 |
LY13#,21#..ATM |
1 | ||
| 34603A - RING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING) | ||||
| 90521-99109 |
LY13#,21#..ATM |
1 | ||
| 34604 - SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN | ||||
| 34604-22010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34604-60020 |
LY13#,21#..ATM |
1 | ||
| 34613A - RING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SP | ||||
| 90520-50001 |
LY13#,21#..ATM |
1 | ||
| 34615 - FLANGE, OVERDRIVE CLUTCH | ||||
| 35675-60090 |
LY13#,21#..ATM 厚さ=4.94 |
1 | ||
| 35675-60080 |
LY13#,21#..ATM 厚さ=4.77 |
1 | ||
| 35675-60070 |
LY13#,21#..ATM 厚さ=4.6 |
1 | ||
| 35675-60100 |
LY13#,21#..ATM 厚さ=5.11 |
1 | ||
| 34615A - RING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE) | ||||
| 90521-99115 |
LY13#,21#..ATM |
1 | ||
| 34622 - PISTON, OVERDRIVE BRAKE | ||||
| 34622-60010 |
LY13#,21#..ATM |
1 | ||
| 34622-30040 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99031 |
LY13#,21#..ATM 内側 |
1 | ||
| 90301-99030 |
LY13#,21#..ATM 外側 |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99031 |
LY13#,21#..ATM 内側 |
1 | ||
| 90301-99030 |
LY13#,21#..ATM 外側 |
1 | ||
| 34625 - FLANGE, OVERDRIVE BRAKE, NO.1 | ||||
| 34625-60020 |
LY13#,21#..ATM 厚さ=5.0 |
1 | ||
| 34625A - RING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE) | ||||
| 90521-99004 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 90521-99109 |
LY13#,21#..ATM |
1 | ||
| 34710 - GEAR ASSY, OVERDRIVE PLANETARY | ||||
| 34710-25010 |
LY13#,21#..ATM |
1 | ||
| 34710-14011 |
LY10#,11#,16#..ATM |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-24001 |
LY10#,11#,16#,YY211..ATM ﾌﾛﾝﾄ |
1 | ||
| 90374-23012 |
LY10#,11#,16#,YY211..ATM ﾘﾔ |
1 | ||
| 90374-23001 |
LY13#,21#..ATM ﾘﾔ |
1 | ||
| 90374-28012 |
LY13#,21#..ATM ﾌﾛﾝﾄ |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-24001 |
LY10#,11#,16#,YY211..ATM ﾌﾛﾝﾄ |
1 | ||
| 90374-23012 |
LY10#,11#,16#,YY211..ATM ﾘﾔ |
1 | ||
| 90374-23001 |
LY13#,21#..ATM ﾘﾔ |
1 | ||
| 90374-28012 |
LY13#,21#..ATM ﾌﾛﾝﾄ |
1 | ||
| 34713 - RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE) | ||||
| 34713-30020 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34713-36010 |
LY13#,21#..ATM |
1 | ||
| 34714 - CLUTCH, 1 WAY(FOR OVERDRIVE) | ||||
| 35791-30030 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35791-36010 |
LY13#,21#..ATM |
1 | ||
| 34714A - RING, HOLE SNAP(FOR 1 WAY CLUTCH) | ||||
| 90521-90002 |
LY13#,21#..ATM |
1 | ||
| 34731 - GEAR, OVERDRIVE PLANETARY RING | ||||
| 34731-60010 |
LY13#,21#..ATM |
1 | ||
| 34731A - RING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR) | ||||
| 90521-99110 |
LY13#,21#..ATM |
1 | ||
| 34732 - FLANGE, OVERDRIVE PLANETARY RING GEAR | ||||
| 34732-60020 |
LY13#,21#..ATM |
1 | ||
| 34732B - BEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANG | ||||
| 90374-34007 |
LY13#,21#..ATM |
1 | ||
| 90374-34001 |
LY131,211..ATM |
1 | ||
| 34735 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1 | ||||
| 34737-60020 |
LY13#,21#..ATM |
1 | ||
| 34735-30020 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 34736 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2 | ||||
| 34738-36010 |
LY13#,21#..ATM |
1 | ||
| 34736-30010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-43010 |
LY10#,11#,16#,YY211..ATM |
2 | ||
| 35617-36020 |
LY13#,21#..ATM |
2 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-43010 |
LY10#,11#,16#,YY211..ATM |
2 | ||
| 35617-36020 |
LY13#,21#..ATM |
2 | ||
| 35632B - PLATE, BRAKE (FOR OVERDRIVE) | ||||
| 35632-60050 |
LY13#,21#..ATM 厚さ=4.0 |
1 | ||
| 35632-60010 |
LY13#,21#..ATM 厚さ=2.4 |
2 | ||
| 35632B - PLATE, BRAKE (FOR OVERDRIVE) | ||||
| 35632-60050 |
LY13#,21#..ATM 厚さ=4.0 |
1 | ||
| 35632-60010 |
LY13#,21#..ATM 厚さ=2.4 |
2 | ||
| 35632B - PLATE, BRAKE (FOR OVERDRIVE) | ||||
| 35632-60050 |
LY13#,21#..ATM 厚さ=4.0 |
1 | ||
| 35632-60010 |
LY13#,21#..ATM 厚さ=2.4 |
2 | ||
| 35633D - DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35633-60060 |
LY13#,21#..ATM |
3 | ||
| 35633D - DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35633-60060 |
LY13#,21#..ATM |
3 | ||
| 35633D - DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35633-60060 |
LY13#,21#..ATM |
3 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35634-60010 |
LY13#,21#..ATM |
3 | ||
| 35634-30080 |
LY10#,11#,16#..ATM 厚さ=1.95−2.05 |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35634-60010 |
LY13#,21#..ATM |
3 | ||
| 35634-30080 |
LY10#,11#,16#..ATM 厚さ=1.95−2.05 |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35634-60010 |
LY13#,21#..ATM |
3 | ||
| 35634-30080 |
LY10#,11#,16#..ATM 厚さ=1.95−2.05 |
2 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 35633-60050 |
LY13#,21#..ATM |
3 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 35633-60050 |
LY13#,21#..ATM |
3 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 35633-60050 |
LY13#,21#..ATM |
3 | ||
| 35712B - RING, OIL SEAL (FOR OVERDRIVE PLANETARY RING GEAR FLANG | ||||
| 35712-36010 |
LY13#,21#..ATM |
1 | ||
| 35785A - RETAINER, OVERDRIVE CASE RING | ||||
| 35785-36010 |
LY13#,21#..ATM |
3 | ||
| 35789H - RACE, THRUST BEARING (FOR OVERDRIVE CASE) | ||||
| 35789-60030 |
LY13#,21#..ATM |
1 | ||
| 35789K - RACE, THRUST BEARING (FOR OVERDRIVE PLANETARY GEAR) | ||||
| 35789-60020 |
LY13#,21#..ATM |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
