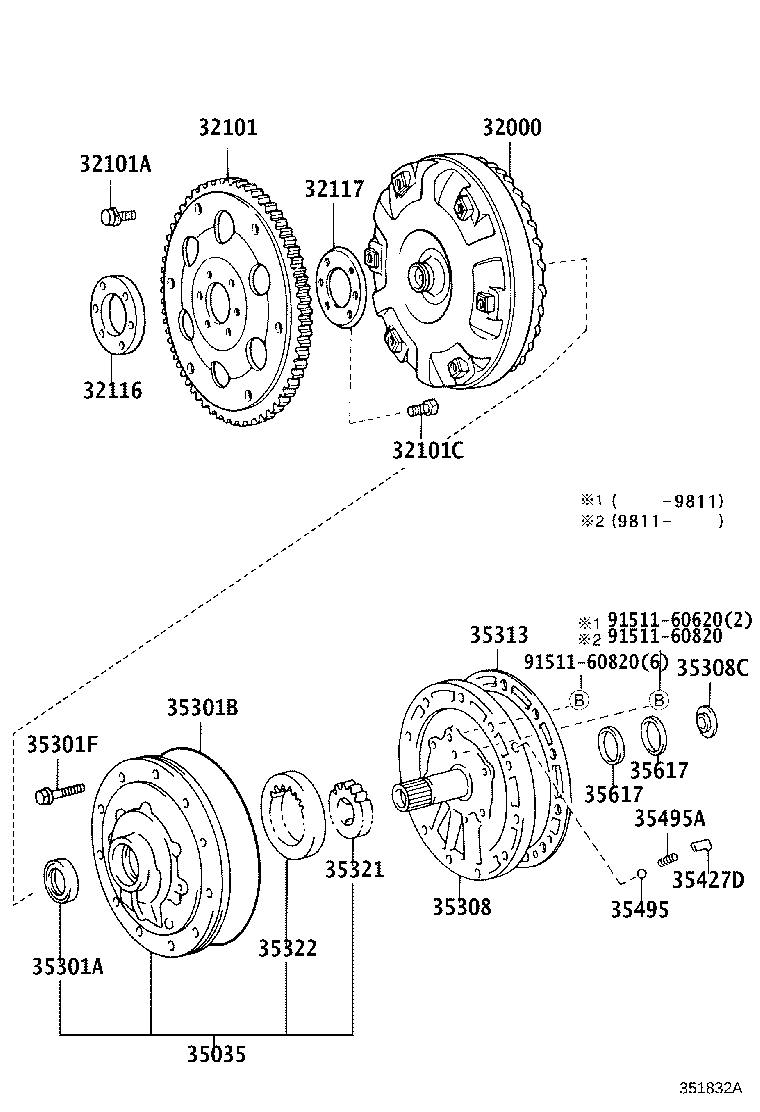

LY211-TQPGS (1995)
Toyota Dyna 150/Toyoace G15
(9505- )LY13#,21#..ATM
A44DE,A443E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-25010 |
LY13#,21#..ATM |
1 | ||
| 32000-26060 |
LY10#,11#,16#..ATM |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-35020 |
LY10#,11#,13#,16#,21#..ATM |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09010 |
LY101,111,131,161,211,YY211..ATM *9−1.25PX12.8−9,ｸﾞﾘｰﾝ |
1 | ||
| 90119-09009 |
LY101,111,131,161,211,YY211..ATM *9−1.25PX12.8−8.8,ｲｴﾛｰ |
5 | ||
| 90119-09026 |
LY10#,11#,13#,16#,21#,YY211..ATM..(DSL,LPG) *9−1.25PX12.8−9,ｸﾞﾘｰﾝ |
1 | ||
| 90119-09027 |
LY10#,11#,13#,16#,21#,YY211..ATM..(DSL,LPG) *9−1.25PX12.8−8.8,ｲｴﾛｰ |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-12014 |
LY10#,11#,13#,16#,21#..ATM |
8 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-35010 |
LY10#,11#,13#,16#,21#..ATM |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-35010 |
LY10#,11#,13#,16#,21#..ATM |
1 | ||
| 35035 - BODY SUB-ASSY, FR OIL PUMP & GEAR | ||||
| 35035-25011 |
LY13#,21#..ATM |
1 | ||
| 35035-25010 |
LY131,211..ATM |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38029 |
LY13#,21#..ATM |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 90301-99029 |
LY13#,21#..ATM |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08137 |
LY10#,11#,16#,YY211..ATM |
7 | ||
| 90105-08212 |
LY13#,21#..ATM *8−1.25PX60−30 |
10 | ||
| 90105-08213 |
LY13#,21#..ATM *8−1.25PX60−20 |
1 | ||
| 35308 - COVER SUB-ASSY, FRONT OIL PUMP | ||||
| 35308-25011 |
LY13#,21#..ATM |
1 | ||
| 35308-25010 |
LY131,211..ATM |
1 | ||
| 35308C - RACE, THRUST BEARING (FOR FRONT OIL PUMP COVER) | ||||
| 35789-36050 |
LY13#,21#..ATM 厚さ=1.0 |
1 | ||
| 35789-36040 |
LY13#,21#..ATM 厚さ=0.8 |
1 | ||
| 35789-36060 |
LY13#,21#..ATM 厚さ=1.4 |
1 | ||
| 35313 - GASKET, FRONT OIL PUMP COVER | ||||
| 35313-60010 |
LY13#,21#..ATM |
1 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-25030 |
LY131,211..ATM 厚さ=11.999−12.014 |
1 | ||
| 35321-25020 |
LY131,211..ATM 厚さ=11.967−11.982 |
1 | ||
| 35321-22060 |
LY10#,11#,16#,YY211..ATM..(DSL,LPG) 厚さ=17.285−17.276 |
1 | ||
| 35321-25021 |
LY13#,21#..ATM 厚さ=11.963−11.977 |
1 | ||
| 35321-22040 |
LY10#,11#,16#,YY211..ATM..(DSL,LPG) 厚さ=17.265−17.255 |
1 | ||
| 35321-25031 |
LY13#,21#..ATM 厚さ=11.978−11.992 |
1 | ||
| 35321-22020 |
LY10#,11#,16#,YY211..ATM..(DSL,LPG) 厚さ=17.244−17.235 |
1 | ||
| 35321-22030 |
LY10#,11#,16#,YY211..ATM..(DSL,LPG) 厚さ=17.254−17.245 |
1 | ||
| 35321-25011 |
LY13#,21#..ATM 厚さ=11.948−11.962 |
1 | ||
| 35321-22050 |
LY10#,11#,16#,YY211..ATM..(DSL,LPG) 厚さ=17.275−17.266 |
1 | ||
| 35321-25010 |
LY131,211..ATM 厚さ=11.983−11.998 |
1 | ||
| 35321-25040 |
LY13#,21#..ATM 厚さ=11.993−12.007 |
1 | ||
| 35321-25050 |
LY13#,21#..ATM 厚さ=12.008−12.022 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-22020 |
LY10#,11#,16#,YY211..ATM..(DSL,LPG) 厚さ=17.244−17.235 |
1 | ||
| 35322-22060 |
LY10#,11#,16#,YY211..ATM..(DSL,LPG) 厚さ=17.285−17.276 |
1 | ||
| 35322-22030 |
LY10#,11#,16#,YY211..ATM..(DSL,LPG) 厚さ=17.254−17.245 |
1 | ||
| 35322-22050 |
LY10#,11#,16#,YY211..ATM..(DSL,LPG) 厚さ=17.275−17.266 |
1 | ||
| 35322-60100 |
LY13#,21#..ATM 厚さ=12.008−12.022 |
1 | ||
| 35322-60020 |
LY131,211..ATM 厚さ=11.967−11.982 |
1 | ||
| 35322-60010 |
LY131,211..ATM 厚さ=11.983−11.998 |
1 | ||
| 35322-60090 |
LY13#,21#..ATM 厚さ=11.993−12.007 |
1 | ||
| 35322-60031 |
LY13#,21#..ATM 厚さ=11.978−11.992 |
1 | ||
| 35322-60011 |
LY13#,21#..ATM 厚さ=11.948−11.962 |
1 | ||
| 35322-60021 |
LY13#,21#..ATM 厚さ=11.963−11.977 |
1 | ||
| 35322-22040 |
LY10#,11#,16#,YY211..ATM..(DSL,LPG) 厚さ=17.265−17.255 |
1 | ||
| 35322-60030 |
LY131,211..ATM 厚さ=11.999−12.014 |
1 | ||
| 35427D - SEAT, CHECK VALVE SPRING | ||||
| 35427-36010 |
LY131,211..ATM |
1 | ||
| 35427-60010 |
LY13#,21#..ATM |
1 | ||
| 35495 - BALL, CHECK | ||||
| 35495-36010 |
LY131,211..ATM |
1 | ||
| 35495-60010 |
LY13#,21#..ATM |
1 | ||
| 35495A - SPRING, COMPRESSION (FOR CHECK BALL) | ||||
| 90501-18677 |
LY131,211..ATM |
1 | ||
| 90501-18106 |
LY13#,21#..ATM |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32010 |
LY10#,11#,16#,YY211..ATM |
2 | ||
| 35617-60010 |
LY13#,21#..ATM |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32010 |
LY10#,11#,16#,YY211..ATM |
2 | ||
| 35617-60010 |
LY13#,21#..ATM |
2 | ||
| Common parts | ||||
| 91511-60620 | ||||
| 91511-60820 | ||||
(9505- )YY211..WT..125 ; (9505- )LY10#,11#,16#..ATM
A42D,A43D,A44DE,A44DF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30250 - CONVERTER ASSY, TORQUE, REBUILT | ||||
| 30250-26060 |
LY10#,11#,16#..ATM |
1 | ||
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-25010 |
LY13#,21#..ATM |
1 | ||
| 32000-26060 |
LY10#,11#,16#..ATM |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-35020 |
LY10#,11#,13#,16#,21#..ATM |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09010 |
LY101,111,131,161,211,YY211..ATM *9−1.25PX12.8−9,ｸﾞﾘｰﾝ |
1 | ||
| 90119-09009 |
LY101,111,131,161,211,YY211..ATM *9−1.25PX12.8−8.8,ｲｴﾛｰ |
5 | ||
| 90119-09026 |
LY10#,11#,13#,16#,21#,YY211..ATM..(DSL,LPG) *9−1.25PX12.8−9,ｸﾞﾘｰﾝ |
1 | ||
| 90119-09027 |
LY10#,11#,13#,16#,21#,YY211..ATM..(DSL,LPG) *9−1.25PX12.8−8.8,ｲｴﾛｰ |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-12014 |
LY10#,11#,13#,16#,21#..ATM |
8 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-35010 |
LY10#,11#,13#,16#,21#..ATM |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-35010 |
LY10#,11#,13#,16#,21#..ATM |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35301-14010 |
LY10#,11#,16#..ATM |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38029 |
LY13#,21#..ATM |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 90301-99029 |
LY13#,21#..ATM |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08137 |
LY10#,11#,16#,YY211..ATM |
7 | ||
| 90105-08212 |
LY13#,21#..ATM *8−1.25PX60−30 |
10 | ||
| 90105-08213 |
LY13#,21#..ATM *8−1.25PX60−20 |
1 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-25030 |
LY131,211..ATM 厚さ=11.999−12.014 |
1 | ||
| 35321-25020 |
LY131,211..ATM 厚さ=11.967−11.982 |
1 | ||
| 35321-22060 |
LY10#,11#,16#,YY211..ATM..(DSL,LPG) 厚さ=17.285−17.276 |
1 | ||
| 35321-25021 |
LY13#,21#..ATM 厚さ=11.963−11.977 |
1 | ||
| 35321-22040 |
LY10#,11#,16#,YY211..ATM..(DSL,LPG) 厚さ=17.265−17.255 |
1 | ||
| 35321-25031 |
LY13#,21#..ATM 厚さ=11.978−11.992 |
1 | ||
| 35321-22020 |
LY10#,11#,16#,YY211..ATM..(DSL,LPG) 厚さ=17.244−17.235 |
1 | ||
| 35321-22030 |
LY10#,11#,16#,YY211..ATM..(DSL,LPG) 厚さ=17.254−17.245 |
1 | ||
| 35321-25011 |
LY13#,21#..ATM 厚さ=11.948−11.962 |
1 | ||
| 35321-22050 |
LY10#,11#,16#,YY211..ATM..(DSL,LPG) 厚さ=17.275−17.266 |
1 | ||
| 35321-25010 |
LY131,211..ATM 厚さ=11.983−11.998 |
1 | ||
| 35321-25040 |
LY13#,21#..ATM 厚さ=11.993−12.007 |
1 | ||
| 35321-25050 |
LY13#,21#..ATM 厚さ=12.008−12.022 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-22020 |
LY10#,11#,16#,YY211..ATM..(DSL,LPG) 厚さ=17.244−17.235 |
1 | ||
| 35322-22060 |
LY10#,11#,16#,YY211..ATM..(DSL,LPG) 厚さ=17.285−17.276 |
1 | ||
| 35322-22030 |
LY10#,11#,16#,YY211..ATM..(DSL,LPG) 厚さ=17.254−17.245 |
1 | ||
| 35322-22050 |
LY10#,11#,16#,YY211..ATM..(DSL,LPG) 厚さ=17.275−17.266 |
1 | ||
| 35322-60100 |
LY13#,21#..ATM 厚さ=12.008−12.022 |
1 | ||
| 35322-60020 |
LY131,211..ATM 厚さ=11.967−11.982 |
1 | ||
| 35322-60010 |
LY131,211..ATM 厚さ=11.983−11.998 |
1 | ||
| 35322-60090 |
LY13#,21#..ATM 厚さ=11.993−12.007 |
1 | ||
| 35322-60031 |
LY13#,21#..ATM 厚さ=11.978−11.992 |
1 | ||
| 35322-60011 |
LY13#,21#..ATM 厚さ=11.948−11.962 |
1 | ||
| 35322-60021 |
LY13#,21#..ATM 厚さ=11.963−11.977 |
1 | ||
| 35322-22040 |
LY10#,11#,16#,YY211..ATM..(DSL,LPG) 厚さ=17.265−17.255 |
1 | ||
| 35322-60030 |
LY131,211..ATM 厚さ=11.999−12.014 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-14012 |
LY10#,11#,16#..ATM |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32010 |
LY10#,11#,16#,YY211..ATM |
2 | ||
| 35617-60010 |
LY13#,21#..ATM |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32010 |
LY10#,11#,16#,YY211..ATM |
2 | ||
| 35617-60010 |
LY13#,21#..ATM |
2 | ||
| 35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT) | ||||
| 90374-25003 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| Common parts | ||||
| 90105-06126 | ||||
