LY211-TQPGS (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - May 1999
Engine 3L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

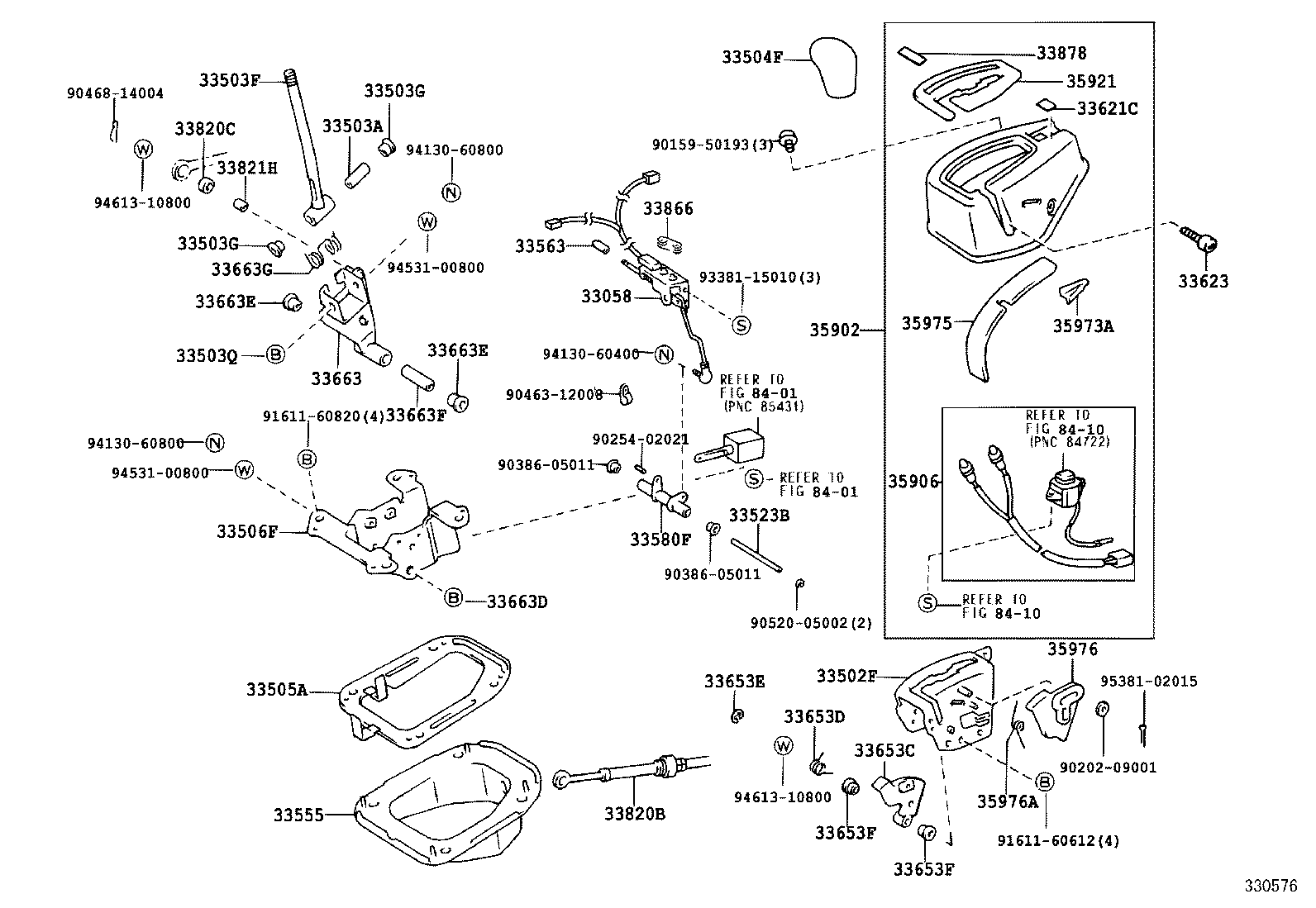

ILLUST NO. 1 OF 2(9505- )LY10#,11#,13#,21#,YY211..ATM

Click highlighted areas on diagram

diagram 33058 33502F 33503A 33503F 33503G 33503G 33503Q 33504F 33505A 33506F 33523B 33555 33563 33580F 33621C 33623 33653C 33653D 33653E 33653F 33653F 33663 33663D 33663E 33663E 33663F 33663G 33820B 33820C 33821H 33866 33878 35902 35906 35921 35973A 35975 35976 35976A 8401 8401 8410 8410 9015950193 9020209001 9025402021 9038605011 9038605011 9046312008 9046814004 9052005002 9161160612 9161160820 9338115010 9413060400 9413060800 9413060800 9453100800 9453100800 9461310800 9461310800 9538102015
Part # Description Qty Price
33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33058-26021

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33502F - HOUSING SUB-ASSY, SHIFT LEVER (FOR FLOOR SHIFT)
33502-25020

LY13#,21#..ATM

 1
33502-26080

LY10#,11#,16#,YY211..ATM

 1
33503A - COLLAR(FOR SHIFT LEVER)
90387-08089

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-36110

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33503G - BUSH(FOR SHIFT LEVER)
90385-11003

LY10#,11#,13#,16#,21#,YY211..ATM

 2
33503G - BUSH(FOR SHIFT LEVER)
90385-11003

LY10#,11#,13#,16#,21#,YY211..ATM

 2
33503Q - BOLT(FOR SHIFT LEVER SUB-ASSY)
91111-40855

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-36070B0

LY10#,11#,13#,16#,21#,YY211..ATM

GRAY,TRIM1#

 1
33505A - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR FLOOR SHIFT)
33505-26010

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-26020

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33523B - PIN, SHIFT LEVER (FOR FLOOR SHIFT)
90249-05071

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33555 - BOOT, SHIFT LEVER
33555-26020

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-26020

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33580F - BELLCRANK ASSY, SHIFTING (FOR FLOOR SHIFT)
33580-36060

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33621C - LABEL, CONTROL LEVER INFORMATION
33621-26040

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-36020B0

LY10#,11#,13#,16#,21#,YY211..ATM

GRAY,TRIM1#

 1
33653C - GUIDE, SHIFT LEVER WIRE
33653-36030

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33653D - SPRING, TORSION (FOR FLOOR SHIFT LEVER GUIDE)
90508-16113

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33653E - RING, E (FOR FLOOR SHIFT LEVER GUIDE)
96160-00500

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33653F - BUSH
90386-08014

LY10#,11#,13#,16#,21#,YY211..ATM

 2
33653F - BUSH
90386-08014

LY10#,11#,13#,16#,21#,YY211..ATM

 2
33663 - LEVER, CONTROL
33663-26012

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33663D - BOLT (FOR FLOOR SHIFT CONTROL LEVER)
91111-40880

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33663E - BUSH (FOR FLOOR SHIFT CONTROL LEVER)
90385-11006

LY10#,11#,13#,16#,21#,YY211..ATM

 2
33663E - BUSH (FOR FLOOR SHIFT CONTROL LEVER)
90385-11006

LY10#,11#,13#,16#,21#,YY211..ATM

 2
33663F - COLLAR (FOR FLOOR SHIFT CONTROL LEVER)
90387-08096

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33663G - SPRING, TORSION (FOR FLOOR SHIFT CONTROL LEVER)
90508-25003

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-25020

LY21#..ATM

 1
33820-26041

LY10#,11#..ATM

 1
33820C - BUSH (FOR TRANSMISSION CONTROL CABLE)
90386-10025

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33821H - COLLAR (FOR TRANSMISSION CONTROL CABLE)
90560-08366

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33866 - SPRING, SHIFT LOCK RELEASE
33866-36010

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33878 - LABEL, SHIFT LOCK INFORMATION, NO.2
33878-36010

LY10#,11#,13#,16#,21#,YY211..ATM

 1
35902 - COVER SUB-ASSY, POSITION INDICATOR HOUSING
35902-26021B0

LY10#,11#,16#,YY211..ATM

GRAY,TRIM1#

 1
35902-25010B0

LY13#,21#..ATM

GRAY,TRIM1#

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-26021

LY10#,11#,13#,16#,21#,YY211..ATM

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-25010

LY13#,21#..ATM

 1
35921-26060

LY10#,11#,16#,YY211..ATM

 1
35973A - ATTACHMENT, POSITION INDICATOR HOUSING COVER
35973-36010

LY10#,11#,13#,16#,21#,YY211..ATM

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-36020

LY10#,11#,13#,16#,21#,YY211..ATM

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-36010B0

LY10#,11#,13#,16#,21#,YY211..ATM

GRAY,TRIM1#

 1
35976A - SPRING, TORSION (FOR POSITION INDICATER SLIDE COVER)
90508-10045

LY10#,11#,13#,16#,21#,YY211..ATM

 1
Common parts
90159-50193
90202-09001
90254-02021
90386-05011
90463-12008
90468-14004
90520-05002
91611-60612
91611-60820
93381-15010
94130-60400
94130-60800
94531-00800
94613-10800
95381-02015
Linked diagrams
8401
8410

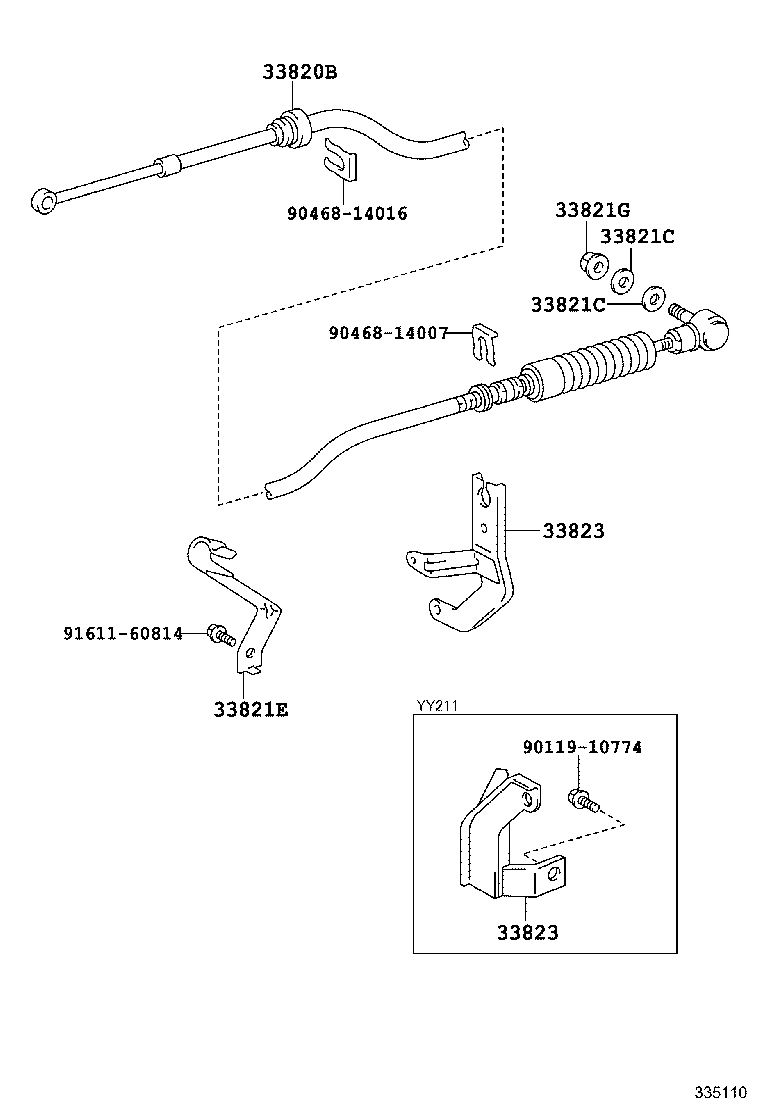

ILLUST NO. 2 OF 2(9505- )LY10#,11#,13#,21#,YY211..ATM

Click highlighted areas on diagram

diagram 33820B 33821C 33821C 33821E 33821G 33823 33823 9011910774 9046814007 9046814016 9161160814
Part # Description Qty Price
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-25020

LY21#..ATM

 1
33820-26041

LY10#,11#..ATM

 1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08050

LY13#,21#,YY211..ATM

外径=18,内径=8

 2
90201-09019

LY10#,11#,16#..ATM

外径=18,内径=9

 2
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08050

LY13#,21#,YY211..ATM

外径=18,内径=8

 2
90201-09019

LY10#,11#,16#..ATM

外径=18,内径=9

 2
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90949-01489

LY10#,11#,13#,21#..ATM

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90179-08141

LY10#,11#,13#,16#,21#,YY211..ATM

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-26030

LY10#,11#..ATM

 1
33823-25020

LY13#,21#..ATM

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-26030

LY10#,11#..ATM

 1
33823-25020

LY13#,21#..ATM

 1
Common parts
90119-10774
90468-14007
90468-14016
91611-60814
