LY211-TQPGS (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - May 1999
Engine 3L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

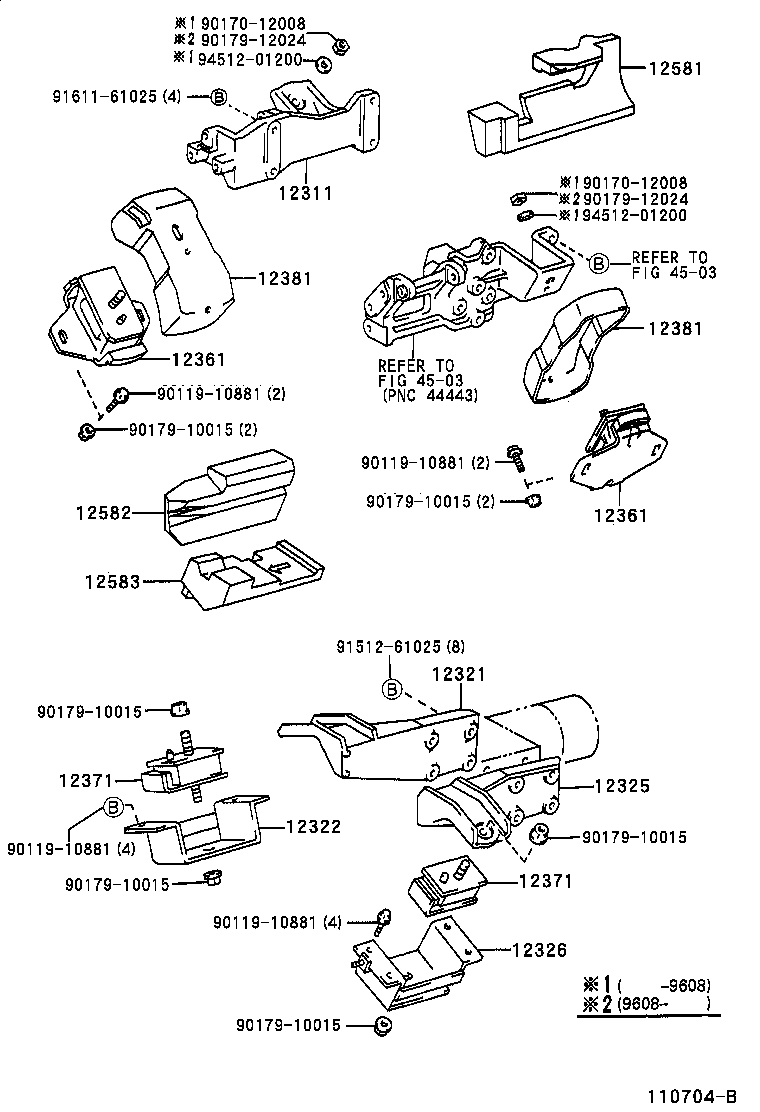

(9505- )3L,5L..LY21#..ATM

Click highlighted areas on diagram

diagram 12311 12321 12322 12325 12326 12361 12361 12371 12371 12381 12381 12581 12582 12583 4503 4503 9011910881 9011910881 9011910881 9011910881 9017012008 9017012008 9017910015 9017910015 9017910015 9017910015 9017910015 9017910015 9017912024 9017912024 9151261025 9161161025 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54091

3L..LY101,111,201,211

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-54040

3L,5L..LY21#..ATM

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-54060

3L,5L..LY10#,11#..ATM

 1
12322-71070

3L,5L..LY20#,21#

 1
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-54010

3L,5L..LY21#..ATM

 1
12326 - BRACKET, ENGINE MOUNTING STAY
12326-71010

3L,5L..LY20#,21#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54121

3L,5L..LY20#,21#

 2
12361-54200

3L,5L..LY10#,11#,12#,13#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54121

3L,5L..LY20#,21#

 2
12361-54200

3L,5L..LY10#,11#,12#,13#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54070

3L,5L..LY20#,21#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54070

3L,5L..LY20#,21#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54050

3L,5L..LY10#,11#,12#,13#,15#,16#

 2
12381-54040

3L,5L..LY20#,21#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54050

3L,5L..LY10#,11#,12#,13#,15#,16#

 2
12381-54040

3L,5L..LY20#,21#

 2
12581 - INSULATOR, CYLINDER BLOCK, NO.1
12581-54010

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
12582 - INSULATOR, CYLINDER BLOCK, NO.2
12582-54021

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
12582-54020

3L..LY201,211

 1
12583 - INSULATOR, CYLINDER BLOCK, NO.3
12583-54030

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
Common parts
90119-10881
90170-12008
90179-10015
90179-12024
91512-61025
91611-61025
94512-01200
Linked diagrams
4503

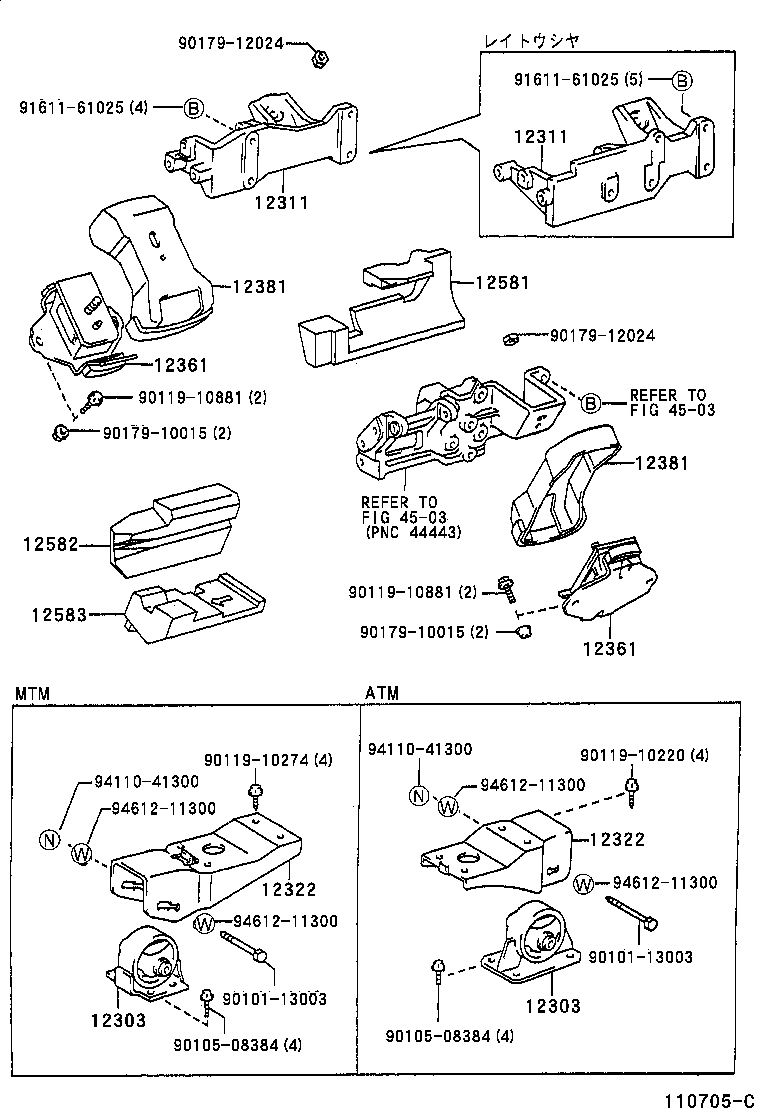

(9610- )3L,5L..LY10#,11#

Click highlighted areas on diagram

diagram 12303 12303 12311 12311 12322 12322 12361 12361 12381 12381 12581 12582 12583 4503 4503 9010113003 9010113003 9010508384 9010508384 9011910220 9011910274 9011910881 9011910881 9017910015 9017910015 9017912024 9017912024 9161161025 9161161025 9411041300 9411041300 9461211300 9461211300 9461211300 9461211300
Part # Description Qty Price
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-67031

3L,5L..LY10#,11#..ATM

 1
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-67031

3L,5L..LY10#,11#..ATM

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54091

3L..LY101,111,201,211

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54091

3L..LY101,111,201,211

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-54060

3L,5L..LY10#,11#..ATM

 1
12322-71070

3L,5L..LY20#,21#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-54060

3L,5L..LY10#,11#..ATM

 1
12322-71070

3L,5L..LY20#,21#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54121

3L,5L..LY20#,21#

 2
12361-54200

3L,5L..LY10#,11#,12#,13#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54121

3L,5L..LY20#,21#

 2
12361-54200

3L,5L..LY10#,11#,12#,13#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54050

3L,5L..LY10#,11#,12#,13#,15#,16#

 2
12381-54040

3L,5L..LY20#,21#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54050

3L,5L..LY10#,11#,12#,13#,15#,16#

 2
12381-54040

3L,5L..LY20#,21#

 2
12581 - INSULATOR, CYLINDER BLOCK, NO.1
12581-54010

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
12582 - INSULATOR, CYLINDER BLOCK, NO.2
12582-54021

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
12582-54020

3L..LY201,211

 1
12583 - INSULATOR, CYLINDER BLOCK, NO.3
12583-54030

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
Common parts
90101-13003
90105-08384
90119-10220
90119-10274
90119-10881
90179-10015
90179-12024
91611-61025
94110-41300
94612-11300
Linked diagrams
4503
