LY211-TQMGS (1995)
Toyota Dyna 150/Toyoace G15
Production
May 1995
-
May 1999
Engine
3L
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )

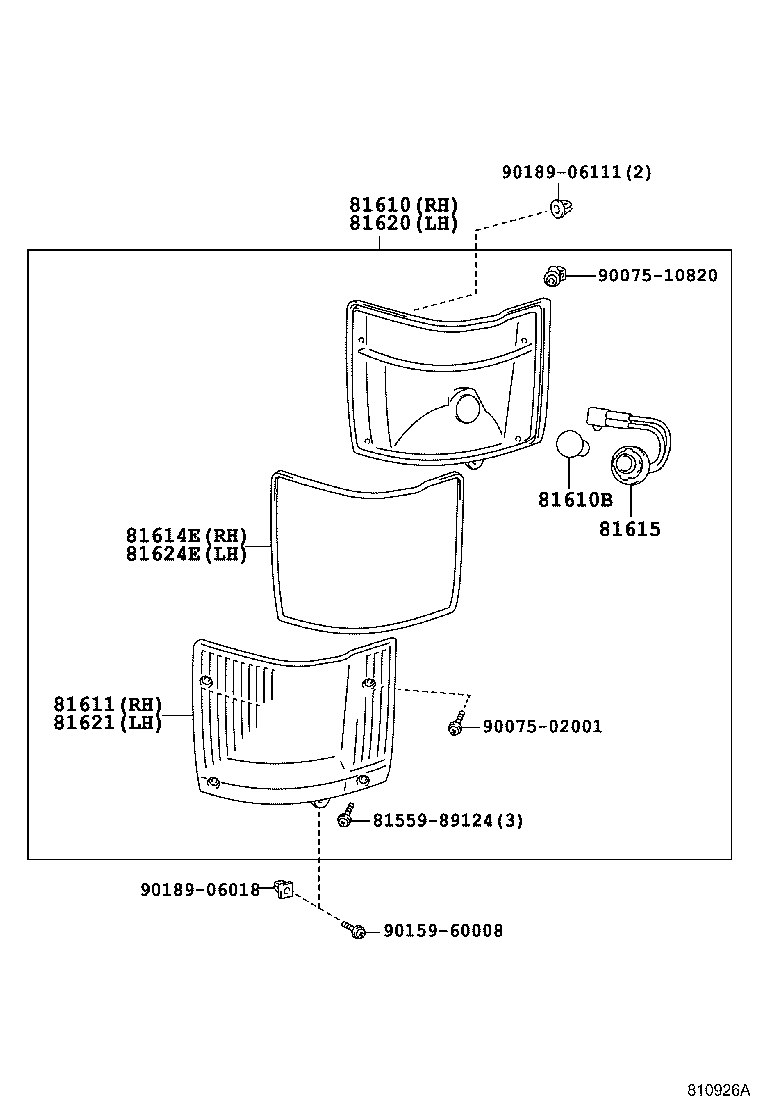

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81610 - LAMP ASSY, PARKING & CLEARANCE, RH | ||||
| 81610-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 81610B - BULB(FOR PARKING & CLEARANCE LAMP) | ||||
| 90981-13036 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 12V 35/5W |
2 | ||
| 81611 - LENS, PARKING & CLEARANCE LAMP, RH | ||||
| 81611-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 81614E - GASKET, CLEARANCE LAMP | ||||
| 81614-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 81615 - SOCKET AND WIRE, CLEARANCE LAMP | ||||
| 81615-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 81620 - LAMP ASSY, PARKING & CLEARANCE, LH | ||||
| 81620-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 81621 - LENS, PARKING & CLEARANCE LAMP, LH | ||||
| 81621-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 81624E - GASKET, CLEARANCE LAMP, LH | ||||
| 81624-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| Common parts | ||||
| 81559-89124 | ||||
| 90075-02001 | ||||
| 90075-10820 | ||||
| 90159-60008 | ||||
| 90189-06018 | ||||
| 90189-06111 | ||||
