LY211-TQMGS (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )3L,5L

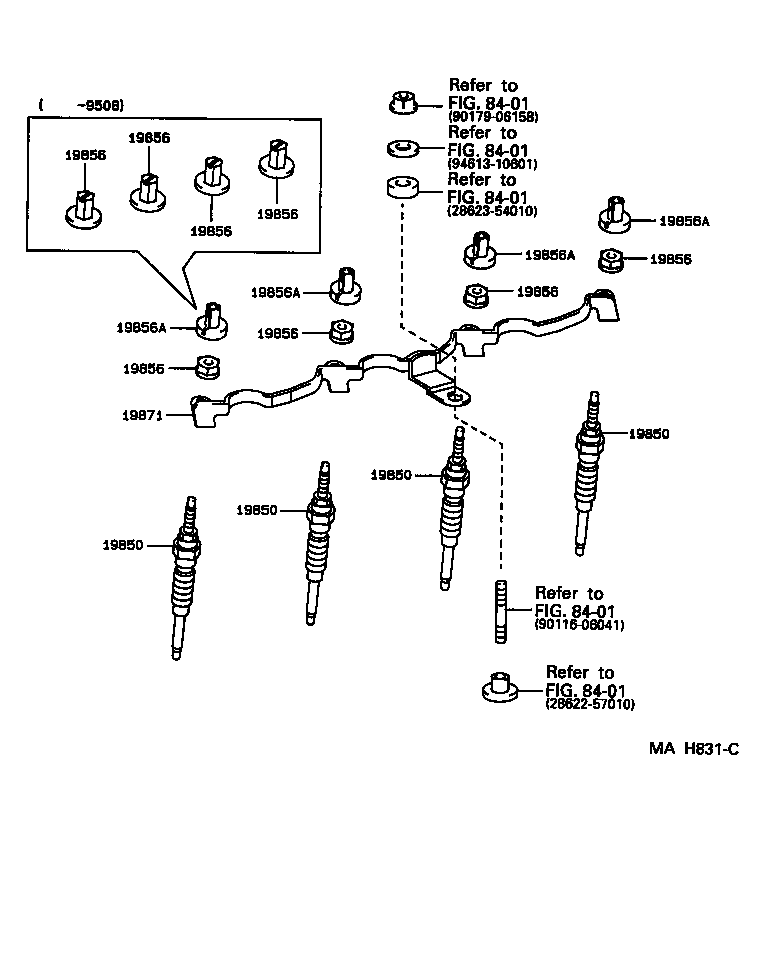

Click highlighted areas on diagram

diagram 19850 19850 19850 19850 19856 19856 19856 19856 19856 19856 19856 19856 19856A 19856A 19856A 19856A 19871 2862257010 2862354010 8401 8401 8401 8401 8401 9011606041 9017906158 9461310601
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-05010

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

*BV−GV=12V−11V,(L)

 4
19850-54120

3L..LY101,111,121,131,151,161,201,211

*BV−GV=12V−11V

 4
19850-54120

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

*BV−GV=12V−11V,(J)

 4
19850-54090

3L..LY201,211

*BV−GV=12V−11V

 4
19850 - PLUG ASSY, GLOW
19850-05010

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

*BV−GV=12V−11V,(L)

 4
19850-54120

3L..LY101,111,121,131,151,161,201,211

*BV−GV=12V−11V

 4
19850-54120

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

*BV−GV=12V−11V,(J)

 4
19850-54090

3L..LY201,211

*BV−GV=12V−11V

 4
19850 - PLUG ASSY, GLOW
19850-05010

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

*BV−GV=12V−11V,(L)

 4
19850-54120

3L..LY101,111,121,131,151,161,201,211

*BV−GV=12V−11V

 4
19850-54120

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

*BV−GV=12V−11V,(J)

 4
19850-54090

3L..LY201,211

*BV−GV=12V−11V

 4
19850 - PLUG ASSY, GLOW
19850-05010

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

*BV−GV=12V−11V,(L)

 4
19850-54120

3L..LY101,111,121,131,151,161,201,211

*BV−GV=12V−11V

 4
19850-54120

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

*BV−GV=12V−11V,(J)

 4
19850-54090

3L..LY201,211

*BV−GV=12V−11V

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04030

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 4
90179-04019

3L..LY201,211

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04030

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 4
90179-04019

3L..LY201,211

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04030

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 4
90179-04019

3L..LY201,211

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04030

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 4
90179-04019

3L..LY201,211

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04030

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 4
90179-04019

3L..LY201,211

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04030

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 4
90179-04019

3L..LY201,211

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04030

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 4
90179-04019

3L..LY201,211

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04030

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 4
90179-04019

3L..LY201,211

 4
19856A - GROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)
90189-04024

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 4
19856A - GROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)
90189-04024

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 4
19856A - GROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)
90189-04024

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 4
19856A - GROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)
90189-04024

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 4
19871 - CONNECTOR, GLOW PLUG NO.1
19871-54020

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
Common parts
28622-57010
28623-54010
90116-06041
90179-06158
94613-10601
Linked diagrams
8401
