LY211-TLMGS (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

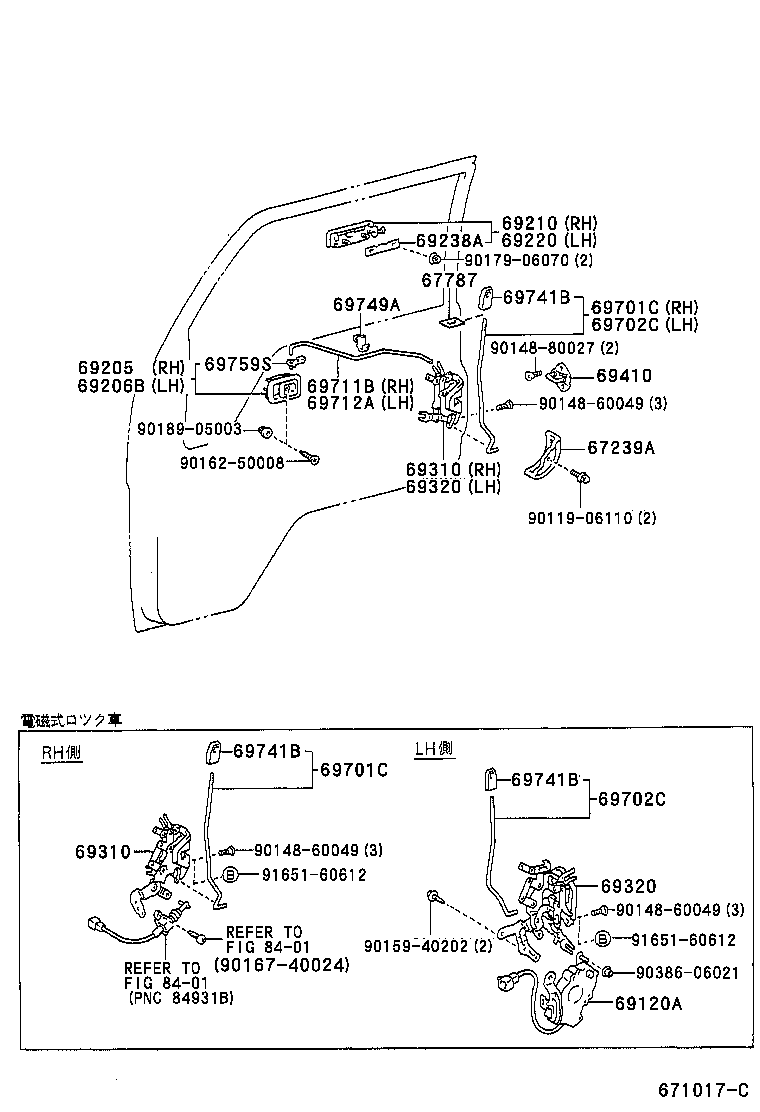

Click highlighted areas on diagram

diagram 67239A 67787 69120A 69205 69206B 69210 69220 69238A 69310 69310 69320 69320 69410 69701C 69701C 69702C 69702C 69711B 69712A 69741B 69741B 69741B 69749A 69759S 8401 8401 9011906110 9014860049 9014860049 9014860049 9014880027 9015940202 9016250008 9017906070 9018905003 9038606021 9165160612 9165160612
Part # Description Qty Price
67239A - WEIGHT, FRONT DOOR
67239-95401

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4

 1
67787 - SILENCER, FRONT DOOR LOCKING BUTTON KNOB
67787-37020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH
69120-37020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-10040B1

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

GRAY,TRIM1#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-10040B1

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

GRAY,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
69238A - PAD, DOOR OUTSIDE HANDLE
69238-95J00

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-37050

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
69310-37030

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

ｱﾘ(*EL = ｼﾞﾖｼﾕｾｷ)

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-37050

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
69310-37030

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

ｱﾘ(*EL = ｼﾞﾖｼﾕｾｷ)

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-37040

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
69320-37020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

ｱﾘ(*EL = ｼﾞﾖｼﾕｾｷ)

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-37040

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
69320-37020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

ｱﾘ(*EL = ｼﾞﾖｼﾕｾｷ)

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-89103

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
69701C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH
69701-37010C0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

BLACK,TRIM1#

 1
69701C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH
69701-37010C0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

BLACK,TRIM1#

 1
69702C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH
69702-37010C0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

BLACK,TRIM1#

 1
69702C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH
69702-37010C0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

BLACK,TRIM1#

 1
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-95403

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-95401

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
69741B - KNOB, FRONT DOOR LOCK CONTROL
69741-3201020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

BLACK,TRIM1#

 2
69741B - KNOB, FRONT DOOR LOCK CONTROL
69741-3201020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

BLACK,TRIM1#

 2
69741B - KNOB, FRONT DOOR LOCK CONTROL
69741-3201020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

BLACK,TRIM1#

 2
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-20010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-20060

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

GRAY

 1
69759-20070

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

GREEN

 1
Common parts
90119-06110
90148-60049
90148-80027
90159-40202
90162-50008
90179-06070
90189-05003
90386-06021
91651-60612
Linked diagrams
8401
