LY211-TKPFS3 (1995)
Toyota Dyna 150/Toyoace G15

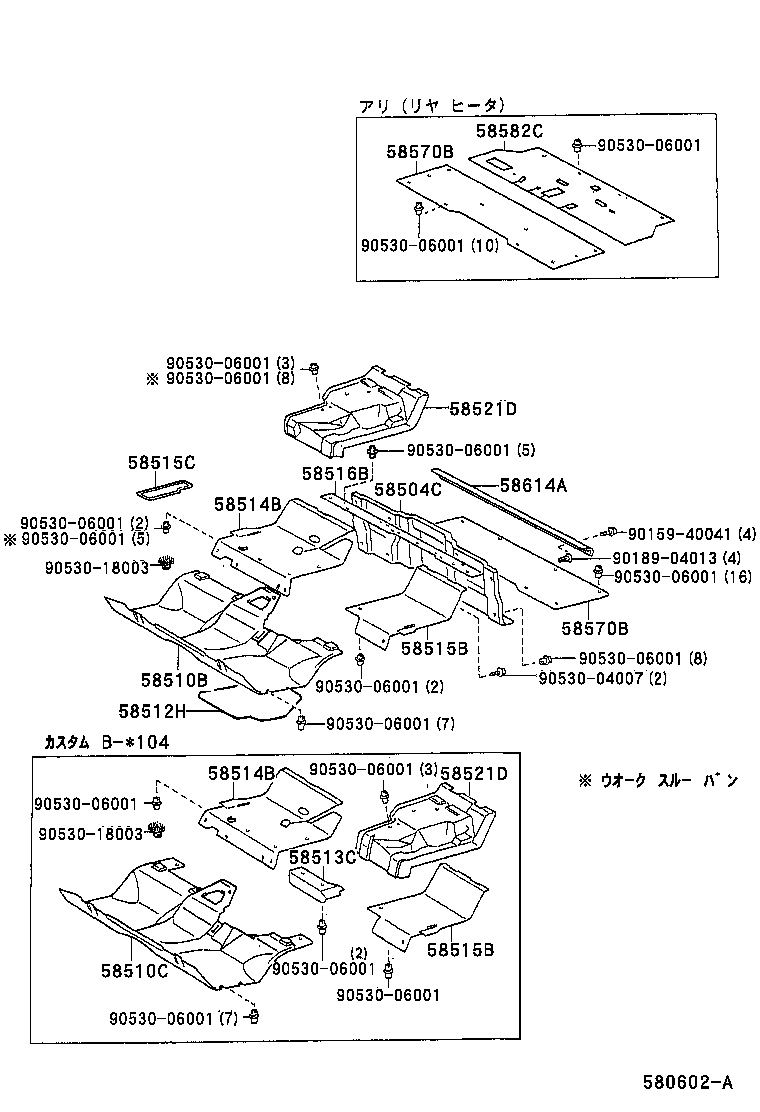

ILLUST NO. 2 OF 2(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510B - MAT, FRONT FLOOR, FRONT | ||||
| 58510-25010B0 |
LY10#,11#,13#,16#,21#,YY211..ATM..(CBU,IV3) BLUISH GRAY,TRIM1# |
1 | ||
| 58510C - CARPET ASSY, FRONT FLOOR, FRONT | ||||
| 58510-25060B0 |
LY211,YY211..ATM ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 58513C - MAT, FLOOR, FRONT CENTER | ||||
| 58513-25010B1 |
LY201,211,YY201,211..T1,T2,T3,T4 ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 58514B - MAT, FLOOR, REAR RH | ||||
| 58514-25020B0 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 BLUISH GRAY,TRIM1# |
1 | ||
| 58514-25030B1 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4 ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 58514B - MAT, FLOOR, REAR RH | ||||
| 58514-25020B0 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 BLUISH GRAY,TRIM1# |
1 | ||
| 58514-25030B1 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4 ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 58515B - MAT, FLOOR, REAR LH | ||||
| 58515-25010B1 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 BLUISH GRAY,TRIM1# |
1 | ||
| 58515B - MAT, FLOOR, REAR LH | ||||
| 58515-25010B1 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 BLUISH GRAY,TRIM1# |
1 | ||
| 58515C - MAT, FRONT FLOOR, REAR NO.1 | ||||
| 58515-95404B0 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 GRAY,TRIM1# |
1 | ||
| 58521D - MAT, ENGINE SERVICE HOLE COVER | ||||
| 58521-25040B1 |
LY201,211,YY201,211..T1,T2,T3,T4 ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 58521-25030B1 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 BLUISH GRAY,TRIM1# |
1 | ||
| 58521D - MAT, ENGINE SERVICE HOLE COVER | ||||
| 58521-25040B1 |
LY201,211,YY201,211..T1,T2,T3,T4 ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 58521-25030B1 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-40041 | ||||
| 90189-04013 | ||||
| 90530-04007 | ||||
| 90530-06001 | ||||
| 90530-18003 | ||||

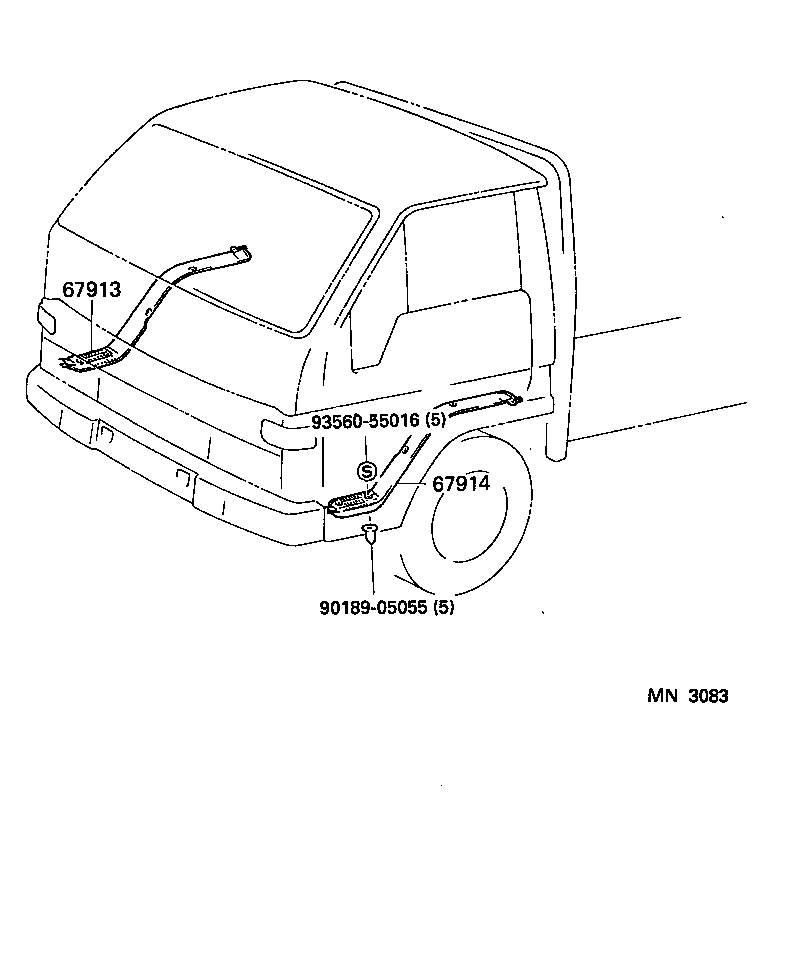

ILLUST NO. 1 OF 2(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-95403B0 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 GRAY,TRIM1# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-95403B0 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90189-05055 | ||||
| 93560-55016 | ||||
