LY211-TKPFS3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )3L,5L..LY20#,21#

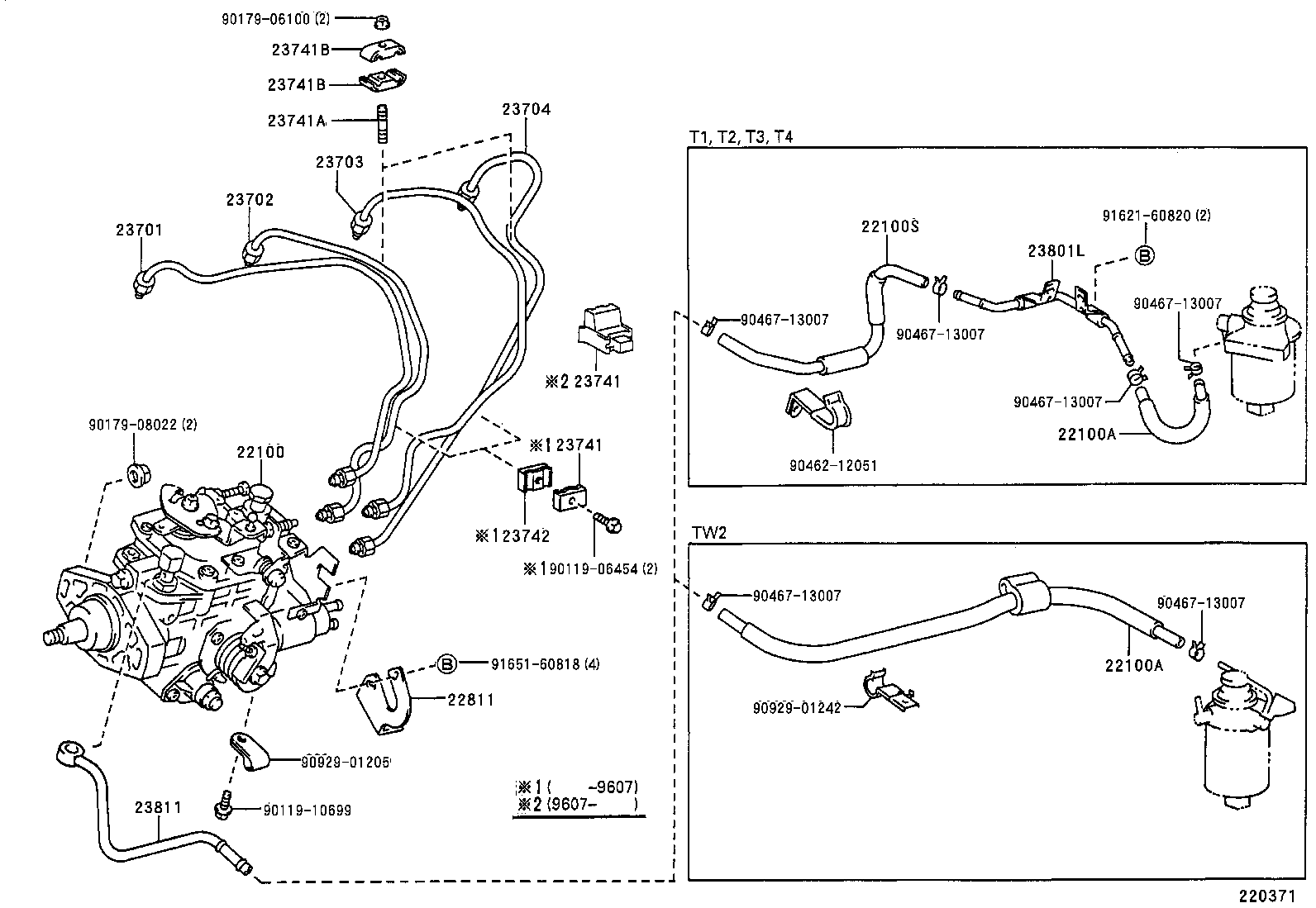

Click highlighted areas on diagram

diagram 22100 22100A 22100A 22100S 22811 23701 23702 23703 23704 23741 23741 23741A 23741B 23741B 23742 23801L 23811 9011906454 9011910699 9017906100 9017908022 9046212051 9046713007 9046713007 9046713007 9046713007 9046713007 9046713007 9092901205 9092901242 9162160820 9165160818
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-5B410

3L..LY101,111,131,161,211..ATM

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
90447-14023

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..T1,T2,T3,T4

長さ=250

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
90447-14023

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..T1,T2,T3,T4

長さ=250

 1
22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
23271-54010

3L,5L..LY20#,21#..T1,T2,T3,T4

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-54041

3L..LY101,111,121,131,151,161,201,211

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-54140

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-54140

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-54100

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-54100

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

3L..LY201,211

 2
23741-54030

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 2
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

3L..LY201,211

 2
23741-54030

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 2
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
90116-06095

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 2
23741B - CLAMP, INJECTION PIPE
23741-56010

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 4
23741B - CLAMP, INJECTION PIPE
23741-56010

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 4
23742 - CLAMP, INJECTION PIPE, NO.2
23742-54010

3L..LY201,211

 2
23801L - PIPE SUB-ASSY, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23801-54060

3L,5L..LY20#,21#..T1,T2,T3,T4

 1
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-54160

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
Common parts
90119-06454
90119-10699
90179-06100
90179-08022
90462-12051
90467-13007
90929-01205
90929-01242
91621-60820
91651-60818
