LY211-TKPFS3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )3L,5L

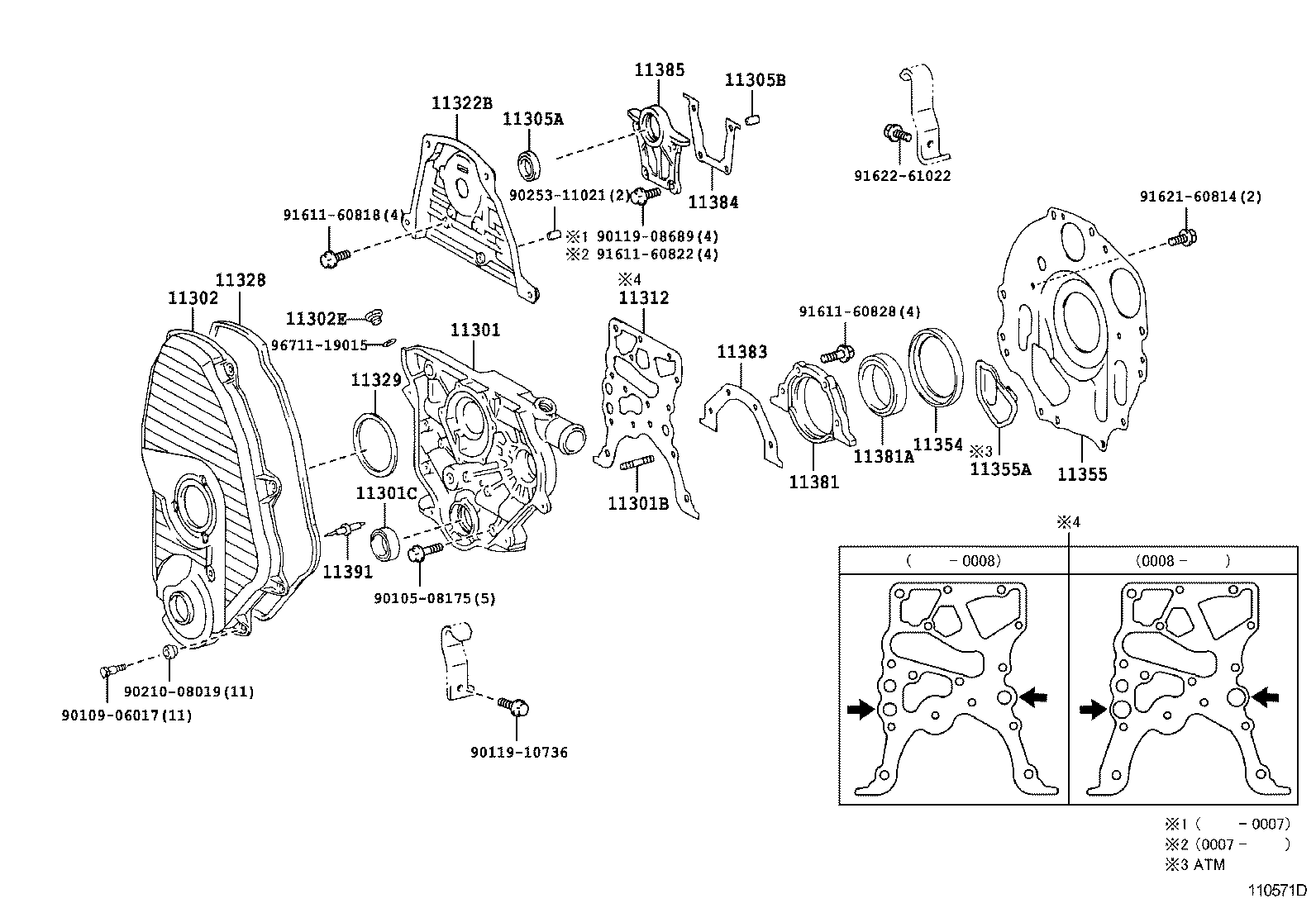

Click highlighted areas on diagram

diagram 11301 11301B 11301C 11302 11302E 11305A 11305B 11312 11322B 11328 11329 11354 11355 11355A 11381 11381A 11383 11384 11385 11391 9010508175 9010906017 9011908689 9011910736 9021008019 9025311021 9161160818 9161160822 9161160828 9162160814 9162261022 9671119015
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11311-54052

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
11301B - BOLT,STUD(FOR TIMING GEAR CASE)
92132-60828

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 2
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42030

3L..LY201,211

 1
90311-42031

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-54020

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
11302E - PLUG, STRAIGHT(FOR TIMING GEAR COVER)
90341-18004

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
11305A - SEAL, OIL(FOR OIL SEAL RETAINER, NO.2)
90311-32017

3L..LY101,111,121,131,151,161,201,211

 1
11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2)
90253-11021

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 2
11312 - GASKET, FRONT END PLATE
11312-54021

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
11322B - COVER, TIMING BELT, NO.2
11322-54020

3L..LY101,111,121,131,151,161,201,211

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-54021

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
11329 - GASKET, TIMING GEAR REAR COVER
11329-54021

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-54010

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
11355 - PLATE, REAR END
11355-54090

3L..LY211..ATM

 1
11355-54040

3L..LY211..ATM

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01686

3L..LY211..ATM

 1
90950-01263

3L..LY211..ATM

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-54020

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
11381A - SEAL, ENGINE REAR OIL
90311-85007

3L..LY101,111,121,131,151,161,201,211

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-54030

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
11384 - GASKET, OIL SEAL RETAINER, NO.2
11384-54030

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
11385 - RETAINER, CAMSHAFT OIL SEAL
11382-54020

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
11391 - POINTER, TIMING
11391-54020

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
Common parts
90105-08175
90109-06017
90119-08689
90119-10736
90210-08019
90253-11021
91611-60818
91611-60822
91611-60828
91621-60814
91622-61022
96711-19015
