LY211-TKPFS (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505-9905)LY211..ATM

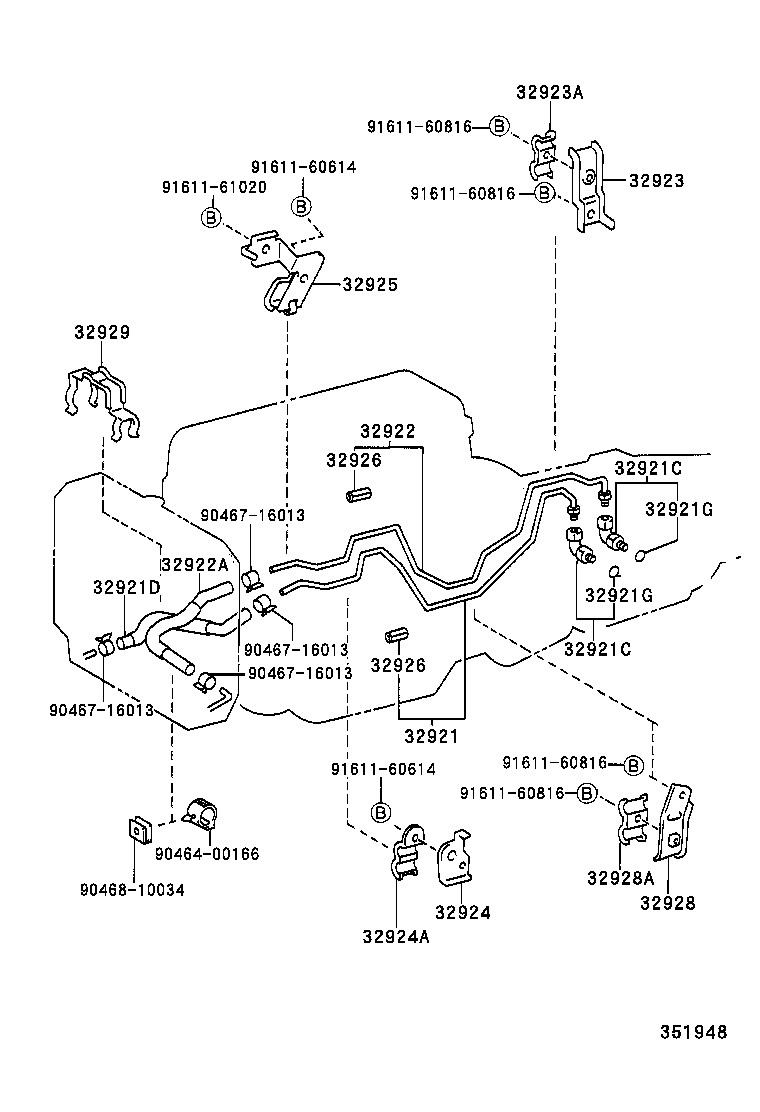

Click highlighted areas on diagram

A443E

diagram 32921 32921C 32921C 32921D 32921G 32921G 32922 32922A 32923 32923A 32924 32924A 32925 32926 32926 32928 32928A 32929 9046400166 9046716013 9046716013 9046716013 9046716013 9046810034 9161160614 9161160614 9161160816 9161160816 9161160816 9161160816 9161161020
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-25030

LY211..ATM

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16010

LY10#,11#,YY211..ATM

ﾘﾔ

 1
90407-20004

LY13#,21#..ATM

 2
32921C - UNION(FOR OIL COOLER TUBE)
90407-16010

LY10#,11#,YY211..ATM

ﾘﾔ

 1
90407-20004

LY13#,21#..ATM

 2
32921D - HOSE(FOR OIL COOLER INLET)
32941-25030

LY211..ATM

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

LY10#,11#,16#,YY211..ATM

 2
90301-11006

LY13#,21#..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

LY10#,11#,16#,YY211..ATM

 2
90301-11006

LY13#,21#..ATM

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-25030

LY211..ATM

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-25030

LY211..ATM

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-60060

LY211..ATM

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90462-12076

LY13#,21#..ATM

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32928-25010

LY211..ATM

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90929-01358

LY211..ATM

 1
32925 - CLAMP, OIL COOLER TUBE, NO.3
32909-25010

LY211..ATM

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

LY211..ATM

長さ=45,内径=12

 7
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-60010

LY211..ATM

長さ=45,内径=12

 7
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32924-25010

LY211..ATM

 1
32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP)
90462-12076

LY211..ATM

 1
32929 - CLAMP, FLEXIBLE HOSE, NO.2
32929-25010

LY211..ATM

 1
Common parts
90464-00166
90467-16013
90468-10034
91611-60614
91611-60816
91611-61020
