LY211-TKPFS (1995)
Toyota Dyna 150/Toyoace G15
Production
May 1995
-
Oct 1996
Engine
3L
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )3L,5L

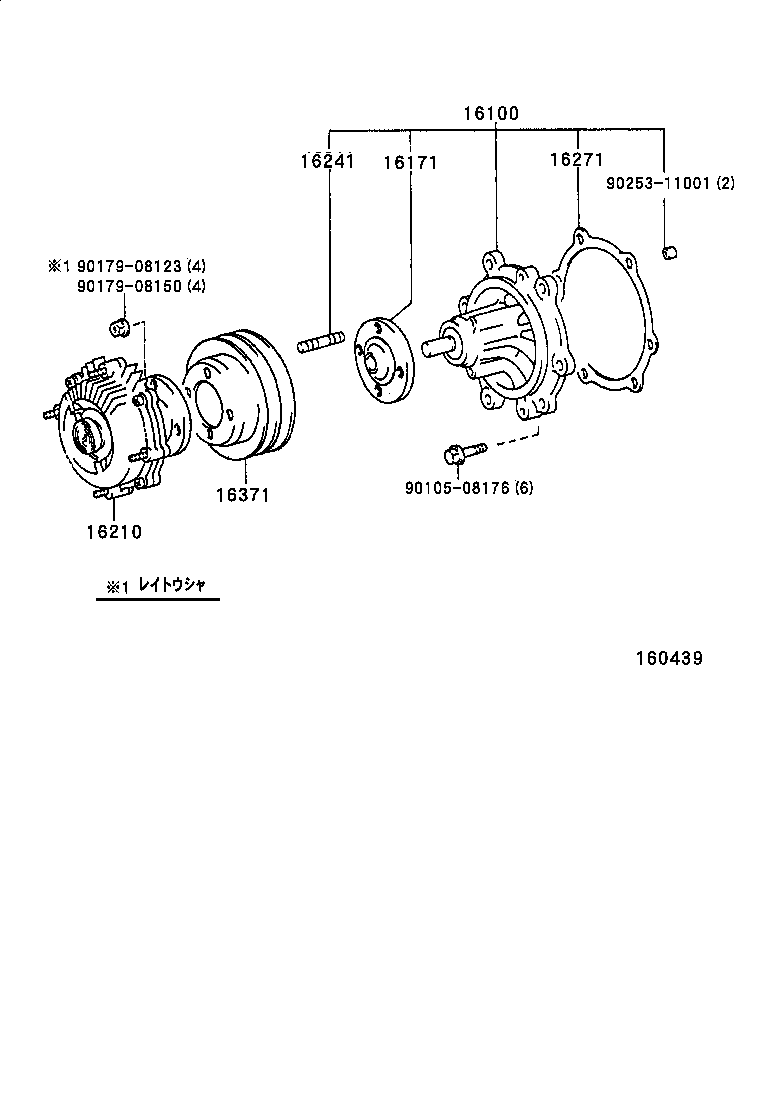

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-59155 |
3L..LY101,111,121,131,151,161,201,211 |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-41170 |
3L..LY101,111,121,131,151,161,201,211 |
1 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-54130 |
3L,5L..LY13#,21#..ATM |
1 | ||
| 16241 - BOLT, STUD(FOR WATER PUMP COUPLING) | ||||
| 92122-40816 |
3L..LY201,211 |
4 | ||
| 92122-60818 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
4 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-54030 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| Common parts | ||||
| 90105-08176 | ||||
| 90179-08123 | ||||
| 90179-08150 | ||||
| 90253-11001 | ||||
