LY211-TKMFS3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )3L,5L..LY20#,21#

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17430 17451 17505C 17505F 17561B 17563A 17565A 17565A 17567 17572 17572B 17573A 17573A 17574 51397 9017906007 9017906007 9046132009 9046132024 9151261035 9162160835 9163160840 9165160825 9165160825 9165160825 9165160825 9165160835 9413060800 9413060800 9413060800 9418560800 9418560800 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-5B210

3L..LY201,211

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 3
17410B - GASKET, EXHAUST PIPE
90917-06066

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-5B730

3L..LY211

 1
17430-5B740

3L..LY211

 1
17451 - GASKET, EXHAUST PIPE
90917-06045

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
17505C - CUSHION, EXHAUST PIPE(FOR HEAT INSULATOR)
90917-08009

3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
17505F - SUPPORT SUB-ASSY, EXHAUST PIPE
17505-54150

3L..LY201,211

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-54200

3L..LY201,211

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-54030

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63030

3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63030

3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-61010

3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
17567-61010

3L,3Y#..LY101,111,121,131,151,161,YY101,121,131,201,211

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-54460

3L,5L..LY20#,21#

 1
17571-54270

3L,5L..LY10#,11#,12#,13#,15#,16#

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-54230

3L,5L..LY12#,13#,15#,16#

 1
17572-54220

3L,5L..LY20#,21#

 1
17572-54200

3L,5L..LY10#,11#

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17575-54040

3L,5L,3Y#..LY20#,21#,YY201,211

 2
17575-71050

3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,YY101,121,131

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17575-54040

3L,5L,3Y#..LY20#,21#,YY201,211

 2
17575-71050

3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,YY101,121,131

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-54060

3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
51397 - BRACKET, EXHAUST PIPE CLAMP, NO.3
51397-25010

LY21#,YY211..T2..ST;LY20#,21#,YY201,211..T3,T4,TW2

 1
Common parts
90179-06007
90461-32009
90461-32024
91512-61035
91621-60835
91631-60840
91651-60825
91651-60835
94130-60800
94185-60800
94185-61000

(9610- )3L,5L..LY10#,11#,12#,13#,15#,16#

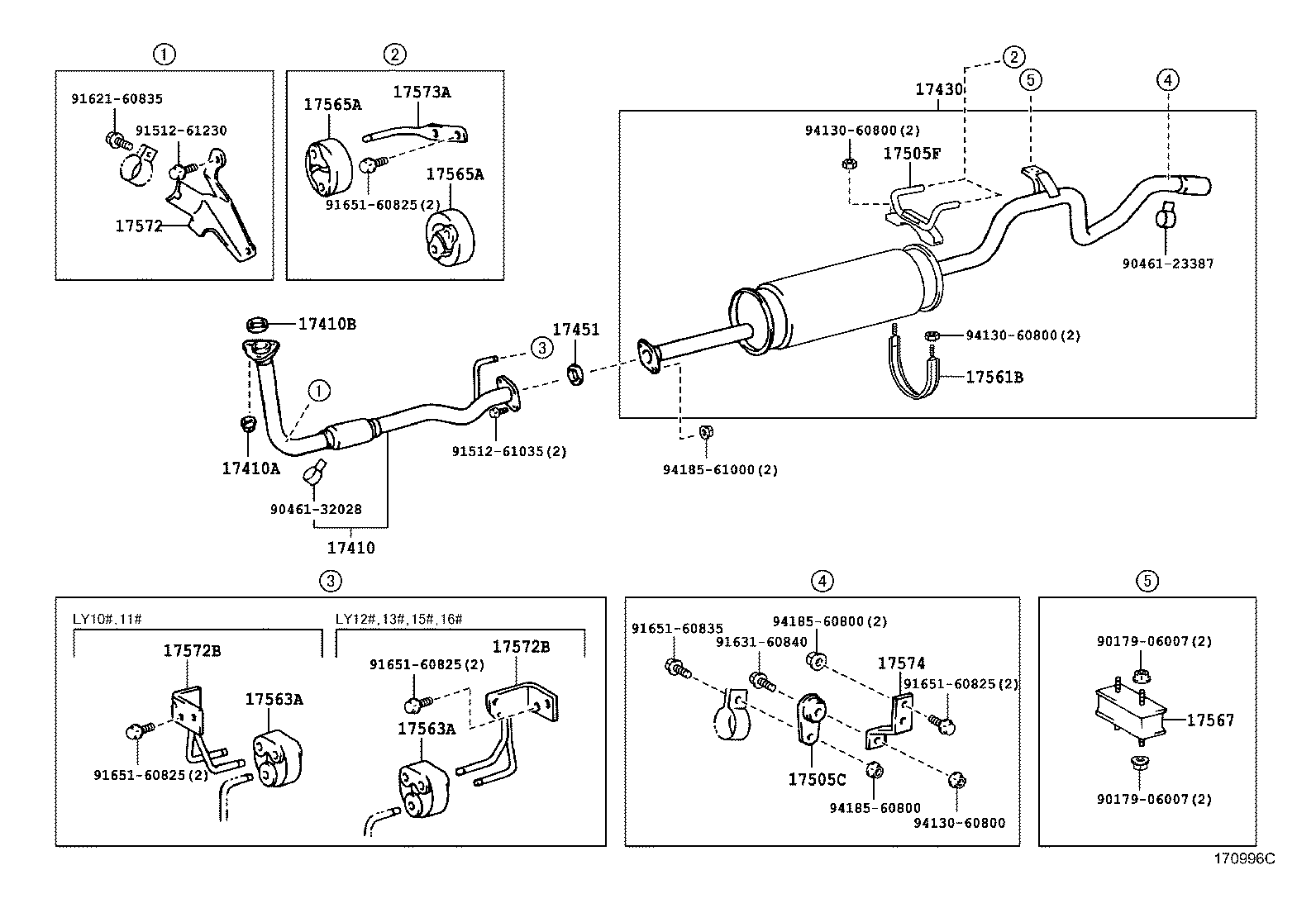

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17430 17451 17505C 17505F 17561B 17563A 17563A 17565A 17565A 17567 17572 17572B 17572B 17573A 17574 9017906007 9017906007 9046123387 9046132028 9151261035 9151261230 9162160835 9163160840 9165160825 9165160825 9165160825 9165160825 9165160835 9413060800 9413060800 9413060800 9418560800 9418560800 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-5B210

3L..LY201,211

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 3
17410B - GASKET, EXHAUST PIPE
90917-06066

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-5B730

3L..LY211

 1
17430-5B740

3L..LY211

 1
17451 - GASKET, EXHAUST PIPE
90917-06045

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
17505C - CUSHION, EXHAUST PIPE(FOR HEAT INSULATOR)
90917-08009

3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
17505F - SUPPORT SUB-ASSY, EXHAUST PIPE
17505-54150

3L..LY201,211

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-54200

3L..LY201,211

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-54030

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-54030

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63030

3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63030

3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-61010

3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
17567-61010

3L,3Y#..LY101,111,121,131,151,161,YY101,121,131,201,211

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-54460

3L,5L..LY20#,21#

 1
17571-54270

3L,5L..LY10#,11#,12#,13#,15#,16#

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-54230

3L,5L..LY12#,13#,15#,16#

 1
17572-54220

3L,5L..LY20#,21#

 1
17572-54200

3L,5L..LY10#,11#

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-54230

3L,5L..LY12#,13#,15#,16#

 1
17572-54220

3L,5L..LY20#,21#

 1
17572-54200

3L,5L..LY10#,11#

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17575-54040

3L,5L,3Y#..LY20#,21#,YY201,211

 2
17575-71050

3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,YY101,121,131

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-54060

3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
Common parts
90179-06007
90461-23387
90461-32028
91512-61035
91512-61230
91621-60835
91631-60840
91651-60825
91651-60835
94130-60800
94185-60800
94185-61000
