LY211-TKMFS (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

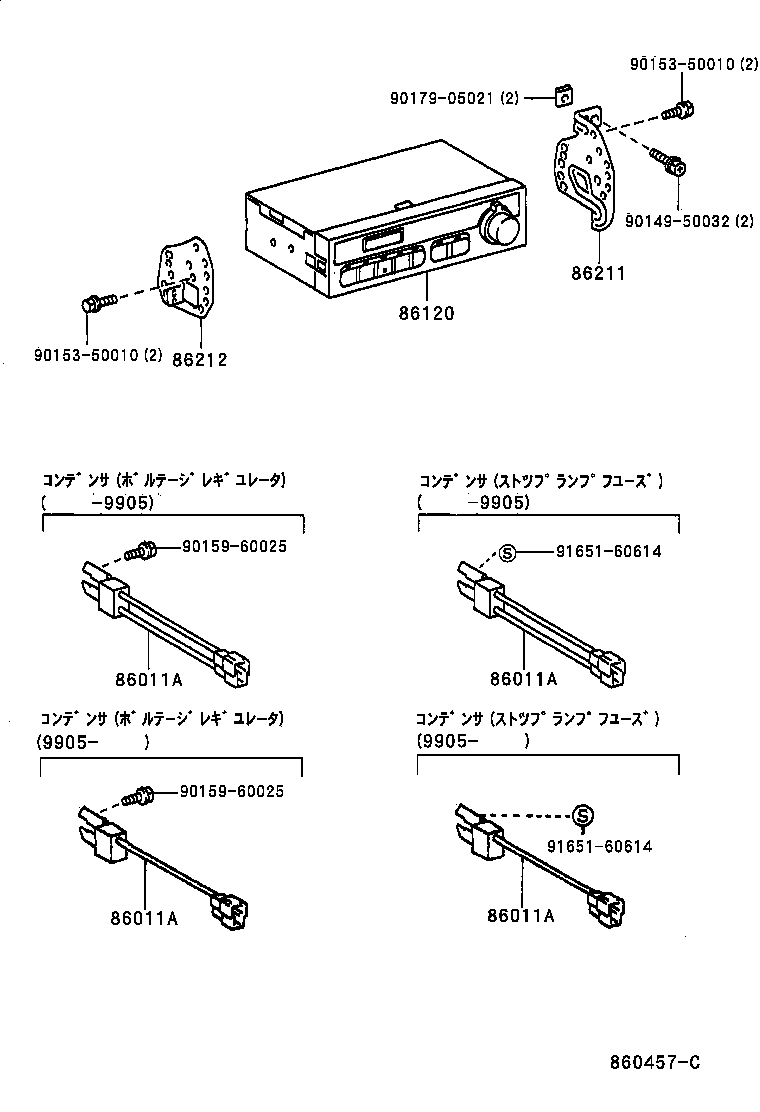

ILLUST NO. 1 OF 2(9505- )

Click highlighted areas on diagram

diagram 86011A 86011A 86011A 86011A 86120 86211 86212 9014950032 9015350010 9015350010 9015960025 9015960025 9017905021 9165160614 9165160614
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04046

LY101,111,121,131,151,161,201,211..DSL..(CBU,IV3)

 2
86011A - CONDENSER, RADIO SETTING
90980-04046

LY101,111,121,131,151,161,201,211..DSL..(CBU,IV3)

 2
86011A - CONDENSER, RADIO SETTING
90980-04046

LY101,111,121,131,151,161,201,211..DSL..(CBU,IV3)

 2
86011A - CONDENSER, RADIO SETTING
90980-04046

LY101,111,121,131,151,161,201,211..DSL..(CBU,IV3)

 2
86120 - RECEIVER ASSY, RADIO
86120-2B480

LY201,211,YY201,211

MATSUSHITA,ID=55401,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3

MATSUSHITA,ID=50101,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86211 - BRACKET, RADIO, NO.1
86211-37030

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
86212 - BRACKET, RADIO, NO.2
86212-37020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
Common parts
90149-50032
90153-50010
90159-60025
90179-05021
91651-60614

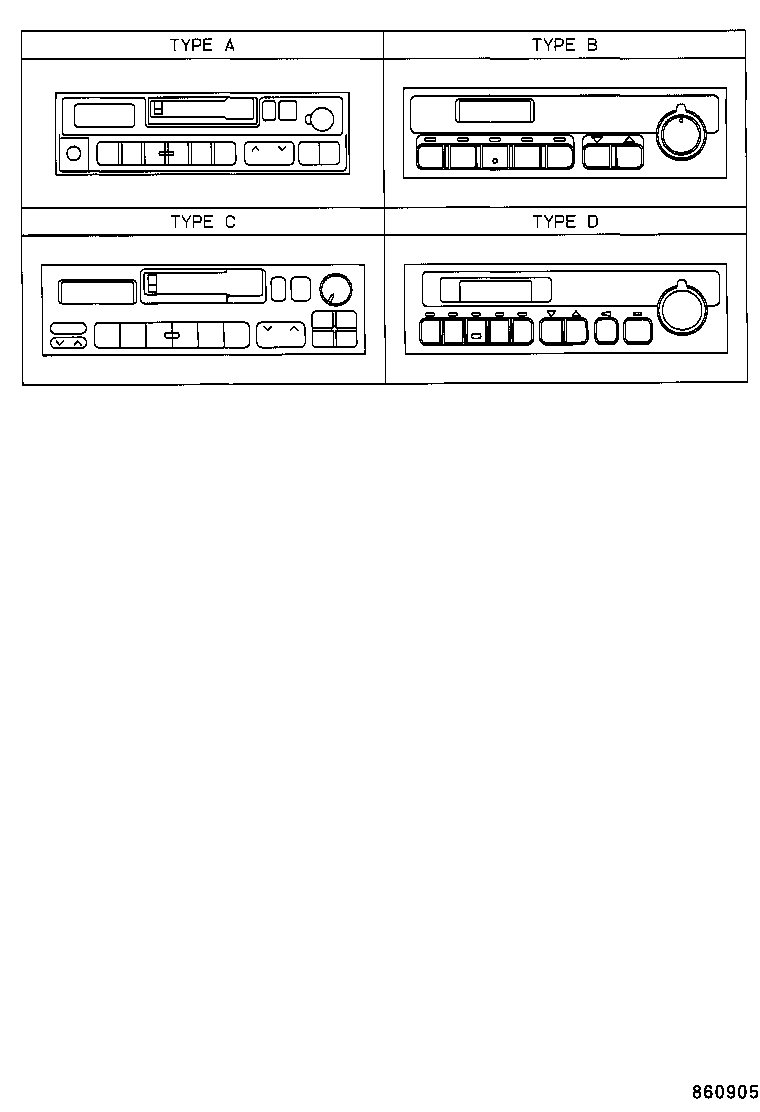

ILLUST NO. 2 OF 2(9505- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price
