LY211-TKMFS (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

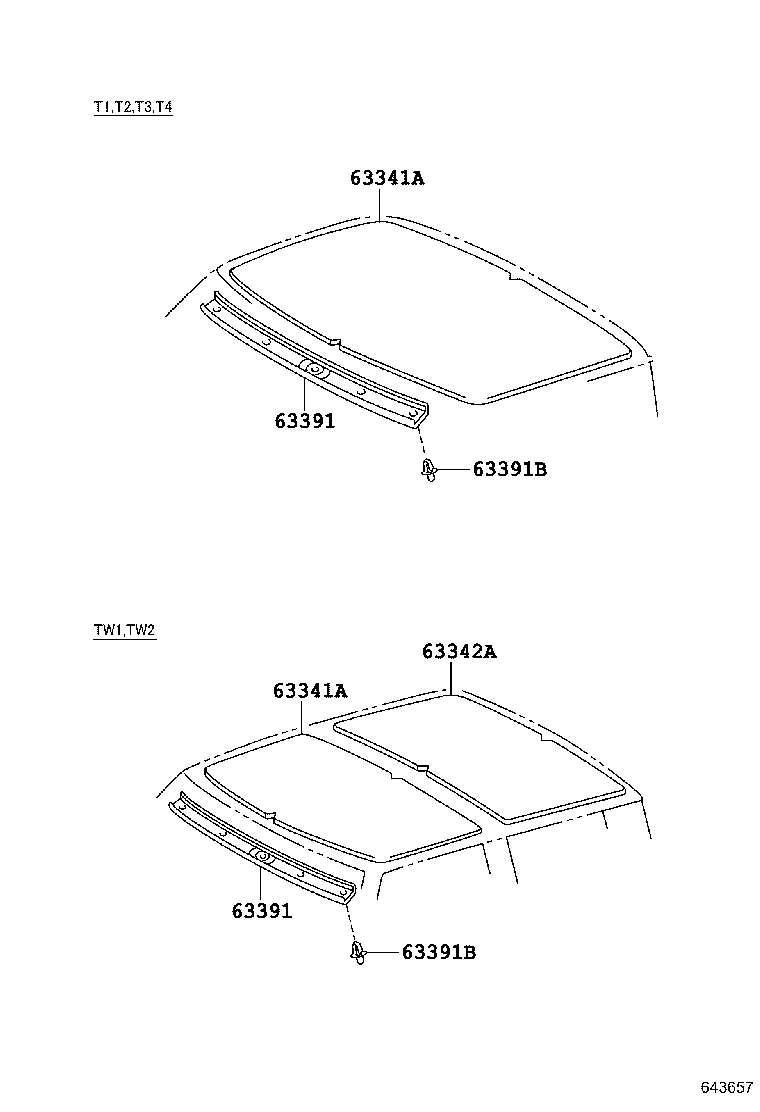

Click highlighted areas on diagram

diagram 63341A 63341A 63342A 63391 63391 63391B 63391B
Part # Description Qty Price
63341A - SILENCER, ROOF, NO.1
63341-95409B0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4

LT. GRAY,TRIM1#

 1
63341A - SILENCER, ROOF, NO.1
63341-95409B0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4

LT. GRAY,TRIM1#

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-25010B0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

LT.GRAY,TRIM1#

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-25010B0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

LT.GRAY,TRIM1#

 1
63391B - CLIP, ROOF HEADLINING TRIM
90467-07043B1

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

LIGHT GRAY,TRIM1#

 2
63391B - CLIP, ROOF HEADLINING TRIM
90467-07043B1

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

LIGHT GRAY,TRIM1#

 2
