LY211-TKMFS (1995)
Toyota Dyna 150/Toyoace G15

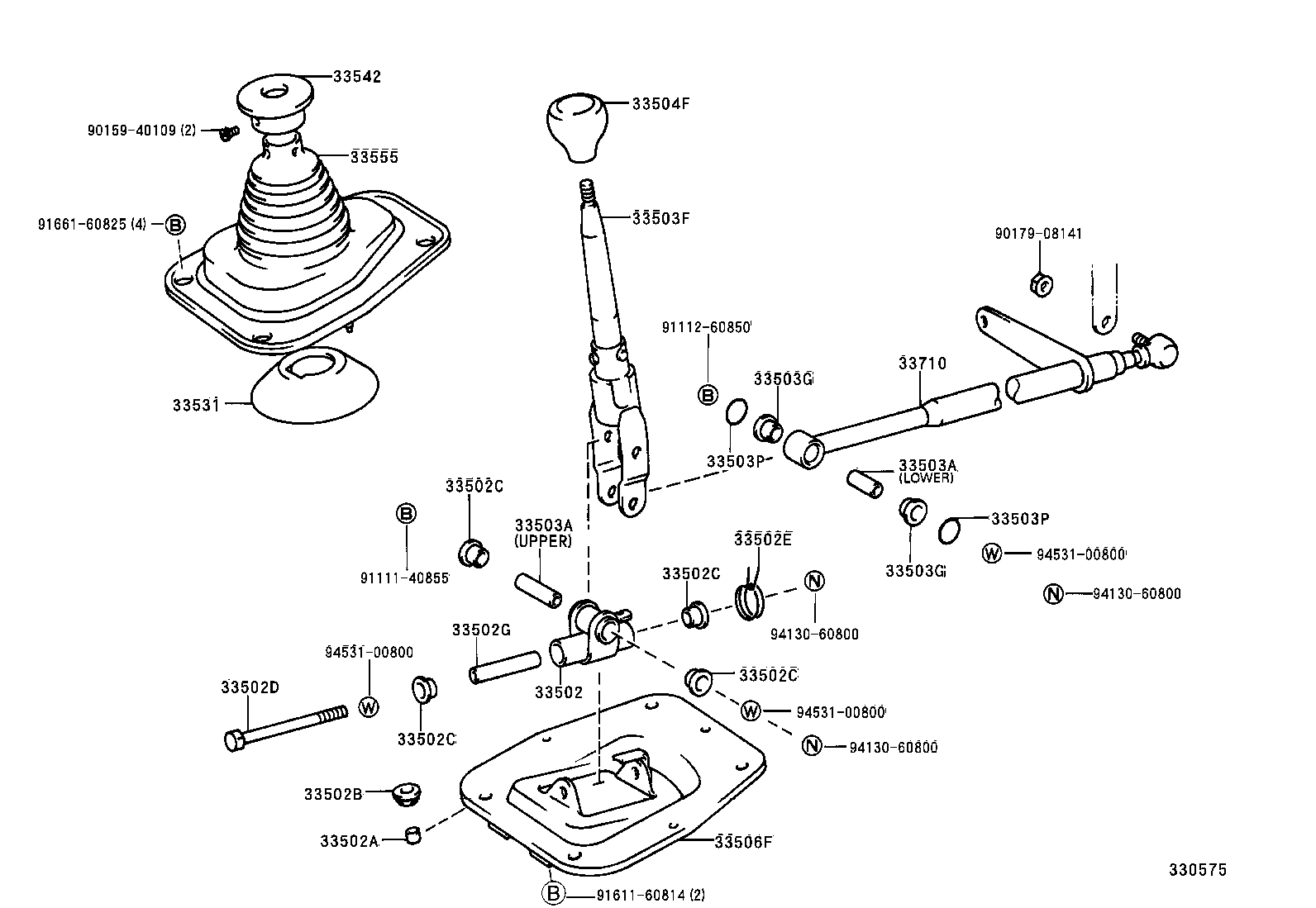

ILLUST NO. 1 OF 2(9505- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-25010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-10081 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM 外径=13.8 |
4 | ||
| 33502B - GROMMET (FOR SHIFT LEVER PLATE) | ||||
| 90480-17018 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
4 | ||
| 33502C - BUSH (FOR FLOOR SHIFT SETTING) | ||||
| 90386-13192 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
4 | ||
| 33502C - BUSH (FOR FLOOR SHIFT SETTING) | ||||
| 90386-13192 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
4 | ||
| 33502C - BUSH (FOR FLOOR SHIFT SETTING) | ||||
| 90386-13192 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
4 | ||
| 33502C - BUSH (FOR FLOOR SHIFT SETTING) | ||||
| 90386-13192 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
4 | ||
| 33502D - BOLT, HEXAGON (FOR SHIFT LEVER PLATE) | ||||
| 90101-08107 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33502E - SPRING, TORSION (FOR SHIFT LEVER PLATE) | ||||
| 90508-23094 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33502G - COLLAR (FOR SHIFT LEVER PLATE) | ||||
| 90387-08064 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33503A - COLLAR(FOR SHIFT LEVER) | ||||
| 90387-08063 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM 上側 |
1 | ||
| 90387-08065 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM 下側 |
1 | ||
| 33503A - COLLAR(FOR SHIFT LEVER) | ||||
| 90387-08063 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM 上側 |
1 | ||
| 90387-08065 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM 下側 |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33501-25091 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90389-11002 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
2 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90389-11002 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
2 | ||
| 33503P - RING, O(FOR SHIFT LEVER) | ||||
| 96711-24018 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
2 | ||
| 33503P - RING, O(FOR SHIFT LEVER) | ||||
| 96711-24018 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-35030B1 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM BLUISH GRAY,TRIM1# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-25010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33531 - BOOT, DUST (FOR CONTROL SHIFT LEVER) | ||||
| 33531-25020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33542 - KNOB, SPRING BACK SHIFT LEVER | ||||
| 33542-25010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-25031 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33710 - ROD ASSY, GEAR SHIFTING, NO.1 | ||||
| 33710-25143 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| Common parts | ||||
| 90159-40109 | ||||
| 90179-08141 | ||||
| 91111-40855 | ||||
| 91112-60850 | ||||
| 91611-60814 | ||||
| 91661-60825 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||

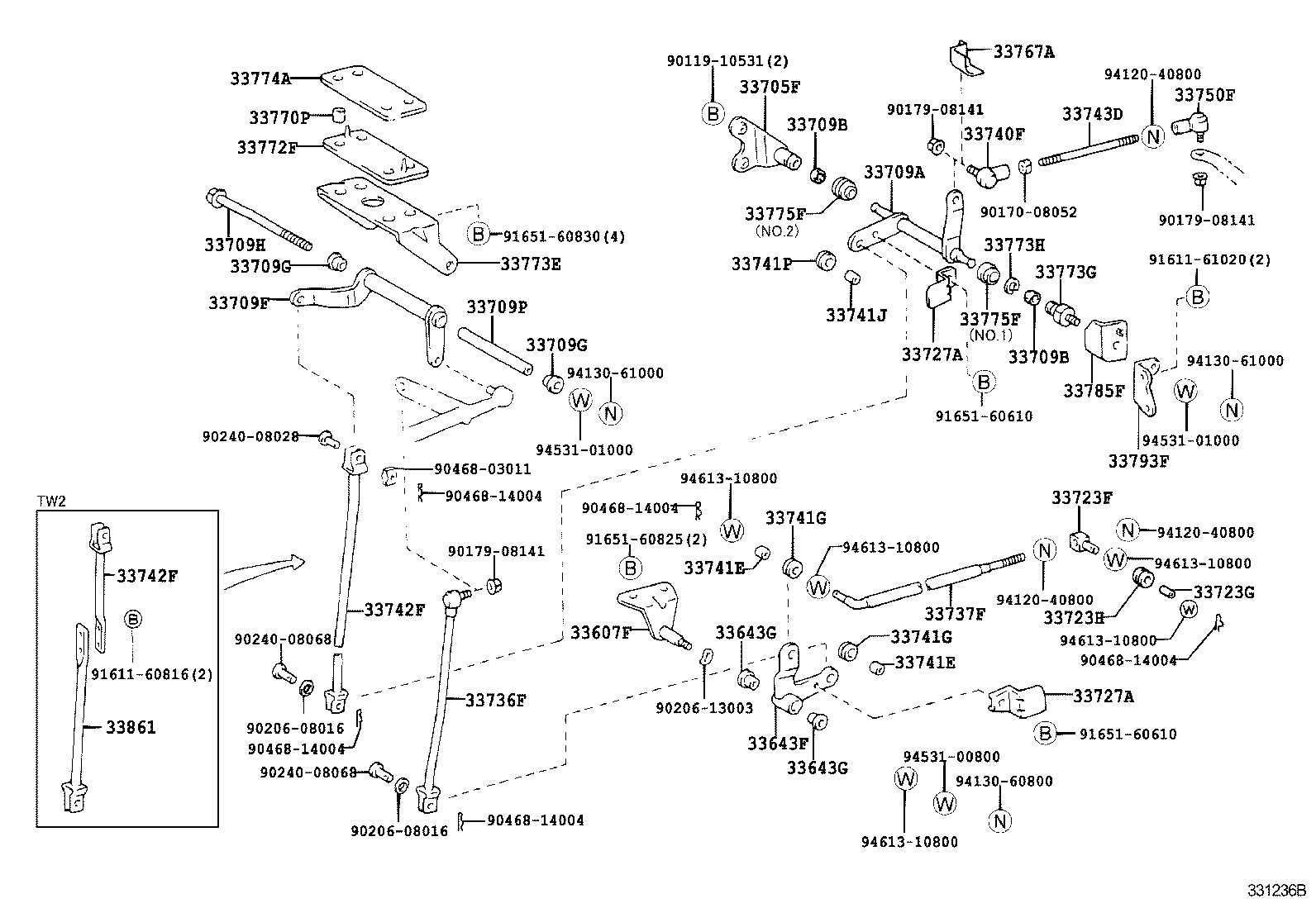

ILLUST NO. 2 OF 2(9505- )YY201..WT ; (9505- )YY201..ST..15T; (9505- )LY20#,21#,YY211..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33607F - SUPPORT SUB-ASSY, CONTROL ROD (FOR FLOOR SHIFT) | ||||
| 33607-25050 |
LY201,YY201..WT;LY202,21#,YY211..MTM;LY201,YY201..ST..15T |
1 | ||
| 33643F - LEVER, GEAR SELECTING, NO.3 | ||||
| 33643-25010 |
LY201,YY201..WT;LY202,21#,YY211..MTM;LY201,YY201..ST..15T |
1 | ||
| 33643G - BUSH (FOR GEAR SELECTING LEVER) | ||||
| 90386-13192 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
2 | ||
| 33643G - BUSH (FOR GEAR SELECTING LEVER) | ||||
| 90386-13192 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
2 | ||
| 33705F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33705-25140 |
LY201,YY201..WT;LY202,21#,YY211..MTM;LY201,YY201..ST..15T |
1 | ||
| 33709A - SHAFT SUB-ASSY, CROSS | ||||
| 33709-25162 |
LY201,YY201..WT;LY202,21#,YY211..MTM;LY201,YY201..ST..15T |
1 | ||
| 33709B - BUSH (FOR CROSS SHAFT) | ||||
| 33772-26010 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM |
2 | ||
| 33709B - BUSH (FOR CROSS SHAFT) | ||||
| 33772-26010 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM |
2 | ||
| 33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT) | ||||
| 33709-25132 |
LY201,YY201..WT;LY202,21#,YY211..MTM;LY201,YY201..ST..15T |
1 | ||
| 33709G - BUSH (FOR CROSS SHAFT, NO.1 | ||||
| 90386-13020 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
2 | ||
| 33709G - BUSH (FOR CROSS SHAFT, NO.1 | ||||
| 90386-13020 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
2 | ||
| 33709H - BOLT, HEXAGON (FOR CROSS SHAFT) | ||||
| 90105-10103 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33709P - COLLAR (FOR CROSS SHAFT) | ||||
| 90387-10075 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-10020 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33727A - INSULATOR CONNECTING ROD BUSH HEAT | ||||
| 33727-25020 |
LY10#,11#,20#,21#..MTM |
2 | ||
| 33727A - INSULATOR CONNECTING ROD BUSH HEAT | ||||
| 33727-25020 |
LY10#,11#,20#,21#..MTM |
2 | ||
| 33736F - ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33790-25171 |
LY201,YY201..WT;LY202,21#,YY211..MTM;LY201,YY201..ST..15T |
1 | ||
| 33737F - ROD, GEAR SELECTING, NO.3 (FOR FLOOR SHIFT) | ||||
| 33701-25180 |
LY201,YY201..WT;LY202,21#,YY211..MTM;LY201,YY201..ST..15T |
1 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-26020 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM |
1 | ||
| 33741E - BUSH, NO.1 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
LY201,YY201..WT;LY202,21#,YY211..MTM;LY201,YY201..ST..15T |
2 | ||
| 33741E - BUSH, NO.1 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
LY201,YY201..WT;LY202,21#,YY211..MTM;LY201,YY201..ST..15T |
2 | ||
| 33741G - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
LY201,YY201..WT;LY202,21#,YY211..MTM;LY201,YY201..ST..15T |
2 | ||
| 33741G - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
LY201,YY201..WT;LY202,21#,YY211..MTM;LY201,YY201..ST..15T |
2 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM |
1 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM |
1 | ||
| 33742F - ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33742-25130 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY202,21#,YY211..MTM..15T |
1 | ||
| 33742F - ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33742-25130 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY202,21#,YY211..MTM..15T |
1 | ||
| 33743D - ROD, GEAR SHIFTING, NO.3 (FOR FLOOR SHIFT) | ||||
| 33743-25120 |
LY201,YY201..WT;LY202,21#,YY211..MTM;LY201,YY201..ST..15T |
1 | ||
| 33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT) | ||||
| 33750-26010 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33767A - INSULATOR, CONNECTING ROD HEAT (FOR FLOOR SHIFT) | ||||
| 33767-26020 |
LY201..WT;LY16#..ATM;LY202,21#..MTM;LY201..ST..15T |
1 | ||
| 33770P - COLLER (FOR CROSS SHAFT) | ||||
| 90387-09021 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
4 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-25010 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33773E - SUPPORT, CROSS SHAFT, NO.1 | ||||
| 33773-25020 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33773G - SUPPORT, CROSS SHAFT | ||||
| 33773-20020 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM |
1 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM |
1 | ||
| 33774A - SUPPORT, CROSS SHAFT, NO.2 | ||||
| 33774-25010 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM NO.1 |
1 | ||
| 33775-20040 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM NO.2 |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM NO.1 |
1 | ||
| 33775-20040 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM NO.2 |
1 | ||
| 33785F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.1 (FOR FLOOR SHIF | ||||
| 33727-25030 |
LY201..WT;LY16#..DSL;LY201..ST..15T;LY12#,13#,15#,202,21#..MTM |
1 | ||
| 33793F - BRACKET, CROSS SHAFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33793-25040 |
LY201,YY201..WT;LY202,21#,YY211..MTM;LY201,YY201..ST..15T |
1 | ||
| Common parts | ||||
| 90119-10531 | ||||
| 90170-08052 | ||||
| 90179-08141 | ||||
| 90206-08016 | ||||
| 90206-13003 | ||||
| 90240-08028 | ||||
| 90240-08068 | ||||
| 90468-03011 | ||||
| 90468-14004 | ||||
| 91611-60816 | ||||
| 91611-61020 | ||||
| 91651-60610 | ||||
| 91651-60825 | ||||
| 91651-60830 | ||||
| 94120-40800 | ||||
| 94130-60800 | ||||
| 94130-61000 | ||||
| 94531-00800 | ||||
| 94531-01000 | ||||
| 94613-10800 | ||||
