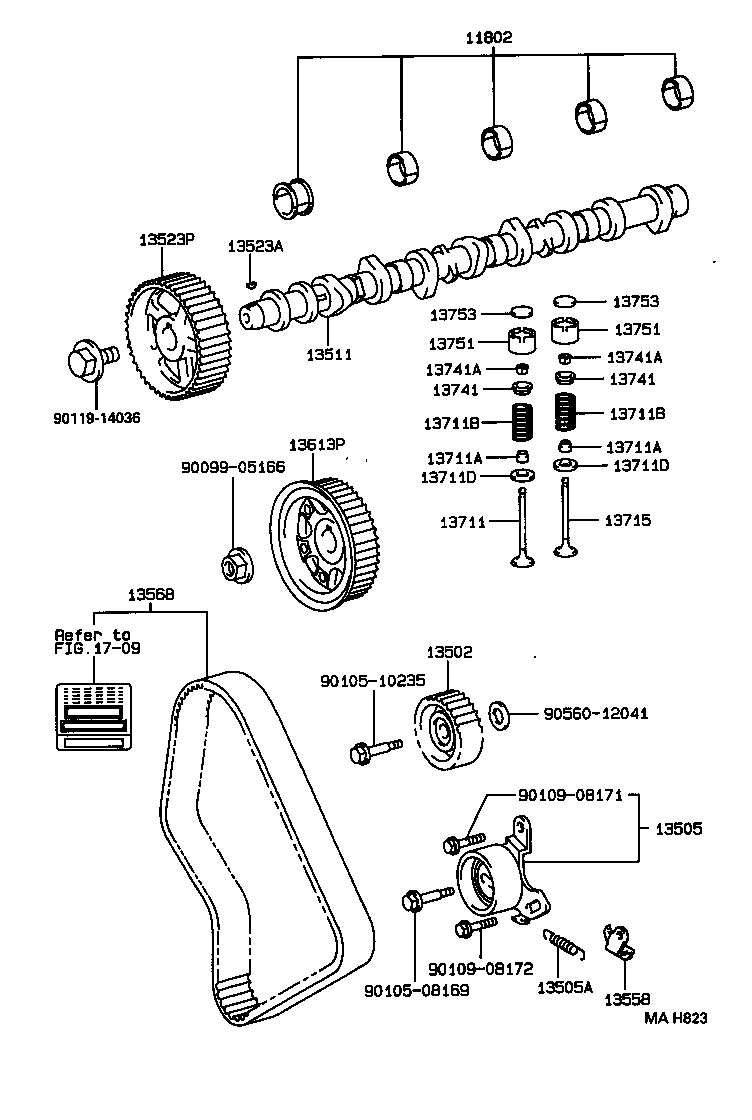

LY211-TKMFS (1995)
Toyota Dyna 150/Toyoace G15
(9505- )3L,5L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11802-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# STD |
1 | ||
| 11804-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# U/S 0.25 |
1 | ||
| 11803-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# U/S 0.125 |
1 | ||
| 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 13503-54030 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-54021 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 13505A - SPRING, TENSION(FOR IDLER) | ||||
| 90506-18060 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-54070 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 13523A - KEY, WOODRUFF(FOR TIMING GEAR) | ||||
| 90280-05004 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-54040 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 13558 - BRACKET, SPRING(FOR IDLER) | ||||
| 13558-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-59066 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 13568-59065 |
3L..LY201,211 |
1 | ||
| 13613P - PULLEY, INJECTION PUMP DRIVE | ||||
| 13603-54030 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-17010 |
3L..LY101,111,121,131,151,161,201,211 |
4 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02053 |
3L..LY201,211 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02053 |
3L..LY201,211 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90504-49001 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90504-49001 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-23003 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-23003 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-17010 |
3L..LY101,111,121,131,151,161,201,211 |
4 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03014 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21# |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03014 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21# |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
8 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
8 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.50,MARK=T01 |
8 | ||
| 13753-54160 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.80,MARK=T16 |
8 | ||
| 13753-54360 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=3.20,MARK=T36 |
8 | ||
| 13753-54060 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.60,MARK=T06 |
8 | ||
| 13753-54260 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=3.00,MARK=T26 |
8 | ||
| 13753-54110 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.70,MARK=T11 |
8 | ||
| 13753-54310 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=3.10,MARK=T31 |
8 | ||
| 13753-54430 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.65,MARK=T43 |
8 | ||
| 13753-54410 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=3.30,MARK=T41 |
8 | ||
| 13753-54460 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.95,MARK=T46 |
8 | ||
| 13753-54210 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.90,MARK=T21 |
8 | ||
| 13753-54440 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.75,MARK=T44 |
8 | ||
| 13753-54480 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=3.15,MARK=T48 |
8 | ||
| 13753-54450 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.85,MARK=T45 |
8 | ||
| 13753-54420 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.55,MARK=T42 |
8 | ||
| 13753-54470 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=3.05,MARK=T47 |
8 | ||
| 13753-54490 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=3.25,MARK=T49 |
8 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.50,MARK=T01 |
8 | ||
| 13753-54160 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.80,MARK=T16 |
8 | ||
| 13753-54360 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=3.20,MARK=T36 |
8 | ||
| 13753-54060 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.60,MARK=T06 |
8 | ||
| 13753-54260 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=3.00,MARK=T26 |
8 | ||
| 13753-54110 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.70,MARK=T11 |
8 | ||
| 13753-54310 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=3.10,MARK=T31 |
8 | ||
| 13753-54430 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.65,MARK=T43 |
8 | ||
| 13753-54410 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=3.30,MARK=T41 |
8 | ||
| 13753-54460 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.95,MARK=T46 |
8 | ||
| 13753-54210 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.90,MARK=T21 |
8 | ||
| 13753-54440 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.75,MARK=T44 |
8 | ||
| 13753-54480 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=3.15,MARK=T48 |
8 | ||
| 13753-54450 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.85,MARK=T45 |
8 | ||
| 13753-54420 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.55,MARK=T42 |
8 | ||
| 13753-54470 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=3.05,MARK=T47 |
8 | ||
| 13753-54490 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=3.25,MARK=T49 |
8 | ||
| Common parts | ||||
| 90099-05166 | ||||
| 90105-08169 | ||||
| 90105-10235 | ||||
| 90109-08171 | ||||
| 90109-08172 | ||||
| 90119-14036 | ||||
| 90560-12041 | ||||
| Linked diagrams | ||||
| 1709 | ||||
