Toyota Dyna 150/toyoace g15 LY211 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
DYNA 150/TOYOACE G15
LY211-TGPGS3 (1995)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

LY211-TGPGS3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - May 1999

Engine 3L

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

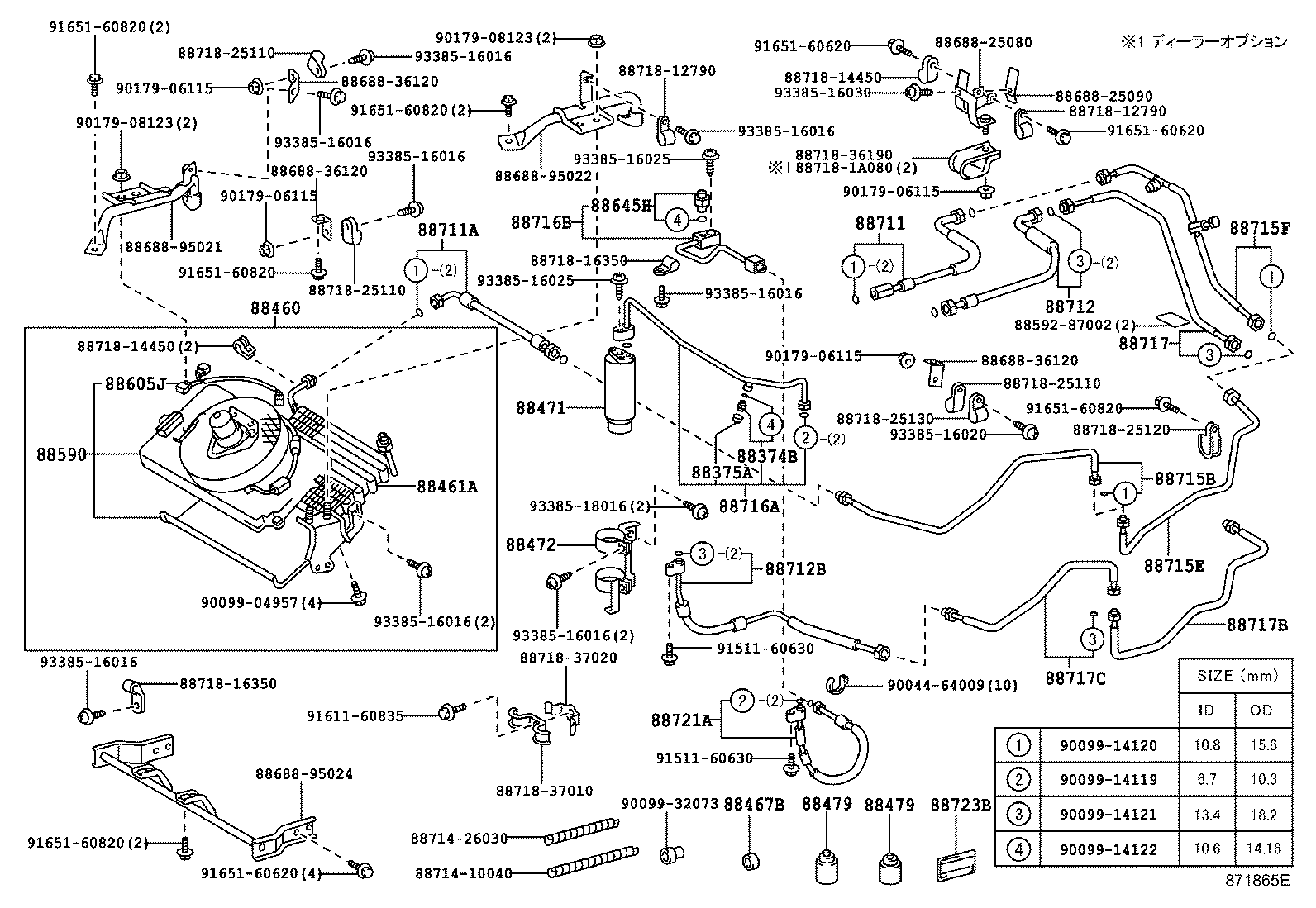

ILLUST NO. 1 OF 2(9505- )LY20#,21#,YY201,211

Click highlighted areas on diagram

ﾚｲﾄｳｼﾔ

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	LY101,111,121,131,151,161,201,211,YY101,121,131,201,211	05/1995 - 05/1999	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211	05/1995 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-25070	YY201,211;LY201..125,1T;LY201..15T..CBU;LY201..ST..15T..IV3;LY211..(T3,TW2)..MTM;LY211..(T2,T4)..MTM..CBU	05/1995 - 05/1999	1
88460-25110	LY211..ATM	05/1995 - 05/1999	1
88461A - CORE, COOLER CONDENSER
88461-25020	LY20#,21#,YY201,211	05/1995 - 12/2999	1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22010	LY201,211,YY201,211	05/1995 - 05/1999	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050	LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211	05/1995 - 12/2999	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95011	LY201,211,YY201,211	05/1995 - 05/1999	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02008	LY211..T3,TW2;LY101,131..CBU;LY121,201..125,1T;LY121,201..15T..CBU;LY101,131..ATM..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3;LY101,121..ST..(15T,1T)..IV3;LY131,201..(T3,TW2)..MTM..(125,15T)..IV3;LY102,11#,122,132,15#,16#,202,212,YY101,121,131,201,211 200G	05/1995 - 07/1999	2
90986-02007	LY211..T3,TW2;LY101,131..CBU;LY121,201..125,1T;LY121,201..15T..CBU;LY101,131..ATM..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3;LY101,121..ST..(15T,1T)..IV3;LY131,201..(T3,TW2)..MTM..(125,15T)..IV3;LY102,11#,122,132,15#,16#,202,212,YY101,121,131,201,211 250G	05/1995 - 07/1999	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02008	LY211..T3,TW2;LY101,131..CBU;LY121,201..125,1T;LY121,201..15T..CBU;LY101,131..ATM..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3;LY101,121..ST..(15T,1T)..IV3;LY131,201..(T3,TW2)..MTM..(125,15T)..IV3;LY102,11#,122,132,15#,16#,202,212,YY101,121,131,201,211 200G	05/1995 - 07/1999	2
90986-02007	LY211..T3,TW2;LY101,131..CBU;LY121,201..125,1T;LY121,201..15T..CBU;LY101,131..ATM..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3;LY101,121..ST..(15T,1T)..IV3;LY131,201..(T3,TW2)..MTM..(125,15T)..IV3;LY102,11#,122,132,15#,16#,202,212,YY101,121,131,201,211 250G	05/1995 - 07/1999	1
88590 - BLOWER ASSY, W/SHROUD
88590-25010	LY201,211,YY201,211	05/1995 - 05/1999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-25140	LY201..125,1T;LY211..T3,TW2;LY201..15T..CBU;LY201..ST..15T..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3	05/1995 - 05/1999	1
88711-25130	YY201,211	05/1995 - 10/1996	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-25180	LY201..125,1T;LY211..T3,TW2;LY201..15T..CBU;LY201..ST..15T..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3	05/1995 - 05/1999	1
88712-25170	YY201,211	05/1995 - 10/1996	1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-25150	YY201,211;LY201..125,1T;LY211..T3,TW2;LY201..15T..CBU;LY201..ST..15T..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3	05/1995 - 05/1999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-25120	LY201,211,YY201,211	05/1995 - 05/1999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-25110	LY201..125,1T;LY211..T3,TW2;LY201..15T..CBU;LY201..ST..15T..IV3;LY202,212,YY201,211;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3	05/1995 - 12/2999	1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-25150	YY201,211;LY201..125,1T;LY211..T3,TW2;LY201..15T..CBU;LY201..ST..15T..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3	05/1995 - 05/1999	1
88721A - HOSE, LIQUID, A
88721-25050	YY201,211;LY201..125,1T;LY211..T3,TW2;LY201..15T..CBU;LY201..ST..15T..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3	05/1995 - 05/1999	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030	LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211	05/1995 - 07/2001	1
Common parts
88592-87002
88688-25080
88688-25090
88688-36120
88688-95021
88688-95022
88688-95024
88714-10040
88714-26030
88718-12790
88718-14450
88718-16350
88718-1A080
88718-25110
88718-25120
88718-25130
88718-36190
88718-37010
88718-37020
90044-64009
90099-04957
90099-14119
90099-14120
90099-14121
90099-14122
90099-32073
90179-06115
90179-08123
91511-60630
91611-60835
91651-60620
91651-60820
93385-16016
93385-16020
93385-16025
93385-16030
93385-18016

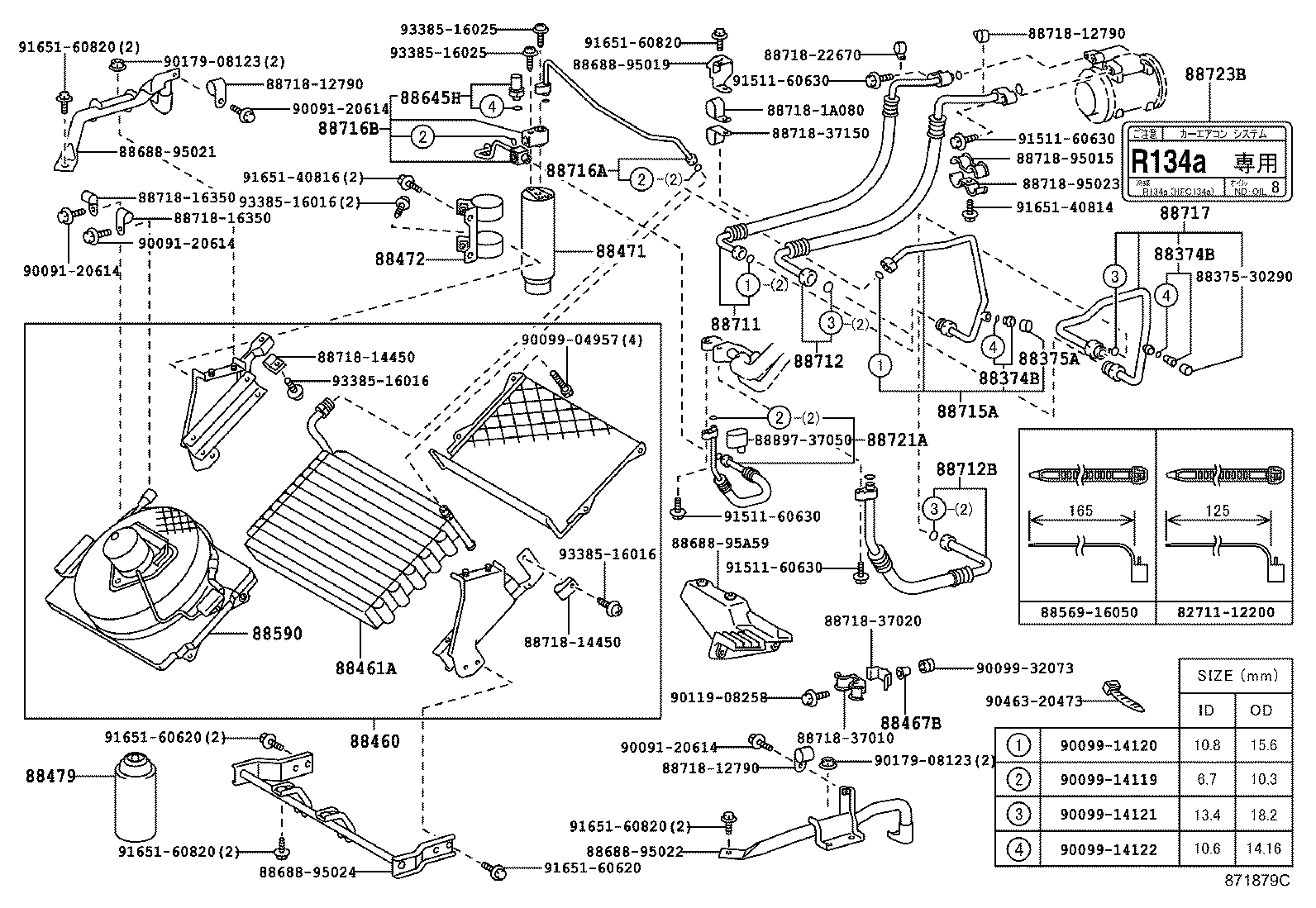

ILLUST NO. 1 OF 2(9505- )125..LPG ; (9505- )YY211..MTM ; (9505- )LY201,211,YY201

Click highlighted areas on diagram

(9905- )ﾃﾞｲｰﾗｰｵﾌﾟｼﾖﾝ

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	LY101,111,121,131,151,161,201,211,YY101,121,131,201,211	05/1995 - 05/1999	2
88374B - VALVE, SERVICE, NO.1
88374-30010	LY101,111,121,131,151,161,201,211,YY101,121,131,201,211	05/1995 - 05/1999	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211	05/1995 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-25070	YY201,211;LY201..125,1T;LY201..15T..CBU;LY201..ST..15T..IV3;LY211..(T3,TW2)..MTM;LY211..(T2,T4)..MTM..CBU	05/1995 - 05/1999	1
88460-25110	LY211..ATM	05/1995 - 05/1999	1
88461A - CORE, COOLER CONDENSER
88461-25020	LY20#,21#,YY201,211	05/1995 - 12/2999	1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-22010	LY201,211,YY201,211	05/1995 - 05/1999	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050	LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211	05/1995 - 12/2999	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95011	LY201,211,YY201,211	05/1995 - 05/1999	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02008	LY211..T3,TW2;LY101,131..CBU;LY121,201..125,1T;LY121,201..15T..CBU;LY101,131..ATM..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3;LY101,121..ST..(15T,1T)..IV3;LY131,201..(T3,TW2)..MTM..(125,15T)..IV3;LY102,11#,122,132,15#,16#,202,212,YY101,121,131,201,211 200G	05/1995 - 07/1999	2
90986-02007	LY211..T3,TW2;LY101,131..CBU;LY121,201..125,1T;LY121,201..15T..CBU;LY101,131..ATM..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3;LY101,121..ST..(15T,1T)..IV3;LY131,201..(T3,TW2)..MTM..(125,15T)..IV3;LY102,11#,122,132,15#,16#,202,212,YY101,121,131,201,211 250G	05/1995 - 07/1999	1
88590 - BLOWER ASSY, W/SHROUD
88590-25010	LY201,211,YY201,211	05/1995 - 05/1999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-25140	LY201..125,1T;LY211..T3,TW2;LY201..15T..CBU;LY201..ST..15T..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3	05/1995 - 05/1999	1
88711-25130	YY201,211	05/1995 - 10/1996	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-25180	LY201..125,1T;LY211..T3,TW2;LY201..15T..CBU;LY201..ST..15T..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3	05/1995 - 05/1999	1
88712-25170	YY201,211	05/1995 - 10/1996	1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-25150	YY201,211;LY201..125,1T;LY211..T3,TW2;LY201..15T..CBU;LY201..ST..15T..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3	05/1995 - 05/1999	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-25120	LY201,211,YY201,211	05/1995 - 05/1999	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-25120	LY201,211,YY201,211	05/1995 - 05/1999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-25110	LY201..125,1T;LY211..T3,TW2;LY201..15T..CBU;LY201..ST..15T..IV3;LY202,212,YY201,211;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3	05/1995 - 12/2999	1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-25150	YY201,211;LY201..125,1T;LY211..T3,TW2;LY201..15T..CBU;LY201..ST..15T..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3	05/1995 - 05/1999	1
88721A - HOSE, LIQUID, A
88721-25050	YY201,211;LY201..125,1T;LY211..T3,TW2;LY201..15T..CBU;LY201..ST..15T..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3	05/1995 - 05/1999	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030	LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211	05/1995 - 07/2001	1
Common parts
82711-12200
88375-30290
88569-16050
88688-95019
88688-95021
88688-95022
88688-95024
88688-95A59
88718-12790
88718-14450
88718-16350
88718-1A080
88718-22670
88718-37010
88718-37020
88718-37150
88718-95015
88718-95023
88897-37050
90091-20614
90099-04957
90099-14119
90099-14120
90099-14121
90099-14122
90099-32073
90119-08258
90179-08123
90463-20473
91511-60630
91651-40814
91651-40816
91651-60620
91651-60820
93385-16016
93385-16025
