LY211-TGPGS3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - May 1999
Engine 3L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )LY10#,11#,16#..ATM

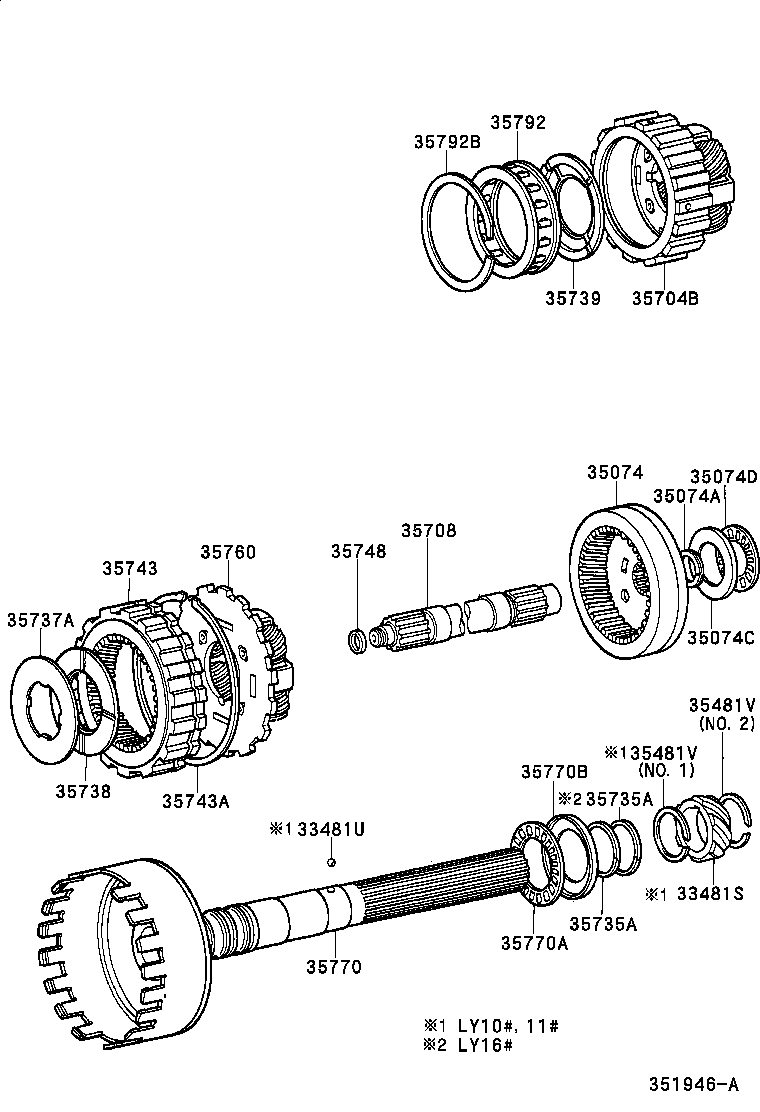

Click highlighted areas on diagram

A44DE,A44DF

diagram 33481S 33481U 35074 35074A 35074C 35074D 35481V 35481V 35704B 35708 35735A 35735A 35737A 35738 35739 35743 35743A 35748 35760 35770 35770A 35770B 35792 35792B
Part # Description Qty Price
33481S - GEAR, SPEEDOMETER DRIVE (ATM)
33481-36240

LY13#,21#..ATM

歯数=5

 1
33481-26011

LY10#,11#..ATM

 1
33481U - BALL (FOR SPEEDOMETER DRIVE GEAR)
90360-06004

LY10#,11#..ATM

 1
35074 - GEAR SUB-ASSY, REAR PLANETARY RING
35074-30030

LY10#,11#,16#,YY211..ATM

 1
35074A - RING, SET (FOR REAR PLANETARY RING GEAR)
90522-20037

LY10#,11#,16#,YY211..ATM

 1
35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR
35789-22020

LY10#,11#,16#,YY211..ATM

 1
35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
90374-28014

LY10#,11#,16#,YY211..ATM

 1
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-29004

LY10#,11#,16#..ATM

厚さ=1.50,外径=34.8,NO.2

 1
90520-28009

LY10#,11#..ATM

厚さ=1.50,外径=33.8,NO.1

 1
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-29004

LY10#,11#,16#..ATM

厚さ=1.50,外径=34.8,NO.2

 1
90520-28009

LY10#,11#..ATM

厚さ=1.50,外径=33.8,NO.1

 1
35704B - GEAR SUB-ASSY, FRONT PLANETARY
35704-30040

LY10#,11#,16#..ATM

 1
35708 - SHAFT SUB-ASSY, INTERMEDIATE
35708-30041

LY10#,11#,16#..ATM

 1
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010

LY10#,11#..ATM

 1
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010

LY10#,11#..ATM

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-60011

LY13#,21#..ATM

 2
35737-22010

LY10#,11#,16#..ATM

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-30030

LY10#,11#,16#..ATM

 1
35738-36020

LY13#,21#..ATM

 1
35739 - WASHER, PLANETARY CARRIER THRUST, NO.3
35739-30020

LY10#,11#,16#..ATM

 1
35743 - GEAR, FRONT PLANETARY RING
35743-37010

LY131,211..ATM

 1
35743-30010

LY10#,11#,16#,YY211..ATM

 1
35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
90520-99121

LY10#,11#,16#,YY211..ATM

 1
35748 - RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL
35748-30010

LY10#,11#,16#,YY211..ATM

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-37011

LY131,211..ATM

 1
35760-37010

LY131,211..ATM

 1
35760-30040

LY10#,11#,16#..ATM

 1
35770 - SHAFT ASSY, OUTPUT
35770-53010

LY10#,11#..ATM

 1
35770A - BEARING, THRUST (FOR OUTPUT SHAFT)
90374-32006

LY13#,21#..ATM

 1
90374-32005

LY131,211..ATM

 1
90374-38013

LY10#,11#,16#,YY211..ATM

 1
35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT)
35789-22040

LY10#,11#,16#,YY211..ATM

 1
35792 - CLUTCH, 1 WAY, NO.2
35792-30030

LY10#,11#,16#..ATM

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-79148

LY10#,11#,16#,YY211..ATM

 1

(9505- )LY13#,21#..ATM

Click highlighted areas on diagram

A44DE,A443E

diagram 33481S 35073 35073A 35073B 35073C 35073D 35073E 35073F 35073J 35469J 35703A 35713 35720 35733 35737A 35737A 35738 35743 35743B 35748B 35760 35761 35762 35762A 35762B 35762C 35762C 35770A 35790A 35790B
Part # Description Qty Price
33481S - GEAR, SPEEDOMETER DRIVE (ATM)
33481-36240

LY13#,21#..ATM

歯数=5

 1
33481-26011

LY10#,11#..ATM

 1
35073 - SHAFT SUB-ASSY, OUTPUT
35073-36040

LY131,211..ATM

 1
35073-36030

LY211..ATM

 1
35073A - NUT (FOR OUTPUT SHAFT)
90179-22008

LY13#,21#..ATM

 1
35073B - RING, O (FOR OUTPUT SHAFT)
90301-29002

LY13#,21#..ATM

 1
35073C - BEARING, RADIAL BALL (FOR OUTPUT SHAFT FRONT)
90363-45008

LY13#,21#..ATM

 1
35073D - BEARING, RADIAL BALL (FOR OUTPUT SHAFT REAR)
90363-35019

LY131,211..ATM

 1
35073E - RING, HOLE SNAP (FOR OUTPUT SHAFT REAR BEARING)
90521-78001

LY131,211..ATM

 1
35073F - SPACER, NO.1 (FOR OUTPUT SHAFT REAR BEARING)
90560-35012

LY131,211..ATM

厚さ=2.5

 1
35073J - RING, HOLE SNAP (FOR OUTPUT SHAFT)
90521-99041

LY131,211..ATM

 1
35469J - SPACER, PARKING LOCK GEAR
35469-36010

LY131,211..ATM

 1
35703A - RING, O (FOR REAR PLANETARY CARRIER)
90301-99076

LY13#,21#..ATM

 1
35713 - SHAFT, INTERMEDIATE
35713-60010

LY131,211..ATM

 1
35720 - GEAR ASSY, FRONT PLANETARY
35720-37010

LY131,211..ATM

 1
35720-37011

LY131,211..ATM

 1
35733 - GEAR, PARKING LOCK
35733-60020

LY131,211..ATM

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-60011

LY13#,21#..ATM

 2
35737-22010

LY10#,11#,16#..ATM

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-60011

LY13#,21#..ATM

 2
35737-22010

LY10#,11#,16#..ATM

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-30030

LY10#,11#,16#..ATM

 1
35738-36020

LY13#,21#..ATM

 1
35743 - GEAR, FRONT PLANETARY RING
35743-37010

LY131,211..ATM

 1
35743-30010

LY10#,11#,16#,YY211..ATM

 1
35743B - RING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR)
90521-99018

LY13#,21#..ATM

 1
35748B - RING, INTERMEDIATE SHAFT OIL SEAL
35748-36010

LY13#,21#..ATM

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-37011

LY131,211..ATM

 1
35760-37010

LY131,211..ATM

 1
35760-30040

LY10#,11#,16#..ATM

 1
35761 - GEAR, REAR PLANETARY RING
35761-37010

LY131,211..ATM

 1
35762 - FLANGE, REAR PLANETARY RING GEAR
35762-37010

LY131,211..ATM

 1
35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANG
90374-32005

LY131,211..ATM

 1
90374-32006

LY13#,21#..ATM

 1
35762B - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
90521-99041

LY13#,21#..ATM

 1
35762C - RING, SHAFT SNAP (FOR REAR PLANETARY RING GEAR)
90520-22013

LY131,211..ATM

 2
35762C - RING, SHAFT SNAP (FOR REAR PLANETARY RING GEAR)
90520-22013

LY131,211..ATM

 2
35770A - BEARING, THRUST (FOR OUTPUT SHAFT)
90374-32006

LY13#,21#..ATM

 1
90374-32005

LY131,211..ATM

 1
90374-38013

LY10#,11#,16#,YY211..ATM

 1
35790A - CLUTCH ASSY, 1 WAY
35790-36020

LY13#,21#..ATM

 1
35790B - RING, HOLE SNAP (FOR 1 WAY CLUTCH)
90521-99109

LY13#,21#..ATM

 1
