LY211-TGPGS3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - May 1999
Engine 3L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

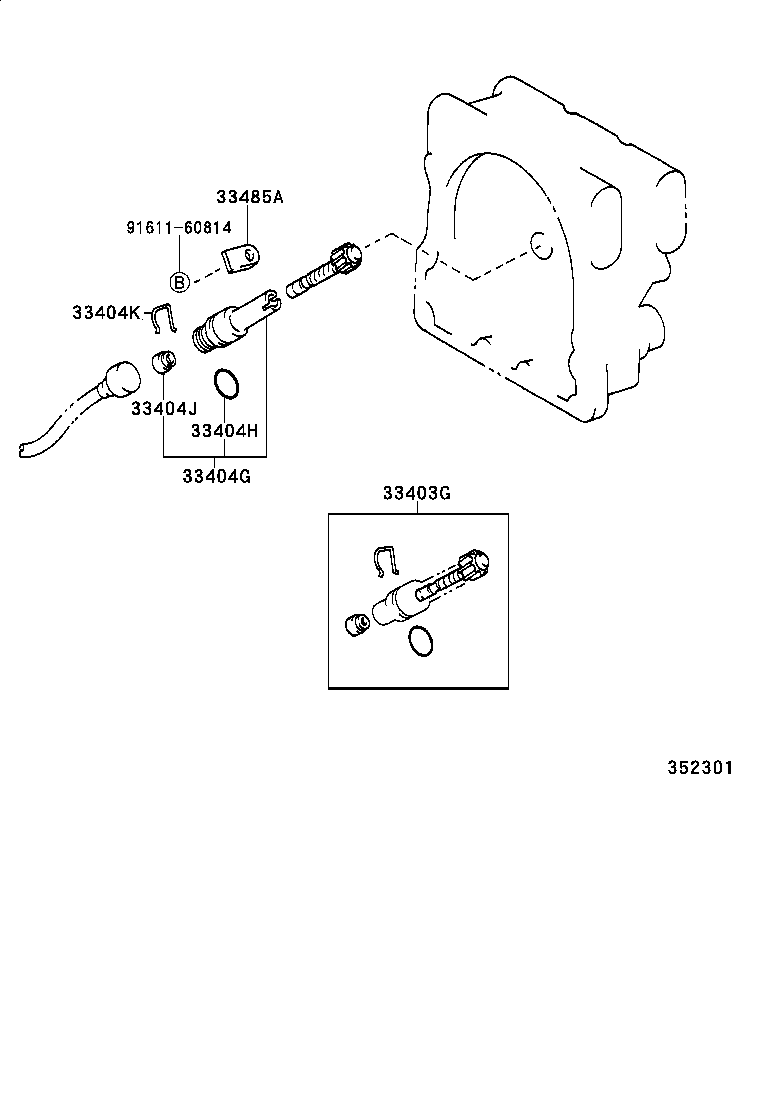

(9505- )LY13#,16#,21#..ATM

Click highlighted areas on diagram

A443E,A44DE,A44DF

diagram 33403G 33404G 33404H 33404J 33404K 33485A 9161160814
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33482-39295

LY211..T2..ATM

歯数=19,ﾏｰｸ 19:5

 1
33403-69135

LY10#,11#..ATM

歯数=19,ﾏｰｸ 19:6

 1
33404G - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)
33404-36010

LY131,211..ATM

 1
33404-37010

LY13#,21#..ATM

 1
33404-30040

LY10#,11#,YY211..ATM

 1
33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90301-18004

LY10#,11#,13#,21#,YY211..ATM

 1
33404J - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90310-09001

LY10#,11#,16#,YY211..ATM

 1
90310-10001

LY13#,21#..ATM

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

LY13#,16#,21#..ATM

 1
33485A - PLATE, SPEEDOMETER SLEEVE LOCK (ATM)
33485-25010

LY10#,11#..ATM

 1
33485-30020

LY13#,16#,21#,YY211..ATM

 1
Common parts
91611-60814

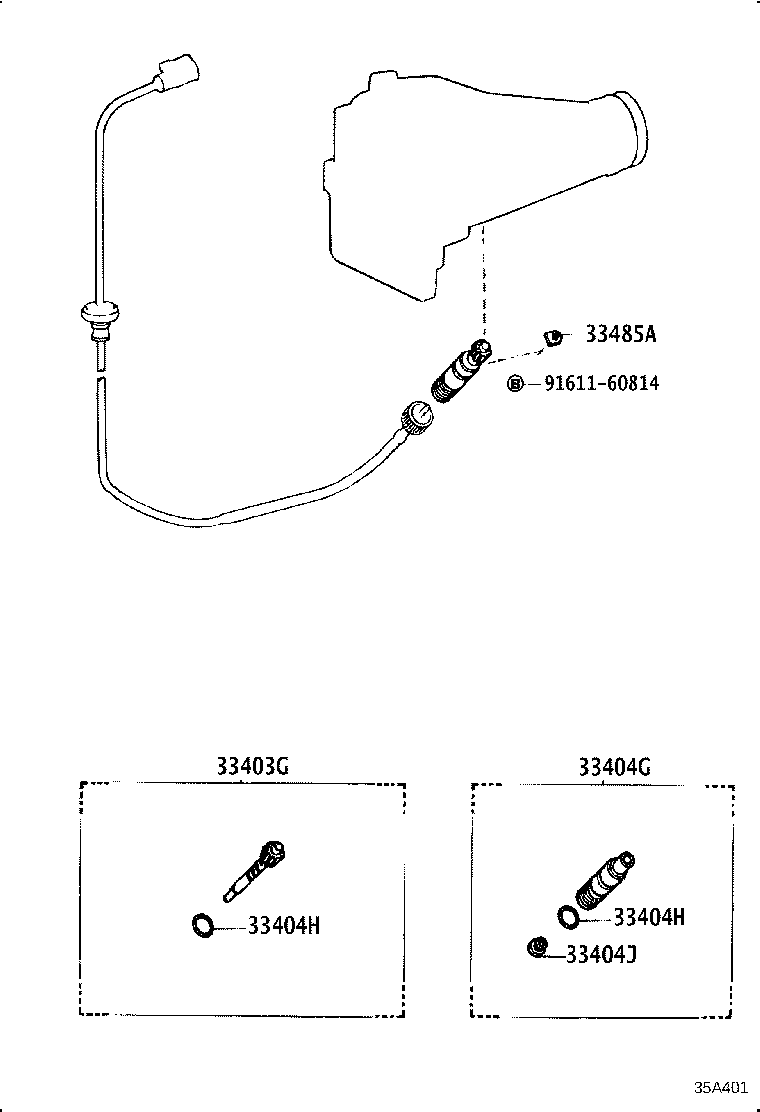

(9610- )LY10#,11#..ATM

Click highlighted areas on diagram

A44DE

diagram 33403G 33404G 33404H 33404H 33404J 33485A 9161160814
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33482-39295

LY211..T2..ATM

歯数=19,ﾏｰｸ 19:5

 1
33403-69135

LY10#,11#..ATM

歯数=19,ﾏｰｸ 19:6

 1
33404G - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)
33404-36010

LY131,211..ATM

 1
33404-37010

LY13#,21#..ATM

 1
33404-30040

LY10#,11#,YY211..ATM

 1
33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90301-18004

LY10#,11#,13#,21#,YY211..ATM

 1
33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90301-18004

LY10#,11#,13#,21#,YY211..ATM

 1
33404J - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90310-09001

LY10#,11#,16#,YY211..ATM

 1
90310-10001

LY13#,21#..ATM

 1
33485A - PLATE, SPEEDOMETER SLEEVE LOCK (ATM)
33485-25010

LY10#,11#..ATM

 1
33485-30020

LY13#,16#,21#,YY211..ATM

 1
Common parts
91611-60814
