LY211-TGPGS (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )LY20#,21#..TB ; (9505- )YY201,211..T3,TW2..TB

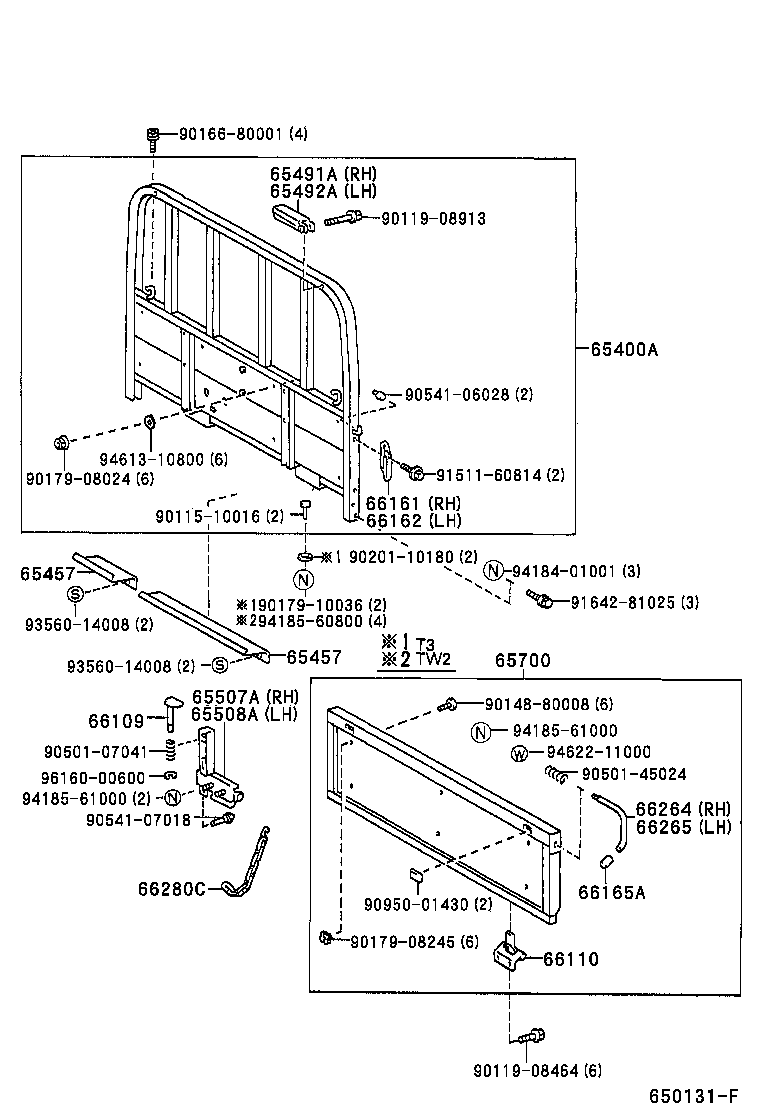

Click highlighted areas on diagram

diagram 65400A 65457 65457 65491A 65492A 65507A 65508A 65700 66109 66110 66161 66162 66165A 66264 66265 66280C 9011510016 9011908464 9011908913 9014880008 9016680001 9017908024 9017908245 9017910036 9020110180 9050107041 9050145024 9054106028 9054107018 9095001430 9151160814 9164281025 9356014008 9356014008 9418401001 9418560800 9418561000 9418561000 9461310800 9462211000 9616000600
Part # Description Qty Price
65400A - GUARD ASSY, REAR BODY
65400-25250

LY201,211..T2..TB..CBU

 1
65400-25270

YY201,211..T2..TB..CBU

 1
65457 - PLATE, BAFFLE DUST REAR BODY
65457-26040

LY201,211,YY201,211..TB..CBU;LY131,161,YY131..(T3,TW2)..TB..CBU;LY101,111,121,151,YY121..TB..ST..CBU

L=615

 1
65457-26070

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

長さ=240

 2
65457 - PLATE, BAFFLE DUST REAR BODY
65457-26040

LY201,211,YY201,211..TB..CBU;LY131,161,YY131..(T3,TW2)..TB..CBU;LY101,111,121,151,YY121..TB..ST..CBU

L=615

 1
65457-26070

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

長さ=240

 2
65491A - STOP, GUARD FRAME LOAD SLIDE, RH
65491-37010

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 1
65492A - STOP, GUARD FRAME LOAD SLIDE, LH
65492-37010

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 1
65507A - SUPPORT SUB-ASSY, CORNER, RH
65507-37040

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 1
65508A - SUPPORT SUB-ASSY, CORNER, LH
65508-37040

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-25030

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 1
66109 - HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER
66193-37010

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 2
66110 - HINGE ASSY, TAIL GATE
66110-37010

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 3
66161 - HANDLE, SIDE GATE LATCH, RH
65080-92701

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 1
66162 - HANDLE, SIDE GATE LATCH, LH
65080-92701

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 1
66165A - CAP, GATE LATCH HANDLE
66165-92701

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 2
66264 - HANDLE, TAIL GATE LATCH, RH
66264-37010

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 1
66265 - HANDLE, TAIL GATE LATCH, LH
66265-37010

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 1
66280C - CHAIN ASSY, TAIL GATE
66280-37020

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 2
Common parts
90115-10016
90119-08464
90119-08913
90148-80008
90166-80001
90179-08024
90179-08245
90179-10036
90201-10180
90501-07041
90501-45024
90541-06028
90541-07018
90950-01430
91511-60814
91642-81025
93560-14008
94184-01001
94185-60800
94185-61000
94613-10800
94622-11000
96160-00600

(9505- )YY201,211..T2,T4..TB ; (9610- )TB; (9610- )LY10#,YY101..T2..IV3

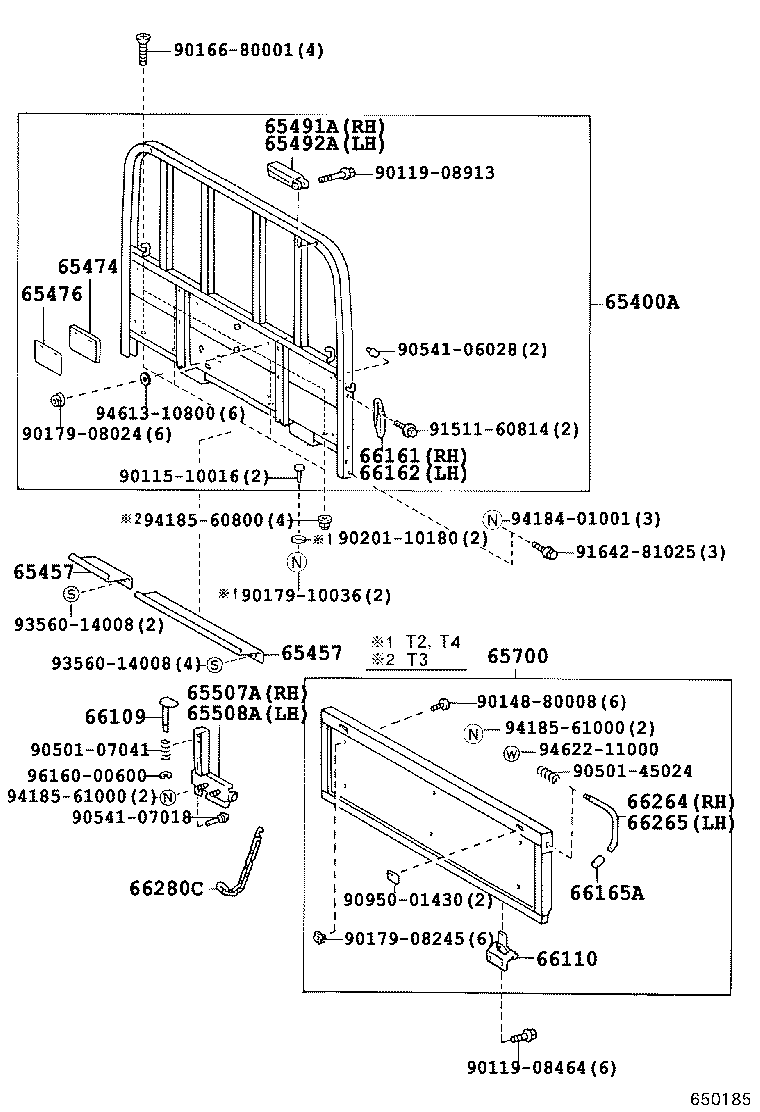

Click highlighted areas on diagram

diagram 65400A 65457 65457 65474 65476 65491A 65492A 65507A 65508A 65700 66109 66110 66161 66162 66165A 66264 66265 66280C 9011510016 9011908464 9011908913 9014880008 9016680001 9017908024 9017908245 9017910036 9020110180 9050107041 9050145024 9054106028 9054107018 9095001430 9151160814 9164281025 9356014008 9356014008 9418401001 9418560800 9418561000 9418561000 9461310800 9462211000 9616000600
Part # Description Qty Price
65400A - GUARD ASSY, REAR BODY
65400-25250

LY201,211..T2..TB..CBU

 1
65400-25270

YY201,211..T2..TB..CBU

 1
65457 - PLATE, BAFFLE DUST REAR BODY
65457-26040

LY201,211,YY201,211..TB..CBU;LY131,161,YY131..(T3,TW2)..TB..CBU;LY101,111,121,151,YY121..TB..ST..CBU

L=615

 1
65457-26070

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

長さ=240

 2
65457 - PLATE, BAFFLE DUST REAR BODY
65457-26040

LY201,211,YY201,211..TB..CBU;LY131,161,YY131..(T3,TW2)..TB..CBU;LY101,111,121,151,YY121..TB..ST..CBU

L=615

 1
65457-26070

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

長さ=240

 2
65474 - INSULATOR, HEADER
65474-25030

YY201,211..(T2,T4)..TB..CBU

 1
65476 - INSULATOR, HEADER BOARD, NO.2
65476-25020

YY201,211..(T2,T4)..TB..CBU

 1
65491A - STOP, GUARD FRAME LOAD SLIDE, RH
65491-37010

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 1
65492A - STOP, GUARD FRAME LOAD SLIDE, LH
65492-37010

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 1
65507A - SUPPORT SUB-ASSY, CORNER, RH
65507-37040

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 1
65508A - SUPPORT SUB-ASSY, CORNER, LH
65508-37040

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-25030

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 1
66109 - HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER
66193-37010

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 2
66110 - HINGE ASSY, TAIL GATE
66110-37010

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 3
66161 - HANDLE, SIDE GATE LATCH, RH
65080-92701

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 1
66162 - HANDLE, SIDE GATE LATCH, LH
65080-92701

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 1
66165A - CAP, GATE LATCH HANDLE
66165-92701

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 2
66264 - HANDLE, TAIL GATE LATCH, RH
66264-37010

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 1
66265 - HANDLE, TAIL GATE LATCH, LH
66265-37010

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 1
66280C - CHAIN ASSY, TAIL GATE
66280-37020

LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU

 2
Common parts
90115-10016
90119-08464
90119-08913
90148-80008
90166-80001
90179-08024
90179-08245
90179-10036
90201-10180
90501-07041
90501-45024
90541-06028
90541-07018
90950-01430
91511-60814
91642-81025
93560-14008
94184-01001
94185-60800
94185-61000
94613-10800
94622-11000
96160-00600
