LY211-TGPGS (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9505- )

Click highlighted areas on diagram

diagram 55301 55307 55330B 55351A 55352A 55381B 55405B 55410C 55411G 55448B 55479B 55541B 82715B 9010506109 9010506109 9010506109 9010506109 9011906327 9018305103 9018305103 9046709145B0 9046709145B0 9046714014 9164380820 9164380820 9356715016 9356715016 9356715016 9356715016 9356715016 9356715016 9356715016 9356715016 9356755014 9356755018 9356755018 9356755018
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55311-37020B0

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

BLUISH GRAY,TRIM1#

 1
55307 - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER
55307-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-25010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55351A - BRACE, INSTRUMENT PANEL TO FLOOR
55351-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55352A - BRACE, INSTRUMENT PANEL TO FLOOR, NO.2
55352-37010

LY201,211,YY201,211

 1
55381B - BRACKET, FINISH PANEL MOUNTING, NO.1
55381-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-37010C0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

BLACK,TRIM1#

 1
55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH
55410-37010B0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

BLUISH GRAY,TRIM1#

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-37010C0

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

BLACK,TRIM1#

 1
55448B - COVER, OIL RESERVOIR TANK, RH
55448-37010B0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

BLUISH GRAY,TRIM1#

 1
55479B - COVER, INSTRUMENT, LOWER CENTER
55479-37010B0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

BLUISH GRAY,TRIM1#

 1
55541B - RETAINER, RADIO TUNER OPENING, NO.1
55541-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
Common parts
90105-06109
90119-06327
90183-05103
90467-09145B0
90467-14014
91643-80820
93567-15016
93567-55014
93567-55018

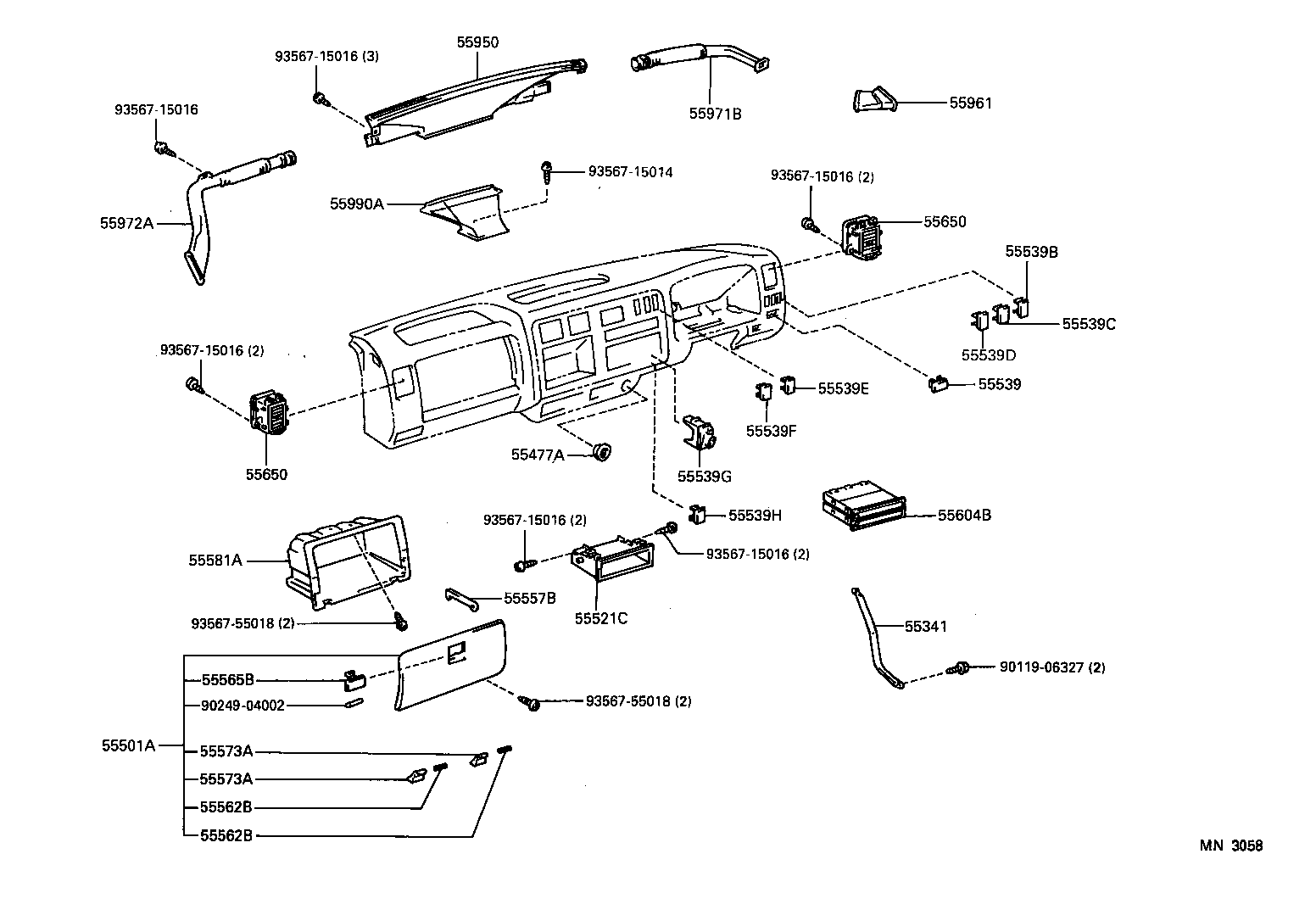

ILLUST NO. 2 OF 2(9505- )

Click highlighted areas on diagram

diagram 55341 55477A 55501A 55521C 55539 55539B 55539C 55539D 55539E 55539F 55539G 55539H 55557B 55562B 55562B 55565B 55573A 55573A 55581A 55604B 55650 55650 55950 55961 55971B 55972A 55990A 9011906327 9024904002 9356715014 9356715016 9356715016 9356715016 9356715016 9356715016 9356715016 9356755018 9356755018
Part # Description Qty Price
55341 - BRACE, INSTRUMENT PANEL, NO.1
55341-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT
55501-37010B0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

BLUISH GRAY,TRIM1#

 1
55521C - COVER, STEREO OPENING
55521-16030

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-95J00B0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

GRAY,TRIM1#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-95J00B0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

GRAY,TRIM1#

 1
55539D - COVER, SPARE SWITCH HOLE
55539-95J00B0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

GRAY,TRIM1#

 1
55539E - COVER, SPARE SWITCH HOLE
55539-95J00C0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

BLACK,TRIM11

 1
55539F - COVER, SPARE SWITCH HOLE
55539-95J00C0

LY201,211,YY201,211

BLACK,TRIM11

 1
55539G - COVER, SPARE SWITCH HOLE
55539-37010C0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

BLACK,TRIM1#

 1
55539H - COVER, SPARE SWITCH HOLE
55539-95J00C0

LY10#,11#,12#,13#,20#,21#,YY101,121,131,201,211

BLACK,TRIM11

 1
55557B - STOPPER, GLOVE COMPERTMENT DOOR CHECK
55557-28010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55562B - PIN, GLOVE COMPARTMENT DOOR LOCK
55562-95J00

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
55562B - PIN, GLOVE COMPARTMENT DOOR LOCK
55562-95J00

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
55565B - KNOB, GLOVE COMPARTMENT DOOR LOCK
55565-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55573A - HINGE, GLOVE COMPARTMENT DOOR
55573-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
55573A - HINGE, GLOVE COMPARTMENT DOOR
55573-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
55581A - COMPARTMENT, GLOVE
55581-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55604B - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-37020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-37020B0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

BLUISH GRAY,TRIM1#

 2
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-37020B0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

BLUISH GRAY,TRIM1#

 2
55950 - NOZZLE ASSY, DEFROSTER
55950-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-37010B0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

BLUISH GRAY,TRIM1#

 1
55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55990A - NOZZLE ASSY, DEFROSTER, LOWER
55990-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
Common parts
90119-06327
90249-04002
93567-15014
93567-15016
93567-55018
