LY211-TGMGS3 (1995)
Toyota Dyna 150/Toyoace G15

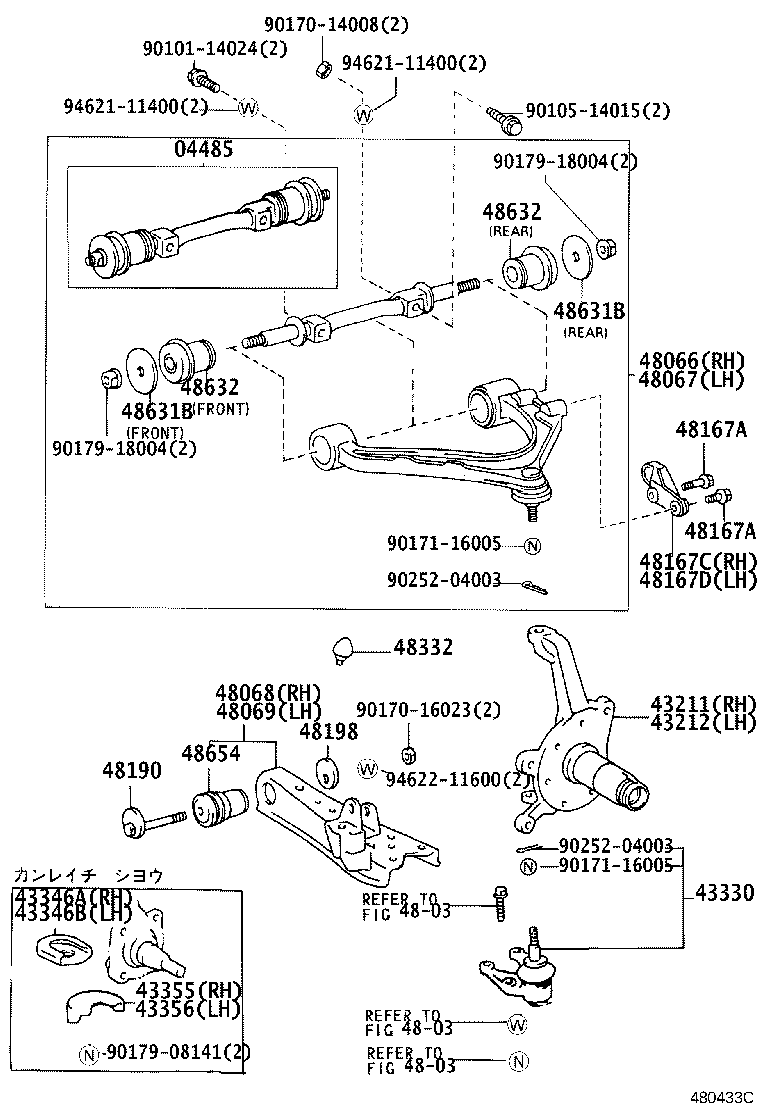

(9610- )LY10#,11#,YY101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04485 - SHAFT KIT, UPPER SUSPENSION ARM | ||||
| 04485-26050 |
LY10#,11#,YY101 |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-26051 |
LY10#,11#,YY101 |
1 | ||
| 43201-25070 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43202-25060 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 43212-26021 |
LY10#,11#,YY101 |
1 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43330-29295 |
LY10#,11#,YY101 |
2 | ||
| 43330-29335 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 43346A - PROTECTOR, FRONT LOWER BALL JOINT DUST COVER, RH | ||||
| 43346-26010 |
LY10#,11#,YY101 |
1 | ||
| 43346B - PROTECTOR, FRONT LOWER BALL JOINT DUST COVER, LH | ||||
| 43346-26010 |
LY10#,11#,YY101 |
1 | ||
| 43355 - DEFLECTOR, LOWER ARM ICE, RH | ||||
| 43355-26010 |
LY10#,11#,YY101 |
1 | ||
| 43356 - DEFLECTOR, LOWER ARM ICE, LH | ||||
| 43355-26010 |
LY10#,11#,YY101 |
1 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48066-29065 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 48066-29075 |
LY10#,11#,YY101 |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48067-29075 |
LY10#,11#,YY101 |
1 | ||
| 48067-29065 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-25010 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 48068-26022 |
LY10#,11#,YY101 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-25010 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 48069-26022 |
LY10#,11#,YY101 |
1 | ||
| 48167A - BOLT(FOR TORQUE ARM SETTING) | ||||
| 90105-12284 |
LY10#,11#,YY101 *12−1.25PX33−23 |
2 | ||
| 90105-12285 |
LY10#,11#,YY101 *12ｰ1.25PX44−22 |
2 | ||
| 90105-12200 |
LY12#,13#,15#,16#,YY121,131 *12−1.25PX34.5−16.5 |
4 | ||
| 48167A - BOLT(FOR TORQUE ARM SETTING) | ||||
| 90105-12284 |
LY10#,11#,YY101 *12−1.25PX33−23 |
2 | ||
| 90105-12285 |
LY10#,11#,YY101 *12ｰ1.25PX44−22 |
2 | ||
| 90105-12200 |
LY12#,13#,15#,16#,YY121,131 *12−1.25PX34.5−16.5 |
4 | ||
| 48167C - ARM, FRONT SUSPENSION TORQUE, RH | ||||
| 48106-26050 |
LY10#,11#,YY101 |
1 | ||
| 48167D - ARM, FRONT SUSPENSION TORQUE, LH | ||||
| 48106-26050 |
LY10#,11#,YY101 |
1 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-26020 |
LY10#,11#,YY101 |
2 | ||
| 48190-26020 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-26010 |
LY10#,11#,YY101 |
2 | ||
| 48198-26010 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| 48332 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48332-26020 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48332-35020 |
LY10#,11#,YY101 |
2 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02143 |
LY10#,11#,YY101 ﾌﾛﾝﾄ |
2 | ||
| 90948-02142 |
LY10#,11#,YY101 ﾘﾔ |
2 | ||
| 48631B - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM) | ||||
| 90948-02143 |
LY10#,11#,YY101 ﾌﾛﾝﾄ |
2 | ||
| 90948-02142 |
LY10#,11#,YY101 ﾘﾔ |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48632-26010 |
LY10#,11#,YY101 ﾌﾛﾝﾄ |
2 | ||
| 48635-26010 |
LY10#,11#,YY101 ﾘﾔ |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48632-26010 |
LY10#,11#,YY101 ﾌﾛﾝﾄ |
2 | ||
| 48635-26010 |
LY10#,11#,YY101 ﾘﾔ |
2 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-26010 |
LY10#,11#,YY101 |
2 | ||
| 48061-26020 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| Common parts | ||||
| 90101-14024 | ||||
| 90105-14015 | ||||
| 90170-14008 | ||||
| 90170-16023 | ||||
| 90171-16005 | ||||
| 90179-08141 | ||||
| 90179-18004 | ||||
| 90252-04003 | ||||
| 94621-11400 | ||||
| 94622-11600 | ||||
| Linked diagrams | ||||
| 4803 | ||||

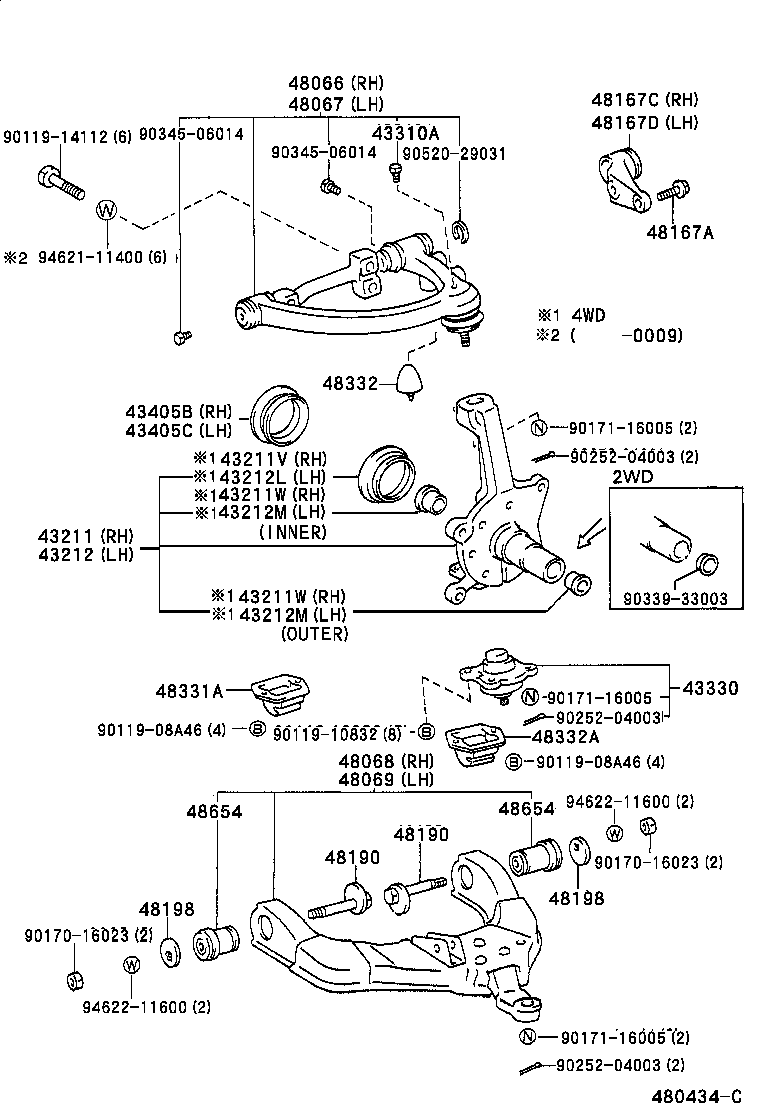

(9610- )LY12#,13#,15#,16#,YY121,131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-26051 |
LY10#,11#,YY101 |
1 | ||
| 43201-25070 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43202-25060 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 43212-26021 |
LY10#,11#,YY101 |
1 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43330-29295 |
LY10#,11#,YY101 |
2 | ||
| 43330-29335 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48066-29065 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 48066-29075 |
LY10#,11#,YY101 |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48067-29075 |
LY10#,11#,YY101 |
1 | ||
| 48067-29065 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-25010 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 48068-26022 |
LY10#,11#,YY101 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-25010 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 48069-26022 |
LY10#,11#,YY101 |
1 | ||
| 48167A - BOLT(FOR TORQUE ARM SETTING) | ||||
| 90105-12284 |
LY10#,11#,YY101 *12−1.25PX33−23 |
2 | ||
| 90105-12285 |
LY10#,11#,YY101 *12ｰ1.25PX44−22 |
2 | ||
| 90105-12200 |
LY12#,13#,15#,16#,YY121,131 *12−1.25PX34.5−16.5 |
4 | ||
| 48167C - ARM, FRONT SUSPENSION TORQUE, RH | ||||
| 48106-26050 |
LY10#,11#,YY101 |
1 | ||
| 48167D - ARM, FRONT SUSPENSION TORQUE, LH | ||||
| 48106-26050 |
LY10#,11#,YY101 |
1 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-26020 |
LY10#,11#,YY101 |
2 | ||
| 48190-26020 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-26020 |
LY10#,11#,YY101 |
2 | ||
| 48190-26020 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-26010 |
LY10#,11#,YY101 |
2 | ||
| 48198-26010 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-26010 |
LY10#,11#,YY101 |
2 | ||
| 48198-26010 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| 48331A - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-26070 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48332 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48332-26020 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48332-35020 |
LY10#,11#,YY101 |
2 | ||
| 48332A - BUMPER, FRONT SPRING, NO.3 | ||||
| 48331-26080 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-26010 |
LY10#,11#,YY101 |
2 | ||
| 48061-26020 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-26010 |
LY10#,11#,YY101 |
2 | ||
| 48061-26020 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90119-10832 | ||||
| 90119-14112 | ||||
| 90170-16023 | ||||
| 90171-16005 | ||||
| 90252-04003 | ||||
| 90339-33003 | ||||
| 90345-06014 | ||||
| 90520-29031 | ||||
| 94621-11400 | ||||
| 94622-11600 | ||||
(9505- )LY20#,21#,YY201,211..T1,T2,T3,TW2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04431 - PIN KIT, STEERING KNUCKLE KING | ||||
| 04431-25010 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 43111 - I BEAM, FRONT AXLE | ||||
| 43111-25041 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 43112 - PIN, KING PIN LOCK | ||||
| 43112-25010 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
2 | ||
| 43132A - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT) | ||||
| 90106-10005 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-26051 |
LY10#,11#,YY101 |
1 | ||
| 43201-25070 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 43211D - PLUG (FOR STEERING KNUCKLE) | ||||
| 90345-33004 |
LY20#,21#,YY201,211 |
2 | ||
| 43211F - PLUG, BLEEDER (FOR STEERING KNUCKLE) | ||||
| 90930-03031 |
LY20#,21#,YY201,211 |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43202-25060 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 43212-26021 |
LY10#,11#,YY101 |
1 | ||
| 43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS | ||||
| 90999-73085 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 上側 |
2 | ||
| 90999-73084 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 下側 |
2 | ||
| 43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS | ||||
| 90999-73085 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 上側 |
2 | ||
| 90999-73084 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 下側 |
2 | ||
| 43231B - SEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN) | ||||
| 96711-19025 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
2 | ||
| 43231C - BEARING (FOR STEERING KNUCKLE KING PIN) | ||||
| 90367-25002 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
2 | ||
| 43231D - SHIM (FOR KING PIN) | ||||
| 90564-25125 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 厚さ=0.10 |
2 | ||
| 90564-25126 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 厚さ=0.05 |
2 | ||
| 90564-25127 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 厚さ=0.25 |
2 | ||
| 43231E - PLUG (FOR STEERING KNUCKLE) | ||||
| 90345-33003 |
LY20#,21#,YY201,211 |
2 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 90179-10121 | ||||
| 96451-00600 | ||||
