LY211-TGMGS3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )3L,5L

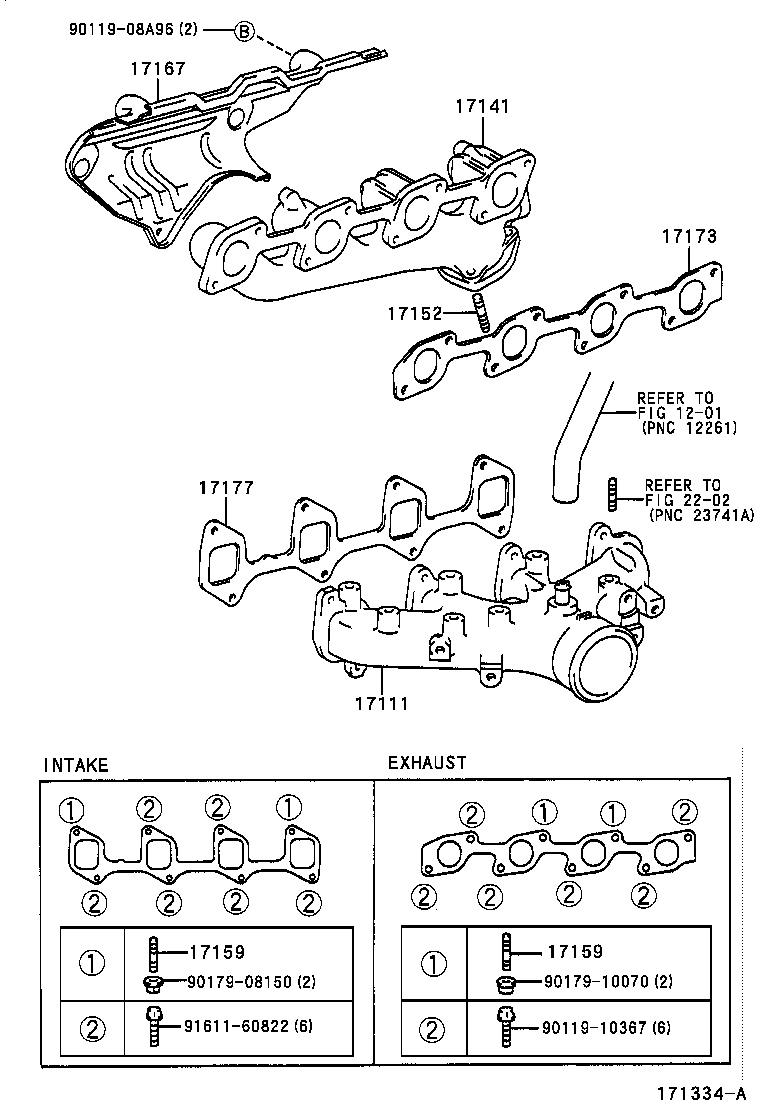

Click highlighted areas on diagram

diagram 1201 17111 17141 17152 17159 17159 17167 17173 17177 2202 9011908A96 9011910367 9017908150 9017910070 9161160822
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-54110

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
17141 - MANIFOLD, EXHAUST
17141-54110

3L..LY201,211

 1
17141-54111

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10088

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08220

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

INTAKE MANIFOLD

 2
90116-10141

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

EXHAUST MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08220

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

INTAKE MANIFOLD

 2
90116-10141

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

EXHAUST MANIFOLD

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-54110

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-54030

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-54020

3L..LY201,211

 1
17177-54021

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
Common parts
90119-08A96
90119-10367
90179-08150
90179-10070
91611-60822
Linked diagrams
1201
2202
