LY211-TGMFS3 (1995)
Toyota Dyna 150/Toyoace G15
(9505- )3L,5L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-54131 |
3L..LY101,111,121,131,151,161,201,211 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02080 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# NO.1 |
14 | ||
| 90910-02081 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# NO.2 |
4 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02080 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# NO.1 |
14 | ||
| 90910-02081 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# NO.2 |
4 | ||
| 11101C - TUBE(FOR CYLINDER HEAD) | ||||
| 90440-15003 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
4 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-54072D0 |
3L..LY201,211 MARK D,ﾏｰｸ D |
1 | ||
| 11115-54072F0 |
3L..LY201,211 MARK F,ﾏｰｸ F |
1 | ||
| 11115-54073D0 |
3L..LY101,111,121,131,151,161,201,211 MARK D,ﾏｰｸ D |
1 | ||
| 11115-54072B0 |
3L..LY201,211 MARK B,ﾏｰｸ B |
1 | ||
| 11115-54073F0 |
3L..LY101,111,121,131,151,161,201,211 MARK F,ﾏｰｸ F |
1 | ||
| 11115-54073B0 |
3L..LY101,111,121,131,151,161,201,211 MARK B,ﾏｰｸ B |
1 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-62500 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
7 | ||
| 96411-42500 |
3L..LY101,111,121,131,151,161,201,211 |
7 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-63000 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 96411-43000 |
3L..LY101,111,121,131,151,161,201,211 |
1 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-64500 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 96411-44500 |
3L..LY101,111,121,131,151,161,201,211 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# STD |
4 | ||
| 11123-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# O/S 0.05 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# O/S 0.05 |
4 | ||
| 11122-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# STD |
4 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-11021 |
3L..LY201,211 長さ=8,外径=11 |
10 | ||
| 90253-11021 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 長さ=8,外径=11 |
7 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 92122-80616 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# ﾈｼﾞ部長さ=9 & 9,長さ=25 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-08166 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
10 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11210-54032 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 11210-54031 |
3L..LY101,111,121,131,151,161,201,211 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90179-06319 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 11212 - COVER, CYLINDER HEAD, NO.2 | ||||
| 11212-54030 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-54050 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 11224 - SILENCER, CYLINDER HEAD COVER | ||||
| 11224-54030 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-70020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-70010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| Common parts | ||||
| 90119-06787 | ||||
| 90201-08466 | ||||
| 90387-06045 | ||||
| 90389-08076 | ||||
| 90480-15019 | ||||
| 94120-40800 | ||||

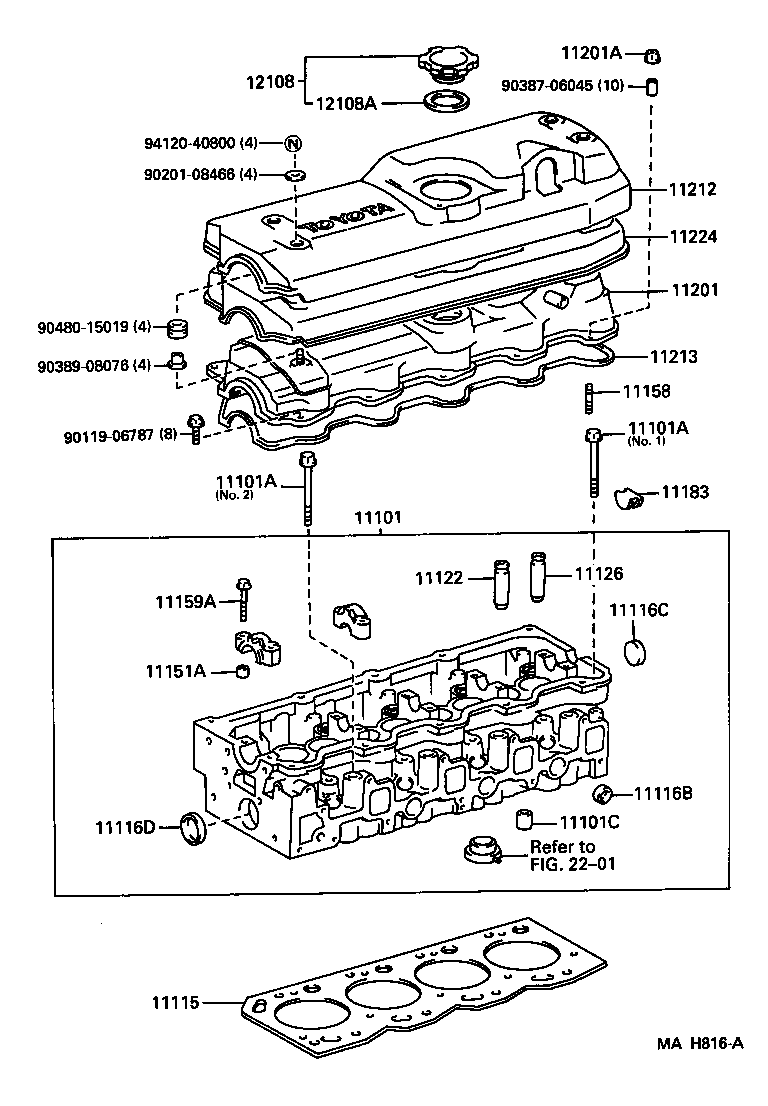

| Linked diagrams | ||||
| 2201 | ||||
