LY211-TGMFS (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )YY201,211

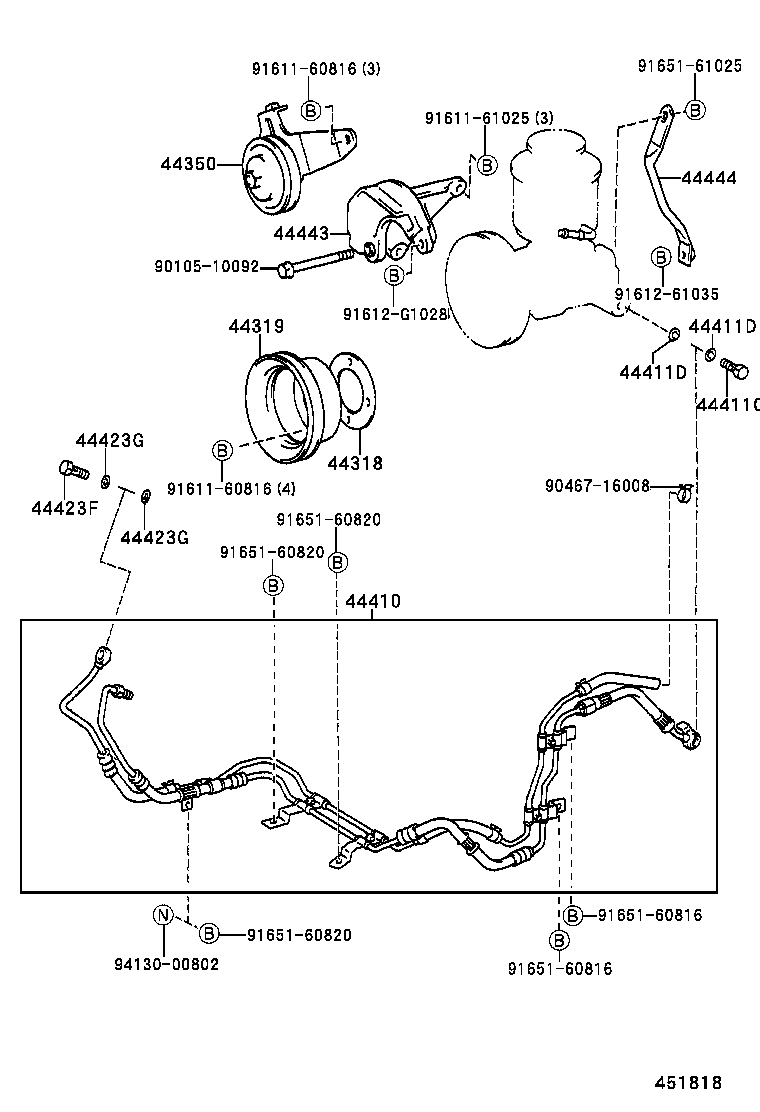

Click highlighted areas on diagram

diagram 44318 44319 44350 44410 44411C 44411D 44411D 44423F 44423G 44423G 44443 44444 9010510092 9046716008 9161160816 9161160816 9161161025 9161261035 91612G1028 9165160816 9165160816 9165160820 9165160820 9165160820 9165161025 9413000802
Part # Description Qty Price
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-26010

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-26010

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-25060

LY20#,21#

 1
44410-25050

YY201,211

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
44423F - BOLT, UNION
90401-17002

LY201,211,YY201,211

 1
44423G - GASKET, UNION BOLT
90430-17002

LY20#,21#,YY201,211

 2
44423G - GASKET, UNION BOLT
90430-17002

LY20#,21#,YY201,211

 2
44443 - BRACKET, PUMP
44443-25010

LY10#,11#,20#,21#

 1
Common parts
90105-10092
90467-16008
91611-60816
91611-61025
91612-61035
91612-G1028
91651-60816
91651-60820
91651-61025
94130-00802

(9505- )LY20#,21#

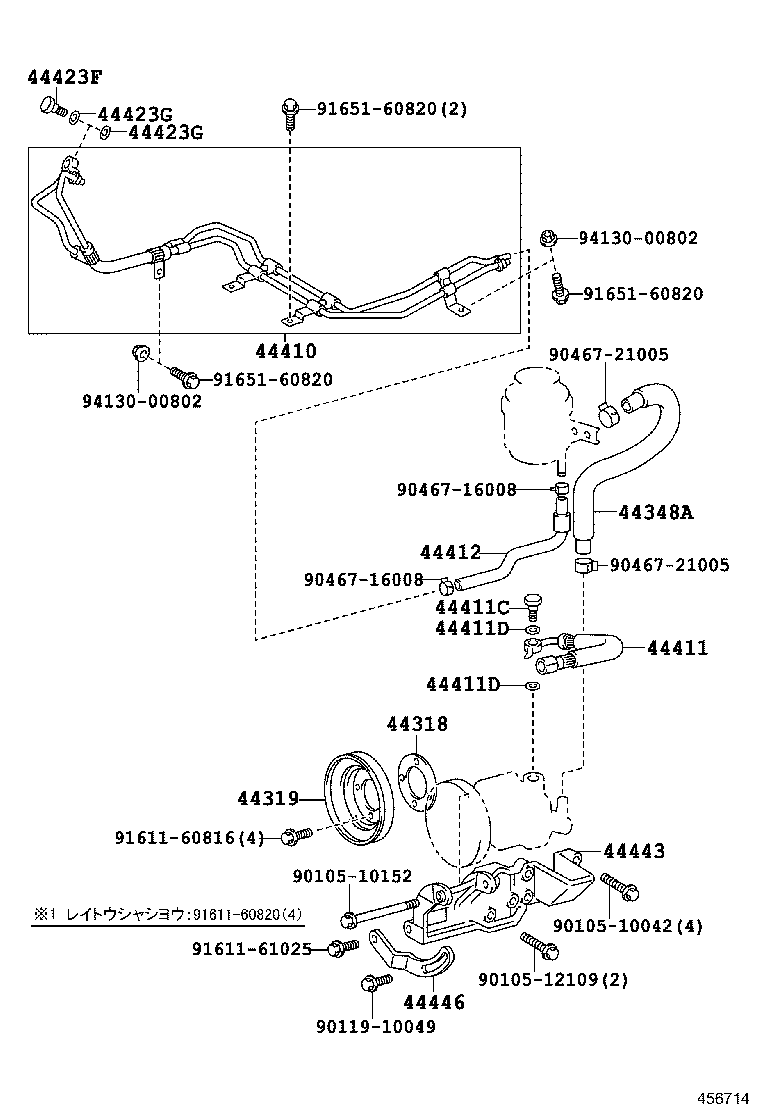

Click highlighted areas on diagram

diagram 44318 44319 44348A 44410 44411 44411C 44411D 44411D 44412 44423F 44423G 44423G 44443 44446 9010510042 9010510152 9010512109 9011910049 9046716008 9046716008 9046721005 9046721005 9161160816 9161161025 9165160820 9165160820 9165160820 9413000802 9413000802
Part # Description Qty Price
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-26010

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-26010

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-25030

LY20#,21#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-25060

LY20#,21#

 1
44410-25050

YY201,211

 1
44411 - HOSE, PRESSURE FEED
44411-25050

LY20#,21#

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16027

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
44412 - HOSE, RETURN
44412-25040

LY20#,21#

 1
44423F - BOLT, UNION
90401-17002

LY201,211,YY201,211

 1
44423G - GASKET, UNION BOLT
90430-17002

LY20#,21#,YY201,211

 2
44423G - GASKET, UNION BOLT
90430-17002

LY20#,21#,YY201,211

 2
44443 - BRACKET, PUMP
44443-25010

LY10#,11#,20#,21#

 1
44446 - STRUT, ADJUSTING
44446-30070

LY10#,11#,20#,21#

 1
Common parts
90105-10042
90105-10152
90105-12109
90119-10049
90467-16008
90467-21005
91611-60816
91611-61025
91651-60820
94130-00802
