LY211-PSMDS3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

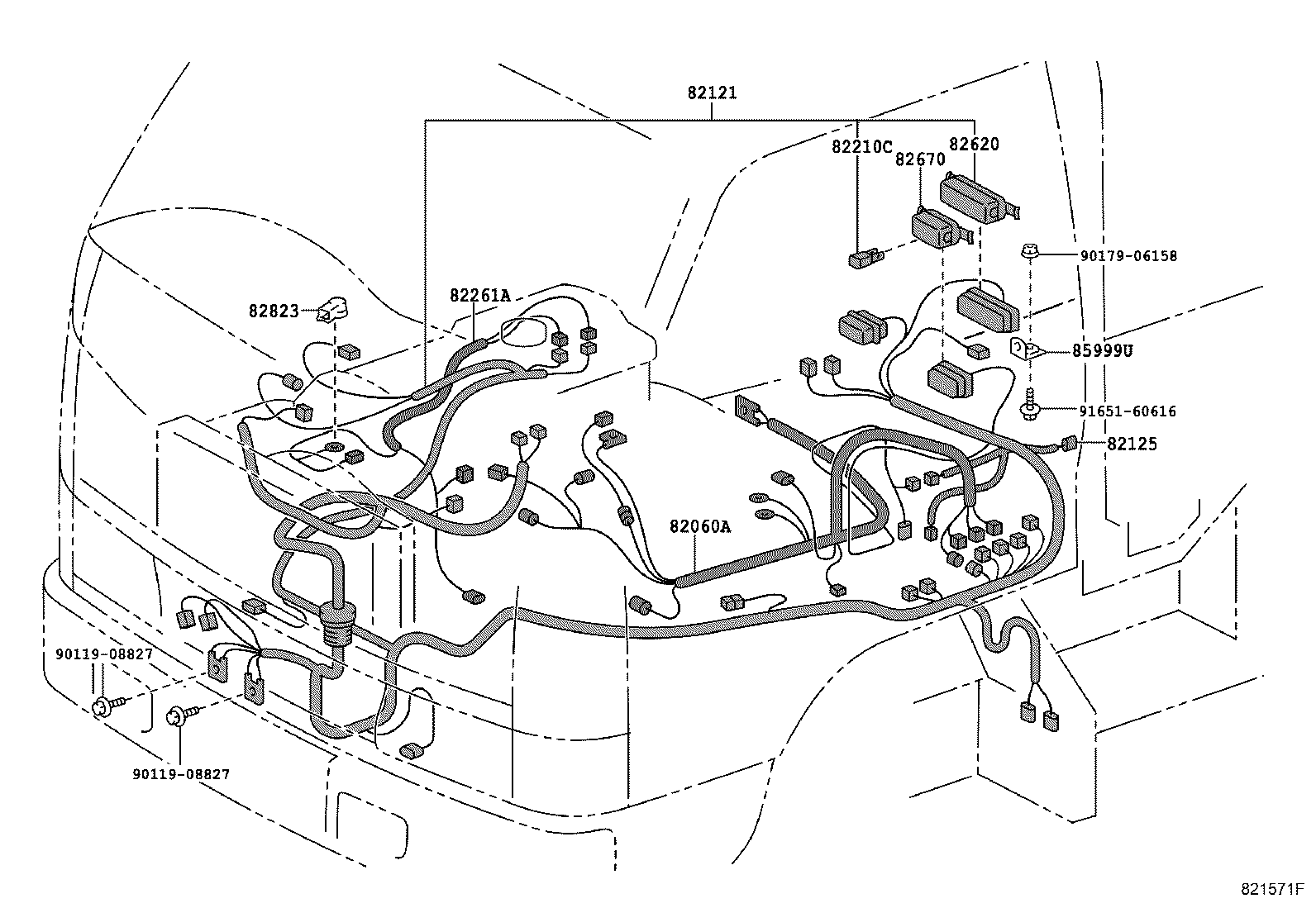

ILLUST NO. 1 OF 6(9505- )LY20#,21#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ ﾜｲﾔ

diagram 82060A 82121 82125 82210C 82261A 82620 82670 8271112200 8271114110 8271122270 827112A620 8271130130 827113A740 8271140020 8271195422 8271195J26 8271525040 8271525070 8271525080 8271525150 8271525160 8271530500 8271537300 8271537510 8271589107 82823 85999U 9011908116 9011908116 9017906158 9046110294 9046112146 9165140814 9165160616 9165160616 9165160830 9165160830 9165161020 9165260816 9165260816 9165260816
Part # Description Qty Price
82060A - WIRE ASSY, ENGINE, NO.2
82060-26013

LY201,211..MTM

 1
82060-26014

LY101,111,121,131,151,161,201,211..MTM..DSL

 1
82121 - WIRE, ENGINE
82121-25161

LY201,211..MTM

 1
82121-25162

LY201,211..MTM

 1
82121-25163

LY201,211..MTM

 1
82210C - FUSIBLE LINK
90982-08203

LY201,211

80A,ｵｽ端子,黒

 1
90982-08202

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..(CBR,DSL)..(CBU,IV3)

60A,ｵｽ端子,黄

 1
90982-08189

YY211..125..LPG;LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBR,DSL

40A,ﾒｽ端子,緑

 1
90982-08189

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

40A,ﾒｽ端子,緑

 1
90982-08202

LY201,211,YY201,211

60A,ｵｽ端子,黄

 1
90982-08203

LY10#,11#,12#,13#,15#,16#,20#,21#,YY211..(DSL,LPG)..(CBU,IV3)

80A,ｵｽ端子,黒

 1
82261A - WIRE, ALTERNATOR
82261-25020

LY131..ATM;LY101,111,201,211

 1
82261-25020

LY101,111,121,131,151,161,201,211..DSL..(CBU,IV3)

 1
Common parts
82711-12200
82711-14110
82711-22270
82711-2A620
82711-30130
82711-3A740
82711-40020
82711-95422
82711-95J26
82715-25040
82715-25070
82715-25080
82715-25150
82715-25160
82715-30500
82715-37300
82715-37510
82715-89107
90119-08116
90179-06158
90461-10294
90461-12146
91651-40814
91651-60616
91651-60830
91651-61020
91652-60816

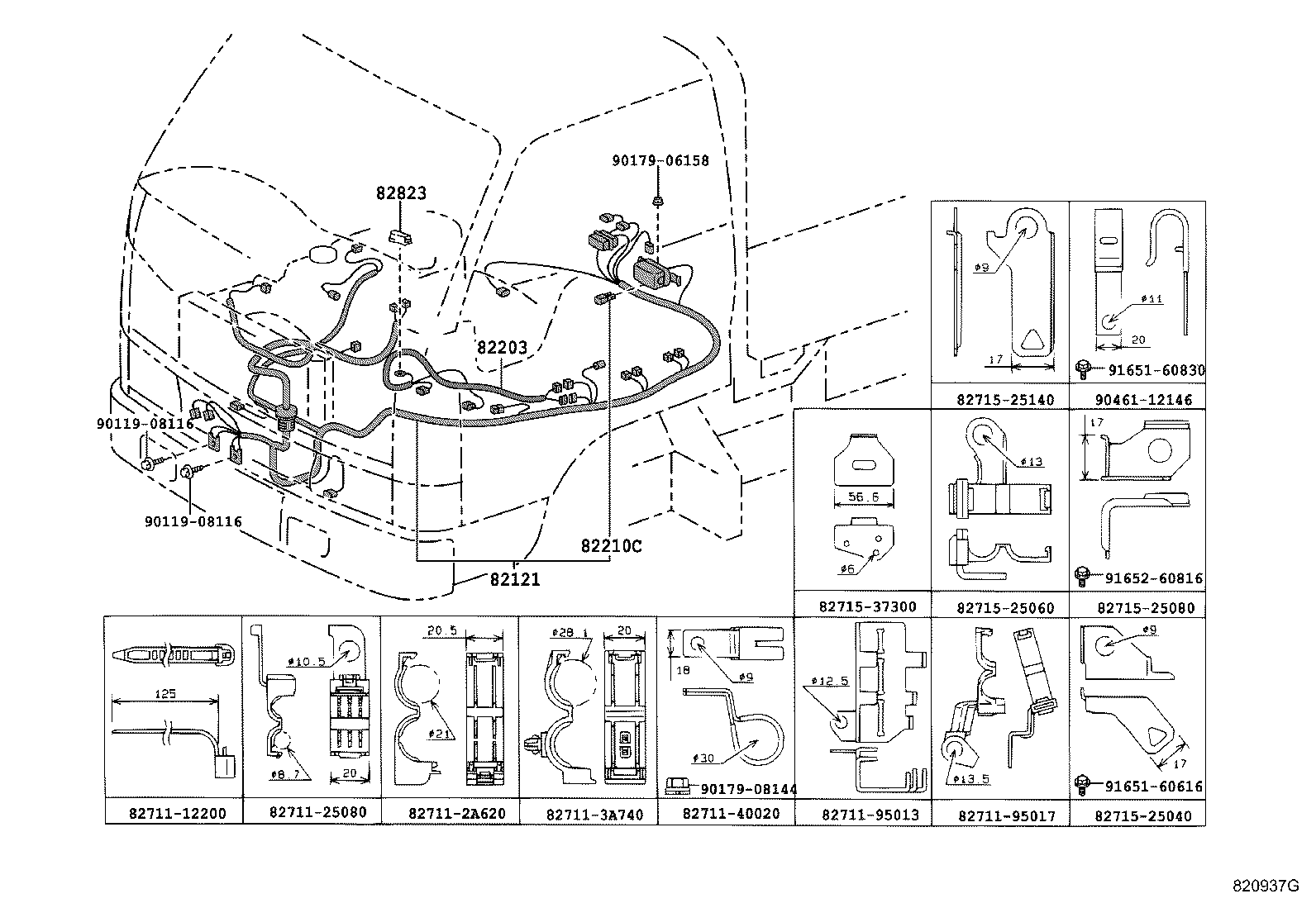

ILLUST NO. 1 OF 6(9505- )YY201,211

Click highlighted areas on diagram

ｴﾝｼﾞﾝ ﾜｲﾔ

diagram 82121 82203 82210C 8271112200 8271125080 827112A620 827113A740 8271140020 8271195013 8271195017 8271525040 8271525060 8271525080 8271525140 8271537300 82823 9011908116 9011908116 9017906158 9017908144 9046112146 9165160616 9165160830 9165260816
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-25161

LY201,211..MTM

 1
82121-25162

LY201,211..MTM

 1
82121-25163

LY201,211..MTM

 1
82203 - WIRE SUB-ASSY, ALTERNATOR
82203-25030

YY201,211

 1
82210C - FUSIBLE LINK
90982-08203

LY201,211

80A,ｵｽ端子,黒

 1
90982-08202

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..(CBR,DSL)..(CBU,IV3)

60A,ｵｽ端子,黄

 1
90982-08189

YY211..125..LPG;LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBR,DSL

40A,ﾒｽ端子,緑

 1
90982-08189

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

40A,ﾒｽ端子,緑

 1
90982-08202

LY201,211,YY201,211

60A,ｵｽ端子,黄

 1
90982-08203

LY10#,11#,12#,13#,15#,16#,20#,21#,YY211..(DSL,LPG)..(CBU,IV3)

80A,ｵｽ端子,黒

 1
Common parts
82711-12200
82711-25080
82711-2A620
82711-3A740
82711-40020
82711-95013
82711-95017
82715-25040
82715-25060
82715-25080
82715-25140
82715-37300
90119-08116
90179-06158
90179-08144
90461-12146
91651-60616
91651-60830
91652-60816

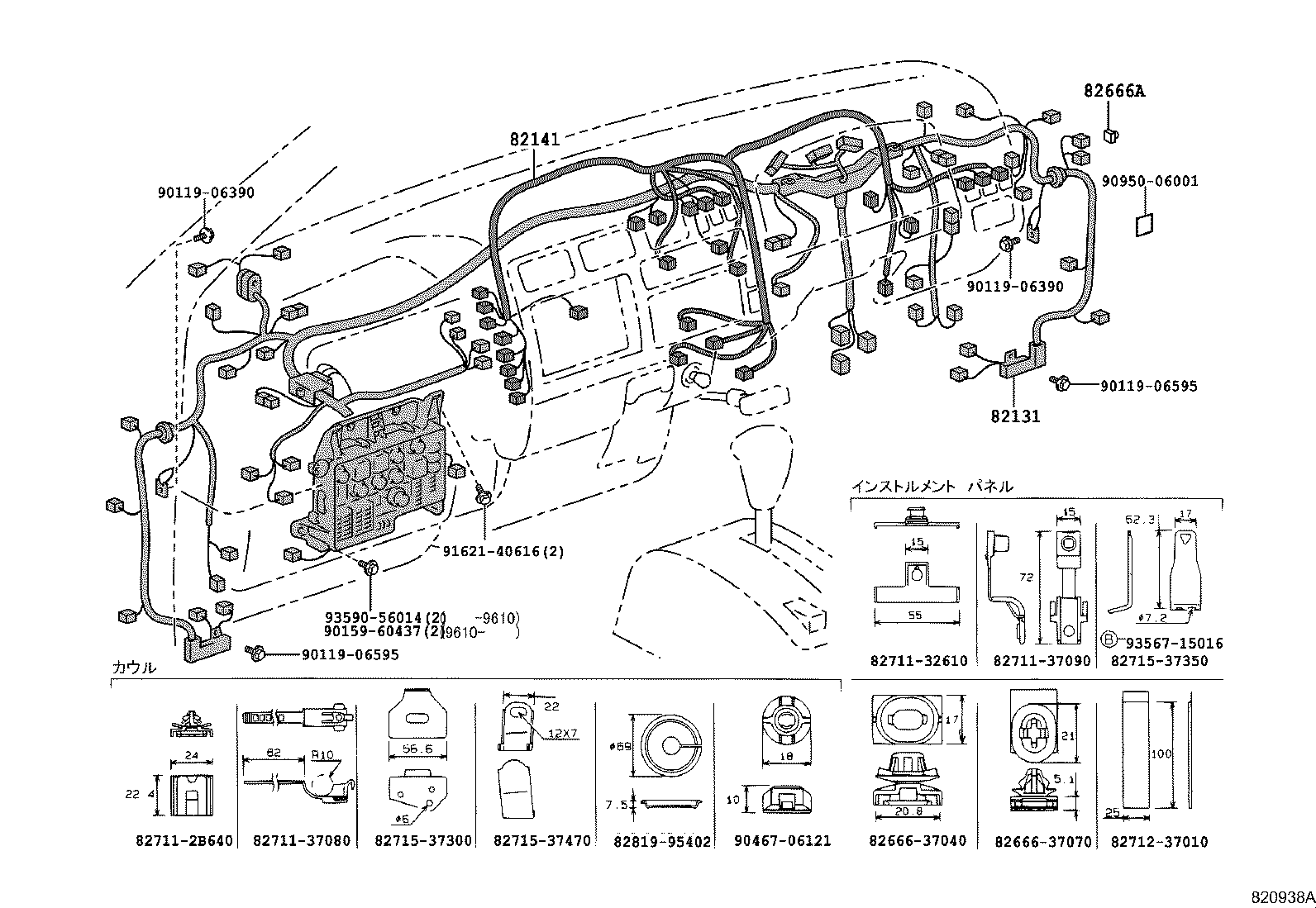

ILLUST NO. 2 OF 6(9505- )

Click highlighted areas on diagram

ｶｳﾙ & ｲﾝﾊﾟﾈ ﾜｲﾔ

diagram 82131 82141 8266637040 8266637070 82666A 827112B640 8271132610 8271137080 8271137090 8271237010 8271537300 8271537350 8271537470 8281995402 9011906390 9011906390 9011906595 9011906595 9015960437 9046706121 9095006001 9162140616 9356715016 9359056014
Part # Description Qty Price
82131 - WIRE, COWL
82131-25124

LY201..WT;LY211..MTM;LY201..ST..15T

ｱﾘ(*PW) OR ｱﾘ(*EL)

 1
82131-25134

LY201..WT;LY211..MTM;LY201..ST..15T

 1
82131-25125

LY201,211..MTM

ｱﾘ(*PW) OR ｱﾘ(*EL)

 1
82131-25135

LY201,211..MTM

 1
82131-25670

LY201,211..MTM

ｱﾘ(*PW & *80) OR ｱﾘ(*EL & *80)

 1
82131-25660

LY201,211..MTM

ｱﾘ(*80)

 1
82131-25670

LY201,211..MTM

 1
82141 - WIRE, INSTRUMENT PANEL
82141-37020

LY201,211,YY201,211..CBR,DSL

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ ﾐﾗ-)

 1
82141-37211

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ ﾐﾗ-)

 1
82141-25011

LY101,111,121,131,201,211,YY101,121,131,201,211..CBR,DSL

 1
82141-25011

LY10#,11#,12#,13#,20#,21#,YY101,121,131,201,211..(CBR,DSL)..(CBU,IV3)

 1
82141-25010

LY201,211,YY201,211..CBR,DSL

 1
82141-37211

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ ﾐﾗ-)

 1
82666A - HOLDER, CONNECTOR NO.2
82666-95D00

LY201,211,YY201,211

 2
Common parts
82666-37040
82666-37070
82711-2B640
82711-32610
82711-37080
82711-37090
82712-37010
82715-37300
82715-37350
82715-37470
82819-95402
90119-06390
90119-06595
90159-60437
90467-06121
90950-06001
91621-40616
93567-15016
93590-56014

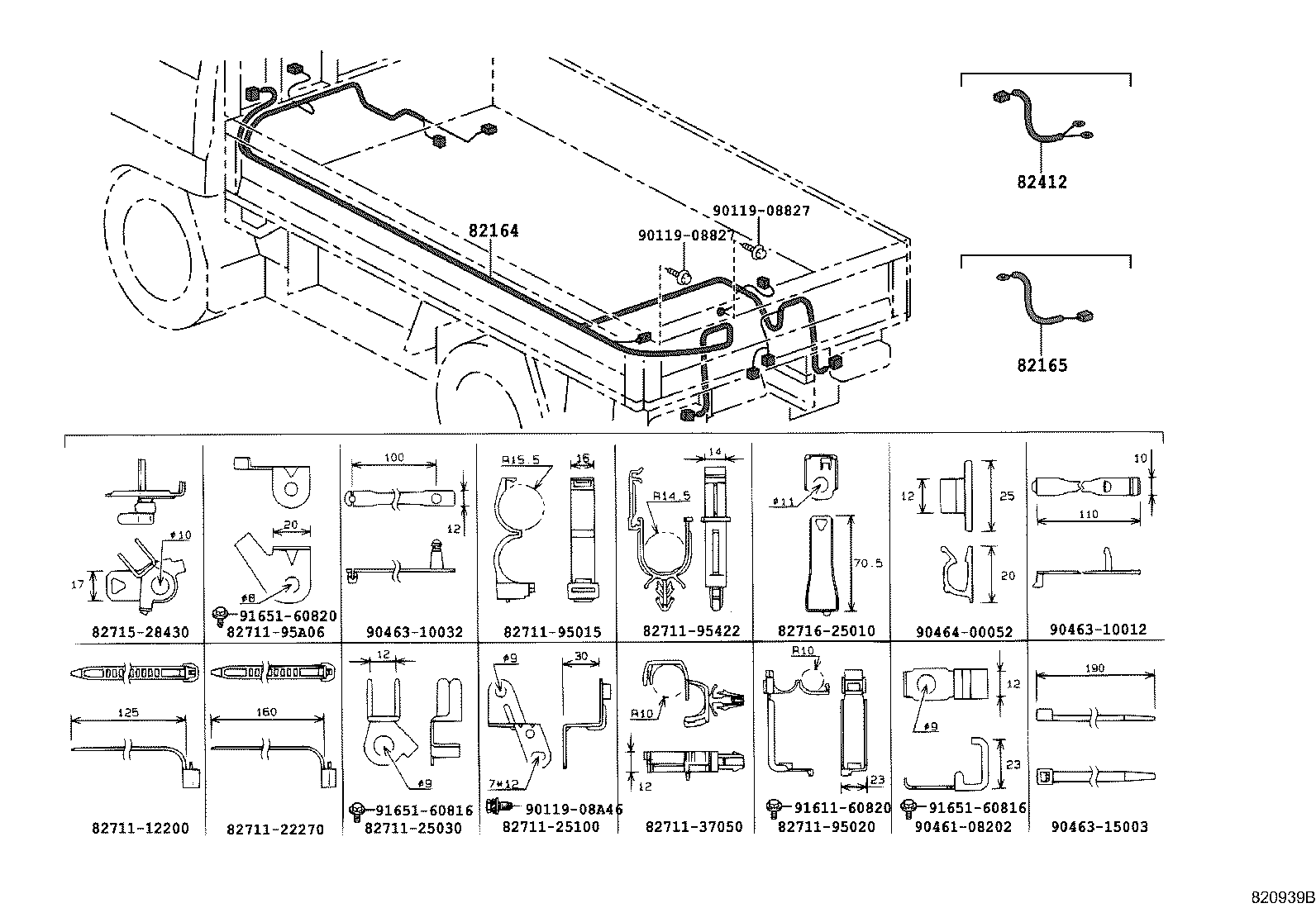

ILLUST NO. 4 OF 6(9505- )

Click highlighted areas on diagram

ﾎﾞﾃﾞ- ﾜｲﾔ

diagram 82164 82165 82412 8271112200 8271122270 8271125030 8271125100 8271137050 8271195015 8271195020 8271195422 8271195A06 8271528430 8271625010 9011908827 9011908827 9011908A46 9046108202 9046310012 9046310032 9046315003 9046400052 9161160820 9165160816 9165160816 9165160820
Part # Description Qty Price
82164 - WIRE, FRAME
82164-25311

LY21#..ST..125

 1
Common parts
82711-12200
82711-22270
82711-25030
82711-25100
82711-37050
82711-95015
82711-95020
82711-95422
82711-95A06
82715-28430
82716-25010
90119-08827
90119-08A46
90461-08202
90463-10012
90463-10032
90463-15003
90464-00052
91611-60820
91651-60816
91651-60820

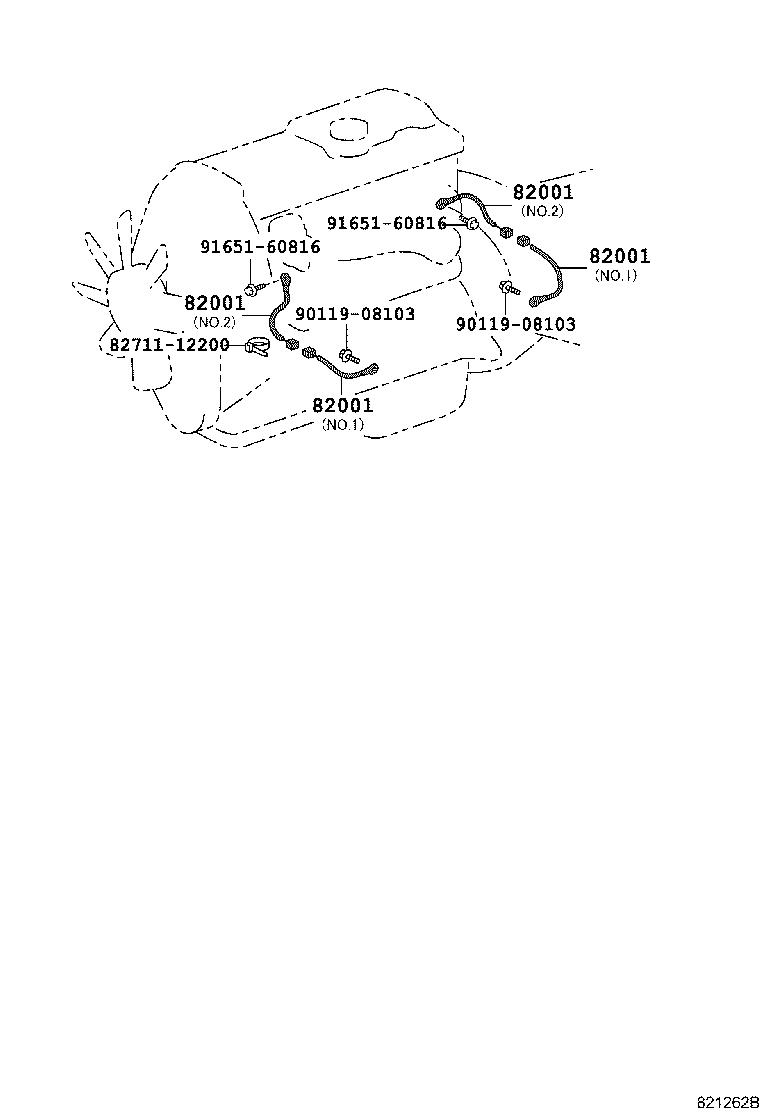

ILLUST NO. 5 OF 6(9505- )DSL

Click highlighted areas on diagram

ｹ-ﾌﾞﾙ ﾎﾞﾝﾄﾞ

diagram 82001 82001 82001 82001 8271112200 9011908103 9011908103 9165160816 9165160816
Part # Description Qty Price
Common parts
82711-12200
90119-08103
91651-60816

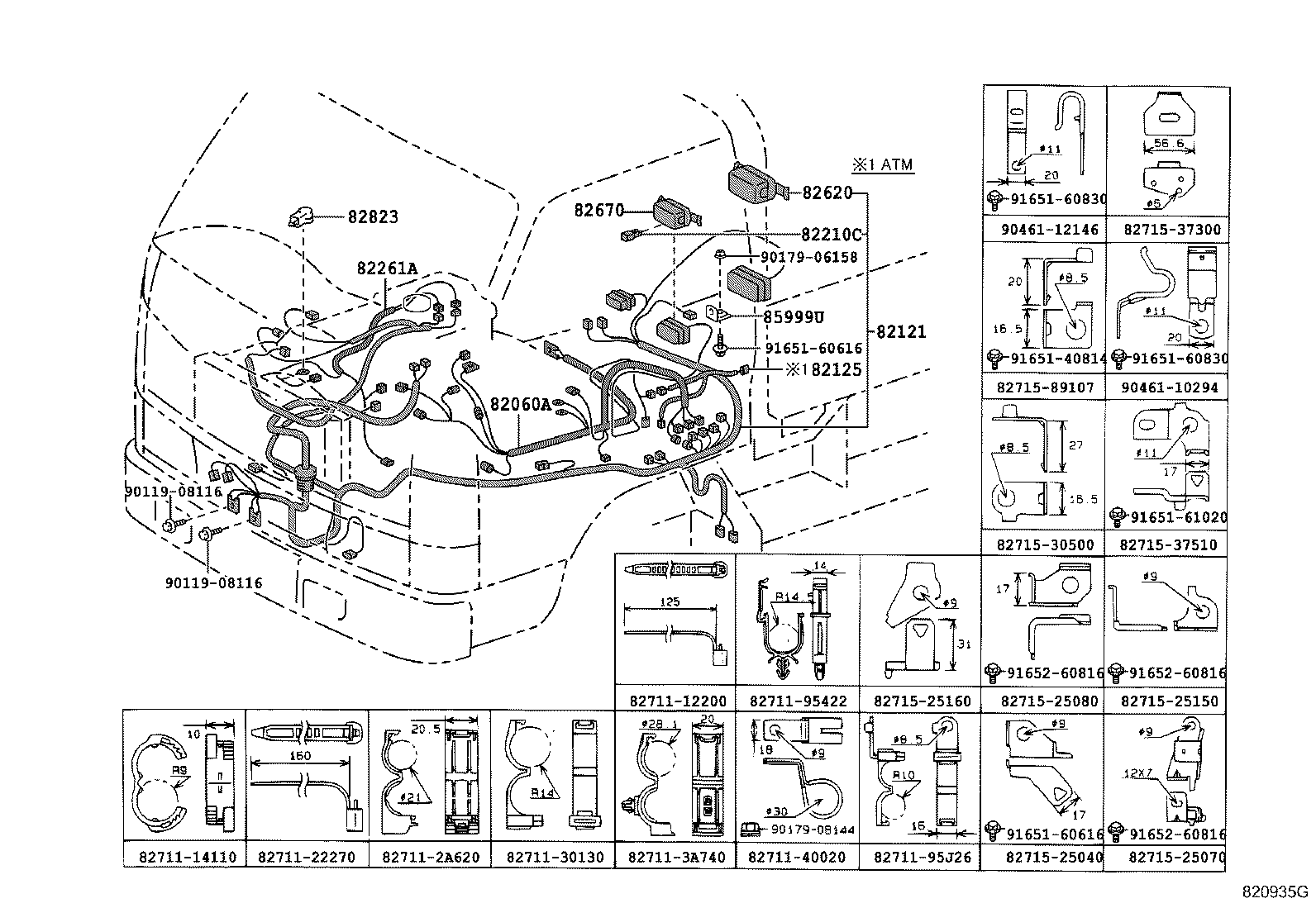

ILLUST NO. 1 OF 6(9505- )LY10#,11#,12#,13#,15#,16#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ ﾜｲﾔ

diagram 82060A 82121 82125 82210C 82261A 82620 82670 82823 85999U 9011908827 9011908827 9017906158 9165160616
Part # Description Qty Price
82060A - WIRE ASSY, ENGINE, NO.2
82060-26013

LY201,211..MTM

 1
82060-26014

LY101,111,121,131,151,161,201,211..MTM..DSL

 1
82121 - WIRE, ENGINE
82121-25161

LY201,211..MTM

 1
82121-25162

LY201,211..MTM

 1
82121-25163

LY201,211..MTM

 1
82210C - FUSIBLE LINK
90982-08203

LY201,211

80A,ｵｽ端子,黒

 1
90982-08202

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..(CBR,DSL)..(CBU,IV3)

60A,ｵｽ端子,黄

 1
90982-08189

YY211..125..LPG;LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBR,DSL

40A,ﾒｽ端子,緑

 1
90982-08189

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

40A,ﾒｽ端子,緑

 1
90982-08202

LY201,211,YY201,211

60A,ｵｽ端子,黄

 1
90982-08203

LY10#,11#,12#,13#,15#,16#,20#,21#,YY211..(DSL,LPG)..(CBU,IV3)

80A,ｵｽ端子,黒

 1
82261A - WIRE, ALTERNATOR
82261-25020

LY131..ATM;LY101,111,201,211

 1
82261-25020

LY101,111,121,131,151,161,201,211..DSL..(CBU,IV3)

 1
Common parts
90119-08827
90179-06158
91651-60616

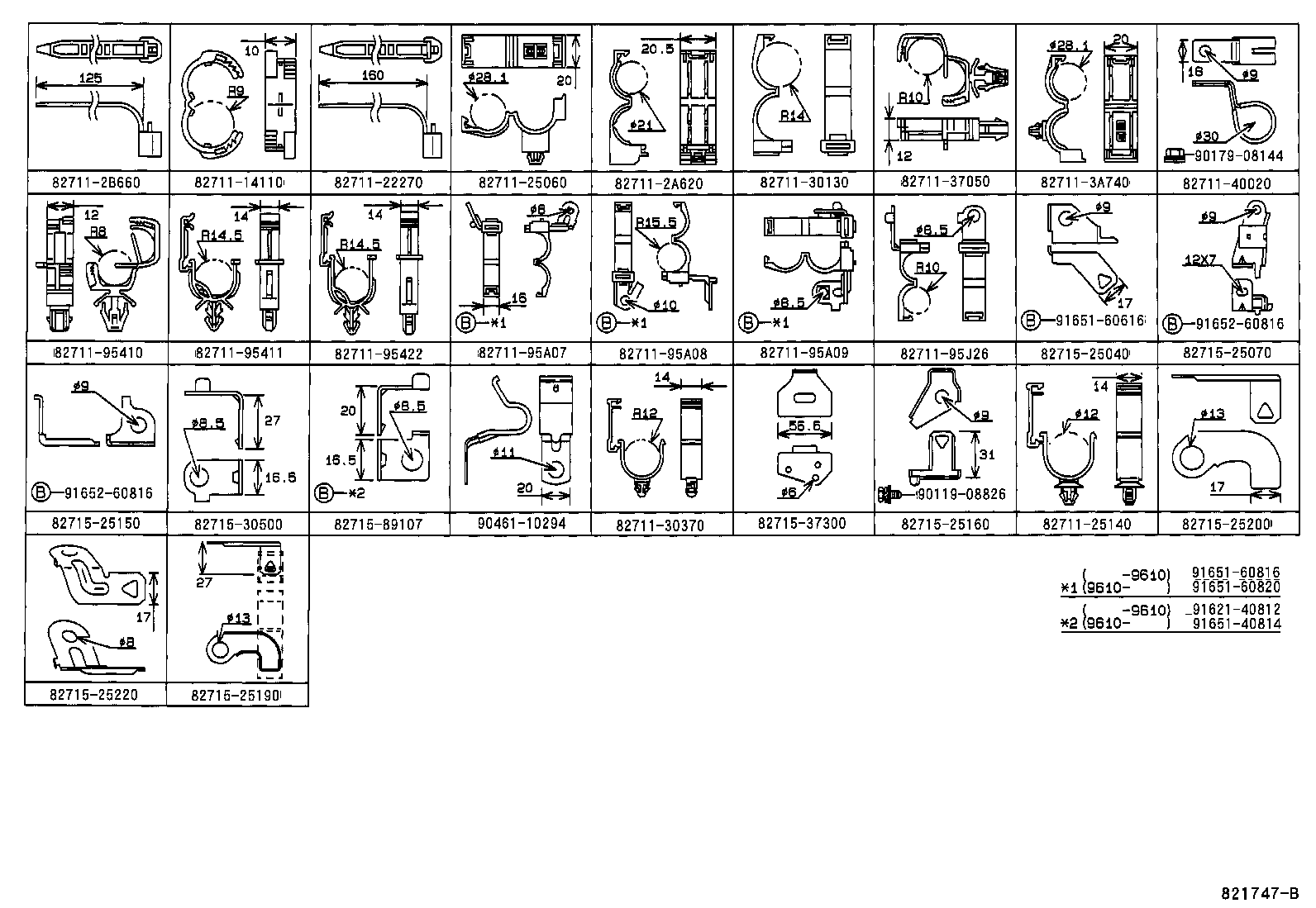

ILLUST NO. 6 OF 6(9505- )LY10#,11#,12#,13#,15#,16#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ ﾜｲﾔ ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ

diagram 8271114110 8271122270 8271125060 8271125140 827112A620 827112B660 8271130130 8271130370 8271137050 827113A740 8271140020 8271195410 8271195411 8271195422 8271195A07 8271195A08 8271195A09 8271195J26 8271525040 8271525070 8271525150 8271525160 8271525190 8271525200 8271525220 8271530500 8271537300 8271589107 9011908826 9017908144 9046110294 9162140812 9165140814 9165160616 9165160816 9165160820 9165260816 9165260816
Part # Description Qty Price
Common parts
82711-14110
82711-22270
82711-25060
82711-25140
82711-2A620
82711-2B660
82711-30130
82711-30370
82711-37050
82711-3A740
82711-40020
82711-95410
82711-95411
82711-95422
82711-95A07
82711-95A08
82711-95A09
82711-95J26
82715-25040
82715-25070
82715-25150
82715-25160
82715-25190
82715-25200
82715-25220
82715-30500
82715-37300
82715-89107
90119-08826
90179-08144
90461-10294
91621-40812
91651-40814
91651-60616
91651-60816
91651-60820
91652-60816

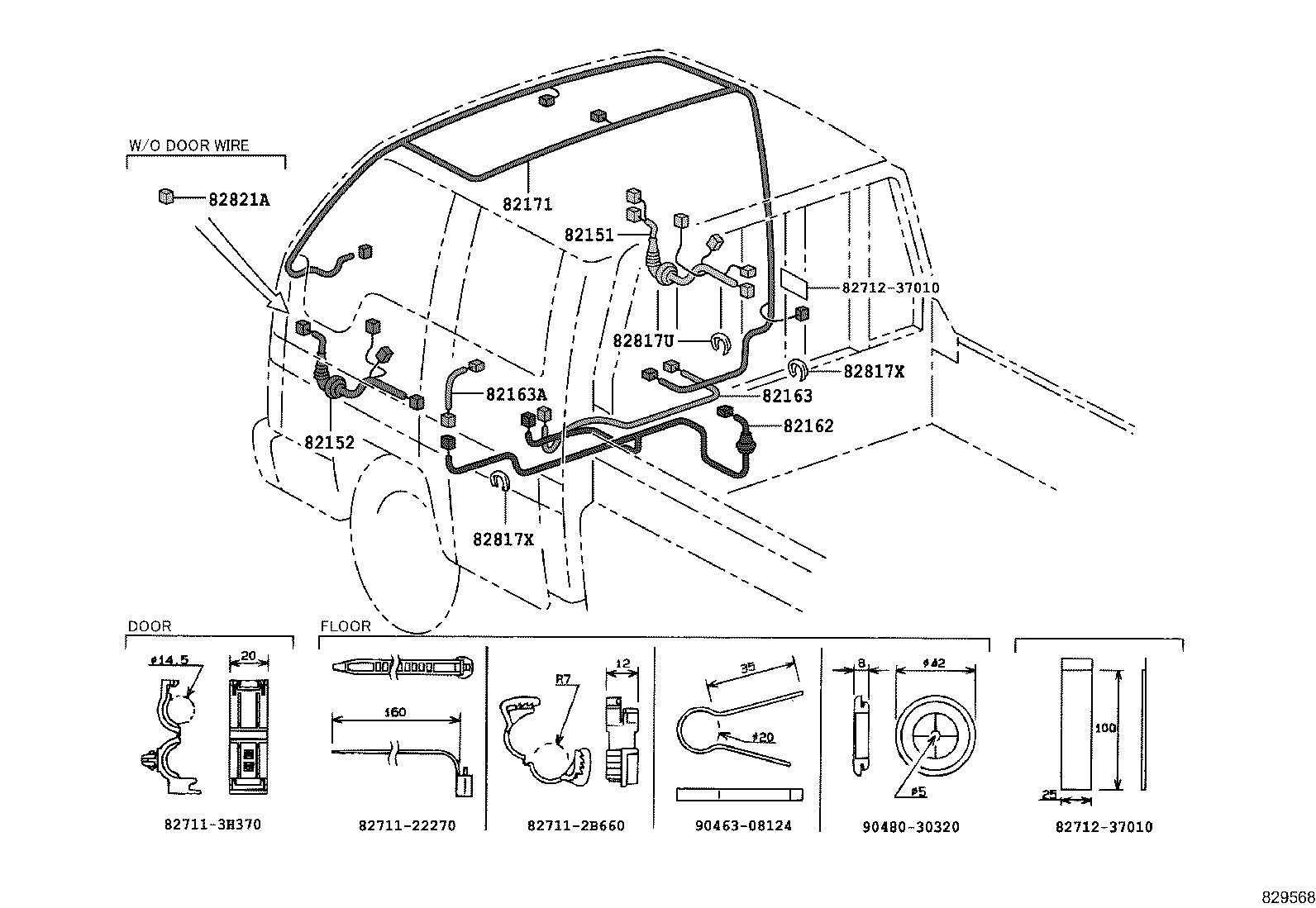

ILLUST NO. 3 OF 6(9505- )

Click highlighted areas on diagram

ﾄﾞｱ, ﾙ-ﾌ & ﾌﾛｱ ﾜｲﾔ

diagram 82151 82152 82162 82163 82163A 82171 8271122270 827112B660 827113H370 8271237010 8271237010 82817U 82817X 82817X 82821A 9046308124 9048030320
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-25080

LY162,YY211;LY10#,11#,12#,13#,15#,161,20#,21#,YY101,121,131,201..CBR,DSL

ｱﾘ(*EL)

 1
82151-37090

LY162,YY211;LY10#,11#,12#,13#,15#,161,20#,21#,YY101,121,131,201..CBR,DSL

ｱﾘ(*PW & *EL)

 1
82151-37080

LY162,YY211;LY10#,11#,12#,13#,15#,161,20#,21#,YY101,121,131,201..CBR,DSL

ｱﾘ(*PW)

 1
82152 - WIRE, FRONT DOOR, LH
82152-25060

LY162,YY211;LY10#,11#,12#,13#,15#,161,20#,21#,YY101,121,131,201..CBR,DSL

ｱﾘ(*EL)

 1
82152-37140

LY162,YY211;LY10#,11#,12#,13#,15#,161,20#,21#,YY101,121,131,201..CBR,DSL

ｱﾘ(*PW & *EL)

 1
82152-37130

LY162,YY211;LY10#,11#,12#,13#,15#,161,20#,21#,YY101,121,131,201..CBR,DSL

ｱﾘ(*PW)

 1
82162 - WIRE, FLOOR, NO.2
82162-37020

LY10#,11#,13#,15#,16#,201,21#,YY101,131,201,211..TW1,TW2

 1
82163 - WIRE, FLOOR, NO.3
82163-37011

LY10#,11#,13#,15#,16#,201,21#,YY101,131,201,211..TW1,TW2

 1
82163A - WIRE, FLOOR, NO.4
82163-95010

LY10#,11#,13#,15#,16#,201,21#,YY101,131,201,211..TW1,TW2

 1
82171 - WIRE, ROOF, NO.1
82171-37110

LY10#,11#,13#,15#,16#,201,21#,YY101,131,201,211..TW1,TW2

 1
82817X - PROTECTOR, WIRING HARNESS, NO.17
82817-28640

LY161..(TW1,TW2)..MTM;LY10#,11#,13#,15#,162,201,21#,YY101,131,201,211..TW1,TW2

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 2
82817-28640

LY101,111,131,151,161,201,211,YY101,131,201,211..TW1,TW2

 1
82817X - PROTECTOR, WIRING HARNESS, NO.17
82817-28640

LY161..(TW1,TW2)..MTM;LY10#,11#,13#,15#,162,201,21#,YY101,131,201,211..TW1,TW2

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 2
82817-28640

LY101,111,131,151,161,201,211,YY101,131,201,211..TW1,TW2

 1
82821A - COVER, CONNECTOR
82821-37020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)

 1
Common parts
82711-22270
82711-2B660
82711-3H370
82712-37010
90463-08124
90480-30320
