LY211-PGMES3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )DSL

Click highlighted areas on diagram

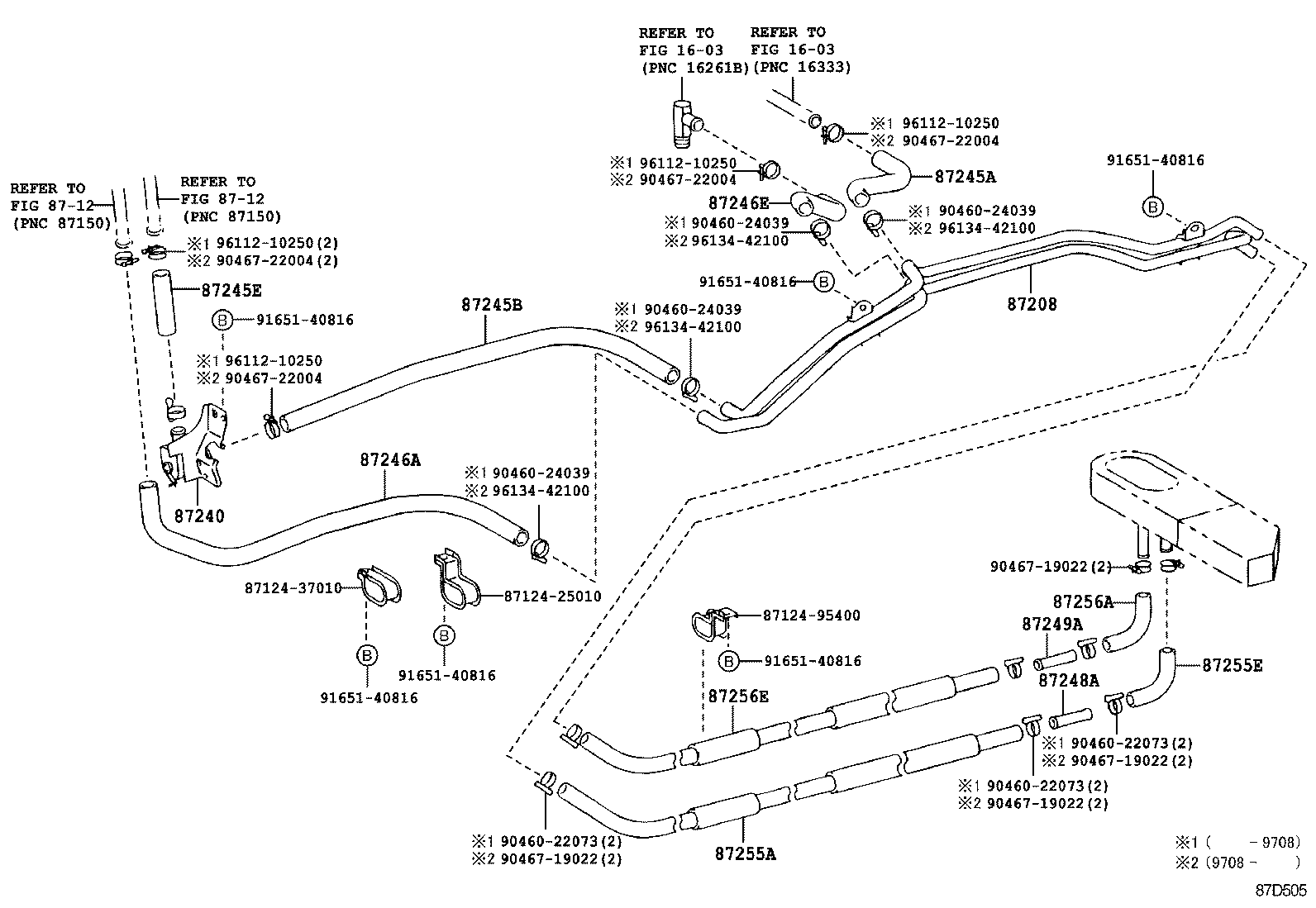

diagram 1603 1603 8712 8712 8712425010 8712437010 8712495400 87208 87240 87245A 87245B 87245E 87246A 87246E 87248A 87249A 87255A 87255E 87256A 87256E 9046022073 9046022073 9046022073 9046024039 9046024039 9046024039 9046024039 9046719022 9046719022 9046719022 9046719022 9046722004 9046722004 9046722004 9046722004 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9611210250 9611210250 9611210250 9611210250 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-25090

LY201,211

 1
87208-25100

LY10#,11#,13#,15#,16#,201,21#..TW1,TW2

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87240 - VALVE ASSY, HEATER WATER
87240-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
87245A - HOSE, HEATER WATER, INLET A
87245-25220

LY101,111,201,211..TW1,TW2

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
99556-30300

LY10#,11#,20#,21#

*H,L=250

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30700

LY101,111,131,151,161,201,211..(TW1,TW2)..MTM

長さ=700,ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
99556-30500

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

*H,L=390

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

*H,L=90

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-25080

YY201,211

長さ=740

 1
99556-30500

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

*H,L=480

 1
87245-25080

LY201,211..TW2

長さ=740,ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-25230

LY10#,11#,201,21#..TW1,TW2

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
99556-30300

LY10#,11#,20#,21#

*H,L=250

 1
87245-25090

YY101,201,211

 1
87248A - PIPE, HEATER WATER INLET, A
87248-95401

LY10#,11#,13#,15#,16#,201,21#,YY101,131,201,211..TW1,TW2

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95401

LY10#,11#,13#,15#,16#,201,21#,YY101,131,201,211..TW1,TW2

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-30300

YY101,131,201,211..TW2

*H,L=240

 1
87245-25310

LY201,21#..TW2

長さ=1100

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-92600

LY10#,11#,13#,15#,16#,201,21#,YY101,131,201,211..TW1,TW2

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-92600

LY10#,11#,13#,15#,16#,201,21#,YY101,131,201,211..TW1,TW2

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-25320

LY201,21#,YY201,211..TW2

長さ=960

 1
Common parts
87124-25010
87124-37010
87124-95400
90460-22073
90460-24039
90467-19022
90467-22004
91651-40816
96112-10250
96134-42100
