LY211-PGMES3 (1995)
Toyota Dyna 150/Toyoace G15

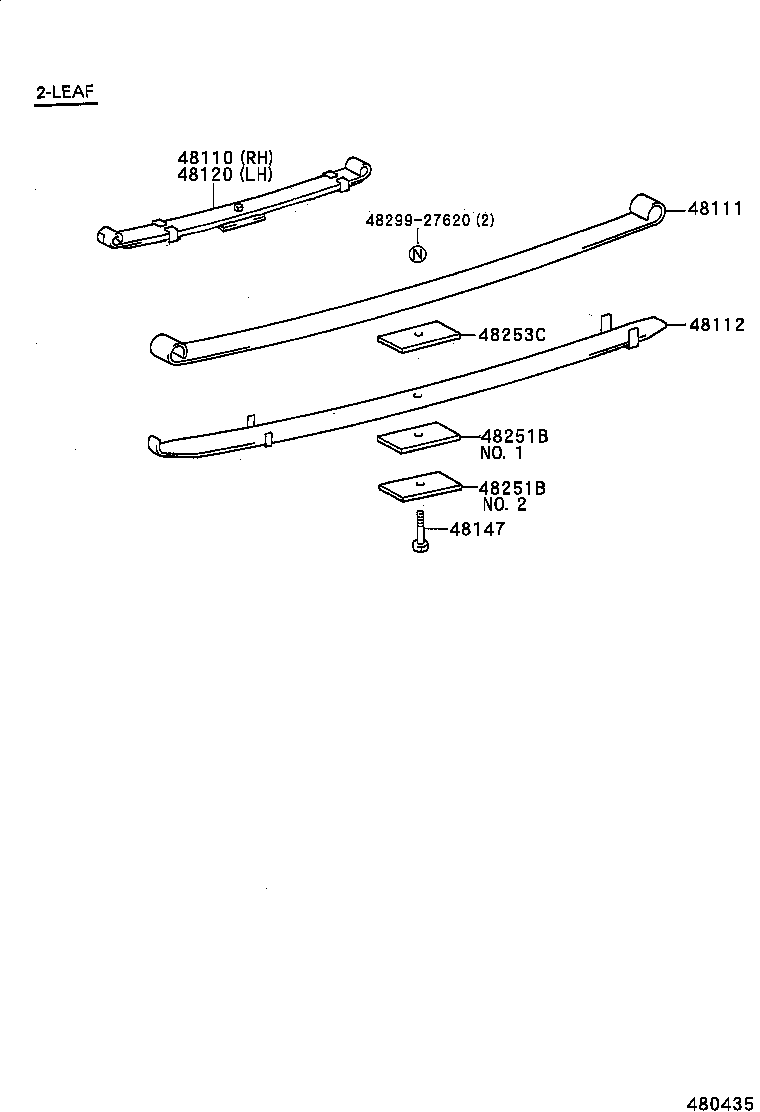

ILLUST NO. 3 OF 3(9505- )LY211 ; (9505- )125..LPG ; (9505-)LY212..T4 ; (9505- )YY211..M
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-2E020 |
LY21#..T3,TW2;LY21#..T2..WT 4枚ﾘｰﾌ |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48111-2E020 |
LY21#..T3,TW2;LY21#..T2..WT |
2 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-2E020 |
LY21#..T3,TW2;LY21#..T2..WT |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-2E020 |
LY21#..T3,TW2;LY21#..T2..WT 4枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-25450 |
LY20#,21#,YY201,211 |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-25670 |
LY21#..T3,TW2;LY21#..T2..WT |
2 | ||
| Common parts | ||||
| 48299-27620 | ||||

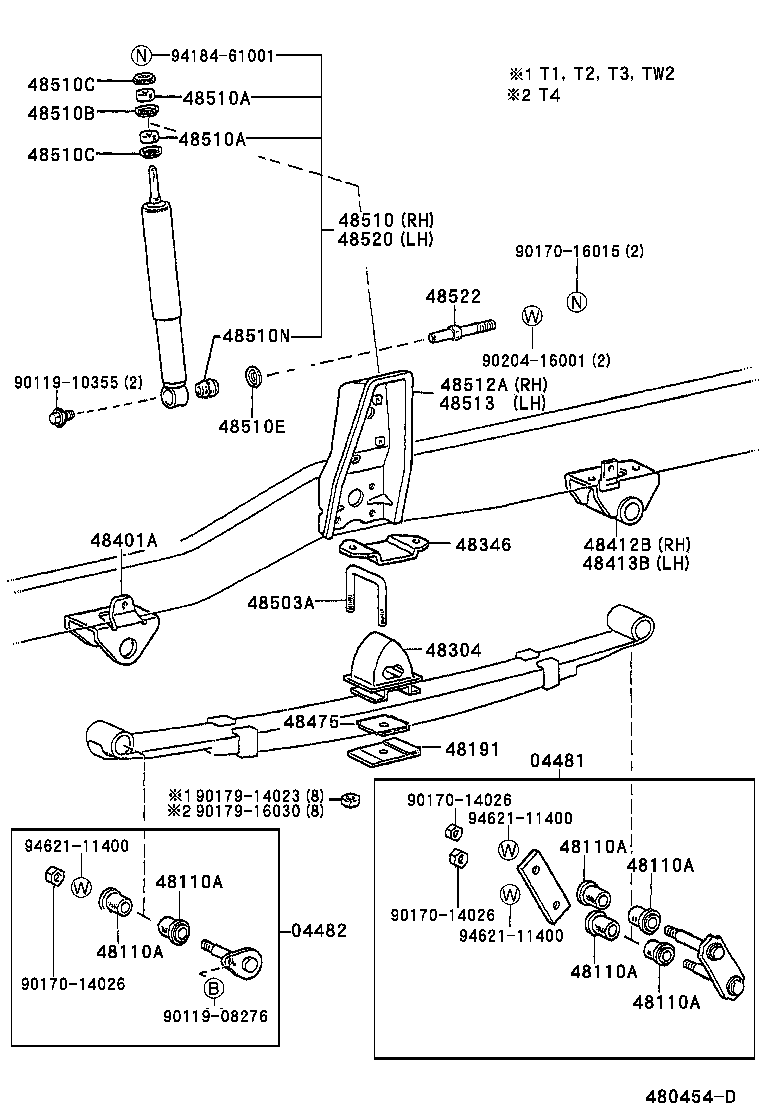

ILLUST NO. 1 OF 3(9505-9607)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04481-25050 |
LY20#,21#,YY201,211 |
2 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04482-25020 |
LY20#,21#,YY201,211 |
2 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY20#,21#,YY201,211 |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY20#,21#,YY201,211 |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY20#,21#,YY201,211 |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY20#,21#,YY201,211 |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY20#,21#,YY201,211 |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY20#,21#,YY201,211 |
12 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-35020 |
LY20#,21#,YY201,211 |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-36021 |
LY20#,21#,YY201,211 |
2 | ||
| 48346 - STOPPER, BUMPER, FRONT | ||||
| 48346-25161 |
LY201,21#,YY201,211..TW2 |
2 | ||
| 48401A - BRACKET SUB-ASSY, SPRING, NO.1 | ||||
| 48411-25051 |
LY202;LY201,21#,YY201,211..T2..WT;LY201,21#,YY201,211..T1,T3,TW2 |
2 | ||
| 48412B - BRACKET, SPRING, NO.2 RH | ||||
| 48433-25060 |
LY201,211,YY201,211 |
1 | ||
| 48403-25010 |
LY20#,21#,YY201,211 |
1 | ||
| 48413B - BRACKET, SPRING, NO.2 LH | ||||
| 48043-25010 |
LY20#,21#,YY201,211 |
1 | ||
| 48434-25050 |
LY201,211,YY201,211 |
1 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
LY201,211,YY201,211 |
1 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90117-14045 |
LY201,211,YY201,211..T1,T2,T3,TW2 長さ=95 |
2 | ||
| 90117-14047 |
LY201,211,YY201,211..T1,T2,T3,TW2 長さ=90 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-29735 |
LY201,211,YY201,211..T2..WT;LY201,211,YY201,211..T1,T3,TW2 ﾏｰｸ 48511−25110 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02017 |
LY10#,11#,20#,21#,YY101,201,211 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LY20#,21#,YY201,211 |
2 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-16010 |
LY20#,21#,YY201,211 |
2 | ||
| 48512A - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-25080 |
LY20#,21#,YY201,211 |
1 | ||
| 48513 - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-25080 |
LY20#,21#,YY201,211 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-29735 |
LY201,211,YY201,211..T2..WT;LY201,211,YY201,211..T1,T3,TW2 ﾏｰｸ 48511−25110 |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-25020 |
LY20#,21#,YY201,211 |
2 | ||
| Common parts | ||||
| 90119-08276 | ||||
| 90119-10355 | ||||
| 90170-14026 | ||||
| 90170-16015 | ||||
| 90179-14023 | ||||
| 90179-16030 | ||||
| 94184-61001 | ||||
| 94512-01600 | ||||
| 94621-11400 | ||||
ILLUST NO. 1 OF 3(9607- )LY20#,21#,YY201,211
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04481-25050 |
LY20#,21#,YY201,211 |
2 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04482-25020 |
LY20#,21#,YY201,211 |
2 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY20#,21#,YY201,211 |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY20#,21#,YY201,211 |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY20#,21#,YY201,211 |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY20#,21#,YY201,211 |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY20#,21#,YY201,211 |
12 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY20#,21#,YY201,211 |
12 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-35020 |
LY20#,21#,YY201,211 |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-36021 |
LY20#,21#,YY201,211 |
2 | ||
| 48346 - STOPPER, BUMPER, FRONT | ||||
| 48346-25161 |
LY201,21#,YY201,211..TW2 |
2 | ||
| 48401A - BRACKET SUB-ASSY, SPRING, NO.1 | ||||
| 48411-25051 |
LY202;LY201,21#,YY201,211..T2..WT;LY201,21#,YY201,211..T1,T3,TW2 |
2 | ||
| 48412B - BRACKET, SPRING, NO.2 RH | ||||
| 48433-25060 |
LY201,211,YY201,211 |
1 | ||
| 48403-25010 |
LY20#,21#,YY201,211 |
1 | ||
| 48413B - BRACKET, SPRING, NO.2 LH | ||||
| 48043-25010 |
LY20#,21#,YY201,211 |
1 | ||
| 48434-25050 |
LY201,211,YY201,211 |
1 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
LY201,211,YY201,211 |
1 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90117-14045 |
LY201,211,YY201,211..T1,T2,T3,TW2 長さ=95 |
2 | ||
| 90117-14047 |
LY201,211,YY201,211..T1,T2,T3,TW2 長さ=90 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-29735 |
LY201,211,YY201,211..T2..WT;LY201,211,YY201,211..T1,T3,TW2 ﾏｰｸ 48511−25110 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02017 |
LY10#,11#,20#,21#,YY101,201,211 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LY20#,21#,YY201,211 |
2 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-16010 |
LY20#,21#,YY201,211 |
2 | ||
| 48512A - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-25080 |
LY20#,21#,YY201,211 |
1 | ||
| 48513 - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-25080 |
LY20#,21#,YY201,211 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-29735 |
LY201,211,YY201,211..T2..WT;LY201,211,YY201,211..T1,T3,TW2 ﾏｰｸ 48511−25110 |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-25020 |
LY20#,21#,YY201,211 |
2 | ||
| Common parts | ||||
| 90119-08276 | ||||
| 90119-10355 | ||||
| 90170-14026 | ||||
| 90170-16015 | ||||
| 90179-14023 | ||||
| 90179-16030 | ||||
| 90204-16001 | ||||
| 94184-61001 | ||||
| 94621-11400 | ||||

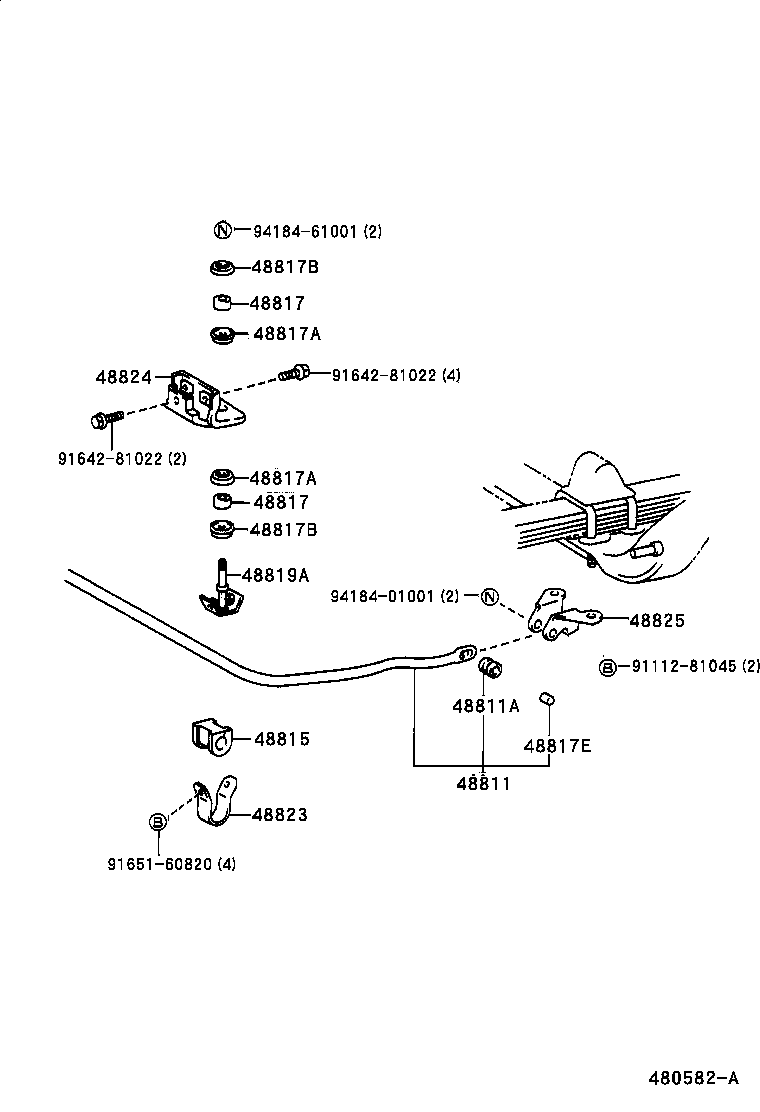

ILLUST NO. 2 OF 3(9505- )LY20#,21#,YY201,211
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48804-25010 |
LY20#,21#,YY201,211 |
1 | ||
| 48811A - BUSH(FOR FRONT STABILIZER BAR) | ||||
| 90385-13004 |
LY20#,21#,YY201,211 |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-26060 |
LY20#,21#,YY201,211 |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01002 |
LY20#,21#,YY201,211 |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01002 |
LY20#,21#,YY201,211 |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02004 |
LY161..MTM..DSL;LY121,131,151,20#,21#,YY121,131,201,211 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02004 |
LY161..MTM..DSL;LY121,131,151,20#,21#,YY121,131,201,211 |
8 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02005 |
LY161..MTM..DSL;LY121,131,151,20#,21#,YY121,131,201,211 |
6 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02005 |
LY161..MTM..DSL;LY121,131,151,20#,21#,YY121,131,201,211 |
6 | ||
| 48817E - SPACER(FOR STABILIZER BAR) | ||||
| 90560-10044 |
LY20#,21#,YY201,211 |
2 | ||
| 48819A - BOLT, FRONT STABILIZER | ||||
| 48819-25010 |
LY20#,21#,YY201,211 |
2 | ||
| 48823 - COVER, STABILIZER LINK(FOR FRONT) | ||||
| 48823-26090 |
LY20#,21#,YY201,211 |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-25010 |
LY20#,21#,YY201,211 |
2 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-25010 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
2 | ||
| Common parts | ||||
| 91112-81045 | ||||
| 91642-81022 | ||||
| 91651-60820 | ||||
| 94184-01001 | ||||
| 94184-61001 | ||||

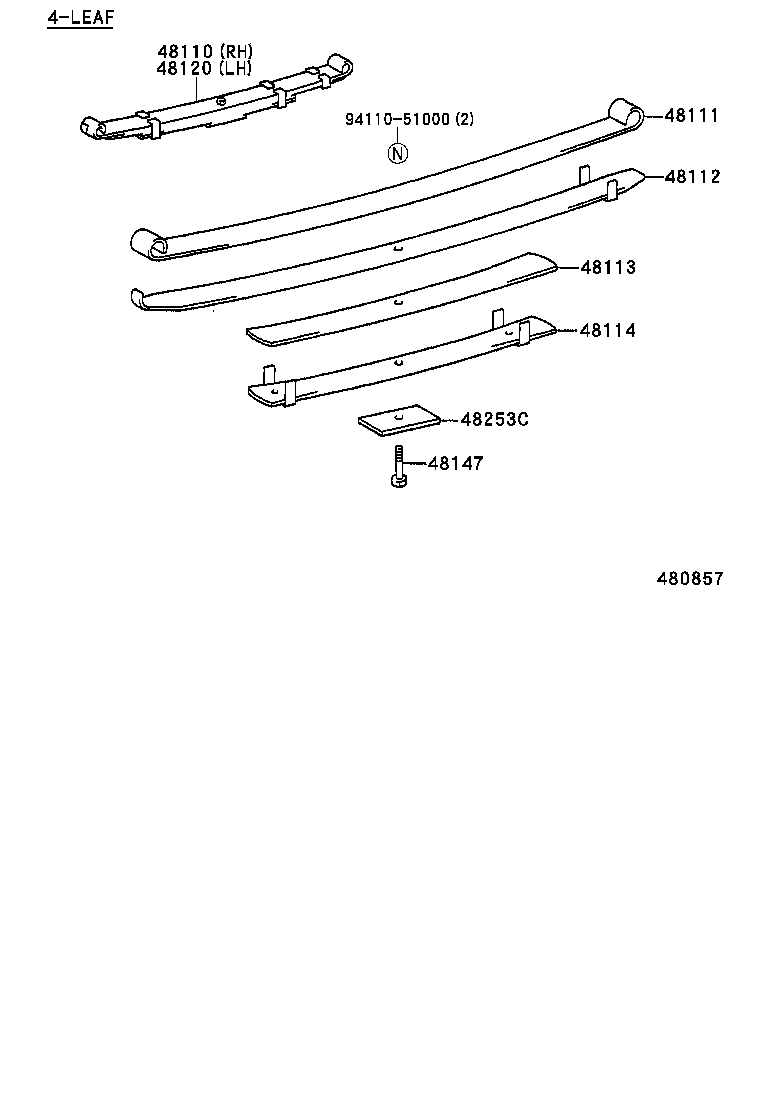

ILLUST NO. 3 OF 3(9505-9905)YY211..WT..125 ; (9505- )LY20#,YY201,211..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-2E020 |
LY21#..T3,TW2;LY21#..T2..WT 4枚ﾘｰﾌ |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48111-2E020 |
LY21#..T3,TW2;LY21#..T2..WT |
2 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-2E020 |
LY21#..T3,TW2;LY21#..T2..WT |
2 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-2E020 |
LY21#..T3,TW2;LY21#..T2..WT |
2 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48103-2E020 |
LY21#..T3,TW2;LY21#..T2..WT |
2 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-25450 |
LY202;LY201,YY201,211..T2..WT;LY201,YY201,211..T1,T3,TW2 |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-2E020 |
LY21#..T3,TW2;LY21#..T2..WT 4枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-25450 |
LY20#,21#,YY201,211 |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 3 OF 3(9505- )LY211 ; (9505- )LY212..T3,TW2 ; (9505- )LY212..T2..WT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-2E020 |
LY21#..T3,TW2;LY21#..T2..WT 4枚ﾘｰﾌ |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48111-2E020 |
LY21#..T3,TW2;LY21#..T2..WT |
2 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-2E020 |
LY21#..T3,TW2;LY21#..T2..WT |
2 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-2E020 |
LY21#..T3,TW2;LY21#..T2..WT |
2 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48103-2E020 |
LY21#..T3,TW2;LY21#..T2..WT |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-2E020 |
LY21#..T3,TW2;LY21#..T2..WT 4枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-25450 |
LY20#,21#,YY201,211 |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48253-25670 |
LY21#..T3,TW2;LY21#..T2..WT |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
