LY211-PGMES3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )LY13#..TB..MTM ; (9505- )LY13#..ST..125 ; (9505- )LY211..MTM..IV3

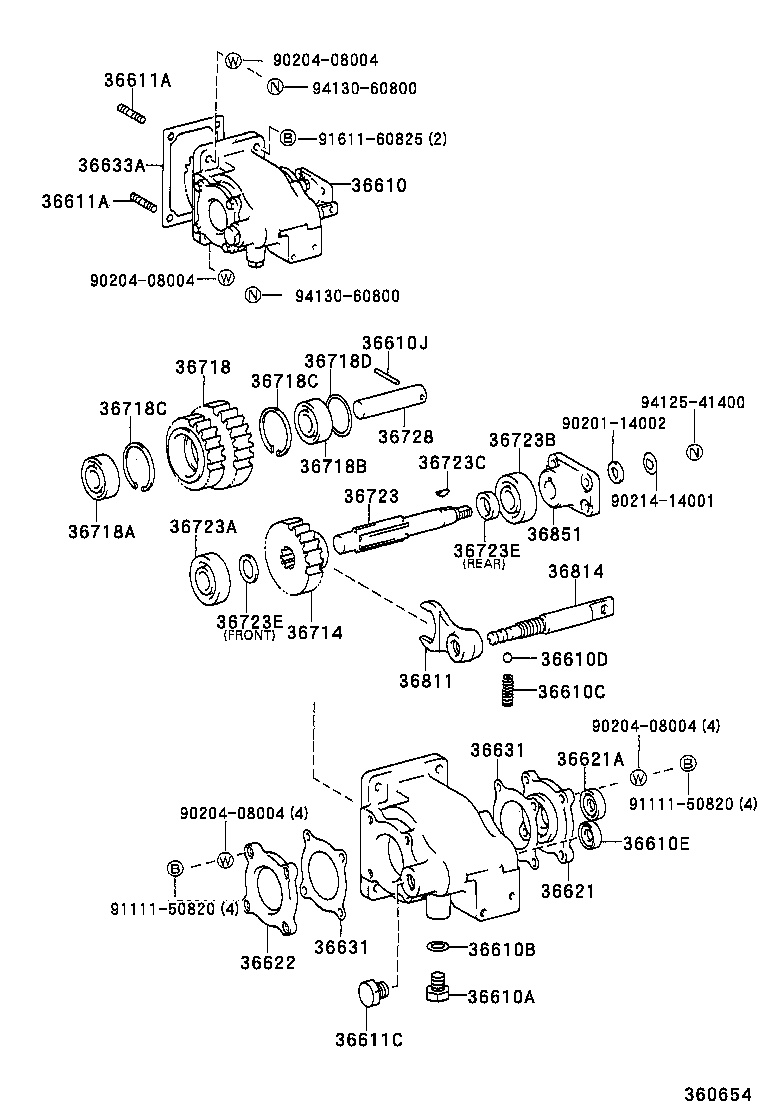

Click highlighted areas on diagram

diagram 36610 36610A 36610B 36610C 36610D 36610E 36610J 36611A 36611A 36611C 36621 36621A 36622 36631 36631 36633A 36714 36718 36718A 36718B 36718C 36718C 36718D 36723 36723A 36723B 36723C 36723E 36723E 36728 36811 36814 36851 9020114002 9020408004 9020408004 9020408004 9020408004 9021414001 9111150820 9111150820 9161160825 9412541400 9413060800 9413060800
Part # Description Qty Price
36610 - POWER TAKE-OFF ASSY
36610-93107

LY13#..TB..MTM;LY13#..ST..125;LY21#..(T2,T3,TW2)..MTM..IV3

 1
36610A - BOLT, LOCK BALL (FOR POWER TAKE-OFF)
38552-93003

LY211..MTM..IV3

 1
36610B - GASKET, SEAT (FOR POWER TAKE-OFF)
90430-12001

LY211..MTM..IV3

厚さ=0.5

 1
36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF)
90501-18066

LY211..MTM..IV3

 1
36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF)
90360-10001

LY211..MTM..IV3

 1
36610E - SEAL, OIL (FOR POWER TAKE-OFF)
90311-20001

LY211..MTM..IV3

 1
36610J - PLATE OR PIN, LOCK (FOR POWER TAKE-OFF)
90254-04023

LY211..MTM..IV3

 1
36611A - BOLT, STUD (FOR POWER TAKE-OFF CASE)
90116-08157

LY211..MTM..IV3

 2
36611A - BOLT, STUD (FOR POWER TAKE-OFF CASE)
90116-08157

LY211..MTM..IV3

 2
36611C - PLUG, W/HEAD STRAIGHT SCREW (FOR POWER TAKE-OFF CACE)
90341-18003

LY211..MTM..IV3

 1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-93100

LY211..MTM..IV3

 1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-20002

LY211..MTM..IV3

 1
36622 - CAP, POWER TAKE-0FF BEARING
36622-93100

LY211..MTM..IV3

 1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36632-93100

LY211..MTM..IV3

 2
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36632-93100

LY211..MTM..IV3

 2
36633A - GASKET, POWER TAKE-OFF COVER
36633-93105

LY211..MTM..IV3

 1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-93105

LY211..MTM..IV3

 1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-93108

LY211..MTM..IV3

 1
36718A - BEARING(FOR POWER TAKE-OFF IDLER GEAR FRONT)
90363-20037

LY211..MTM..IV3

 1
36718B - BEARING(FOR POWER TAKE-OFF IDLER GEAR REAR)
90363-20038

LY211..MTM..IV3

 2
36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR)
96151-04700

LY211..MTM..IV3

 2
36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR)
96151-04700

LY211..MTM..IV3

 2
36718D - SPACER(FOR POWER TAKE-OFF IDLER GEAR)
90560-20010

LY211..MTM..IV3

厚さ=0.8

 1
90560-20014

LY211..MTM..IV3

厚さ=1.2

 1
90560-20012

LY211..MTM..IV3

厚さ=1.0

 1
90560-20016

LY211..MTM..IV3

厚さ=1.4

 1
90560-20013

LY211..MTM..IV3

厚さ=1.1

 1
90560-20017

LY211..MTM..IV3

厚さ=1.5

 1
90560-20019

LY211..MTM..IV3

T=1.7

 1
90560-20015

LY211..MTM..IV3

厚さ=1.3

 1
90560-20011

LY211..MTM..IV3

厚さ=0.9

 1
90560-20018

LY211..MTM..IV3

厚さ=1.6

 1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-93104

LY211..MTM..IV3

 1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
97103-06304

LY211..MTM..IV3

 1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
97103-06304

LY211..MTM..IV3

 1
36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)
95161-10522

LY211..MTM..IV3

 1
36723E - SPACER (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING)
38525-93001

LY211..MTM..IV3

ﾌﾛﾝﾄ

 1
90560-20009

LY211..MTM..IV3

ﾘﾔ

 1
36723E - SPACER (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING)
38525-93001

LY211..MTM..IV3

ﾌﾛﾝﾄ

 1
90560-20009

LY211..MTM..IV3

ﾘﾔ

 1
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-93104

LY211..MTM..IV3

 1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-93102

LY211..MTM..IV3

 1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-93103

LY211..MTM..IV3

 1
36851 - RETAINER, POWER TAKE-OFF JOINT
36851-93100

LY211..MTM..IV3

 1
Common parts
90201-14002
90204-08004
90214-14001
91111-50820
91611-60825
94125-41400
94130-60800
