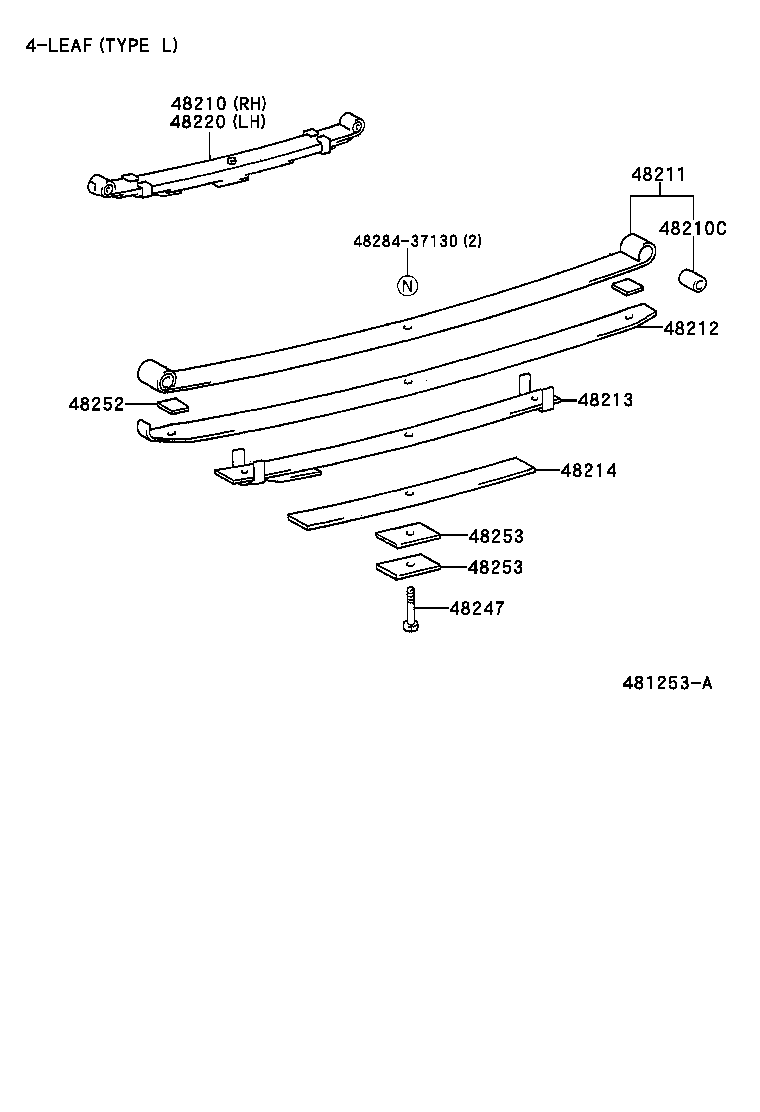

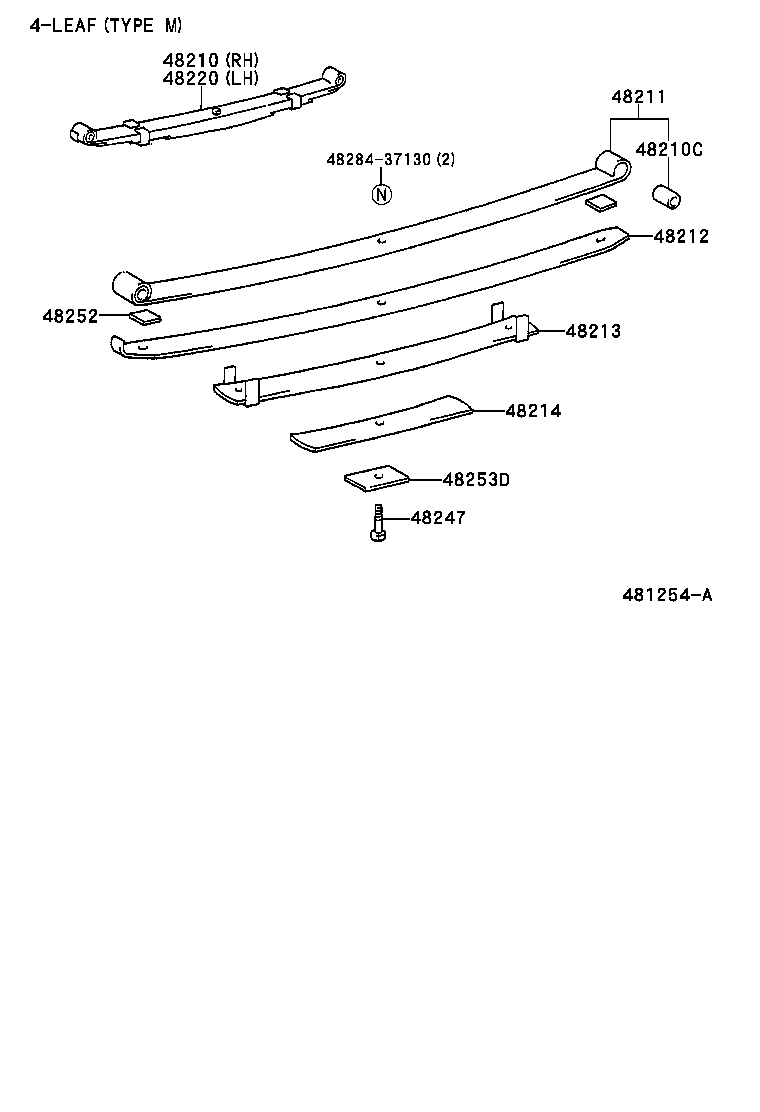

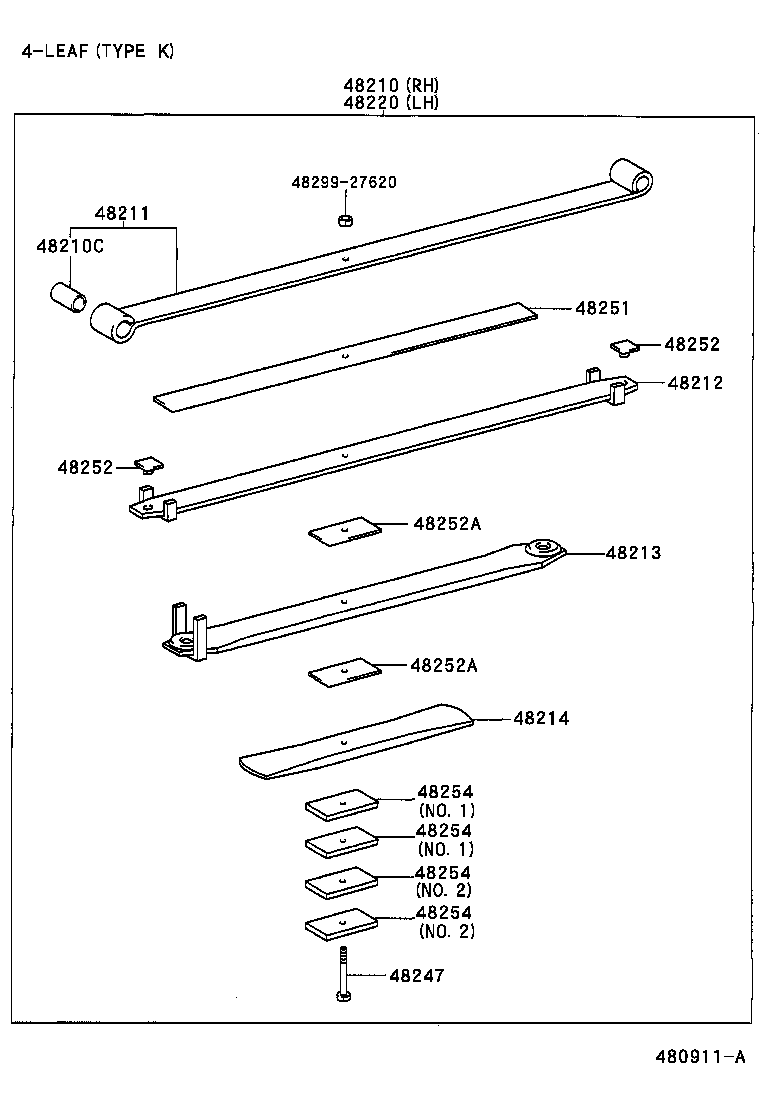

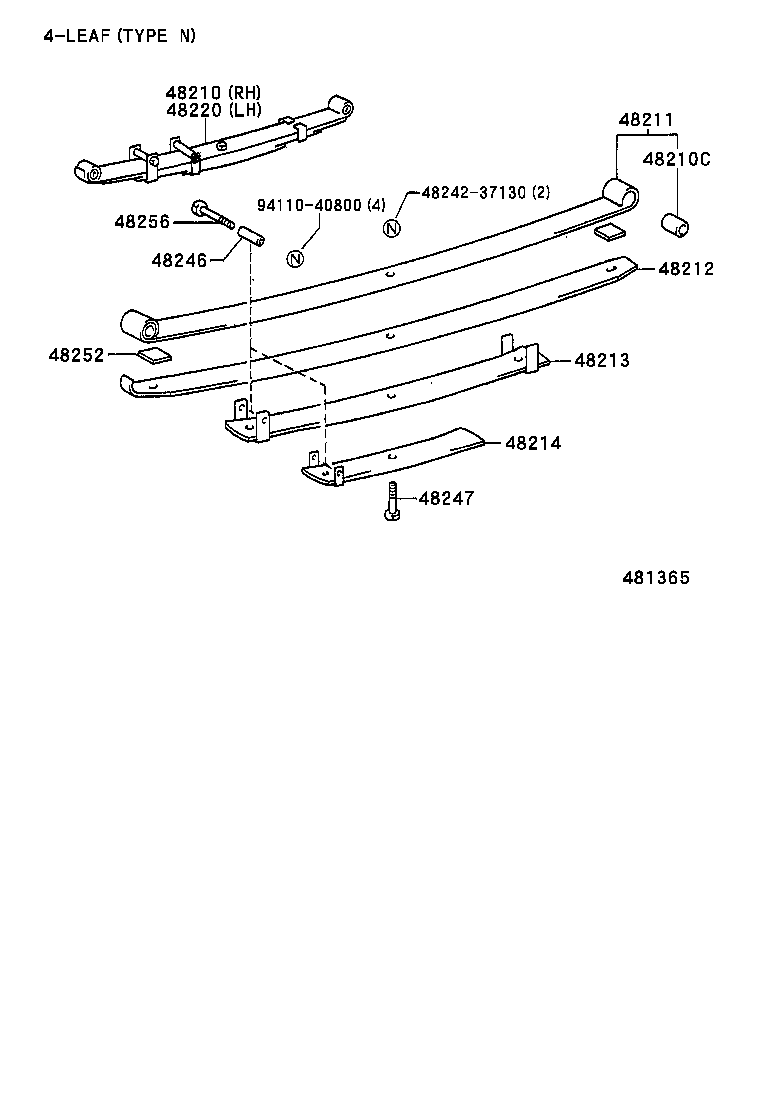

LY202-TKMFS3 (1999)
Toyota Dyna 150/Toyoace G15
ILLUST NO. 2 OF 2(9905- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25760 |
LY21#,YY211..T3;LY20#,YY201..T1,T3,TW2 5枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-25880 |
LY20#,21#..T3..IV3 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY20#,21#,YY201,211 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25880 |
LY20#,21#..T3..IV3 4-LEAF,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ﾄｸｿｳｼｬｼﾖｳ |
2 | ||
| 48201-25760 |
LY21#,YY211..T3;LY20#,YY201..T1,T3,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25880 |
LY20#,21#..T3..IV3 4-LEAF,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ﾄｸｿｳｼｬｼﾖｳ |
2 | ||
| 48212-25760 |
LY21#,YY211..T3;LY20#,YY201..T1,T3,TW2 5-LEAF(TYPE A) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25760 |
LY21#,YY211..T3;LY20#,YY201..T1,T3,TW2 |
2 | ||
| 48202-25880 |
LY20#,21#..T3..IV3 4-LEAF,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ﾄｸｿｳｼｬｼﾖｳ |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-25870 |
LY20#,21#..(T3,TW2)..ST..(125,15T)..IV3 4-LEAF,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ﾄｸｿｳｼｬｼﾖｳ |
2 | ||
| 48214-25750 |
LY20#,21#,YY201,211..(T1,T3,TW2)..ST |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25880 |
LY20#,21#..T3..IV3 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-25760 |
LY21#,YY211..T3;LY20#,YY201..T1,T3,TW2 5枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-25140 |
LY20#,21#..(T3,TW2)..ST..(125,15T)..IV3 ﾄｸｿｳｼﾔ ｼﾖｳ |
2 | ||
| 48247-36140 |
YY211..ATM;LY20#,YY201..ST;LY21#,YY211..(T3,TW2)..ST |
2 | ||
| 48247-36140 |
LY202,YY201;LY212,YY211..T3,TW2;LY212,YY211..T2..WT..15T |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(0008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25760 |
LY21#,YY211..T3;LY20#,YY201..T1,T3,TW2 5枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-25880 |
LY20#,21#..T3..IV3 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY20#,21#,YY201,211 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25880 |
LY20#,21#..T3..IV3 4-LEAF,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ﾄｸｿｳｼｬｼﾖｳ |
2 | ||
| 48201-25760 |
LY21#,YY211..T3;LY20#,YY201..T1,T3,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25880 |
LY20#,21#..T3..IV3 4-LEAF,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ﾄｸｿｳｼｬｼﾖｳ |
2 | ||
| 48212-25760 |
LY21#,YY211..T3;LY20#,YY201..T1,T3,TW2 5-LEAF(TYPE A) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25760 |
LY21#,YY211..T3;LY20#,YY201..T1,T3,TW2 |
2 | ||
| 48202-25880 |
LY20#,21#..T3..IV3 4-LEAF,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ﾄｸｿｳｼｬｼﾖｳ |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-25870 |
LY20#,21#..(T3,TW2)..ST..(125,15T)..IV3 4-LEAF,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ﾄｸｿｳｼｬｼﾖｳ |
2 | ||
| 48214-25750 |
LY20#,21#,YY201,211..(T1,T3,TW2)..ST |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25880 |
LY20#,21#..T3..IV3 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-25760 |
LY21#,YY211..T3;LY20#,YY201..T1,T3,TW2 5枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-25140 |
LY20#,21#..(T3,TW2)..ST..(125,15T)..IV3 ﾄｸｿｳｼﾔ ｼﾖｳ |
2 | ||
| 48247-36140 |
YY211..ATM;LY20#,YY201..ST;LY21#,YY211..(T3,TW2)..ST |
2 | ||
| 48247-36140 |
LY202,YY201;LY212,YY211..T3,TW2;LY212,YY211..T2..WT..15T |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| Common parts | ||||
| 48284-37130 | ||||
ILLUST NO. 2 OF 2(0008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25760 |
LY21#,YY211..T3;LY20#,YY201..T1,T3,TW2 5枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-25880 |
LY20#,21#..T3..IV3 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY20#,21#,YY201,211 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25880 |
LY20#,21#..T3..IV3 4-LEAF,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ﾄｸｿｳｼｬｼﾖｳ |
2 | ||
| 48201-25760 |
LY21#,YY211..T3;LY20#,YY201..T1,T3,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25880 |
LY20#,21#..T3..IV3 4-LEAF,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ﾄｸｿｳｼｬｼﾖｳ |
2 | ||
| 48212-25760 |
LY21#,YY211..T3;LY20#,YY201..T1,T3,TW2 5-LEAF(TYPE A) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25760 |
LY21#,YY211..T3;LY20#,YY201..T1,T3,TW2 |
2 | ||
| 48202-25880 |
LY20#,21#..T3..IV3 4-LEAF,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ﾄｸｿｳｼｬｼﾖｳ |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-25870 |
LY20#,21#..(T3,TW2)..ST..(125,15T)..IV3 4-LEAF,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ﾄｸｿｳｼｬｼﾖｳ |
2 | ||
| 48214-25750 |
LY20#,21#,YY201,211..(T1,T3,TW2)..ST |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25880 |
LY20#,21#..T3..IV3 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-25760 |
LY21#,YY211..T3;LY20#,YY201..T1,T3,TW2 5枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-25140 |
LY20#,21#..(T3,TW2)..ST..(125,15T)..IV3 ﾄｸｿｳｼﾔ ｼﾖｳ |
2 | ||
| 48247-36140 |
YY211..ATM;LY20#,YY201..ST;LY21#,YY211..(T3,TW2)..ST |
2 | ||
| 48247-36140 |
LY202,YY201;LY212,YY211..T3,TW2;LY212,YY211..T2..WT..15T |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| Common parts | ||||
| 48284-37130 | ||||
ILLUST NO. 2 OF 2(0008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25760 |
LY21#,YY211..T3;LY20#,YY201..T1,T3,TW2 5枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-25880 |
LY20#,21#..T3..IV3 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY20#,21#,YY201,211 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25880 |
LY20#,21#..T3..IV3 4-LEAF,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ﾄｸｿｳｼｬｼﾖｳ |
2 | ||
| 48201-25760 |
LY21#,YY211..T3;LY20#,YY201..T1,T3,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25880 |
LY20#,21#..T3..IV3 4-LEAF,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ﾄｸｿｳｼｬｼﾖｳ |
2 | ||
| 48212-25760 |
LY21#,YY211..T3;LY20#,YY201..T1,T3,TW2 5-LEAF(TYPE A) |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25760 |
LY21#,YY211..T3;LY20#,YY201..T1,T3,TW2 |
2 | ||
| 48202-25880 |
LY20#,21#..T3..IV3 4-LEAF,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ﾄｸｿｳｼｬｼﾖｳ |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-25870 |
LY20#,21#..(T3,TW2)..ST..(125,15T)..IV3 4-LEAF,TYPE B:ｲﾗｽﾄｻﾝｼｮｳ,ﾄｸｿｳｼｬｼﾖｳ |
2 | ||
| 48214-25750 |
LY20#,21#,YY201,211..(T1,T3,TW2)..ST |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25880 |
LY20#,21#..T3..IV3 4枚ﾘｰﾌ,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210-25760 |
LY21#,YY211..T3;LY20#,YY201..T1,T3,TW2 5枚ﾘｰﾌ,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-25140 |
LY20#,21#..(T3,TW2)..ST..(125,15T)..IV3 ﾄｸｿｳｼﾔ ｼﾖｳ |
2 | ||
| 48247-36140 |
YY211..ATM;LY20#,YY201..ST;LY21#,YY211..(T3,TW2)..ST |
2 | ||
| 48247-36140 |
LY202,YY201;LY212,YY211..T3,TW2;LY212,YY211..T2..WT..15T |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| Common parts | ||||
| 48242-37130 | ||||
| 94110-40800 | ||||
