Toyota Dyna 150/toyoace g15 LY202 ALTERNATOR

LY202-TKMFS3 (1999)

Toyota Dyna 150/Toyoace G15

Production May 1999 - Jul 2001

Engine 5L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9905- )5L

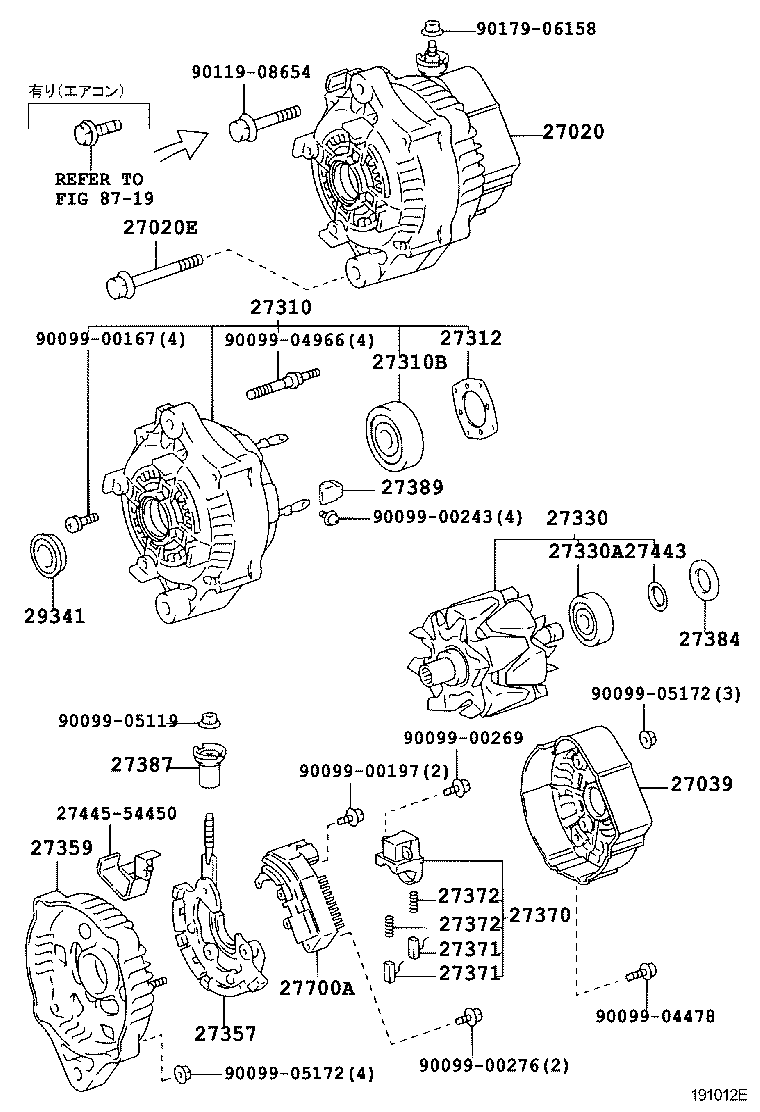

Click highlighted areas on diagram

12V 55A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-54330	5L..LY102,112,122,132,152,162,202,212..CBU,IV3 12V 55A	05/1999 - 12/2999	1
27020E - BOLT(FOR ALTERNATOR)
90105-10287	5L..LY102,112,122,132,152,162,202,212	05/1999 - 12/2999	1
27039 - COVER, ALTERNATOR REAR END
27039-16380	5L..LY102,112,122,132,152,162,202,212..CBU,IV3 12V 55A	05/1999 - 12/2999	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-54440	5L..LY102,112,122,132,152,162,202,212..CBU,IV3 12V 55A	05/1999 - 12/2999	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10165	5L..LY102,112,122,132,152,162,202,212	05/1999 - 12/2999	1
27312 - PLATE, RETAINER
27312-64130	5L..LY102,112,122,132,152,162,202,212..CBU,IV3	05/1999 - 12/2999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-64130	5L..LY102,112,122,132,152,162,202,212..CBU,IV3 12V 55A	05/1999 - 12/2999	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	5L..LY102,112,122,132,152,162,202,212	05/1999 - 12/2999	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-13360	5L..LY102,112,122,132,152,162,202,212..CBU,IV3 12V 55A	05/1999 - 12/2999	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16182	5L..LY102,112,122,132,152,162,202,212..CBU,IV3 12V 55A	05/1999 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-58320	5L..LY102,112,122,132,152,162,202,212..CBU,IV3	05/1999 - 12/2999	1
27371 - BRUSH, ALTERNATOR
27371-70300	5L,3Y#..LY102,112,122,132,152,16#,202,212,YY101,121,131,201,211..CBU,IV3	05/1995 - 12/2999	2
27371 - BRUSH, ALTERNATOR
27371-70300	5L,3Y#..LY102,112,122,132,152,16#,202,212,YY101,121,131,201,211..CBU,IV3	05/1995 - 12/2999	2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020	5L,3Y#..LY102,112,122,132,152,16#,202,212,YY101,121,131,201,211..CBU,IV3	05/1995 - 12/2999	2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020	5L,3Y#..LY102,112,122,132,152,16#,202,212,YY101,121,131,201,211..CBU,IV3	05/1995 - 12/2999	2
27384 - WASHER
27384-16380	5L..LY102,112,122,132,152,162,202,212..CBU,IV3 12V 55A	05/1999 - 12/2999	1
27387 - INSULATOR, TERMINAL
27387-70171	5L..LY102,112,122,132,152,162,202,212..CBU,IV3 12V 55A	05/1999 - 12/2999	1
27389 - INSULATOR, TERMINAL
27389-63020	5L..LY102,112,122,132,152,162,202,212..CBU,IV3 12V 55A	05/1999 - 12/2999	4
27443 - COVER, ALTERNATOR BEARING
27443-63020	5L,3Y#..LY102,112,122,132,152,16#,202,212,YY101,121,131,201,211	05/1995 - 12/2999	1
27700A - REGULATOR ASSY, GENERATOR
27700-50030	5L..LY102,112,122,132,152,162,202,212..CBU,IV3	05/1999 - 12/2999	1
29341 - SEAL, ALTERNATOR OIL
29341-64130	5L..LY102,112,122,132,152,162,202,212	05/1999 - 12/2999	1
Common parts
27445-54450
90099-00167
90099-00197
90099-00243
90099-00269
90099-00276
90099-04478
90099-04966
90099-05119
90099-05172
90119-08654
90179-06158
Linked diagrams
8719

(9905- )5L

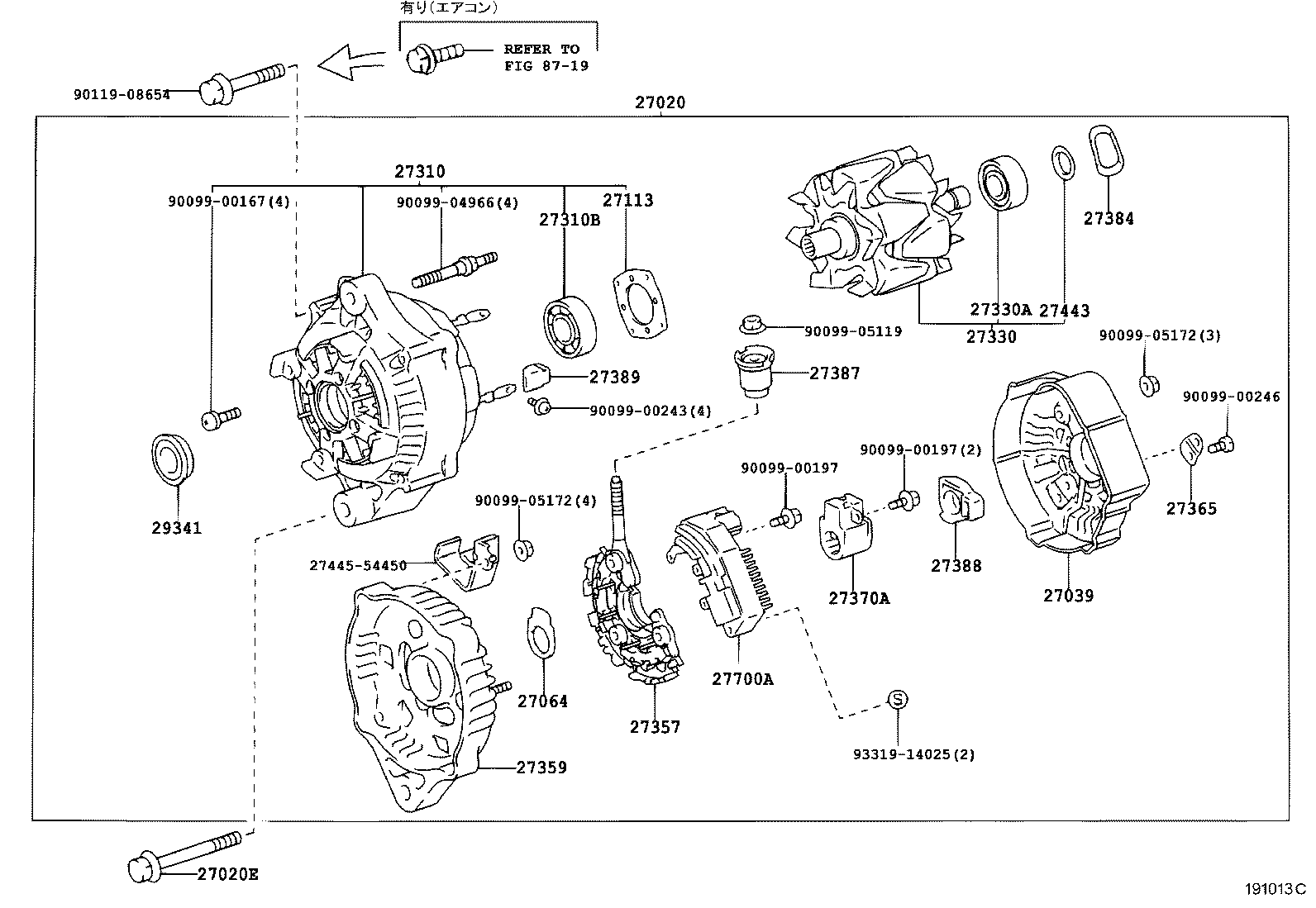

Click highlighted areas on diagram

12V 90A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-54330	5L..LY102,112,122,132,152,162,202,212..CBU,IV3 12V 55A	05/1999 - 12/2999	1
27020E - BOLT(FOR ALTERNATOR)
90105-10287	5L..LY102,112,122,132,152,162,202,212	05/1999 - 12/2999	1
27039 - COVER, ALTERNATOR REAR END
27039-16380	5L..LY102,112,122,132,152,162,202,212..CBU,IV3 12V 55A	05/1999 - 12/2999	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-54440	5L..LY102,112,122,132,152,162,202,212..CBU,IV3 12V 55A	05/1999 - 12/2999	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10165	5L..LY102,112,122,132,152,162,202,212	05/1999 - 12/2999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-64130	5L..LY102,112,122,132,152,162,202,212..CBU,IV3 12V 55A	05/1999 - 12/2999	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	5L..LY102,112,122,132,152,162,202,212	05/1999 - 12/2999	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-13360	5L..LY102,112,122,132,152,162,202,212..CBU,IV3 12V 55A	05/1999 - 12/2999	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16182	5L..LY102,112,122,132,152,162,202,212..CBU,IV3 12V 55A	05/1999 - 12/2999	1
27384 - WASHER
27384-16380	5L..LY102,112,122,132,152,162,202,212..CBU,IV3 12V 55A	05/1999 - 12/2999	1
27387 - INSULATOR, TERMINAL
27387-70171	5L..LY102,112,122,132,152,162,202,212..CBU,IV3 12V 55A	05/1999 - 12/2999	1
27389 - INSULATOR, TERMINAL
27389-63020	5L..LY102,112,122,132,152,162,202,212..CBU,IV3 12V 55A	05/1999 - 12/2999	4
27443 - COVER, ALTERNATOR BEARING
27443-63020	5L,3Y#..LY102,112,122,132,152,16#,202,212,YY101,121,131,201,211	05/1995 - 12/2999	1
27700A - REGULATOR ASSY, GENERATOR
27700-50030	5L..LY102,112,122,132,152,162,202,212..CBU,IV3	05/1999 - 12/2999	1
29341 - SEAL, ALTERNATOR OIL
29341-64130	5L..LY102,112,122,132,152,162,202,212	05/1999 - 12/2999	1
Common parts
27445-54450
90099-00167
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05172
90119-08654
93319-14025
Linked diagrams
8719

LY202-TKMFS3 (1999)

(9905- )5L

(9905- )5L
