LY201-TLMGS3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )3L,5L..LY20#,21#..MTM

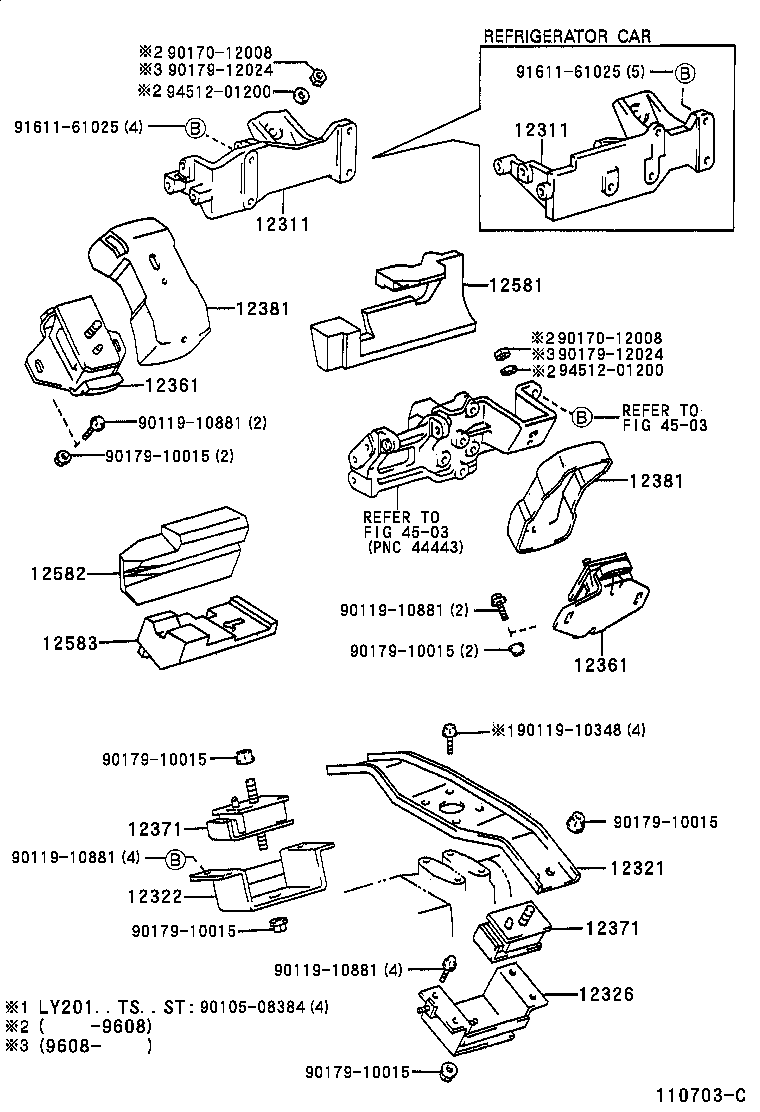

Click highlighted areas on diagram

diagram 12311 12311 12321 12322 12326 12361 12361 12371 12371 12381 12381 12581 12582 12583 4503 4503 9010508384 9011910348 9011910881 9011910881 9011910881 9011910881 9017012008 9017012008 9017910015 9017910015 9017910015 9017910015 9017910015 9017910015 9017912024 9017912024 9161161025 9161161025 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54091

3L..LY101,111,201,211

 1
12311-54102

3L..LY101..MTM..125..IV3;3L..LY201,211..(T2,T4)..MTM..15T..IV3

ﾚｲﾄｳｼﾔ

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54091

3L..LY101,111,201,211

 1
12311-54102

3L..LY101..MTM..125..IV3;3L..LY201,211..(T2,T4)..MTM..15T..IV3

ﾚｲﾄｳｼﾔ

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-73010

3L..LY201..WT;3L..LY201..ST..15T;3L,5L..LY202,21#..MTM

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-71070

3L,5L..LY20#,21#

 1
12326 - BRACKET, ENGINE MOUNTING STAY
12326-71010

3L,5L..LY20#,21#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54121

3L,5L..LY20#,21#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54121

3L,5L..LY20#,21#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54070

3L,5L..LY20#,21#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54070

3L,5L..LY20#,21#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54050

3L,5L..LY10#,11#,12#,13#,15#,16#

 2
12381-54040

3L,5L..LY20#,21#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54050

3L,5L..LY10#,11#,12#,13#,15#,16#

 2
12381-54040

3L,5L..LY20#,21#

 2
12581 - INSULATOR, CYLINDER BLOCK, NO.1
12581-54010

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
12582 - INSULATOR, CYLINDER BLOCK, NO.2
12582-54021

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
12582-54020

3L..LY201,211

 1
12583 - INSULATOR, CYLINDER BLOCK, NO.3
12583-54030

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
Common parts
90105-08384
90119-10348
90119-10881
90170-12008
90179-10015
90179-12024
91611-61025
94512-01200
Linked diagrams
4503
