LY201-TLMGS (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

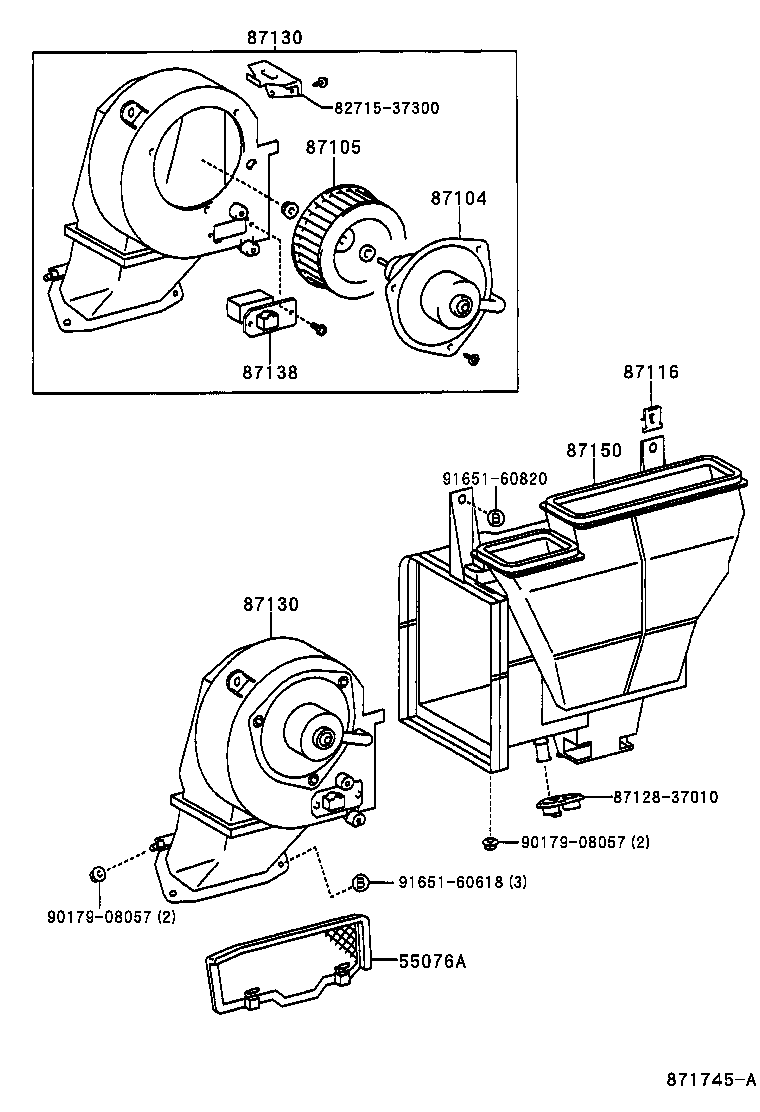

ILLUST NO. 1 OF 2(9505- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 55076A 8271537300 87104 87105 87116 8712837010 87130 87130 87138 87150 9017908057 9017908057 9165160618 9165160820
Part # Description Qty Price
55076A - NET SUB-ASSY, AIR DUCT
55076-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55076-37050

LY201,211,YY201,211..CBR,DSL

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-37070

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 1
87116 - SPRING, HEATER CASE FASTENING
87116-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-37060

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-37060

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 1
87138 - RESISTOR, HEATER BLOWER
87138-37080

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
87150 - RADIATOR ASSY, HEATER
87150-37030

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 1
87150-37050

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

ｱﾘ(ﾍﾋﾞ-ﾀｲﾌﾟﾋ-ﾀ)

 1
Common parts
82715-37300
87128-37010
90179-08057
91651-60618
91651-60820
