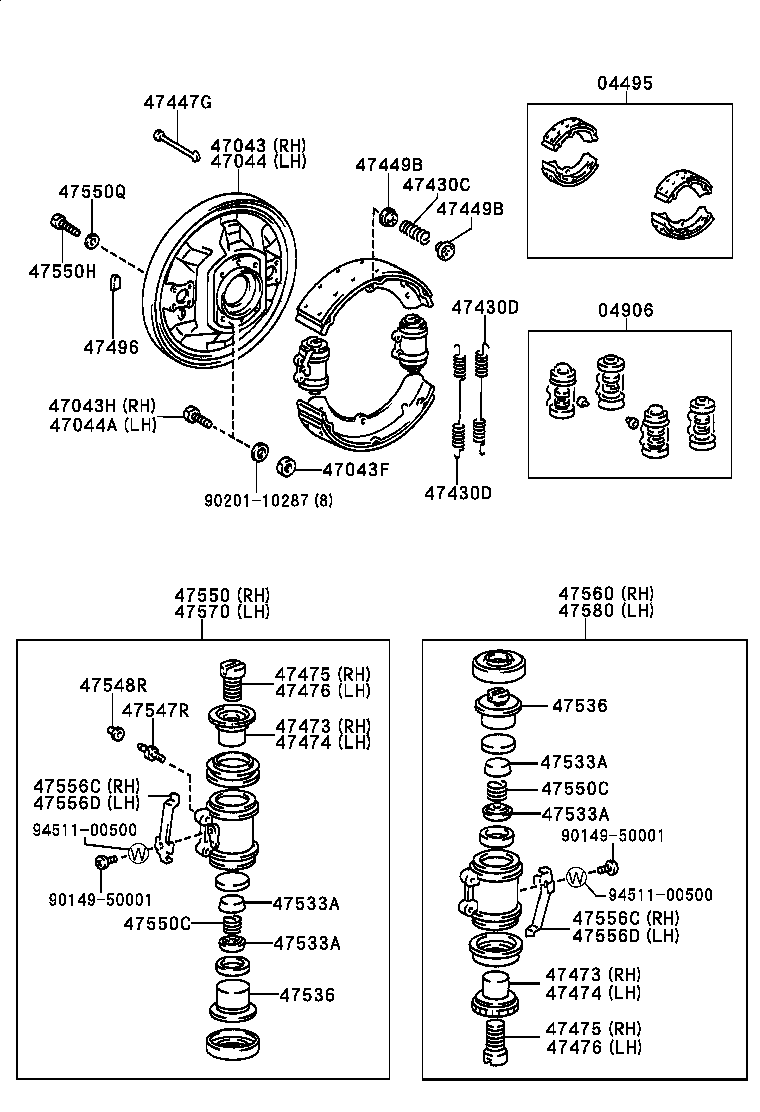

LY201-TLMGS (1995)
Toyota Dyna 150/Toyoace G15
(9505- )YY211..T2,TW2..MTM..WT ; (9505- )LY12#,13#,20#,21#,YY121,131,201..T2,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-25040 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-25050 |
YY211..(T2,TW2)..MTM..WT;LY201,211,YY201..(T2,TW2)..WT |
1 | ||
| 04906-25051 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-25080 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10021 |
LY12#,13#,162,20#,21#,YY121,131,201,211..(T2,TW2)..WT |
8 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 90101-10028 |
LY12#,13#,162,20#,21#,YY121,131,201,211..(T2,TW2)..WT |
4 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-25050 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90101-10028 |
LY12#,13#,162,20#,21#,YY121,131,201,211..(T2,TW2)..WT |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
LY16#..TW2;LY16#..ST..15T;YY211..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..WT |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26007 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26007 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
LY162..WT;LY15#,16#..T2..125;LY10#,11#,12#,13#,20#,21#,YY101,121,131,201,211 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
8 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-25070 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
2 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-25070 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-25070 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-25070 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-25040 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-25040 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-25040 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-25040 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
LY201,YY201..WT;LY201,YY201..ST..15T;YY211..(T2,T3,TW2)..MTM;LY12#,13#,202,21#,YY121,131..T2,T3,TW2 |
4 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-60011 |
LY201,YY201..WT;LY201,YY201..ST..15T;YY211..(T2,T3,TW2)..MTM;LY121,131,211,YY121,131..T2,T3,TW2 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-60011 |
LY201,YY201..WT;LY201,YY201..ST..15T;YY211..(T2,T3,TW2)..MTM;LY121,131,211,YY121,131..T2,T3,TW2 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-60011 |
LY201,YY201..WT;LY201,YY201..ST..15T;YY211..(T2,T3,TW2)..MTM;LY121,131,211,YY121,131..T2,T3,TW2 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-60011 |
LY201,YY201..WT;LY201,YY201..ST..15T;YY211..(T2,T3,TW2)..MTM;LY121,131,211,YY121,131..T2,T3,TW2 |
8 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-25020 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-25020 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,211,YY121,131 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-25070 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09735 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,211,YY121,131 |
4 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09735 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,211,YY121,131 |
4 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-08081 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-08002 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
16 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-36030 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
2 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-36030 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-36030 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-36030 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
2 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-25070 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-25070 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-25070 |
YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT |
1 | ||
| Common parts | ||||
| 90149-50001 | ||||
| 90201-10287 | ||||
| 94511-00500 | ||||
