LY201-TKMFS3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )LY20#,21#,YY201,211..T3

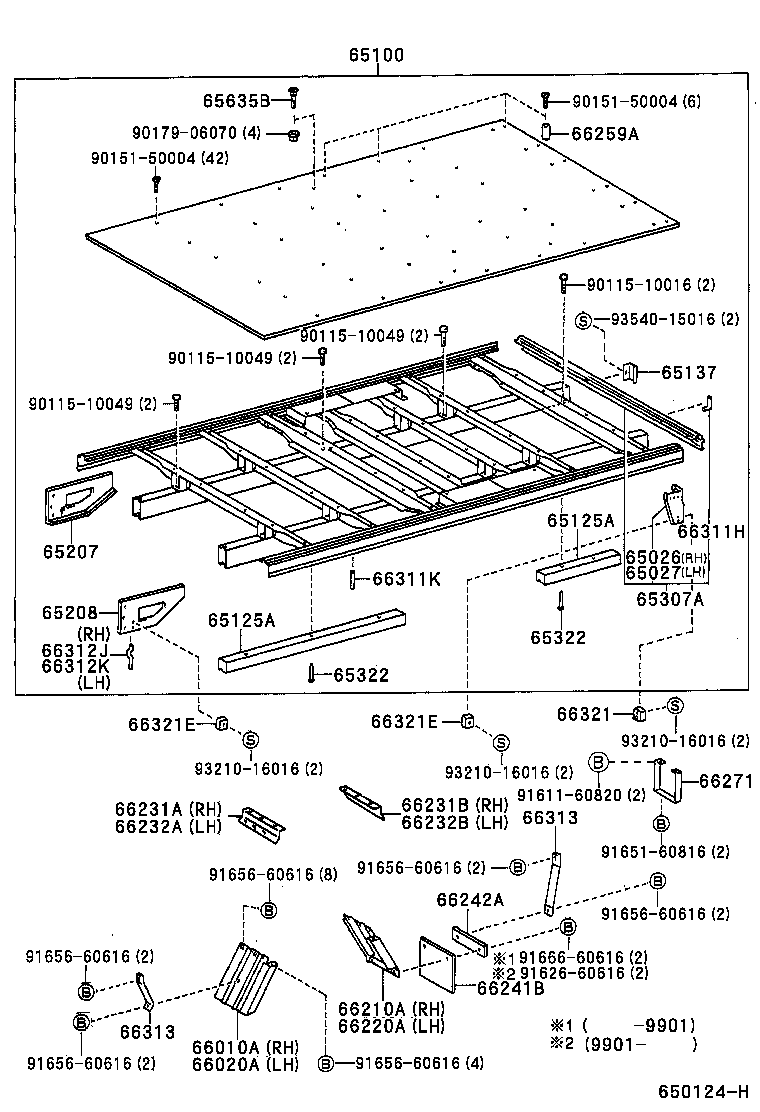

Click highlighted areas on diagram

diagram 65026 65027 65100 65125A 65125A 65137 65207 65208 65307A 65322 65322 65635B 66010A 66020A 66210A 66220A 66231A 66231B 66232A 66232B 66241B 66242A 66259A 66271 66311H 66311K 66312J 66312K 66313 66313 66321 66321E 66321E 9011510016 9011510049 9011510049 9011510049 9015150004 9015150004 9017906070 9161160820 9162660616 9165160816 9165660616 9165660616 9165660616 9165660616 9165660616 9165660616 9166660616 9321016016 9321016016 9321016016 9354015016
Part # Description Qty Price
65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH
65026-37020

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 1
65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH
65027-37020

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 1
65100 - FLOOR ASSY, REAR BODY
65100-25380

LY20#,YY201..ST

 1
65125A - SHIM, MAIN SILL, LOWER NO.1
65125-25030

LY20#,YY201..ST

ﾌﾛﾝﾄ

 2
65128-25030

LY20#,21#,YY201,211..T3

ﾘﾔ

 2
65128-25030

LY201,211,YY201,211..T3

ﾘﾔ左側

 1
65127-25030

LY201,211,YY201,211..T3

ﾘﾔ右側

 1
65125A - SHIM, MAIN SILL, LOWER NO.1
65125-25030

LY20#,YY201..ST

ﾌﾛﾝﾄ

 2
65128-25030

LY20#,21#,YY201,211..T3

ﾘﾔ

 2
65128-25030

LY201,211,YY201,211..T3

ﾘﾔ左側

 1
65127-25030

LY201,211,YY201,211..T3

ﾘﾔ右側

 1
65137 - COVER, MAIN SILL END
65137-37010

LY20#,21#,YY201,211..T3

 2
65207 - BRACKET SUB-ASSY, GUARD FRAME, RH
65413-37050

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 1
65208 - BRACKET SUB-ASSY, GUARD FRAME, LH
65415-37030

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 1
65307A - FRAME SUB-ASSY, FLOOR, REAR
65307-25020

LY20#,21#,YY201,211..T3

 1
65322 - NAIL
90290-05001

LY20#,21#,YY201,211..T3

 10
65322 - NAIL
90290-05001

LY20#,21#,YY201,211..T3

 10
65635B - BOLT, COUNTER SUNK HEAD SQUARE NECK
65635-92830

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 4
66010A - FENDER ASSY, REAR NO.2 RH
66010-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66020A - FENDER ASSY, REAR NO.2 LH
66020-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66210A - FENDER ASSY, REAR NO.1 RH
66210-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66220A - FENDER ASSY, REAR NO.1 LH
66220-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66242A - PLATE, BAFFLE RUBBER
66242-37070

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 2
66259A - COVER, REAR BODY FLOOR, REAR
66259-37010

YY101..T2..IV3;LY10#..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB

TECS=ﾕｿｳ ｼﾔ(ﾓｸｾｲ ﾃﾞﾂｷ)

 6
66271 - STEP, REAR BODY
66271-37030

LY20#,21#,YY201,211..T3

 1
66311H - HOOK, ROPE
66315-37010

LY20#,21#,YY201,211..T3

 2
66311K - HOOK, ROPE
66311-37020

LY132..T3..MTM..CBU;LY12#,YY121..TB..CBU;LY10#,15#,20#,YY201..TB;LY132..TB..WT..15T..CBU;LY112,162..T2..TB..ST..CBU;LY102,YY211..T2..ATM..(CBR,DSL)..IV3

TECS=ﾕｿｳｼﾔ(ﾓｸｾｲ ﾃﾞﾂｷ)

 12
66312J - HOOK, ROPE, NO.2
66312-37020

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 1
66312K - HOOK, ROPE, NO.2
66312-37020

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 1
66313 - SUPPORT, REAR FENDER
66236-25010

LY211,YY211..CBU;LY201,211,YY201,211..(T2,T3)..TB..15T..(CBR,DSL)

ﾌﾛﾝﾄ

 2
66235-25010

YY211..(T2,T3)..15T..CBR;LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201..(T2,T3)..TB

ﾘﾔ

 2
66313 - SUPPORT, REAR FENDER
66236-25010

LY211,YY211..CBU;LY201,211,YY201,211..(T2,T3)..TB..15T..(CBR,DSL)

ﾌﾛﾝﾄ

 2
66235-25010

YY211..(T2,T3)..15T..CBR;LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201..(T2,T3)..TB

ﾘﾔ

 2
66321 - BUMPER, GATE RUBBER
66321-92803

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 2
66321E - BUMPER, GATE RUBBER
66321-92805

LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201,211..(T2,T3)..TB..(CBR,DSL)

 4
66321E - BUMPER, GATE RUBBER
66321-92805

LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201,211..(T2,T3)..TB..(CBR,DSL)

 4
Common parts
90115-10016
90115-10049
90151-50004
90179-06070
91611-60820
91626-60616
91651-60816
91656-60616
91666-60616
93210-16016
93540-15016

(9610- )LY10#,11#,12#,13#,15#,16#,YY121,131..T3..TB

Click highlighted areas on diagram

diagram 65026 65027 65100 65207 65208 65307A 65635B 66010A 66020A 66210A 66220A 66231A 66231B 66232A 66232B 66241B 66242A 66259A 66271 66311H 66311K 66312J 66312K 66313 66313 66321 66321E 66321E 9004463020 9010910160 9015150004 9015150004 9017906070 9162660616 9162660616 9162660616 9162660616 9162660616 9162660616 9162660616 9165660616 9165660616 9165660616 9165660616 9165660616 9165660616 9166660616 9321016016 9321016016 9321016016
Part # Description Qty Price
65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH
65026-37020

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 1
65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH
65027-37020

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 1
65100 - FLOOR ASSY, REAR BODY
65100-25380

LY20#,YY201..ST

 1
65207 - BRACKET SUB-ASSY, GUARD FRAME, RH
65413-37050

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 1
65208 - BRACKET SUB-ASSY, GUARD FRAME, LH
65415-37030

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 1
65307A - FRAME SUB-ASSY, FLOOR, REAR
65307-25020

LY20#,21#,YY201,211..T3

 1
65635B - BOLT, COUNTER SUNK HEAD SQUARE NECK
65635-92830

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 4
66010A - FENDER ASSY, REAR NO.2 RH
66010-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66020A - FENDER ASSY, REAR NO.2 LH
66020-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66210A - FENDER ASSY, REAR NO.1 RH
66210-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66220A - FENDER ASSY, REAR NO.1 LH
66220-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66242A - PLATE, BAFFLE RUBBER
66242-37070

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 2
66259A - COVER, REAR BODY FLOOR, REAR
66259-37010

YY101..T2..IV3;LY10#..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB

TECS=ﾕｿｳ ｼﾔ(ﾓｸｾｲ ﾃﾞﾂｷ)

 6
66271 - STEP, REAR BODY
66271-37030

LY20#,21#,YY201,211..T3

 1
66311H - HOOK, ROPE
66315-37010

LY20#,21#,YY201,211..T3

 2
66311K - HOOK, ROPE
66311-37020

LY132..T3..MTM..CBU;LY12#,YY121..TB..CBU;LY10#,15#,20#,YY201..TB;LY132..TB..WT..15T..CBU;LY112,162..T2..TB..ST..CBU;LY102,YY211..T2..ATM..(CBR,DSL)..IV3

TECS=ﾕｿｳｼﾔ(ﾓｸｾｲ ﾃﾞﾂｷ)

 12
66312J - HOOK, ROPE, NO.2
66312-37020

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 1
66312K - HOOK, ROPE, NO.2
66312-37020

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 1
66313 - SUPPORT, REAR FENDER
66236-25010

LY211,YY211..CBU;LY201,211,YY201,211..(T2,T3)..TB..15T..(CBR,DSL)

ﾌﾛﾝﾄ

 2
66235-25010

YY211..(T2,T3)..15T..CBR;LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201..(T2,T3)..TB

ﾘﾔ

 2
66313 - SUPPORT, REAR FENDER
66236-25010

LY211,YY211..CBU;LY201,211,YY201,211..(T2,T3)..TB..15T..(CBR,DSL)

ﾌﾛﾝﾄ

 2
66235-25010

YY211..(T2,T3)..15T..CBR;LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201..(T2,T3)..TB

ﾘﾔ

 2
66321 - BUMPER, GATE RUBBER
66321-92803

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 2
66321E - BUMPER, GATE RUBBER
66321-92805

LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201,211..(T2,T3)..TB..(CBR,DSL)

 4
66321E - BUMPER, GATE RUBBER
66321-92805

LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201,211..(T2,T3)..TB..(CBR,DSL)

 4
Common parts
90044-63020
90109-10160
90151-50004
90179-06070
91626-60616
91656-60616
91666-60616
93210-16016

(9610- )LY10#,11#,12#,13#,15#,16#,YY101,121,131..T3,TW1

Click highlighted areas on diagram

diagram 65100 65114B 65115C 65116A 65116A 65121A 65122A 65135 65241 65255 65317 65318 6553 66010A 66020A 66210A 66220A 66231A 66231B 66232A 66232B 66241B 66242A 66271 66311A 66312D 66312E 66312K 66313 66313 66321E 66321E 9015050006 9015050006 9017906009 9017906009 9151160820 9162140614 9165140616 9165140616 9165140616 9165140616 9165140616
Part # Description Qty Price
65100 - FLOOR ASSY, REAR BODY
65100-25380

LY20#,YY201..ST

 1
66010A - FENDER ASSY, REAR NO.2 RH
66010-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66020A - FENDER ASSY, REAR NO.2 LH
66020-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66210A - FENDER ASSY, REAR NO.1 RH
66210-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66220A - FENDER ASSY, REAR NO.1 LH
66220-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66242A - PLATE, BAFFLE RUBBER
66242-37070

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 2
66271 - STEP, REAR BODY
66271-37030

LY20#,21#,YY201,211..T3

 1
66312K - HOOK, ROPE, NO.2
66312-37020

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 1
66313 - SUPPORT, REAR FENDER
66236-25010

LY211,YY211..CBU;LY201,211,YY201,211..(T2,T3)..TB..15T..(CBR,DSL)

ﾌﾛﾝﾄ

 2
66235-25010

YY211..(T2,T3)..15T..CBR;LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201..(T2,T3)..TB

ﾘﾔ

 2
66313 - SUPPORT, REAR FENDER
66236-25010

LY211,YY211..CBU;LY201,211,YY201,211..(T2,T3)..TB..15T..(CBR,DSL)

ﾌﾛﾝﾄ

 2
66235-25010

YY211..(T2,T3)..15T..CBR;LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201..(T2,T3)..TB

ﾘﾔ

 2
66321E - BUMPER, GATE RUBBER
66321-92805

LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201,211..(T2,T3)..TB..(CBR,DSL)

 4
66321E - BUMPER, GATE RUBBER
66321-92805

LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201,211..(T2,T3)..TB..(CBR,DSL)

 4
Common parts
90150-50006
90179-06009
91511-60820
91621-40614
91651-40616
Linked diagrams
6553
