LY201-TKMFS3 (1995)
Toyota Dyna 150/Toyoace G15

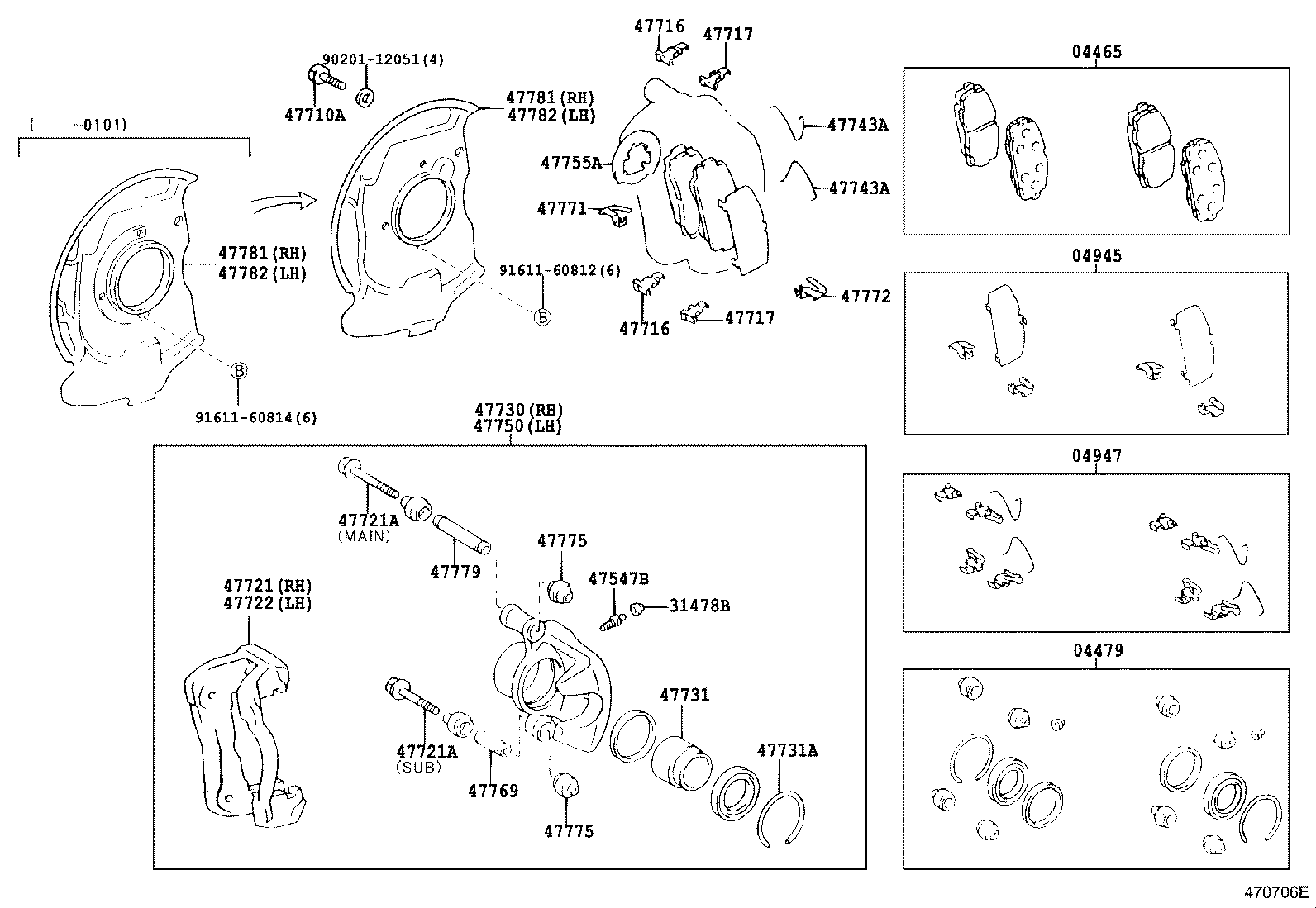

(9610- )LY12#,13#,15#,16#,YY121,131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-25010 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-26030 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 04479-25010 |
LY20#,21#,YY201,211 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-26100 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 04945-25020 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-25010 |
LY20#,21#,YY201,211 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12149 |
LY12#,13#,15#,16#,YY121,131 *12−1.25P−41X20 |
4 | ||
| 90119-12096 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 *12−1.25PX42.5−32 |
6 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-25011 |
LY20#,21#,YY201,211 |
4 | ||
| 47716-26050 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-25011 |
LY20#,21#,YY201,211 |
4 | ||
| 47716-26050 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-26020 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| 47717-25011 |
LY20#,21#,YY201,211 |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-26020 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| 47717-25011 |
LY20#,21#,YY201,211 |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-25010 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-10014 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..T1,T2,T3,TW1,TW2 *10−1.25PX65.5−30,ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 90119-10249 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..T1,T2,T3,TW1,TW2 *10−1.25PX95.5−30,ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 90119-10014 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 *10−1.25PX65.5−30,ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 90119-10249 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 *10−1.25PX95.5−30,ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-10014 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..T1,T2,T3,TW1,TW2 *10−1.25PX65.5−30,ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 90119-10249 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..T1,T2,T3,TW1,TW2 *10−1.25PX95.5−30,ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 90119-10014 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 *10−1.25PX65.5−30,ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 90119-10249 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 *10−1.25PX95.5−30,ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-25010 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-25011 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-25010 |
LY12#,13#,15#,16#,20#,21#,YY121,131,201,211 |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-76001 |
LY12#,13#,15#,16#,20#,21#,YY121,131,201,211 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-25011 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 47755A - INSULATOR, DISC BRAKE HEAT | ||||
| 47755-25010 |
LY12#,13#,15#,16#,20#,21#,YY121,131,201,211 |
2 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-40010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-25010 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
3 | ||
| 47771-26020 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 47772 - PLATE, PAD WEAR INDICATOR, NO.2 | ||||
| 47772-25010 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
3 | ||
| 47772-26020 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-40010 |
LY10#,11#,20#,21#,YY101,201,211 |
8 | ||
| 47775-26010 |
LY12#,13#,15#,16#,YY121,131 |
8 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-40010 |
LY10#,11#,20#,21#,YY101,201,211 |
8 | ||
| 47775-26010 |
LY12#,13#,15#,16#,YY121,131 |
8 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-40010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-25010 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-25010 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-25010 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-25010 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| Common parts | ||||
| 90201-12051 | ||||
| 91611-60812 | ||||
| 91611-60814 | ||||

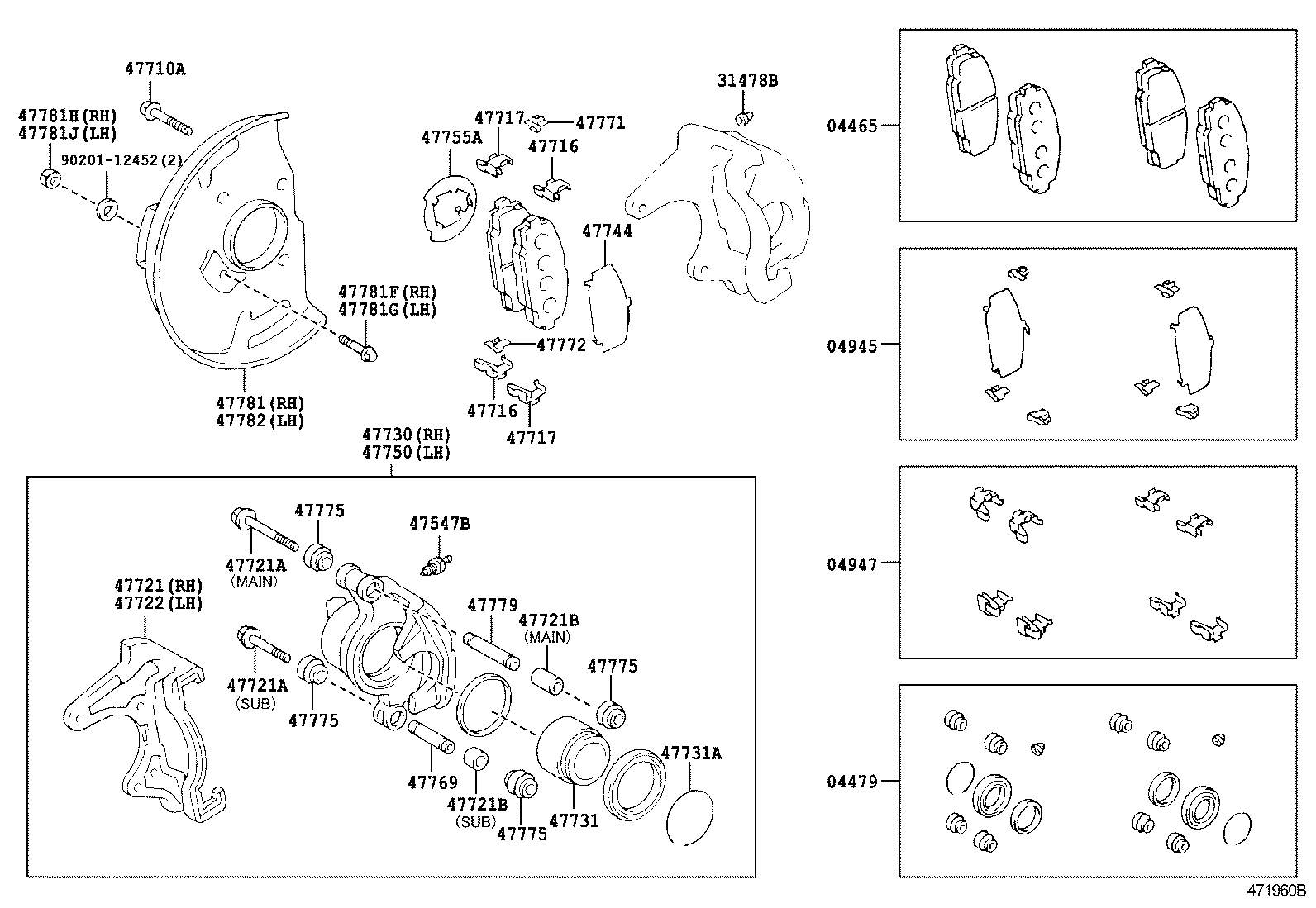

(9505- )LY20#,21#,YY201,211..T1,T2,T3,TW2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-25010 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-26030 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 04479-25010 |
LY20#,21#,YY201,211 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-26100 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 04945-25020 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-25010 |
LY20#,21#,YY201,211 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12149 |
LY12#,13#,15#,16#,YY121,131 *12−1.25P−41X20 |
4 | ||
| 90119-12096 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 *12−1.25PX42.5−32 |
6 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-25011 |
LY20#,21#,YY201,211 |
4 | ||
| 47716-26050 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-25011 |
LY20#,21#,YY201,211 |
4 | ||
| 47716-26050 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-26020 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| 47717-25011 |
LY20#,21#,YY201,211 |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-26020 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| 47717-25011 |
LY20#,21#,YY201,211 |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-25010 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-10014 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..T1,T2,T3,TW1,TW2 *10−1.25PX65.5−30,ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 90119-10249 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..T1,T2,T3,TW1,TW2 *10−1.25PX95.5−30,ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 90119-10014 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 *10−1.25PX65.5−30,ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 90119-10249 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 *10−1.25PX95.5−30,ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-10014 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..T1,T2,T3,TW1,TW2 *10−1.25PX65.5−30,ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 90119-10249 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..T1,T2,T3,TW1,TW2 *10−1.25PX95.5−30,ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 90119-10014 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 *10−1.25PX65.5−30,ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 90119-10249 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 *10−1.25PX95.5−30,ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90387-16004 |
LY10#,11#,20#,21#,YY101,201,211 ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 90387-16005 |
LY10#,11#,20#,21#,YY101,201,211 ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90387-16004 |
LY10#,11#,20#,21#,YY101,201,211 ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 90387-16005 |
LY10#,11#,20#,21#,YY101,201,211 ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-25010 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-25011 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-25010 |
LY12#,13#,15#,16#,20#,21#,YY121,131,201,211 |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-76001 |
LY12#,13#,15#,16#,20#,21#,YY121,131,201,211 |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-25010 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-25011 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 47755A - INSULATOR, DISC BRAKE HEAT | ||||
| 47755-25010 |
LY12#,13#,15#,16#,20#,21#,YY121,131,201,211 |
2 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-40010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-26020 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 47771-25010 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
3 | ||
| 47772 - PLATE, PAD WEAR INDICATOR, NO.2 | ||||
| 47772-25010 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
3 | ||
| 47772-26020 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-40010 |
LY10#,11#,20#,21#,YY101,201,211 |
8 | ||
| 47775-26010 |
LY12#,13#,15#,16#,YY121,131 |
8 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-40010 |
LY10#,11#,20#,21#,YY101,201,211 |
8 | ||
| 47775-26010 |
LY12#,13#,15#,16#,YY121,131 |
8 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-40010 |
LY10#,11#,20#,21#,YY101,201,211 |
8 | ||
| 47775-26010 |
LY12#,13#,15#,16#,YY121,131 |
8 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-40010 |
LY10#,11#,20#,21#,YY101,201,211 |
8 | ||
| 47775-26010 |
LY12#,13#,15#,16#,YY121,131 |
8 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-40010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-25010 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH) | ||||
| 90119-12096 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH) | ||||
| 90119-12096 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 47781H - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM RH) | ||||
| 94115-71200 |
LY201,211,YY201,211 |
1 | ||
| 47781J - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM LH) | ||||
| 94115-71200 |
LY201,211,YY201,211 |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-25010 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| Common parts | ||||
| 90201-12452 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
