Toyota Dyna 150/toyoace g15 LY201 FUEL FILTER

LY201-TGMGS (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996

Engine 3L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9505- )3L,5L..LY20#,21#

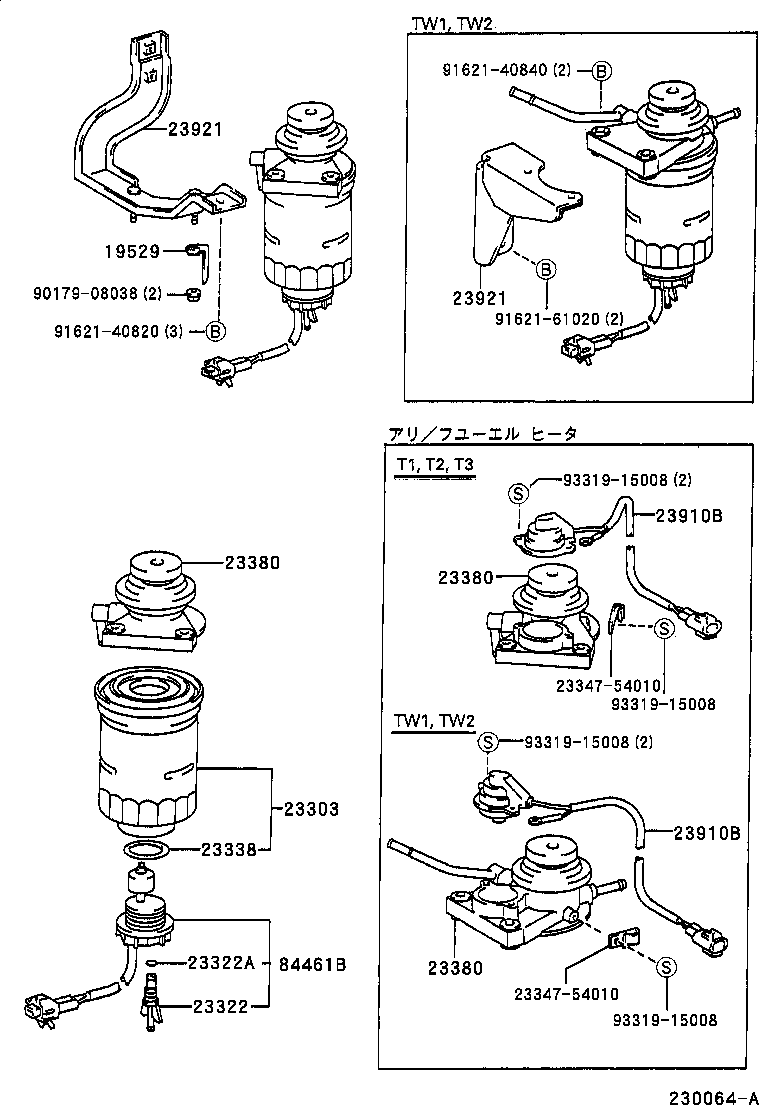

Click highlighted areas on diagram

Part #	Description	Period	Qty
19529 - CLAMP
19529-54010	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..(CBU,IV3)	05/1995 - 12/2999	1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#	05/1995 - 12/2999	1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#	05/1995 - 12/2999	1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#	05/1995 - 12/2999	1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#	05/1995 - 12/2999	1
23380 - CAP ASSY, FUEL FILTER
23380-54790	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..(CBU,IV3)	05/1995 - 12/2999	1
23380-54800	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..(CBU,IV3) ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	05/1995 - 12/2999	1
23380 - CAP ASSY, FUEL FILTER
23380-54790	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..(CBU,IV3)	05/1995 - 12/2999	1
23380-54800	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..(CBU,IV3) ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	05/1995 - 12/2999	1
23380 - CAP ASSY, FUEL FILTER
23380-54790	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..(CBU,IV3)	05/1995 - 12/2999	1
23380-54800	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..(CBU,IV3) ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	05/1995 - 12/2999	1
23910B - HEATER ASSY, FUEL
23910-54080	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..T1,T2,T3,T4	05/1995 - 12/2999	1
23910B - HEATER ASSY, FUEL
23910-54080	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..T1,T2,T3,T4	05/1995 - 12/2999	1
23921 - SUPPORT, FUEL FILTER
23921-54360	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..(CBU,IV3)	05/1995 - 12/2999	1
23921 - SUPPORT, FUEL FILTER
23921-54360	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..(CBU,IV3)	05/1995 - 12/2999	1
84461B - SWITCH, LEVEL WARNING
84461-60040	LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..DSL	05/1995 - 12/2999	1
Common parts
23347-54010
90179-08038
90179-10015
91611-61025
91621-40820
91621-40840
93319-15008

(9505- )3L,5L..LY10#,11#,12#,13#,15#,16#..CBU,IV3

Click highlighted areas on diagram

Part #	Description	Period	Qty
19529 - CLAMP
19529-54010	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..(CBU,IV3)	05/1995 - 12/2999	1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#	05/1995 - 12/2999	1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#	05/1995 - 12/2999	1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#	05/1995 - 12/2999	1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#	05/1995 - 12/2999	1
23380 - CAP ASSY, FUEL FILTER
23380-54790	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..(CBU,IV3)	05/1995 - 12/2999	1
23380-54800	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..(CBU,IV3) ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	05/1995 - 12/2999	1
23380 - CAP ASSY, FUEL FILTER
23380-54790	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..(CBU,IV3)	05/1995 - 12/2999	1
23380-54800	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..(CBU,IV3) ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	05/1995 - 12/2999	1
23380 - CAP ASSY, FUEL FILTER
23380-54790	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..(CBU,IV3)	05/1995 - 12/2999	1
23380-54800	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..(CBU,IV3) ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	05/1995 - 12/2999	1
23910B - HEATER ASSY, FUEL
23910-54080	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..T1,T2,T3,T4	05/1995 - 12/2999	1
23910B - HEATER ASSY, FUEL
23910-54080	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..T1,T2,T3,T4	05/1995 - 12/2999	1
23921 - SUPPORT, FUEL FILTER
23921-54360	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..(CBU,IV3)	05/1995 - 12/2999	1
23921 - SUPPORT, FUEL FILTER
23921-54360	3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..(CBU,IV3)	05/1995 - 12/2999	1
84461B - SWITCH, LEVEL WARNING
84461-60040	LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..DSL	05/1995 - 12/2999	1
Common parts
23347-54010
90179-08038
91621-40820
91621-40840
91621-61020
93319-15008

LY201-TGMGS (1995)

(9505- )3L,5L..LY20#,21#

(9505- )3L,5L..LY10#,11#,12#,13#,15#,16#..CBU,IV3
