LY201-PSMBS3 (1995)
Toyota Dyna 150/Toyoace G15
(9505- )LY201,YY201..TS..ST ; (9610- )LY10#,11#,15#,YY101 ; (9610- )LY16#.

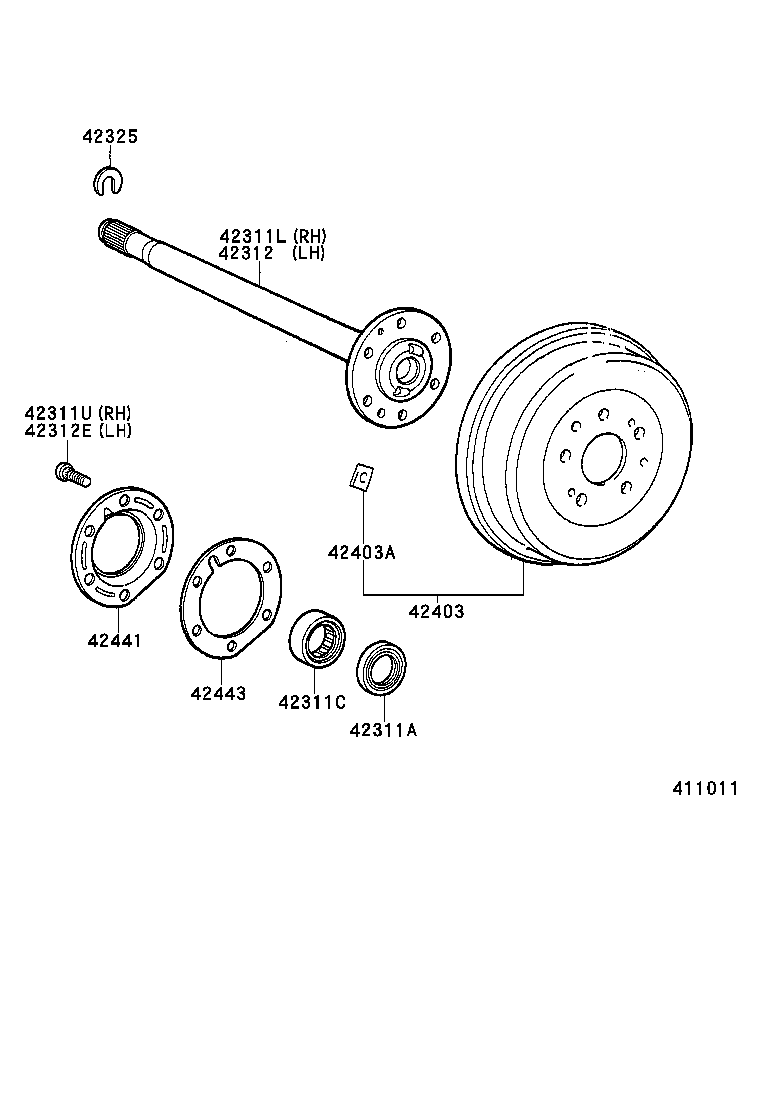

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-50001 |
LY16#..(T2,T3,TW1)..TS;LY10#,11#,15#,201,YY101,201..ST..(125,1T) |
2 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90363-40041 |
LY16#..(T2,T3,TW1)..TS;LY10#,11#,15#,201,YY101,201..ST..(125,1T) TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90313-48001 |
LY16#..(T2,T3,TW1)..TS;LY10#,11#,15#,201,YY101,201..ST..(125,1T) TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-25090 |
LY201,YY201..T1,TW2 |
1 | ||
| 42311T - RING, SNAP (FOR REAR AXLE SHAFT RH) | ||||
| 90520-36045 |
LY16#..(T2,T3,TW1)..TS;LY10#,11#,15#,201,YY101,201..ST..(125,1T) |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02030 |
LY211,YY211..ST;LY201,YY201..T1,T3,TW2;LY131,161,YY131..T2..ST..15T |
6 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42311-25090 |
LY201,YY201..T1,TW2 |
1 | ||
| 42312D - RING, SNAP (FOR REAR AXLE SHAFT LH) | ||||
| 90520-36045 |
LY16#..(T2,T3,TW1)..TS;LY10#,11#,15#,201,YY101,201..ST..(125,1T) |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02030 |
LY211,YY211..ST;LY201,YY201..T1,T3,TW2;LY131,161,YY131..T2..ST..15T |
6 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-25070 |
LY201,YY201..T1,TW2 |
2 | ||
| 42421D - CASE, REAR AXLE BEARING, RH | ||||
| 42421-35030 |
LY16#..(T2,T3,TW1)..TS;LY10#,11#,15#,201,YY101,201..ST..(125,1T) |
1 | ||
| 42422 - CASE, REAR AXLE BEARING, LH | ||||
| 42421-35030 |
LY16#..(T2,T3,TW1)..TS;LY10#,11#,15#,201,YY101,201..ST..(125,1T) PNC 42311E=TYPE A |
1 | ||
| 42423 - RETAINER, REAR AXLE BEARING, INNER | ||||
| 42423-20010 |
LY16#..(T2,T3,TW1)..TS;LY10#,11#,15#,201,YY101,201..ST..(125,1T) |
2 | ||
| 42424A - RING, O (FOR BEARING RETAINER SET) | ||||
| 90301-88077 |
LY16#..(T2,T3,TW1)..TS;LY10#,11#,15#,201,YY101,201..ST..(125,1T) |
2 | ||
| 42441 - DEFLECTOR, BRAKE DRUM OIL | ||||
| 42441-25041 |
LY201,YY201..T1,TW2 |
2 | ||
| 42443 - GASKET, BRAKE DRUM OIL DEFLECTOR | ||||
| 42443-25010 |
LY21#,YY211..ST;LY20#,YY201..T1,T3,TW2;LY13#,16#,YY131..T2..ST..15T |
2 | ||
| 42444R - GASKET, BRAKE DRUM (FOR REAR AXLE) | ||||
| 42444-25010 |
LY201,YY201..T1,TW2 |
2 | ||
(9505- )125..LPG ; (9505- )LY21#..ST ; (9505- )YY211..ST..125 ; (9505-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-50001 |
LY16#..(T2,T3,TW1)..TS;LY10#,11#,15#,201,YY101,201..ST..(125,1T) |
2 | ||
| 90310-50001 |
LY16#..(T2,T3,TW1)..TS;LY10#,11#,15#,201,YY101,201..ST..(125,1T) |
2 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90363-40041 |
LY16#..(T2,T3,TW1)..TS;LY10#,11#,15#,201,YY101,201..ST..(125,1T) TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 90363-40041 |
LY16#..(T2,T3,TW1)..TS;LY10#,11#,15#,201,YY101,201..ST..(125,1T) TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-25090 |
LY201,YY201..T1,TW2 |
1 | ||
| 42311-25090 |
LY201,YY201..T1,TW2 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02030 |
LY211,YY211..ST;LY201,YY201..T1,T3,TW2;LY131,161,YY131..T2..ST..15T |
6 | ||
| 90942-02030 |
LY211,YY211..ST;LY201,YY201..T1,T3,TW2;LY131,161,YY131..T2..ST..15T |
6 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42311-25090 |
LY201,YY201..T1,TW2 |
1 | ||
| 42311-25090 |
LY201,YY201..T1,TW2 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02030 |
LY211,YY211..ST;LY201,YY201..T1,T3,TW2;LY131,161,YY131..T2..ST..15T |
6 | ||
| 90942-02030 |
LY211,YY211..ST;LY201,YY201..T1,T3,TW2;LY131,161,YY131..T2..ST..15T |
6 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-25070 |
LY201,YY201..T1,TW2 |
2 | ||
| 42431-25070 |
LY201,YY201..T1,TW2 |
2 | ||
| 42441 - DEFLECTOR, BRAKE DRUM OIL | ||||
| 42441-25041 |
LY201,YY201..T1,TW2 |
2 | ||
| 42441-25041 |
LY201,YY201..T1,TW2 |
2 | ||
| 42443 - GASKET, BRAKE DRUM OIL DEFLECTOR | ||||
| 42443-25010 |
LY21#,YY211..ST;LY20#,YY201..T1,T3,TW2;LY13#,16#,YY131..T2..ST..15T |
2 | ||
| 42443-25010 |
LY21#,YY211..ST;LY20#,YY201..T1,T3,TW2;LY13#,16#,YY131..T2..ST..15T |
2 | ||
