LY201-PSMBS3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )3L,5L..LY20#,21#

Click highlighted areas on diagram

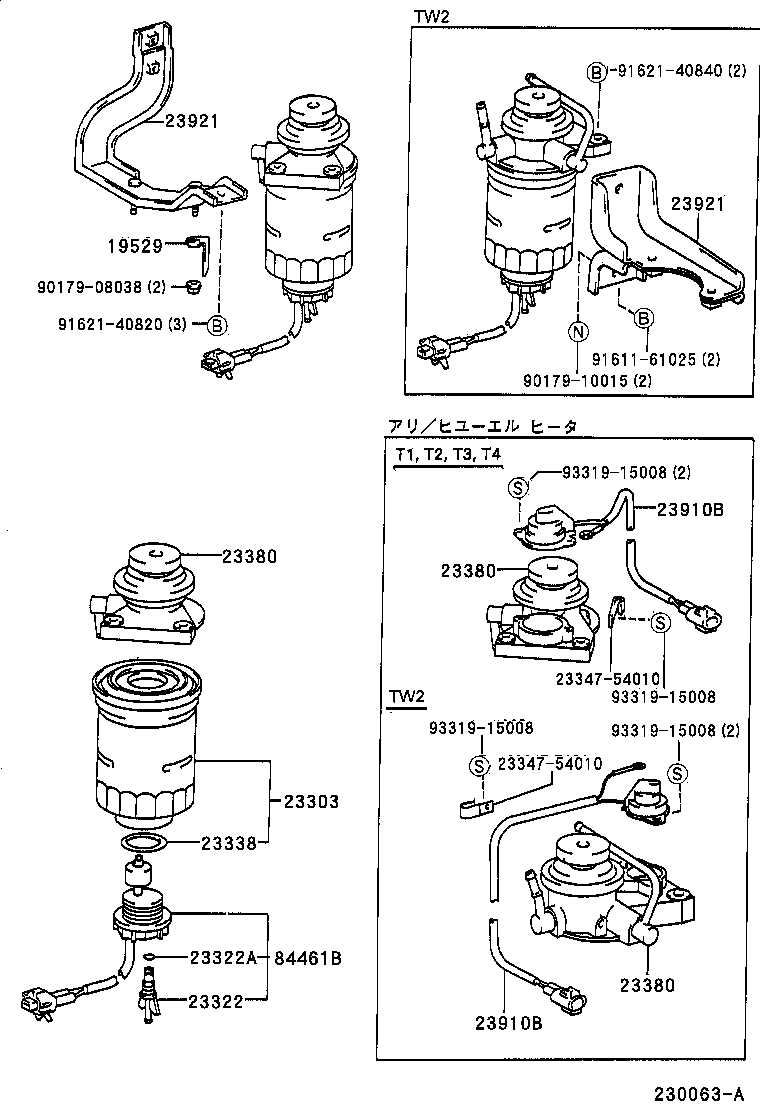

diagram 19529 23303 23322 23322A 23338 2334754010 2334754010 23380 23380 23380 23910B 23910B 23921 23921 84461B 9017908038 9017910015 9161161025 9162140820 9162140840 9331915008 9331915008 9331915008 9331915008
Part # Description Qty Price
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
23380 - CAP ASSY, FUEL FILTER
23380-54590

3L,5L..LY201,21#..TW2

ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ)

 1
23380-54650

3L,5L..LY201,21#..TW2

 1
23380 - CAP ASSY, FUEL FILTER
23380-54590

3L,5L..LY201,21#..TW2

ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ)

 1
23380-54650

3L,5L..LY201,21#..TW2

 1
23380 - CAP ASSY, FUEL FILTER
23380-54590

3L,5L..LY201,21#..TW2

ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ)

 1
23380-54650

3L,5L..LY201,21#..TW2

 1
23910B - HEATER ASSY, FUEL
23910-54050

3L,5L..LY10#,11#,13#,15#,16#,201,21#..TW1,TW2

 1
23910B - HEATER ASSY, FUEL
23910-54050

3L,5L..LY10#,11#,13#,15#,16#,201,21#..TW1,TW2

 1
23921 - SUPPORT, FUEL FILTER
23921-54220

3L,5L..LY11#,16#..IV5;3L,5L..LY201,21#..TW2

 1
23921 - SUPPORT, FUEL FILTER
23921-54220

3L,5L..LY11#,16#..IV5;3L,5L..LY201,21#..TW2

 1
84461B - SWITCH, LEVEL WARNING
84461-26050

LY10#,11#,13#,15#,16#,201,21#..TW1,TW2

 1
Common parts
23347-54010
90179-08038
90179-10015
91611-61025
91621-40820
91621-40840
93319-15008
