Toyota Dyna 150/toyoace g15 LY201 ALTERNATOR

LY201-PSMBS3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996

Engine 3L

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

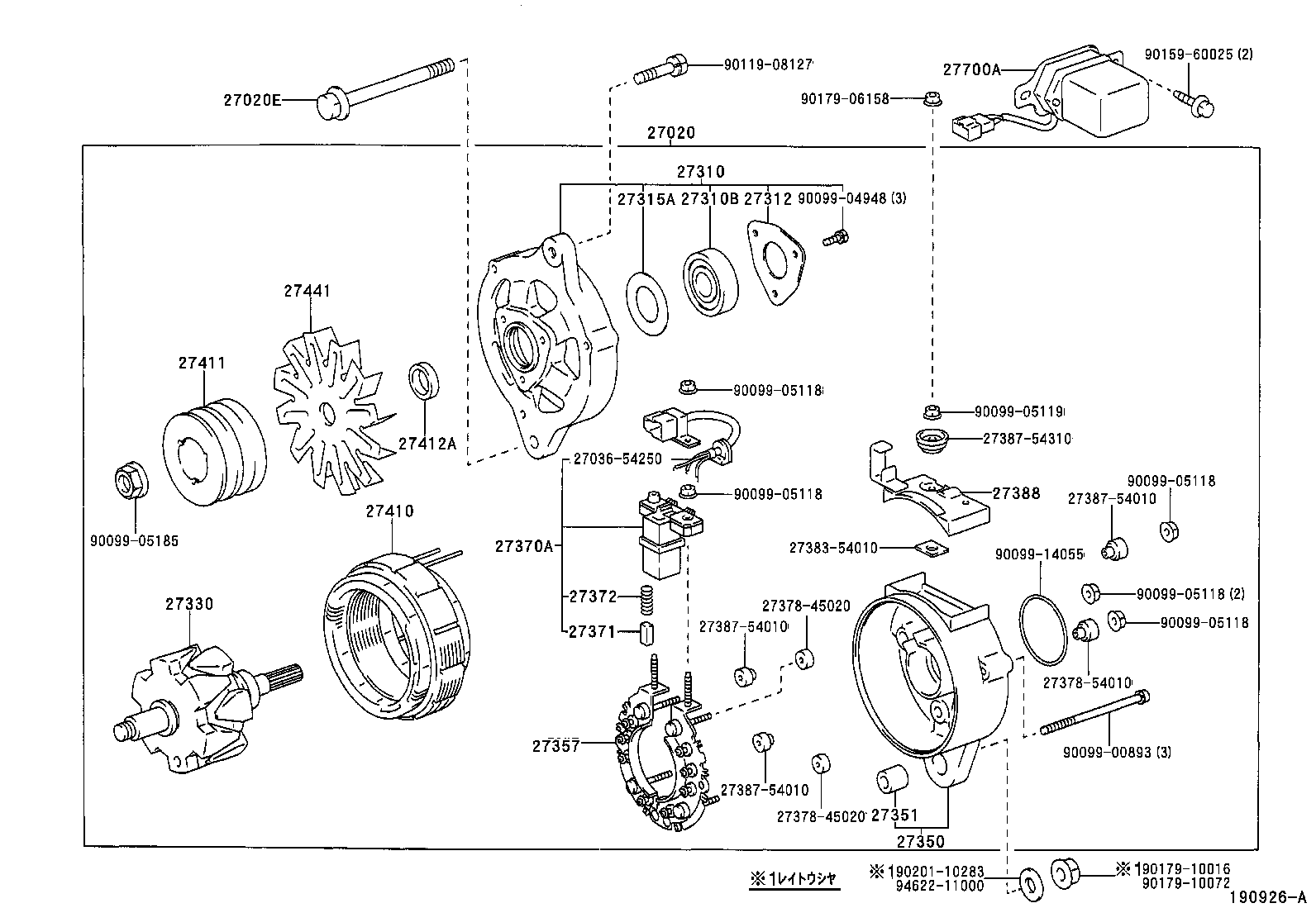

(9505- )3L

Click highlighted areas on diagram

12V 50A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-54403	3L..LY101,111,121,131,151,161,201,211..CBU,IV3 12V 50A	05/1995 - 05/1999	1
27020E - BOLT(FOR ALTERNATOR)
90101-10231	3L..LY101,111,121,131,151,161,201,211	05/1995 - 11/1998	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-54131	3L..LY101,111,121,131,151,161,201,211	05/1995 - 05/1999	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137	3L..LY101,111,121,131,151,161,201,211	05/1995 - 05/1999	1
27312 - PLATE, RETAINER
27312-57060	3L..LY101,111,121,131,151,161,201,211	05/1995 - 05/1999	1
27315A - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060	3L..LY101,111,121,131,151,161,201,211	05/1995 - 05/1999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-54292	3L..LY101,111,121,131,151,161,201,211..CBU,IV3	05/1995 - 05/1999	1
27350 - FRAME ASSY, RECTIFIER END
27350-54130	3L..LY101,111,121,131,151,161,201,211	05/1995 - 05/1999	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013	3L..LY101,111,121,131,151,161,201,211	05/1995 - 05/1999	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-64070	3L..LY101,111,121,131,151,161,201,211..CBU,IV3	05/1995 - 05/1999	1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-54250	3L..LY101,111,121,131,151,161,201,211..CBU,IV3	05/1995 - 05/1999	1
27371 - BRUSH, ALTERNATOR
27371-54412	3L..LY101,111,121,131,151,161,201,211	05/1995 - 05/1999	2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070	3L..LY101,111,121,131,151,161,201,211	05/1995 - 05/1999	2
27388 - COVER, ALTERNATOR BRUSH
27388-54341	3L..LY101,111,121,131,151,161,201,211..CBU,IV3	05/1995 - 05/1999	1
27410 - STATOR ASSY, ALTERNATOR
27410-41080	3L..LY101,111,121,131,151,161,201,211..CBU,IV3	05/1995 - 05/1999	1
27411 - PULLEY, ALTERNATOR
27411-54351	3L..LY101,111,121,131,151,161,201,211	05/1995 - 05/1999	1
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-57060	3L..LY101,111,121,131,151,161,201,211	05/1995 - 05/1999	1
27441 - FAN, ALTERNATOR
27441-56090	3L..LY101,111,121,131,151,161,201,211..CBU,IV3	05/1995 - 05/1999	1
27700A - REGULATOR ASSY, GENERATOR
27700-54070	3L..LY101,111,121,131,151,161,201,211..CBU,IV3	05/1995 - 05/1999	1
Common parts
27036-54250
27378-45020
27378-54010
27383-54010
27387-54010
27387-54310
90099-00893
90099-04948
90099-05118
90099-05119
90099-05185
90099-14055
90119-08127
90159-60025
90179-06158
90179-10016
90179-10072
90201-10283
94622-11000

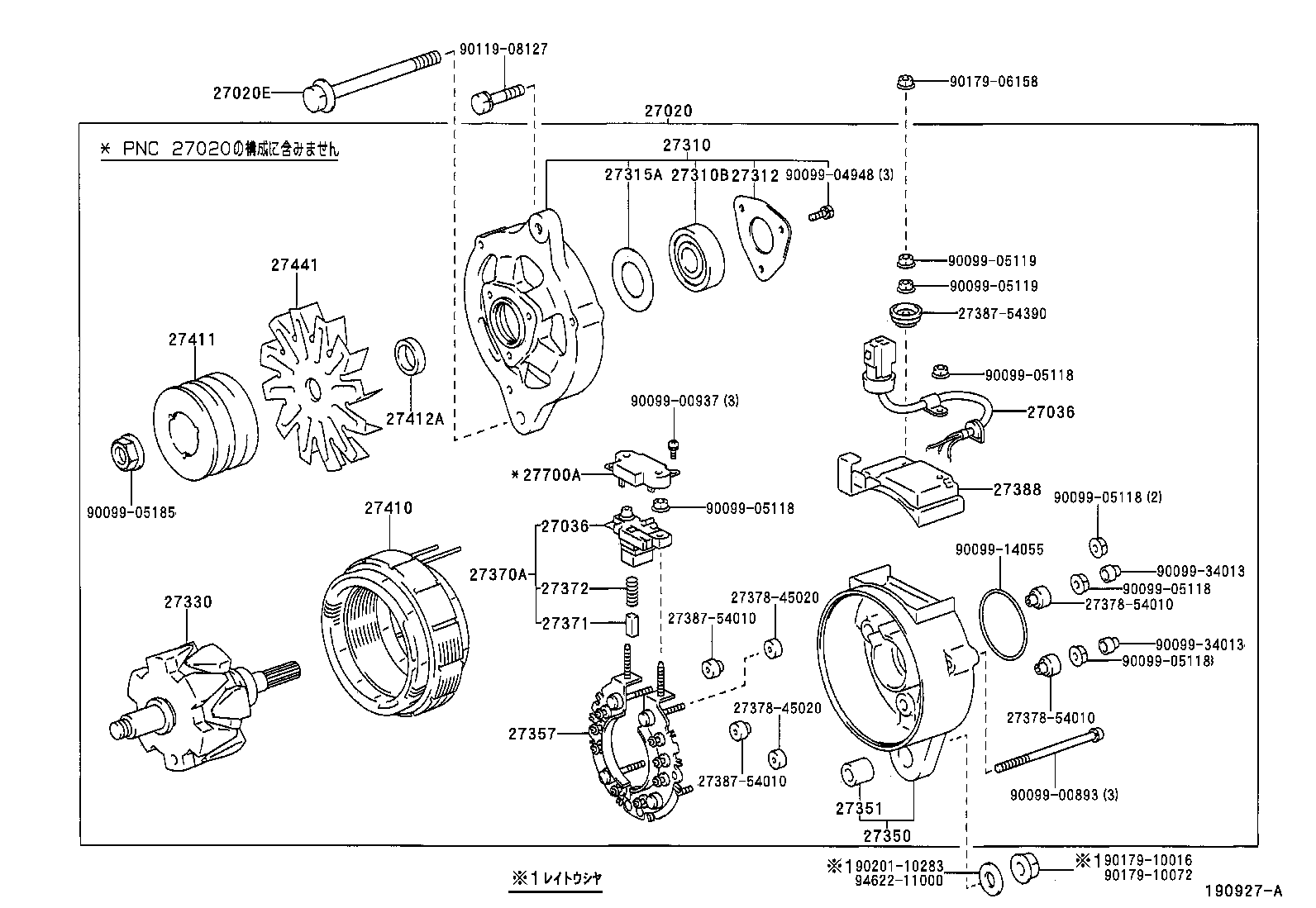

(9505- )3L

Click highlighted areas on diagram

12V 60A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-54403	3L..LY101,111,121,131,151,161,201,211..CBU,IV3 12V 50A	05/1995 - 05/1999	1
27020E - BOLT(FOR ALTERNATOR)
90101-10231	3L..LY101,111,121,131,151,161,201,211	05/1995 - 11/1998	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-54131	3L..LY101,111,121,131,151,161,201,211	05/1995 - 05/1999	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10137	3L..LY101,111,121,131,151,161,201,211	05/1995 - 05/1999	1
27312 - PLATE, RETAINER
27312-57060	3L..LY101,111,121,131,151,161,201,211	05/1995 - 05/1999	1
27315A - COVER, ALTERNATOR FELT, INNER NO.1
27315-57060	3L..LY101,111,121,131,151,161,201,211	05/1995 - 05/1999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-54292	3L..LY101,111,121,131,151,161,201,211..CBU,IV3	05/1995 - 05/1999	1
27350 - FRAME ASSY, RECTIFIER END
27350-54130	3L..LY101,111,121,131,151,161,201,211	05/1995 - 05/1999	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-56013	3L..LY101,111,121,131,151,161,201,211	05/1995 - 05/1999	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-64070	3L..LY101,111,121,131,151,161,201,211..CBU,IV3	05/1995 - 05/1999	1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-54250	3L..LY101,111,121,131,151,161,201,211..CBU,IV3	05/1995 - 05/1999	1
27371 - BRUSH, ALTERNATOR
27371-54412	3L..LY101,111,121,131,151,161,201,211	05/1995 - 05/1999	2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070	3L..LY101,111,121,131,151,161,201,211	05/1995 - 05/1999	2
27388 - COVER, ALTERNATOR BRUSH
27388-54341	3L..LY101,111,121,131,151,161,201,211..CBU,IV3	05/1995 - 05/1999	1
27410 - STATOR ASSY, ALTERNATOR
27410-41080	3L..LY101,111,121,131,151,161,201,211..CBU,IV3	05/1995 - 05/1999	1
27411 - PULLEY, ALTERNATOR
27411-54351	3L..LY101,111,121,131,151,161,201,211	05/1995 - 05/1999	1
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-57060	3L..LY101,111,121,131,151,161,201,211	05/1995 - 05/1999	1
27441 - FAN, ALTERNATOR
27441-56090	3L..LY101,111,121,131,151,161,201,211..CBU,IV3	05/1995 - 05/1999	1
27700A - REGULATOR ASSY, GENERATOR
27700-54070	3L..LY101,111,121,131,151,161,201,211..CBU,IV3	05/1995 - 05/1999	1
Common parts
27378-45020
27378-54010
27387-54010
27387-54390
90099-00893
90099-00937
90099-04948
90099-05118
90099-05119
90099-05185
90099-14055
90099-34013
90119-08127
90179-06158
90179-10016
90179-10072
90201-10283
94622-11000

LY201-PSMBS3 (1995)

(9505- )3L

(9505- )3L
