LY162-TGMGS3 (1999)

Toyota Dyna 150/Toyoace G15

Production May 1999 - Jul 2001
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )LY162..WT

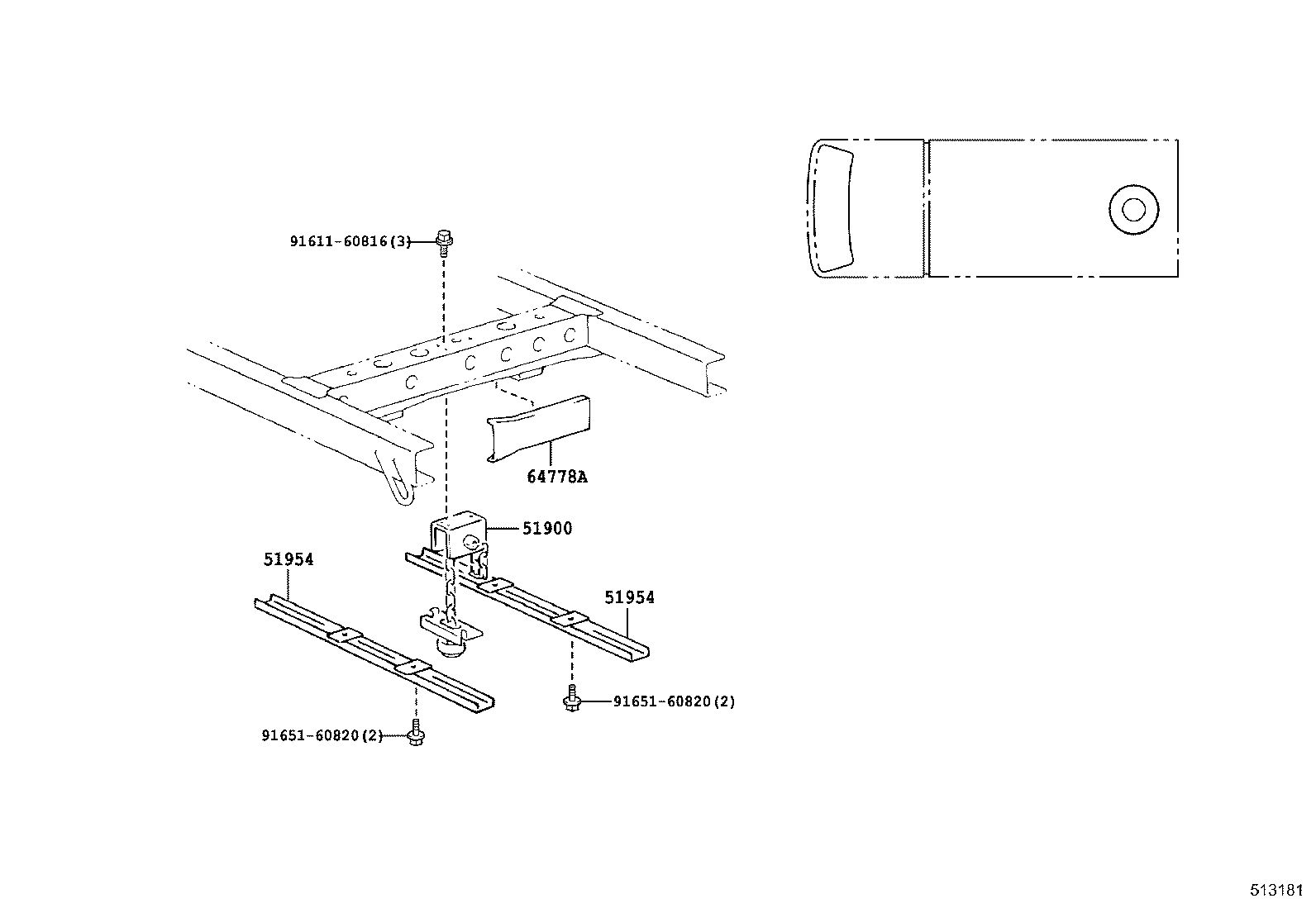

Click highlighted areas on diagram

ﾘﾔ1ﾀﾞﾝ

diagram 51900 51954 51954 64778A 9161160816 9165160820 9165160820
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-26080

LY162..WT

ﾘﾔ

 1
51900-35170

LY162..WT

左側

 1
51954 - CARRIER ASSY, SPARE WHEEL
51954-26020

LY162..WT

 2
51954 - CARRIER ASSY, SPARE WHEEL
51954-26020

LY162..WT

 2
Common parts
91611-60816
91651-60820
